Lab Compact Jet Mill with Feeder and Product Collector
The ZYLAB Lab Compact Jet Mill with Feeder and Product Collector is a tabletop laboratory micronizing system specially designed for ultra-fine grinding, particle size reduction, and powder preparation of small batches and high-value materials. Powered by high-speed compressed air or inert gas, the jet mill produces...
Introduction
The ZYLAB Lab Compact Jet Mill with Feeder and Product Collector is a tabletop laboratory micronizing system specially designed for ultra-fine grinding, particle size reduction, and powder preparation of small batches and high-value materials. Powered by high-speed compressed air or inert gas, the jet mill produces fine powders without mechanical grinding media, minimizing contamination while ensuring excellent particle size uniformity.
Equipped with an adjustable vibrating feeder, cyclone separator, and powder collection vessel, this compact laboratory jet mill offers stable feeding, high powder recovery, and easy cleaning, making it an ideal solution for universities, research institutes, battery laboratories, pharmaceutical research, advanced ceramics, fine chemicals, and material science applications.
Applications
The Lab Compact Jet Mill with Feeder and Product Collector is ideal for laboratory-scale micronization and particle size reduction of dry powders across a wide range of industries.
- Battery Materials: LFP, NCM/NCA, graphite, silicon anode materials, solid-state electrolytes
- Advanced Ceramics: Alumina, zirconia, silicon carbide, boron nitride, ceramic pigments
- Pharmaceuticals: APIs, pharmaceutical intermediates, excipients, biochemical powders
- Chemicals: Fine chemicals, catalysts, polymers, functional additives
- Minerals: Calcium carbonate, talc, kaolin, silica, quartz
- Electronic Materials: Semiconductor powders, magnetic materials, phosphors, conductive materials
- Pigments & Coatings: Pigments, powder coatings, printing inks, specialty powders
- Research & Development: Universities, research institutes, material science laboratories, and pilot-scale process development
Features and Benefits
- The main housing is made of 304 stainless steel, with an inner lining of high purity fully sintered alumina ceramic (corundum ceramic), ensuring wear resistance and no contamination.
- Its small footprint makes it ideal for laboratory benches, pilot-scale research, and limited workspace environments.

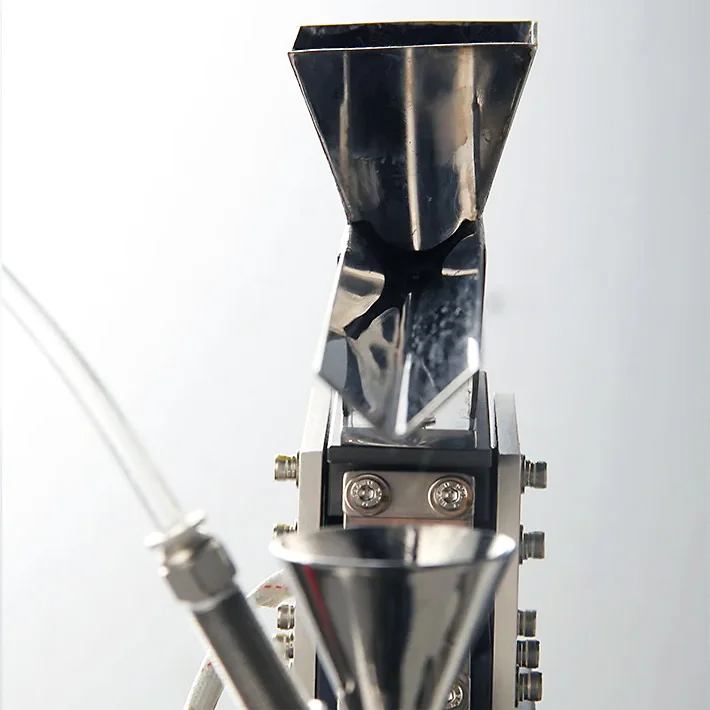

- The integrated electromagnetic vibrating feeder allows precise control of the feeding rate for stable and continuous operation.
- Equipped with a cyclone separator and collection vessel for convenient product collection, with three dust-proof collecting bags included.
- Air consumption is 0.4~0.6 m³/min, with a working pressure of 0.6Mpa~1.0Mpa.
- The air supply system is to be provided by the user, connecting to the main air pipe, with the internal pressure regulator fully matched.
Case
Supplying the Compact Jet Mill to a Leading Chemical & Equipment Supplier in Mexico
Supplying Lab Scale Jet Mill to a Leading U.S. Cement R&D Company
Supplying a Compact Lab Scale Jet Mill to the National Research Council Canada for Battery Material Research
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Name | Lab Scale Jet Mill (Ceramic Contamination-free Flat Jet Mil) | Output Size | D50≤0.5~20um (Depending on the material) |
|---|---|---|---|
| Model | JM-50 | Capacity | 50g~500g/h(0.05~0.5kg/h) |
| Feeding Size | ≤80 mesh (recommend 80-300 mesh) | Working Power | 30w (vibrating feeder) |
| Dimensions | 500X300X450(mm) | Net Weight | 20kgs |
Lab Compact Jet Mill with Feeder and Product Collector In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
