1200°C Tube Furnaces – Precision Heating for Laboratory & Industrial Application
ZYLAB 1200°C Tube Furnaces are versatile and reliable high-temperature systems designed for heat treatment, sintering, material research, and atmosphere processing. Featuring advanced PID temperature control and customizable configurations, they offer excellent temperature uniformity and stable thermal performance for...
Introduction
ZYLAB 1200°C Tube Furnaces are versatile and reliable high-temperature systems designed for heat treatment, sintering, material research, and atmosphere processing. Featuring advanced PID temperature control and customizable configurations, they offer excellent temperature uniformity and stable thermal performance for scientific laboratories, universities, and industrial R&D environments.
Key Features
High Purity Quartz Tube: Designed for use up to 1200°C, with continuous operation from room temperature to 1100°C.
7-Inch Color Touchscreen Interface: Intuitive LCD user interface for easy monitoring and control.
30-Segment Programmable Control: Enables precise temperature ramping and holding profiles.
15 Sintering Programs Preset: Quickly switch between common sintering curves for improved efficiency.
Vacuum-Formed Alumina Fiber Insulation: Eco-friendly, energy-efficient chamber with excellent temperature uniformity and fast heat-up rates.
Corrosion-Resistant Heating Elements: High-grade alloy wires and protective liner resist acid/base attack and minimize contamination.
Double-Layer Steel Shell with Fan Cooling: Keeps the external surface below 50°C to ensure user safety.
Ring-Shaped Heating with Open Structure: Facilitates uniform heating and allows visual monitoring, ideal for fast sintering of small samples.
Gas Flow Meter Included: Supports precise and convenient atmosphere sintering under inert or reactive gases.
Multi-Function Flange Design: Includes test ports for inserting electrodes or temperature/gas sensors.
Modular Temperature Zones: Configurable with one or more independently controlled zones for flexible thermal processing.
Typical Applications of 1200°C Tube Furnaces
Materials Synthesis: Ideal for synthesizing nanomaterials, ceramic compounds, and powder metallurgy products under controlled temperature and atmosphere.
Thermal Processing: Supports annealing, calcination, and sintering of a wide range of materials, including metals, ceramics, and composites.
Controlled Atmosphere Experiments: Enables thermal processing under inert gas, reducing gas, or vacuum environments for sensitive or reactive materials.
Semiconductor Fabrication: Suitable for wafer annealing, diffusion, oxidation, and single crystal growth processes.
Thermal Decomposition and Pyrolysis: Applied in decomposition of materials and gas–solid reactions for catalyst or advanced material production.
Chemical Vapor Deposition (CVD): Used for thin film deposition and surface coating applications in electronics and materials engineering.
Catalyst Preparation and Testing: Facilitates the activation, regeneration, and performance evaluation of various catalytic materials.
Scientific Research and Education: Widely used in R&D in materials science, chemistry, and physics for fundamental studies and experiment-based teaching.
Customization & Accessories
ZYLAB offers a wide range of customizable options and accessories to meet the specific requirements of your thermal processing applications:
Rotary or Sliding Tube Mechanism – For uniform heating and mixing of samples
Vacuum and Gas Mixing Systems – Enable controlled atmosphere processing under vacuum or inert/reducing gases
Rapid Cooling Module – Accelerates cooling to shorten process cycles
Multi-Zone Temperature Control – Each zone can be independently configured for temperature gradients
Gas Safety Protection Device – Ensures safe operation during atmosphere processing with inert or flammable gases
Laboratory Water Vapor Generator – For experiments requiring controlled humidity or steam atmosphere
Efficient Inert Gas Preheater – Preheats gases before entering the furnace to maintain temperature stability
Chemical Vapor Deposition (CVD) System – Fully integrated system for thin film deposition and surface coating applications
Advantages of ZYLAB Furnaces
Flexible Customization – Designed to meet diverse laboratory demands
Widely Used in Research and Industry – Reliable performance in materials labs, universities, and production environments
Professional Support – Dedicated technical service and documentation
Efficient Logistics – Timely delivery and global shipment options
How Does a Tube Furnace Work?
Understanding Tube Furnace Temperatures: Medium vs. High-Temperature Applications
Rotary Tube Furnace vs. Horizontal Tube Furnace vs. Vertical Tube Furnace: Which One Suits Your Needs?
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.

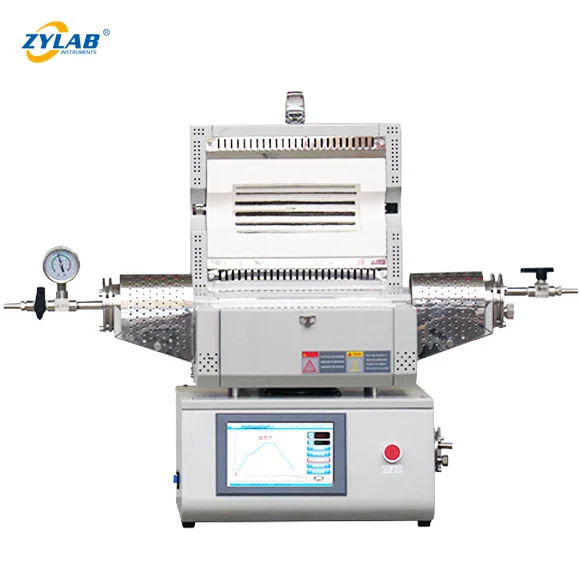

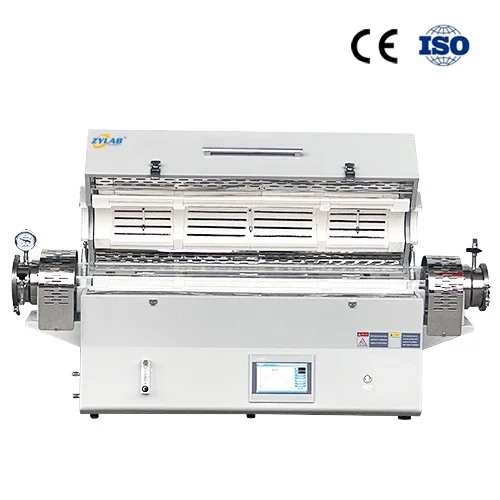

| Name | 1200°C Mini Tube Furnace | 1200°C Single Zone Tube Furnace | 1200°C Double Zone Tube Furnace | 1200°C Three Zone Tube Furnace |
|---|---|---|---|---|
| Image | ||||
| Chamber Model | Open | Open | Open | Open |
| Heating Zone | Single | Single | Dual(2 zones) | Three(3 zones) |
| Working voltage | AC208-240V 50/60HZ | AC208-240V 50/60HZ | AC208-240V 50/60HZ | AC380V 50/60HZ |
| Max. Power | 1.2KW | 4KW | 2KW+2KW | 2KW+4KW+2KW |
| Maximum Temperature | 1200°C (for ≤1 hour) | 1200°C (for ≤1 hour) | 1200°C (for ≤1 hour) | 1200°C (for ≤1 hour) |
| Continuous Working Temp | 1150°C (continuous) | 1150°C (continuous) | 1150°C (continuous) | 1150°C (continuous) |
| Max Heating Rate | ≤20°C/min | ≤20°C/min | ≤20°C/min | ≤20°C/min |
| Length of Heating Zone | 200mm | 440mm | 200+200mm Optional: 300+300mm | 200+400+200mm |
| Tube Material | High purity quartz | High purity quartz | High purity quartz | High purity quartz |
| Tube Size | Φ25×600mm Φ50×600mm | Φ50×1000mm Φ60×1000mm Φ80×1000mm Φ100×1000mm | Φ50×1000mm Φ60×1000mm Φ80×1000mm Φ100×1000mm | Φ50×1400mm Φ60×1400mm Φ80×1400mm Φ100×1400mm |
| Temperature Accuracy | ±1°C | ±1°C | ±1°C | ±1°C |
| Net Weight | 23 kg | 60 kg | 60 kg | 90 kg |
1200°C Tube Furnaces – Precision Heating for Laboratory & Industrial Application In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
- General laboratory sample preparation
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
- University and institute research laboratories
