View specificationsStraightforward wired tracker for cars, motorcycles and light vehicles, with fuel level monitoring on the analog input.
R-18 is the entry unit in the vehicle range. It tracks a car, motorcycle or almost anything else that runs on 8 to 90V, and it keeps the feature list short on purpose: position, the alarms an owner actually reacts to, and one analog input so fuel can still be watched.

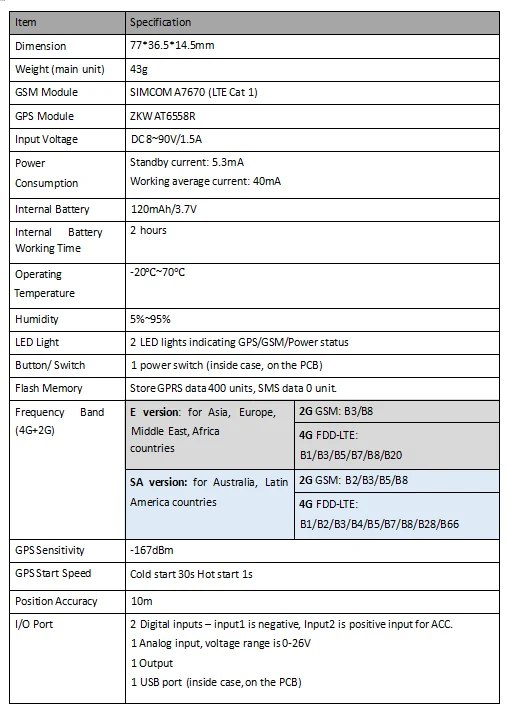

| Operating voltage | 8-90V |
|---|---|
| IO | 2 digital inputs, 1 analog input, 1 output |
| Positioning | GPS plus GSM base station |
| Fuel monitoring | Through the analog input |
| Remote engine stop | Optional, with relay |
Alarm set, reporting interval and platform protocol can be adapted. Packaging and labelling can be produced under your brand.
R-18 covers position and alarms. Move to VT-301 or VT-302 when the customer asks who was driving, and to VT-390 when the job needs cameras.
Connect to vehicle power within the 8-90V range, wire the ACC and door inputs you intend to use, add the relay if remote stop is part of the contract, then check the geo-fence and power cut alarms on the platform.
Yes. The operating range is 8-90V, which covers both without an adapter.
Yes, through the analog input. That is the main reason to choose R-18 over a position only device.
Yes, as an option with a relay fitted to the output.
An external power cut alarm is sent.
No. Driver ID is on VT-301, VT-302 and VT-390.
Tell us your target quantity in your enquiry and we will confirm the terms for your branding level.
