View specificationsMagnet mounted 4G asset tracker in three battery versions, up to 20000 mAh and 100 days standby.

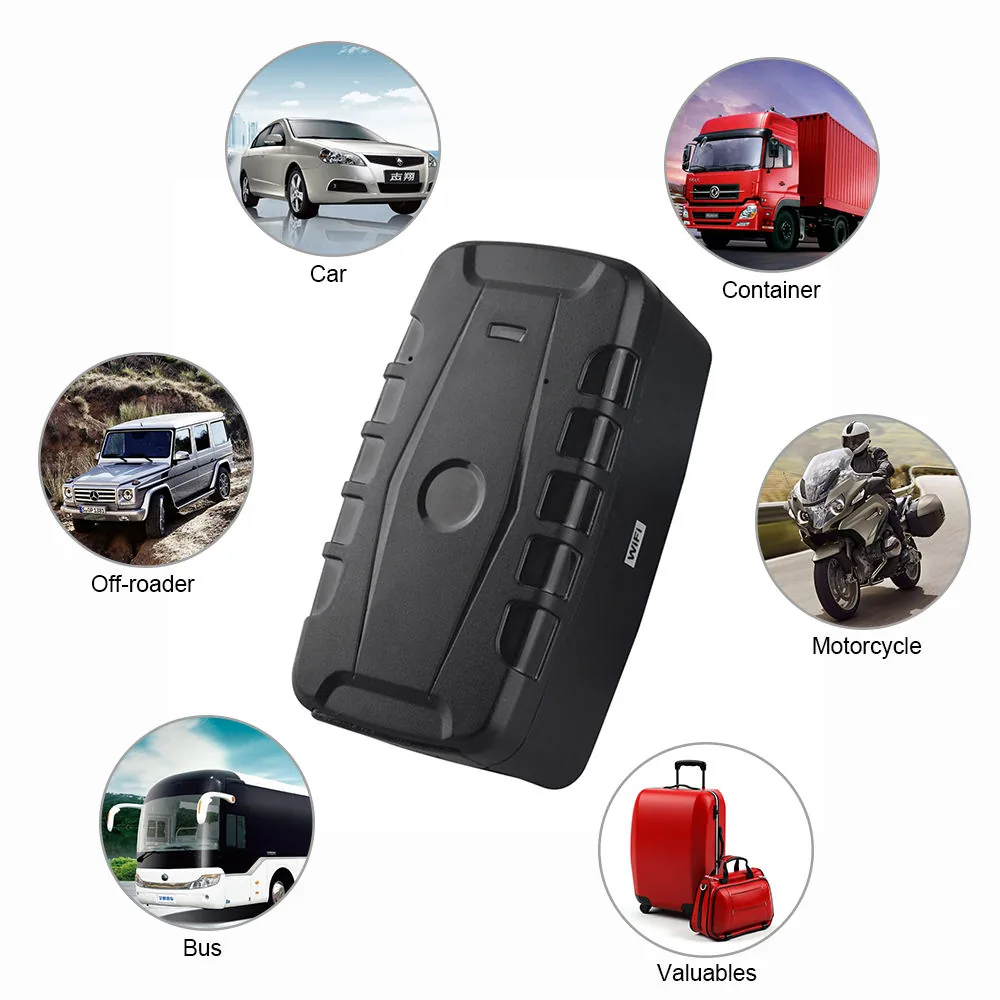

G25 is the tracker you fit when there is nothing to wire into. A waterproof ABS case with five super magnets and a ring magnet sticks to any metal surface, and the battery is specified per job: 6000, 10000 or 20000 mAh, giving 30, 50 or 100 days of standby. Lift it off the asset and a drop alarm goes out to the preset number and to the platform.
| Battery | 6000 / 10000 / 20000 mAh 3.7V polymer |
|---|---|
| Standby time | 30 / 50 / 100 days by version |
| Operating voltage | DC 3.4V - 4.5V |
| Working current | 4V / 65 mA |
| Sleep current | 4V / 3 mA |
| Positioning accuracy | <10 m (1 sigma) |
| Tracking sensitivity | -162 dBm |
| Cold start | Average 32 seconds |
| Device size | 118 x 60 x 26 / 31 / 46 mm by version |
| Weight | 215 / 300 / 450 g by version |
| Shell material | ABS plastic |
| Protection rating | IP65 |
| Magnets | 5 pcs super magnet plus ring magnet |
| Working temperature | -20 to 75 degrees C |
| Humidity | 10% - 85% RH |
| Maximum speed | 515 m/s |
| Maximum height | 18000 m |
Battery version, working mode defaults and reporting intervals are set per project. Firmware, case marking and retail packaging can be produced to your specification.
G25 runs on its own battery and is recharged. G07E adds a solar panel and recharges itself in the open, which suits containers and boats that stay outdoors. For a wired vehicle install, use the VT range.
Charge fully, insert the SIM, select normal, power saving or smart mode by SMS to match how often the asset moves, then place the unit on a clean metal surface and confirm the first position before the asset leaves.
Match it to the service interval. 6000 mAh lasts 30 days, 10000 mAh 50 days, 20000 mAh 100 days in standby.
Five super magnets and a ring magnet hold it to any metal surface. No wiring or bracket is needed.
Yes. A drop alarm is sent to the preset number and to the tracking platform.
The case is rated IP65 and moulded in ABS plastic.
Yes, upload time, sleep time and heartbeat interval are set by SMS command.
Data is kept in the built in memory and resent once the LTE network is received again.
