YTC Type Valve Positioner

YT1000R Electro Pneumatic Valve Positioner-Yellow

Rotary YT-1000R in high-visibility yellow

Yellow-housing rotary positioner. It converts the control-room current signal into the air signal that drives the regulating valve, and offsets the unbalanced force produced when medium pressure fluctuates, so valve opening keeps matching the control-room output.

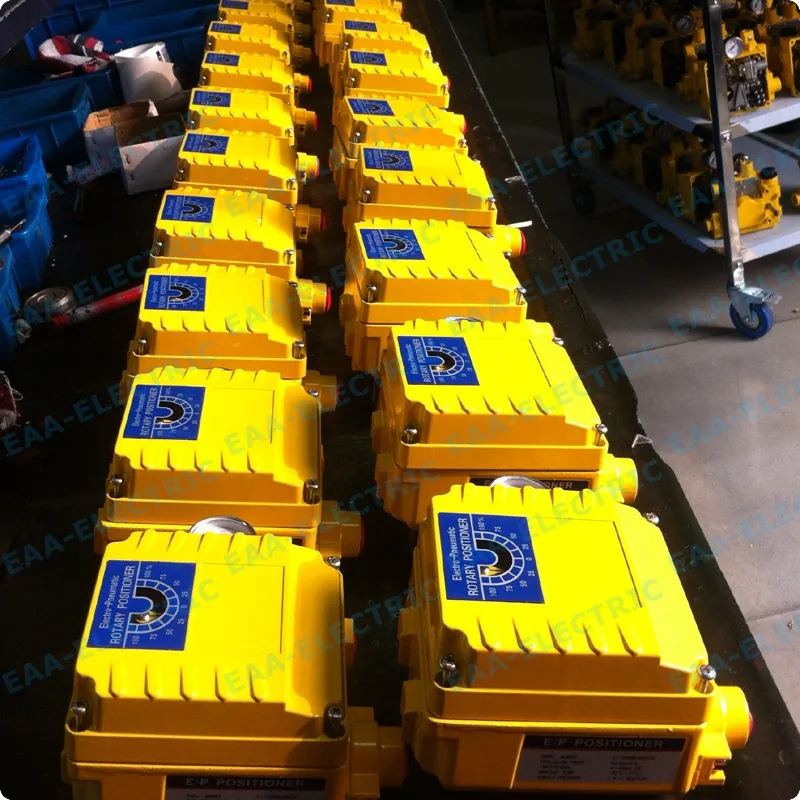

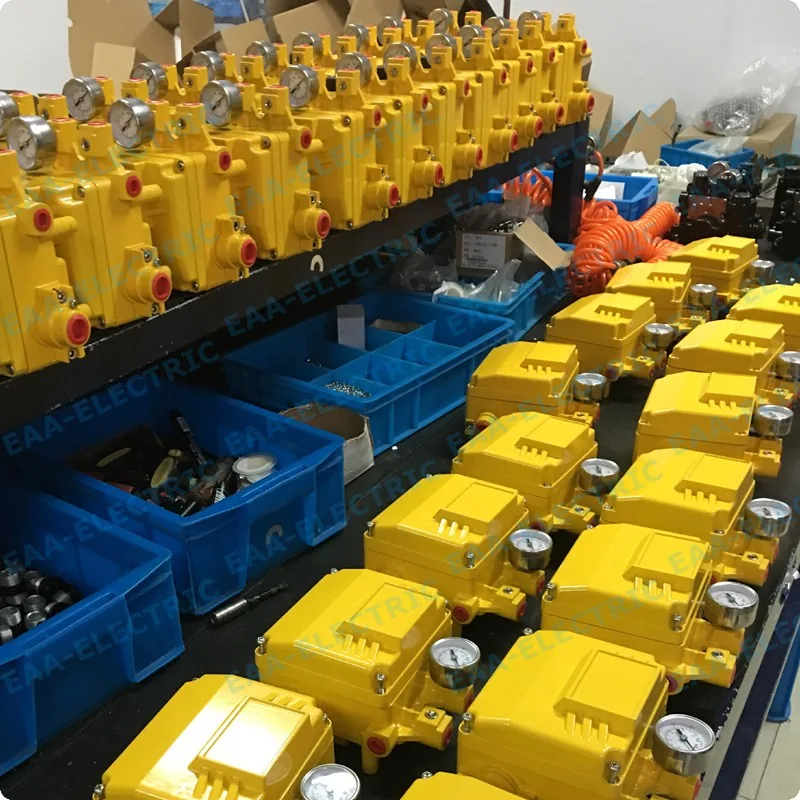

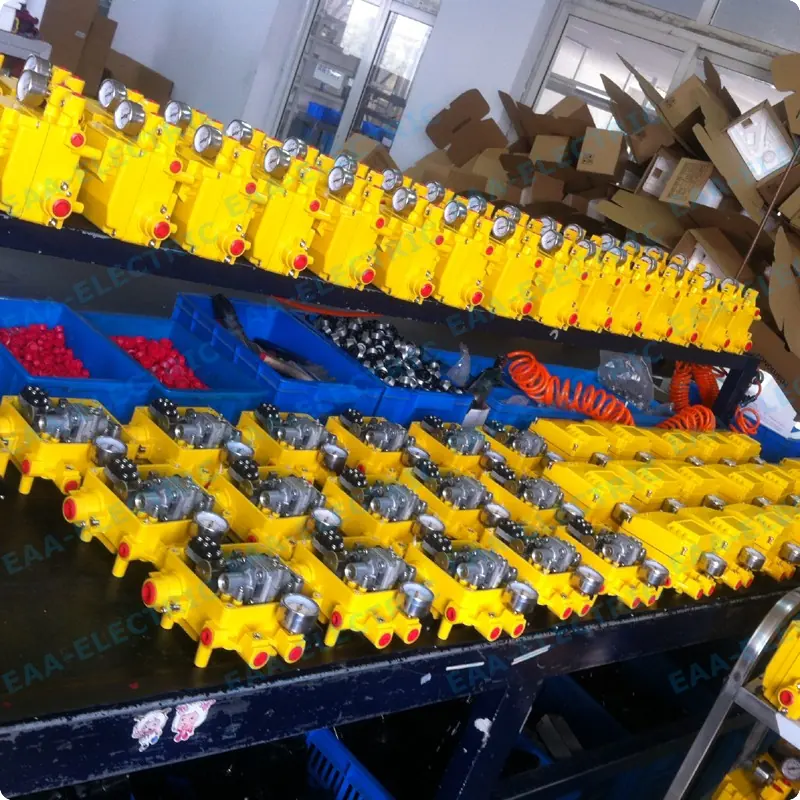

High-visibility yellow housing, batch produced
Offsets unbalanced force from medium pressure fluctuation
Suits pneumatic angular-stroke actuators
Classified by input signal, action direction and gain sign — specify on order
Air connection PT (NPT) 1/4, gauge PT (NPT) 1/8

Request a quotation WhatsApp

Typical duty: Angular-stroke actuators on lines where medium pressure swings and valve opening drifts.

Specification

YT-1000R specification (EAA Electric data sheet)
Input signal	4–20 mA DC
Impedance	250 ± 15 Ω
Supply pressure	1.4–7 kgf/cm² (20–100 psi)
Stroke	0–90°
Air connection	PT (NPT) 1/4
Gauge connection	PT (NPT) 1/8
Conduit	PF 1/2 (G1/2)
Explosion proof	Ex dm IIB T5 / Ex dm IIC T5 / Ex ia IIB T6
Protection	IP66
Ambient temperature	-20 to +70 °C operating; -20 to +60 °C explosion-proof
Linearity	±1 % F.S. single acting / ±2 % F.S. double acting
Hysteresis	±1 % F.S.
Sensitivity	±0.2 % F.S. single acting / ±0.5 % F.S. double acting
Repeatability	±0.5 % F.S.
Air consumption	3 LPM (supply 1.4 kgf/cm², 20 psi)
Flow capacity	80 LPM (supply 1.4 kgf/cm², 20 psi)
Material	Aluminium diecasting
Weight	2.8 kg (6.2 lb)
Lever type	M6×40L / M6×63L / M8×40L / M8×63L / NAMUR
Option 1	None (standard) or dome cover
Option 2	None / +PTM internal / +PTM external / +L/S internal / +L/S external / +PTM+L/S internal

Technical background

Type YT-1000R Electro-pneumatic valve positioner is used for operation of pneumatic rotary valve actuators by means of electrical controller or control system with an analog output signal of DC 4 to 20 mA or split Ranges.

YT1000R Electro Pneumatic Valve Positioner- A brief introduction of smart EP valve positioner Intelligent electro valve positioners are widely used in the positioning control of pneumatic linear or angular stroke actuators. YT1000R EP Valve Positioner converts the current signal output by the control room into a gas signal that drives the regulating valve.

According to the friction force of the valve stem when the regulating valve is working, YT1000R EP Positioner offsets the unbalanced force produced by the fluctuation of the medium pressure, so that the valve opening corresponds to the control room output.

Classification of YT valve positioners: The valve positioner is divided into pneumatic valve positioner, electro valve positioner and intelligent valve positioner according to the input signal. According to the direction of action, it can be divided into one-way valve positioner and two-way valve positioner.

Questions buyers ask

What does the positioner do when line pressure swings?

It offsets the unbalanced force that the pressure fluctuation produces on the plug, keeping valve opening in correspondence with the control-room output.

Is a separate 24 V supply needed?

Not normally. Smart positioners usually work from the 4–20 mA signal alone; a 24 V DC supply is added only when that signal cannot meet the unit's power consumption.
