YTC Type Valve Positioner

YT1000L Electro Pneumatic Valve Positioner-Yellow

YT-1000L in high-visibility yellow

The yellow YT-1000L is ordered where the positioner has to be spotted quickly on a crowded skid. Function is the standard linear unit — it adds the positioner as a secondary loop on stem displacement, which is what removes stem-friction lag from the control valve.

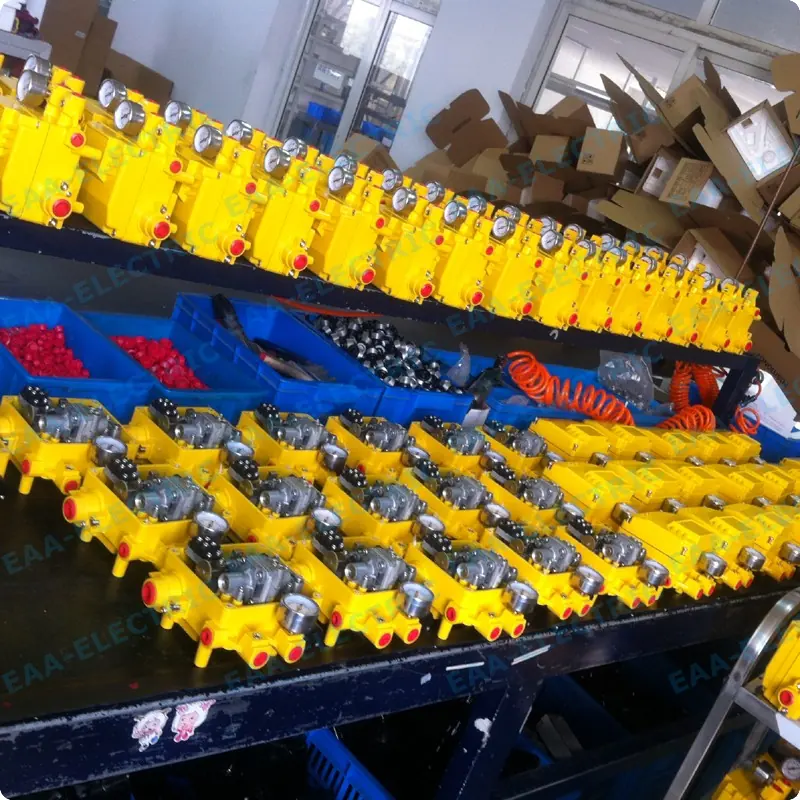

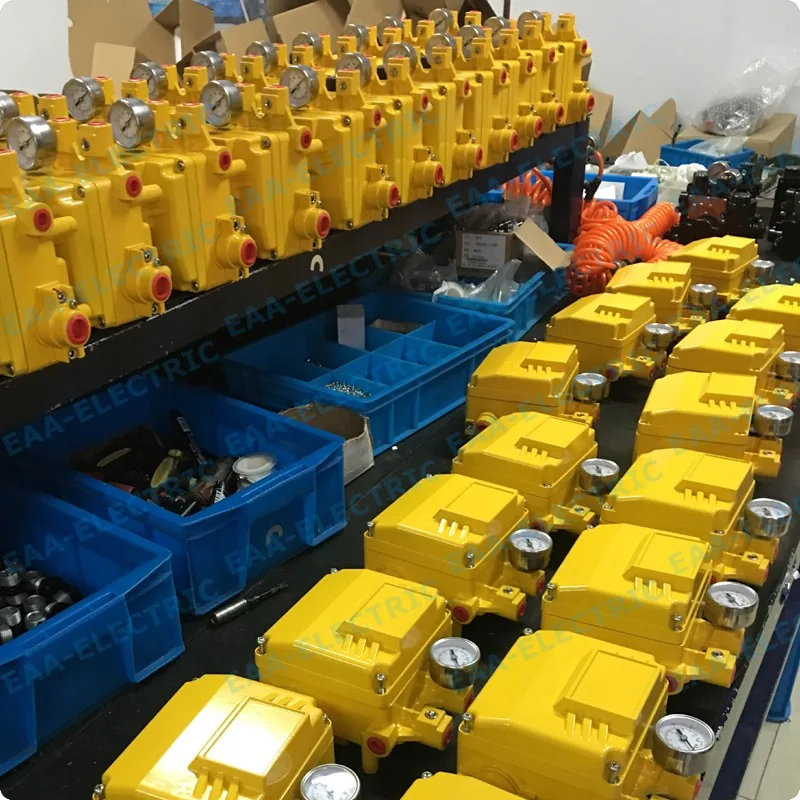

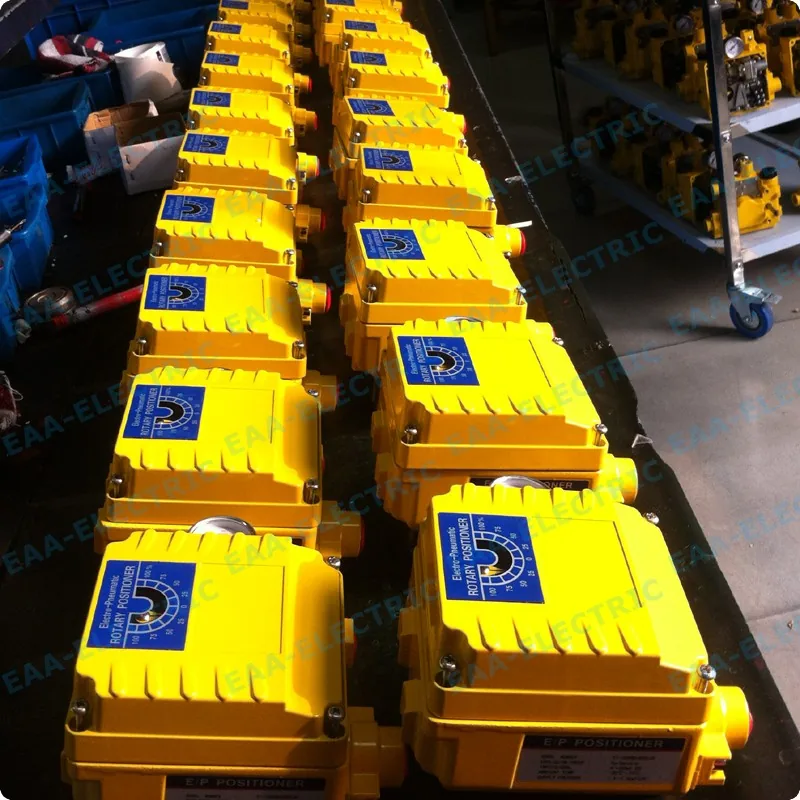

High-visibility yellow housing, produced in dedicated batch runs
Positioner forms a cascade loop with stem displacement as the secondary variable
Characterised cam available to correct butterfly-valve flow characteristics
Sensitivity ±0.2 % F.S. single acting, repeatability ±0.5 % F.S.
Weight 2.7 kg (6.1 lb)

Request a quotation WhatsApp

Typical duty: Outdoor skids, utility headers and maintenance-heavy plants where fast visual identification matters.

Specification

YT-1000L specification (EAA Electric data sheet)
Input signal	4–20 mA DC
Impedance	250 ± 15 Ω
Supply pressure	1.4–7 kgf/cm² (20–100 psi)
Stroke	10–150 mm
Air connection	PT (NPT) 1/4
Gauge connection	PT (NPT) 1/8
Conduit	PF 1/2 (G1/2)
Explosion proof	Ex dm IIB T5 / Ex dm IIC T5 / Ex ia IIB T6
Protection	IP66
Ambient temperature	-20 to +70 °C operating; -20 to +60 °C explosion-proof
Linearity	±1 % F.S. single acting / ±2 % F.S. double acting
Hysteresis	±1 % F.S.
Sensitivity	±0.2 % F.S. single acting / ±0.5 % F.S. double acting
Repeatability	±0.5 % F.S.
Air consumption	3 LPM (supply 1.4 kgf/cm², 20 psi)
Flow capacity	80 LPM (supply 1.4 kgf/cm², 20 psi)
Material	Aluminium diecasting
Weight	2.7 kg (6.1 lb)
Acting type	Single acting (S) or double acting (D)
Lever type	10–40 / 30–70 / 60–100 / 100–150 mm
Orifice type	Ø1, Ø2 or none
Connection type	PT or NPT

Technical background

Type YT-1000L Electro-pneumatic valve positioner is used for operation of pneumatic linear valve actuators by means of electrical controller or control system with an analog output signal of DC 4 to 20 mA or split Ranges.

YT1000L Electro Pneumatic Valve Positioner- Supporting the use of YT electro-pneumatic positioner Electro-pneumatic positioner can be used for single-acting (spring return type) and double-acting pneumatic actuators. After adding the valve positioner, it forms a secondary loop with the displacement of the valve stem as the secondary controlled variable.

It forms a cascade control system with the original single-loop control system. The controlled variable of the original control system becomes the master of the cascade control system. Therefore, adding a valve positioner can improve the function of the control system.

Since the cam is used as the feedback link, changing the shape of the cam can effectively change the gain of the secondary loop and compensate for the nonlinear characteristics of the controlled object. For valves with fixed flow characteristics such as butterfly valves, the positioner can use a characteristic cam to improve the corrected flow characteristics.

Questions buyers ask

Why add a positioner to a butterfly valve?

Because the cam is the feedback link, changing the cam shape changes the secondary-loop gain and compensates the non-linear characteristic of a fixed-characteristic valve.

Which actuators does it suit?

Pneumatic linear actuators, single or double acting, within the 10–150 mm stroke range.
