YTC Type Valve Positioner

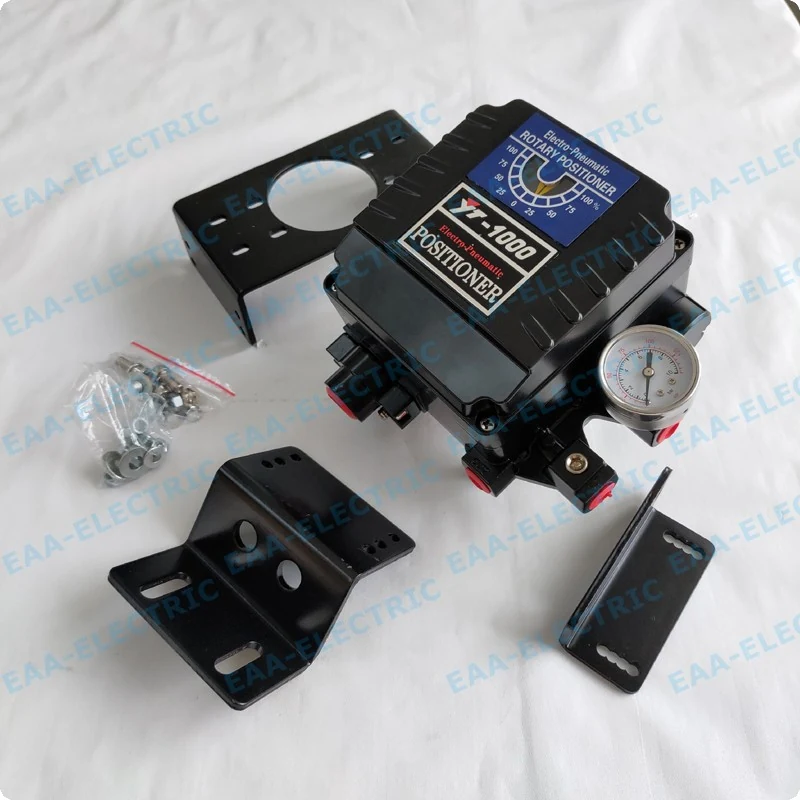

YT1000R Electro Pneumatic Valve Positioner-Black

Rotary E/P positioner, 0–90°, black finish

The YT-1000R is the rotary counterpart of the linear unit: it positions quarter-turn pneumatic actuators over 0–90° from a 4–20 mA DC signal. This is the standard black build.

0–90° rotary stroke for ball, butterfly and plug valve actuators
Ordering options include NAMUR lever type and dome cover
Ordinary or intelligent (CPU) variants within the same family
Positive or reverse acting by gain sign of output against input
IP66 housing, weight 2.8 kg (6.2 lb)

Request a quotation WhatsApp

Typical duty: Quarter-turn control valves on process headers where a controller or DCS provides 4–20 mA.

Specification

YT-1000R specification (EAA Electric data sheet)
Input signal	4–20 mA DC
Impedance	250 ± 15 Ω
Supply pressure	1.4–7 kgf/cm² (20–100 psi)
Stroke	0–90°
Air connection	PT (NPT) 1/4
Gauge connection	PT (NPT) 1/8
Conduit	PF 1/2 (G1/2)
Explosion proof	Ex dm IIB T5 / Ex dm IIC T5 / Ex ia IIB T6
Protection	IP66
Ambient temperature	-20 to +70 °C operating; -20 to +60 °C explosion-proof
Linearity	±1 % F.S. single acting / ±2 % F.S. double acting
Hysteresis	±1 % F.S.
Sensitivity	±0.2 % F.S. single acting / ±0.5 % F.S. double acting
Repeatability	±0.5 % F.S.
Air consumption	3 LPM (supply 1.4 kgf/cm², 20 psi)
Flow capacity	80 LPM (supply 1.4 kgf/cm², 20 psi)
Material	Aluminium diecasting
Weight	2.8 kg (6.2 lb)
Lever type	M6×40L / M6×63L / M8×40L / M8×63L / NAMUR
Option 1	None (standard) or dome cover
Option 2	None / +PTM internal / +PTM external / +L/S internal / +L/S external / +PTM+L/S internal

Technical background

Type YT-1000R Electro-pneumatic valve positioner is used for operation of pneumatic rotary valve actuators by means of electrical controller or control system with an analog output signal of DC 4 to 20 mA or split Ranges.

YT1000R Electro Pneumatic Valve Positioner- According to whether the valve positioner has CPU or not, the electro pneumatic positioner can be divided into ordinary electro valve positioner and intelligent electro valve positioner. Ordinary electro valve positioners do not have a CPU, so they are not intelligent and cannot process related intelligent calculations.

The intelligent electro valve positioner has a CPU, which can process related intelligent calculations, for example, it can perform nonlinear compensation of the forward channel, and the fieldbus electric valve positioner can also be equipped with PID and other functional modules to realize the corresponding calculations.

According to the gain symbol of the valve positioner output and input signal, it is divided into positive acting valve positioner and reverse acting valve positioner. When the input signal of a positive-acting valve positioner increases, the output signal also increases, so the gain is positive.

Questions buyers ask

What makes a positioner 'intelligent' in this range?

The presence of a CPU. An ordinary electro-pneumatic positioner has none; the intelligent version can run non-linear compensation of the forward channel and, on fieldbus units, PID blocks.

Positive or reverse acting — which do I get?

Both exist. On a positive-acting unit the output rises with the input signal; specify the acting mode with the order.
