Multi Stage Heat Pump WIFI Thermostat

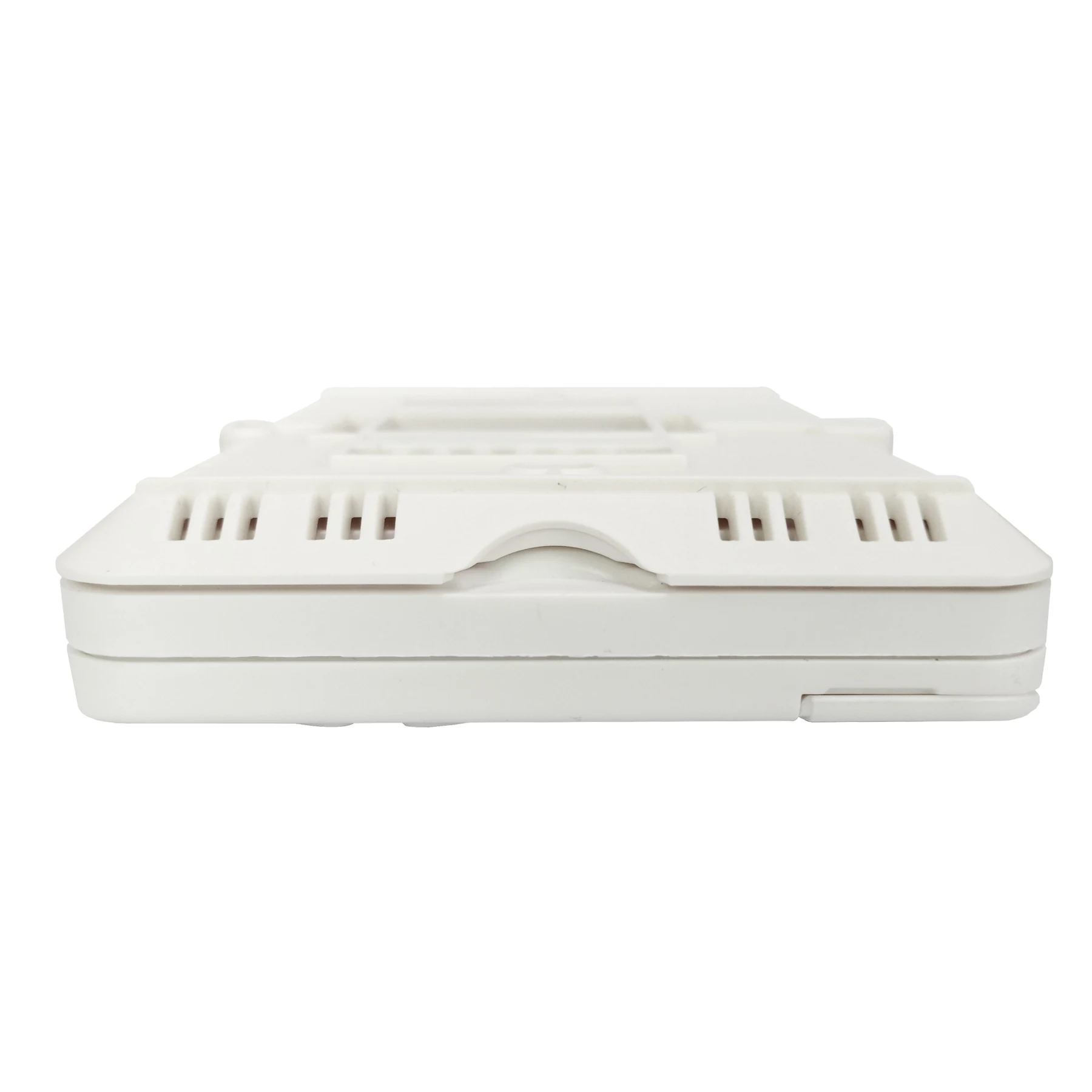

Name: Multi Stage Heat Pump WIFI Thermostat
Brand: Smart Therm

This is STN721W described as the multi stage heat pump WiFi model: dual band connection on 2.4 GHz and 5.0 GHz, Alexa voice control, and heat pump staging plus up to 2 heat and 1 cool conventional. It is deliberately non-programmable, so the operator manages temperature remotely rather than maintaining a schedule in every room.

Request A Quote Email For A Datasheet

Key Benefits

Dual band WiFi on 2.4 GHz and 5.0 GHz
Alexa voice control without a schedule to maintain
Heat pump staging plus up to 2 heat and 1 cool conventional
Measurement accuracy +/-1 C at 20 C over 32 F to 99 F
White, blue or green backlight on a 120 x 98 x 28 mm body

Problems It Solves

Schedules nobody maintains across a managed estate
Connected stats that will not join a 5 GHz network
Heat pump staging unsupported by generic smart stats
Remote control without a local override path

Who It Is For

Facility managers controlling rooms remotely
Smart home integrators
Heat pump installers on connected projects
OEM buyers needing dual band WiFi without scheduling

Technical Features

Universal WiFi on 2.4 GHz and 5.0 GHz, works with Alexa
Heat pump control plus up to 2 heat and 1 cool conventional
Non-programmable
Temperature range 32 F to 99 F (1 C to 40 C), control range 44 F to 90 F (7 C to 32 C)
Measurement accuracy +/-1 C at 20 C

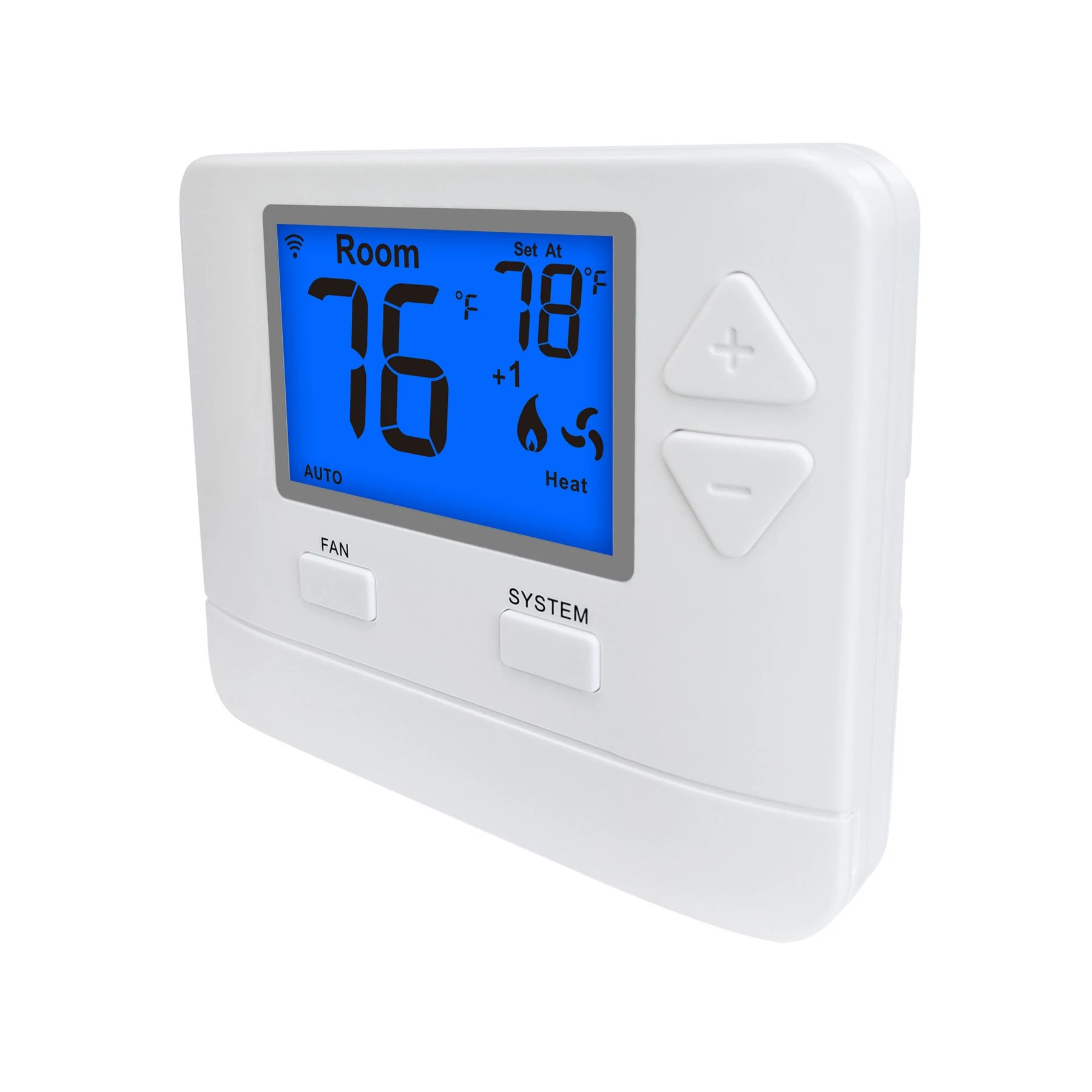

Easy menu driven operation with wake, leave, return and sleep icons

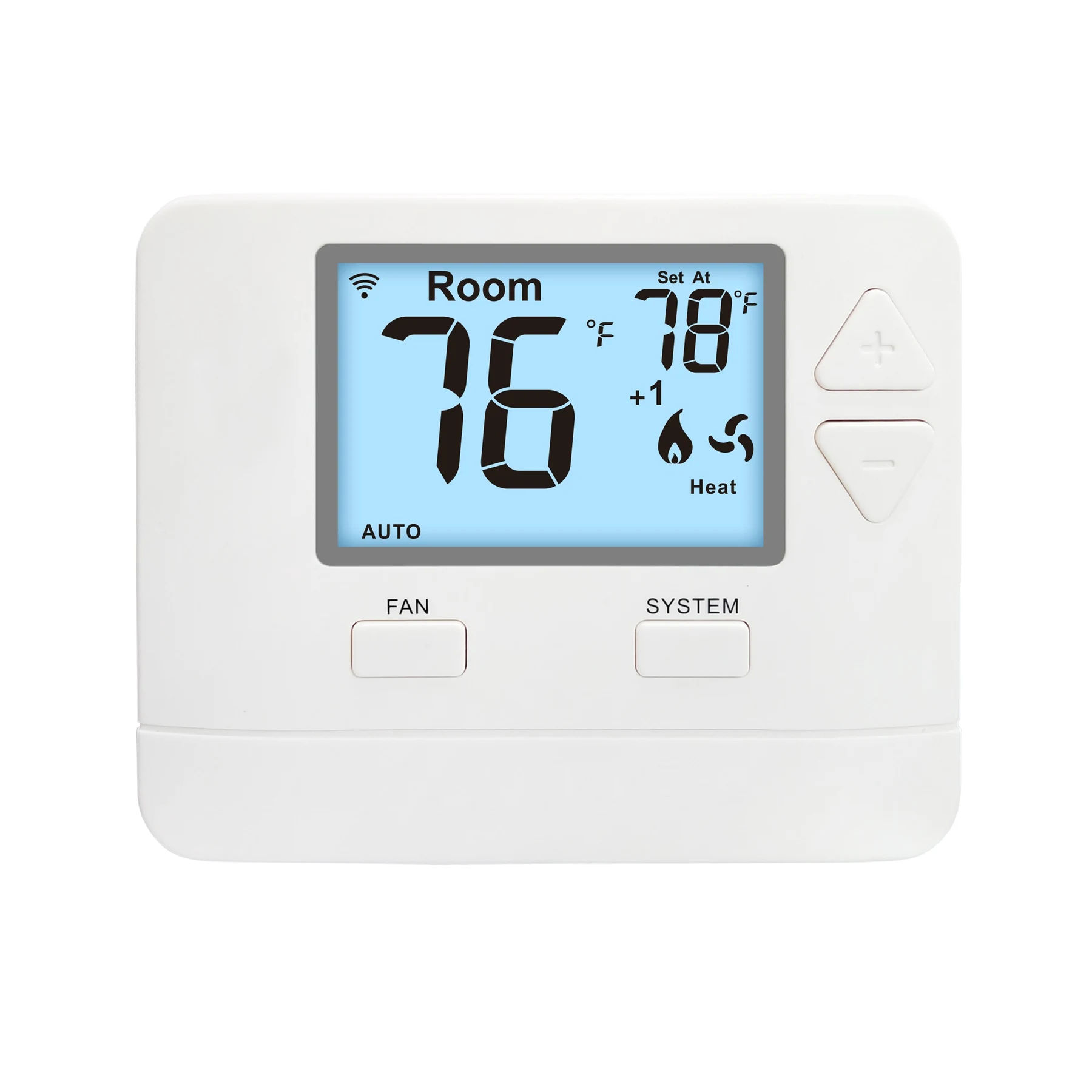

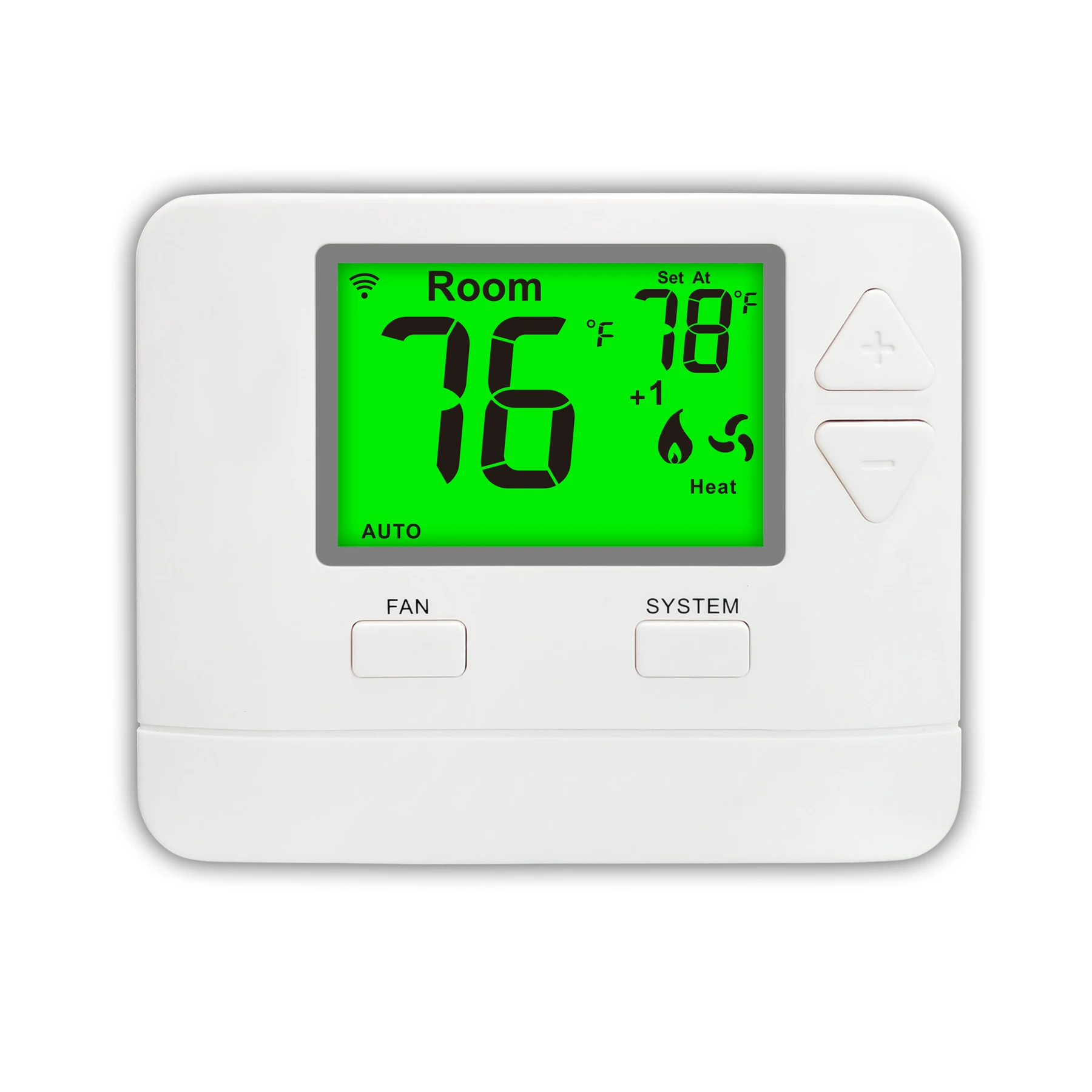

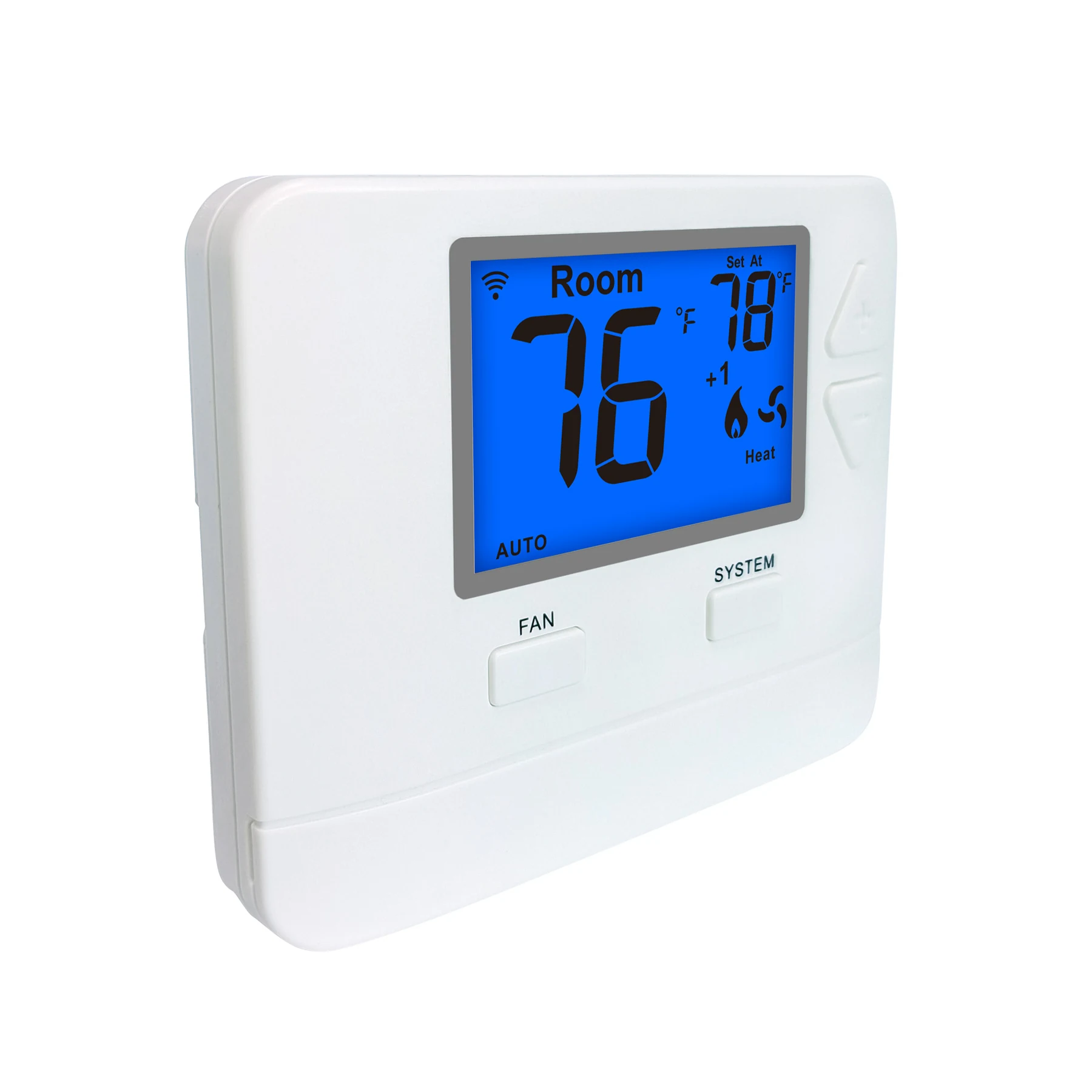

Electric or gas configurable, white, blue or green backlight
Power source 24VAC, dimensions 120 x 98 x 28 mm

Specifications

Programmability	Non Programmable
Power Source	24VAC
Temperature Range	32˚F-99˚F (1°C-40°C)
Control Temp.Range	44˚F-90˚F (7°C-32°C)
Temp.Meas.Accuracy	±1°C (at 20°C)
Dimension	120 x98 x28 mm

Specifications are taken from the manufacturer data for this model. Confirm the exact configuration with us before you order.

Application Scenarios

Managed buildings controlled centrally rather than by schedule
Heat pump homes with voice assistants
Sites with 5 GHz only wireless networks
Estates mixing heat pump and conventional equipment

Quality Control

Each unit joined to both a 2.4 GHz and a 5.0 GHz test network
Heat pump and conventional staging exercised on the line
Voice service link verified before packing

Customisation Options

App and voice skill branding on ODM projects
Backlight white, blue or green
Staging defaults preset for the buyer's equipment
Housing marking, manual and carton

Comparison

How It Compares

STN725W

STN721W is non-programmable with up to 2 heat 1 cool, where STN725W adds scheduling and a second cooling stage.

STN721 wired version

STN721W adds dual band WiFi and Alexa voice control on the same body.

Use guide

Installing And Commissioning

Step 1

Confirm a 24VAC supply with a common wire is available

Step 2

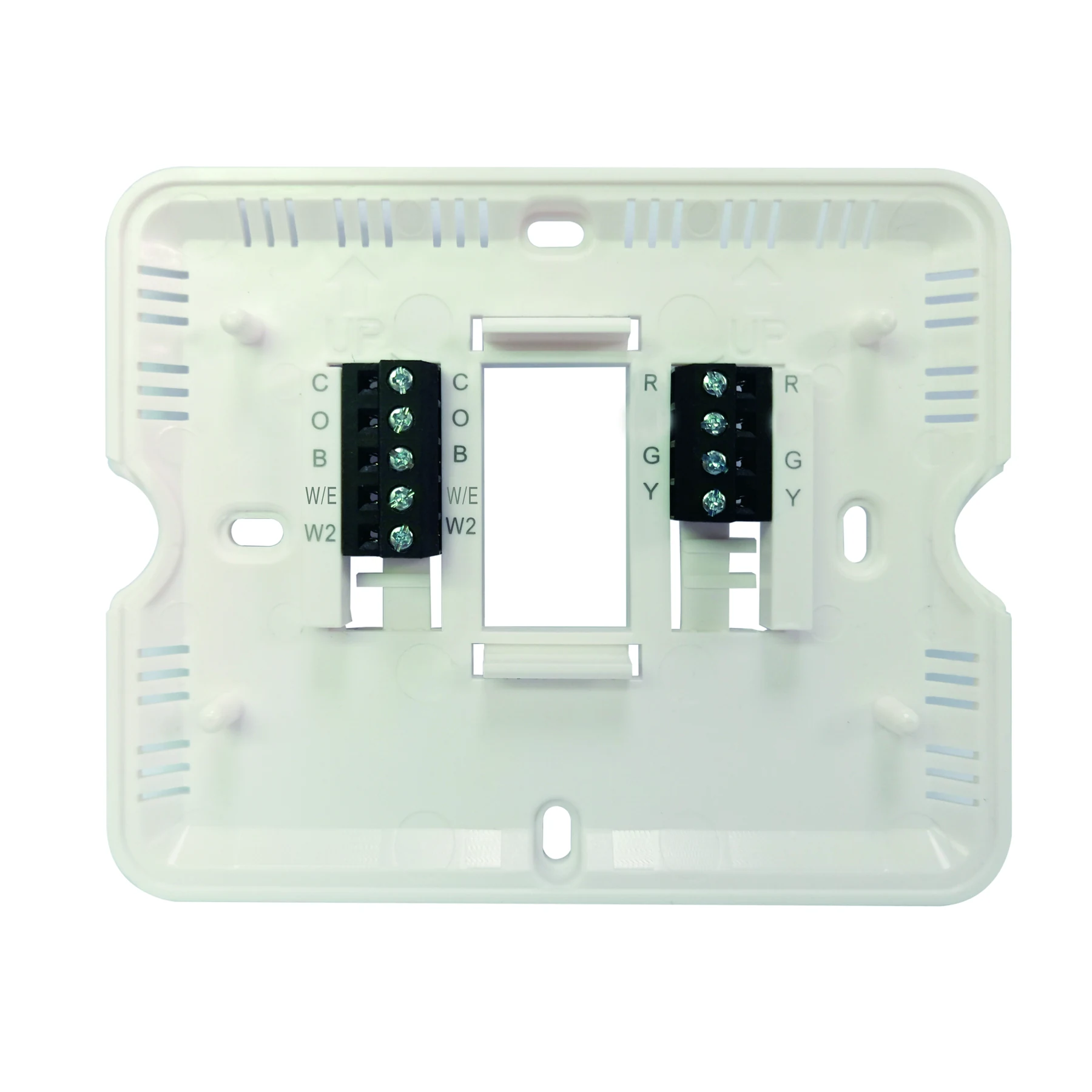

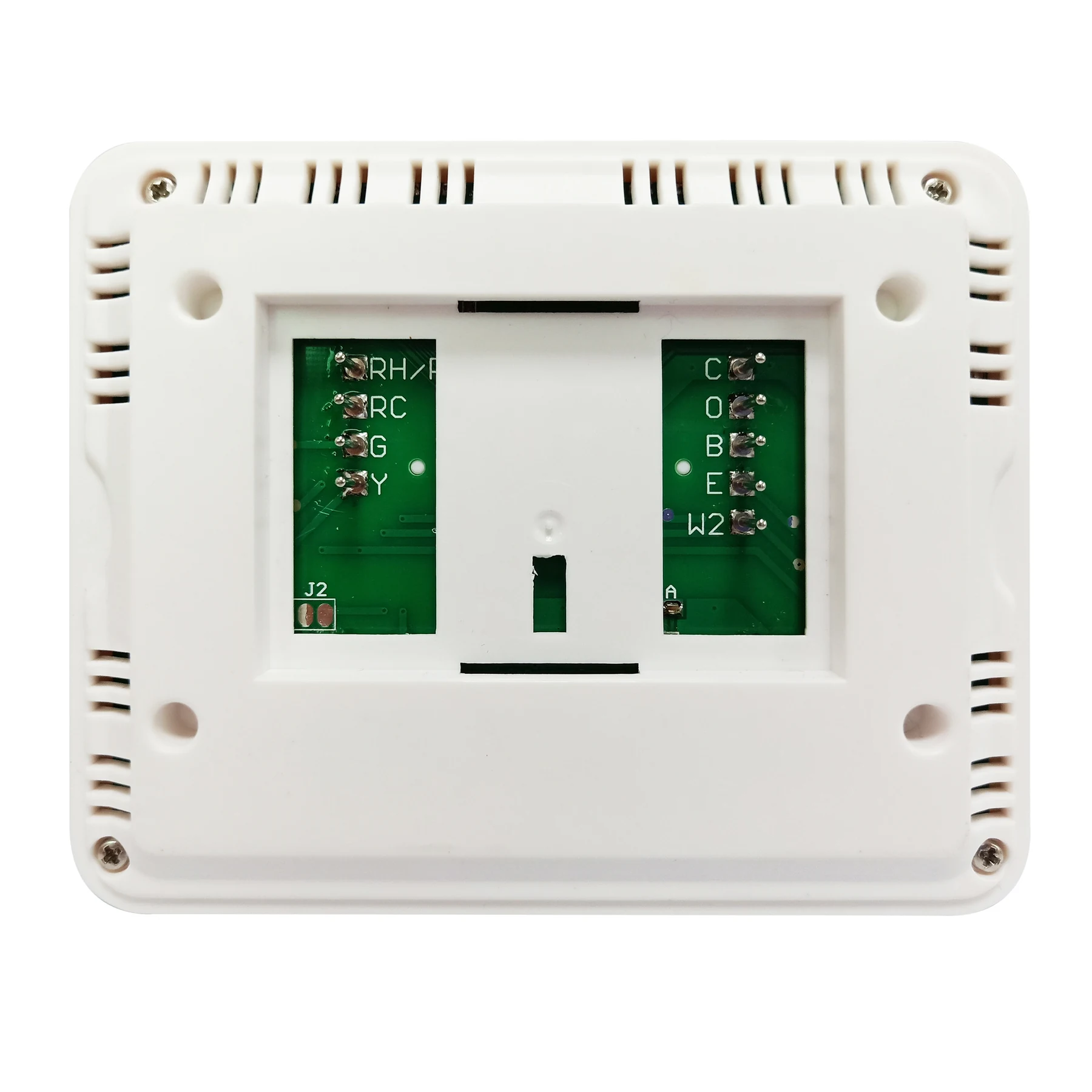

Land the conductors on the colour coded terminals

Step 3

Select heat pump or conventional staging in the installer menu

Step 4

Join the thermostat to the 2.4 GHz or 5.0 GHz network

Step 5

Link the Alexa account and confirm both local and remote control
