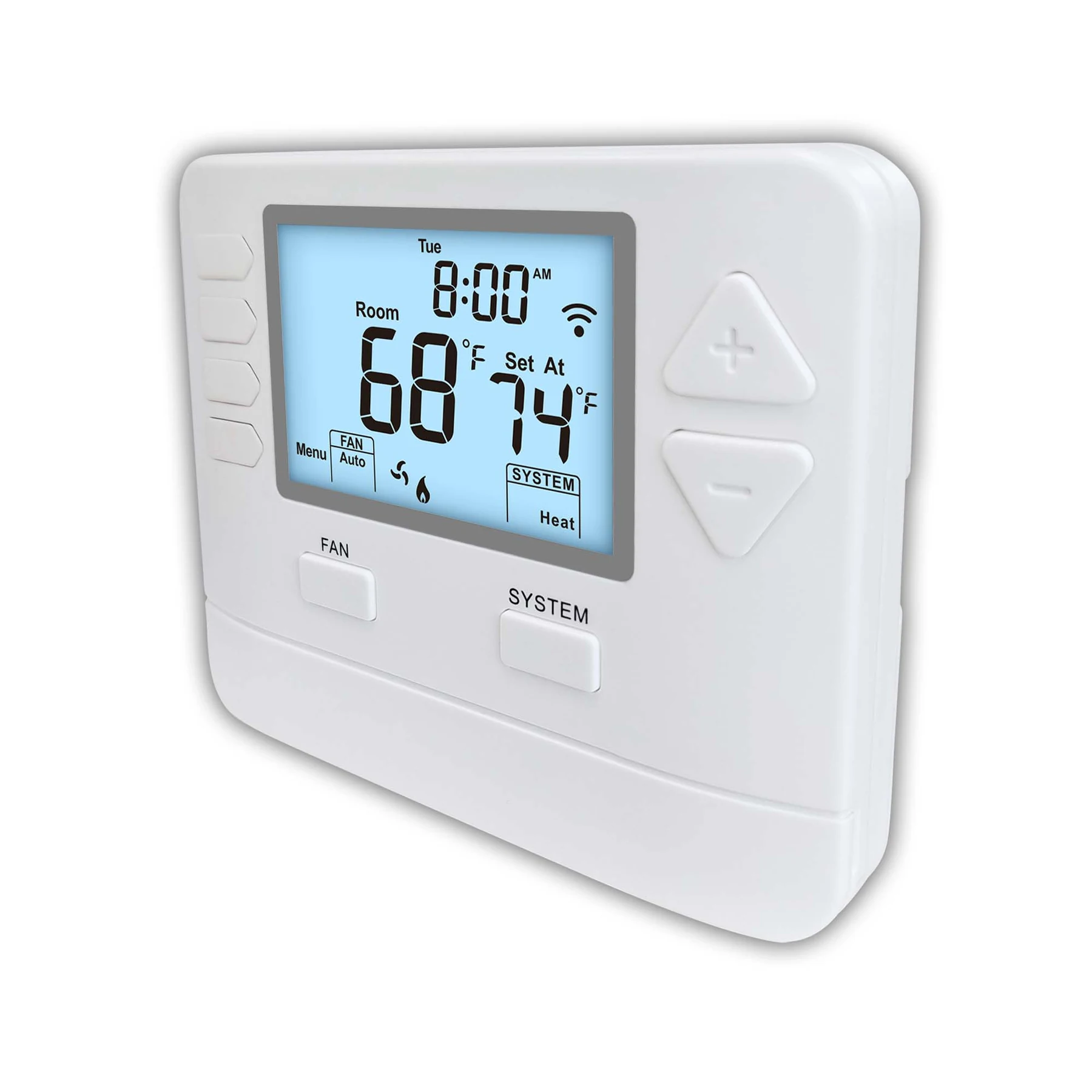

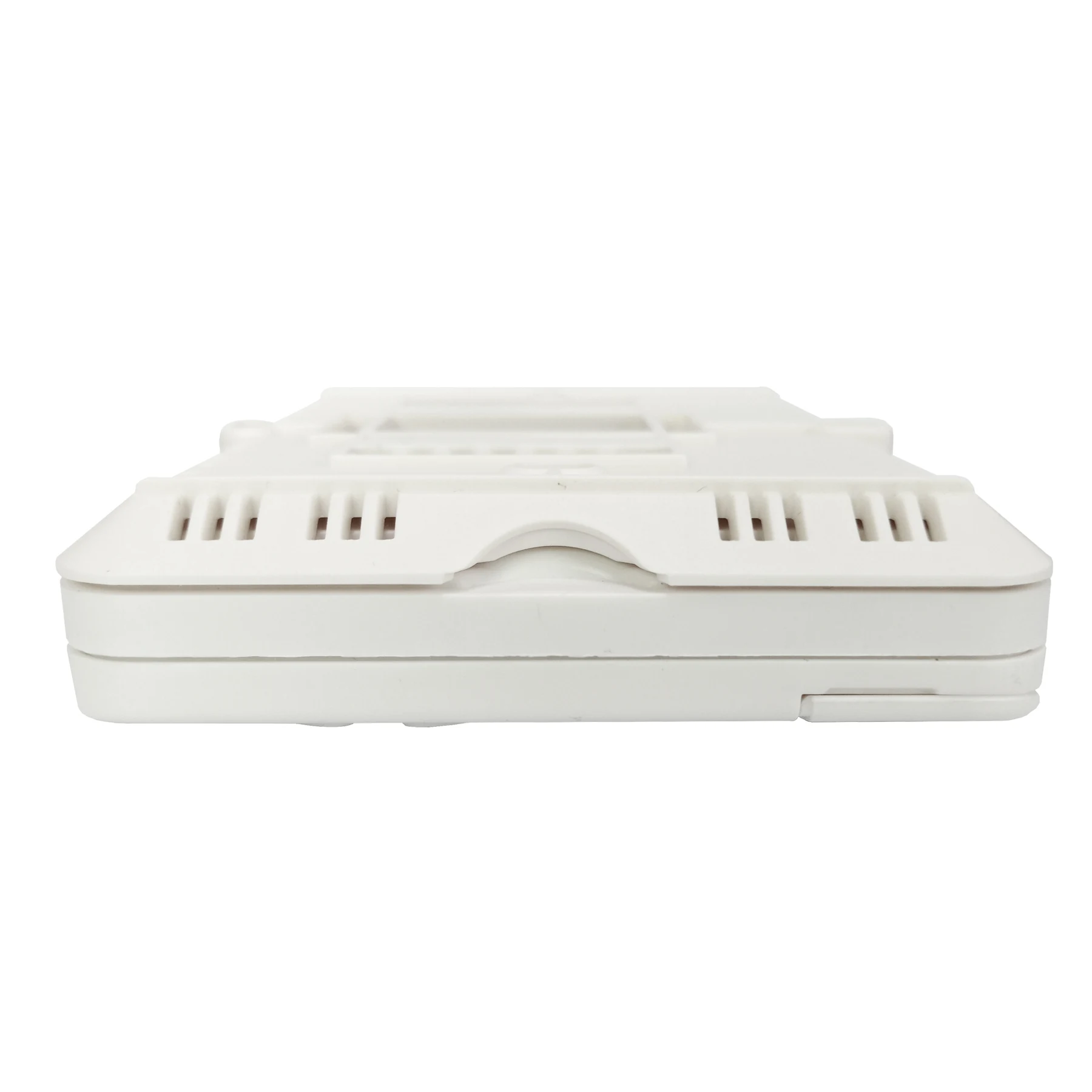

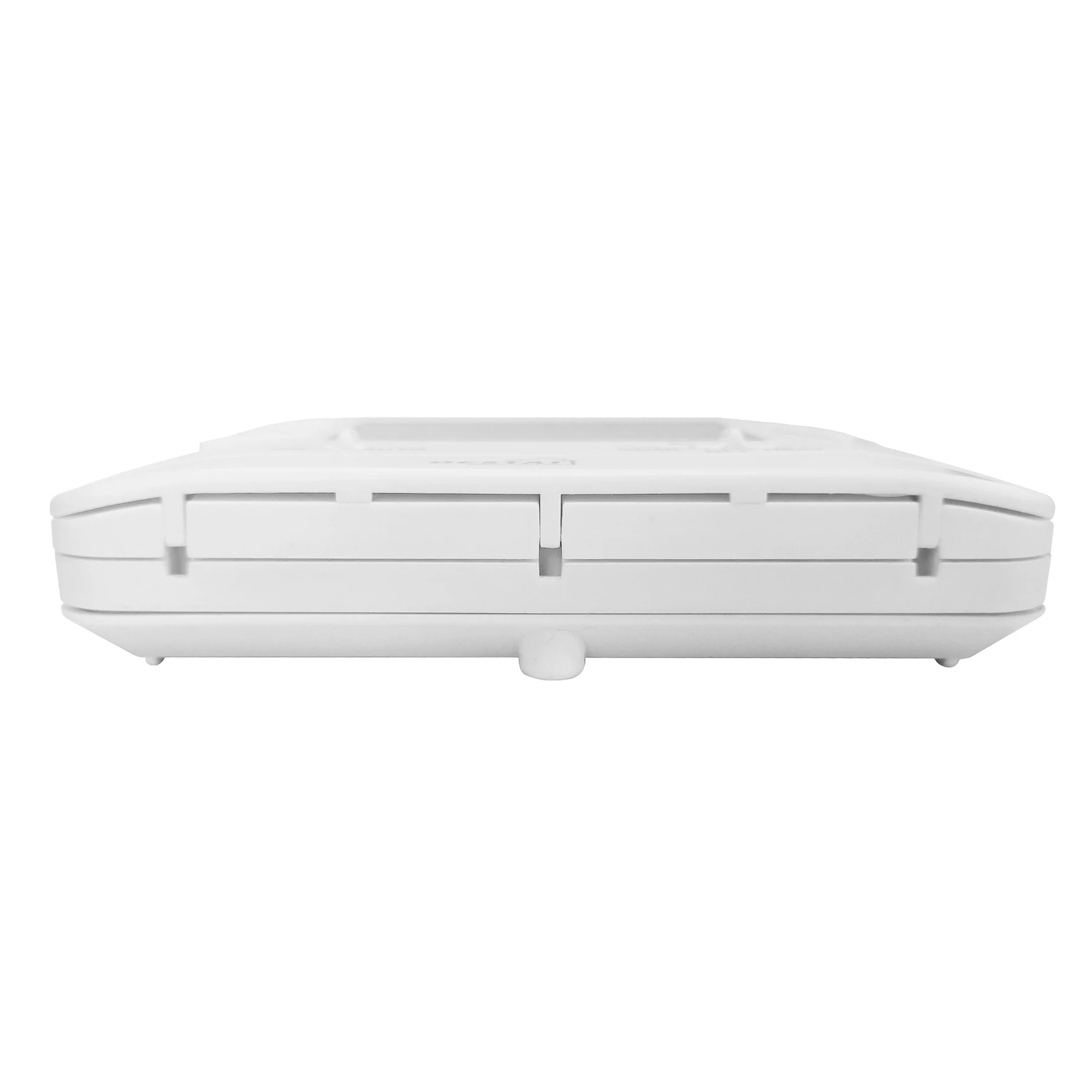

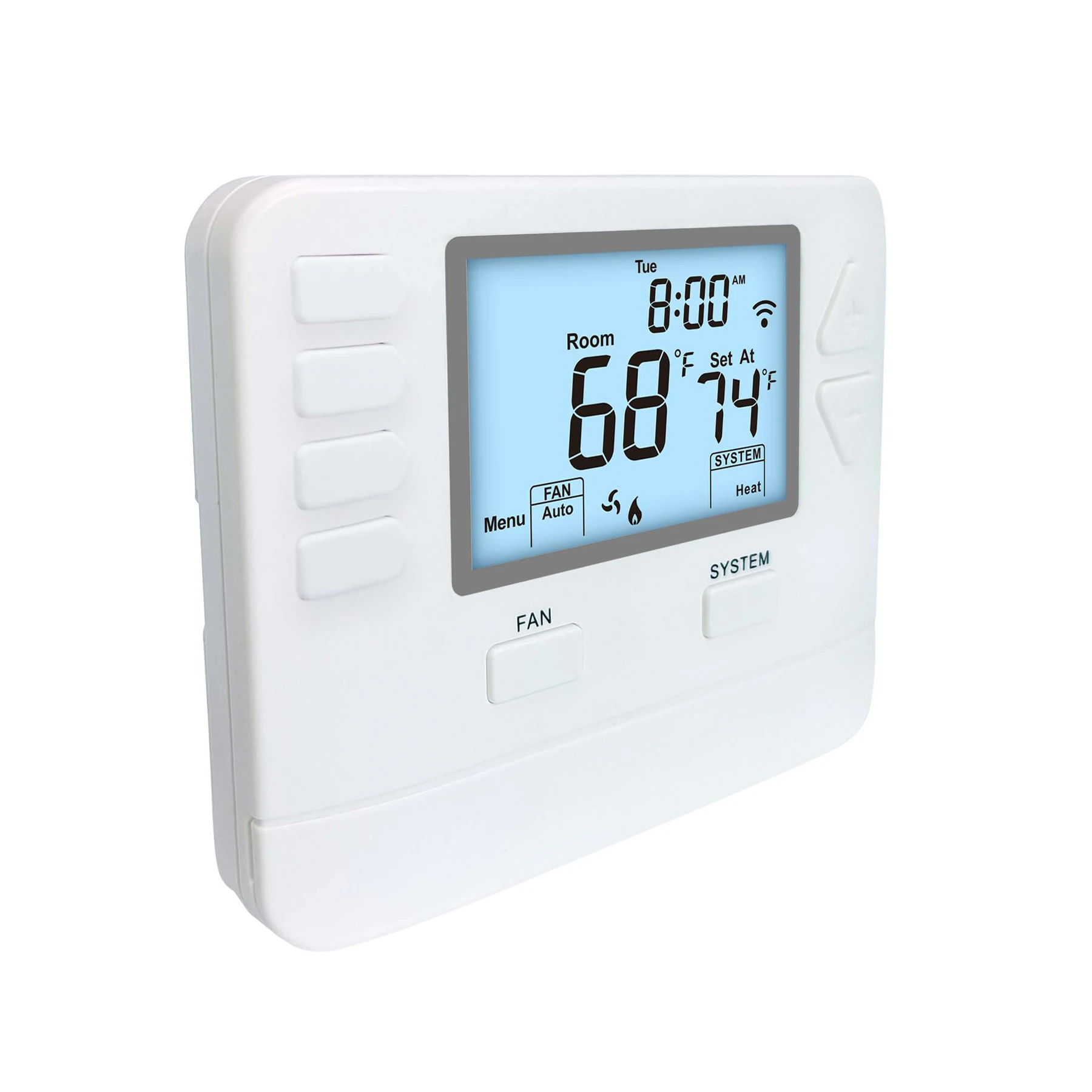

Multi Stage Programmable WIFI Thermostat

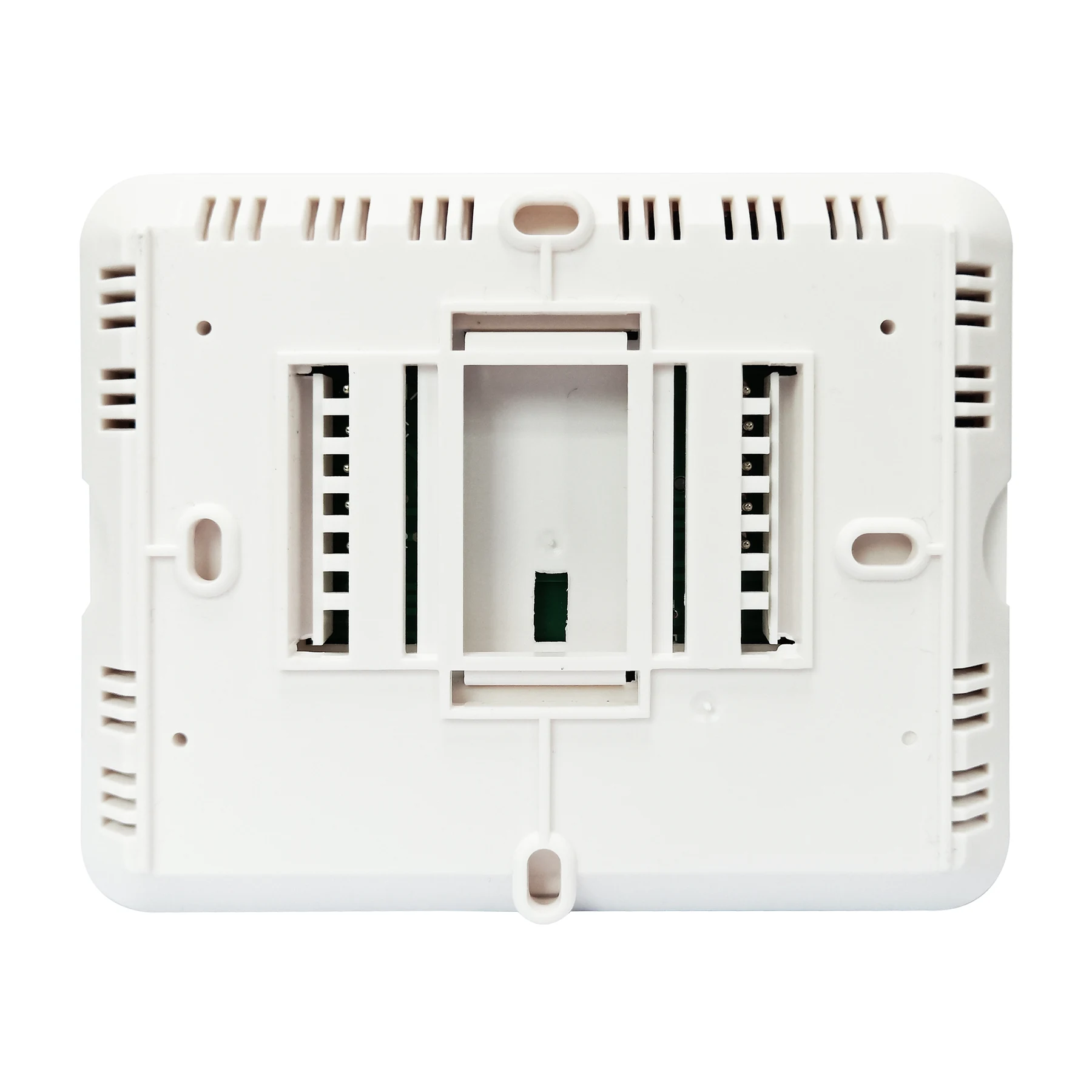

Name: Multi Stage Programmable WIFI Thermostat
Brand: Smart Therm

STN715W is the multi stage conventional WiFi thermostat, handling up to 2 heat and 2 cool without heat pump staging. It joins 2.4 GHz and 5.0 GHz networks, works with Alexa, and can be set to 7 day, 5/1/1 or non-programmable. Room temperature calibration lets the installer correct a poor mounting position, which matters more on connected units because nobody sees the reading in person.

Request A Quote Email For A Datasheet

Key Benefits

2 heat and 2 cool conventional staging with app and voice control
Dual band WiFi on 2.4 GHz and 5.0 GHz
Room temperature calibration corrects remote readings
Three programme modes from one connected part number
Measurement accuracy +/-1 C at 20 C

Problems It Solves

Single stage connected stats short cycling two stage plant
Remote readings that are consistently high or low
Connected stats that will not join a 5 GHz network
Separate connected SKUs for scheduled and unscheduled rooms

Who It Is For

Smart home integrators on conventional systems
Facility teams monitoring rooms remotely
HVAC contractors on staged plant
OEM buyers needing a multi stage connected model

Technical Features

Universal WiFi on 2.4 GHz and 5.0 GHz, works with Alexa
Up to 2 heat and 2 cool conventional
7 day, 5/1/1 or non-programmable
Temperature range 32 F to 99 F (1 C to 40 C), control range 44 F to 90 F (7 C to 32 C)
Measurement accuracy +/-1 C at 20 C with room temperature calibration adjustment
Easy menu driven programming with wake, leave, return and sleep icons

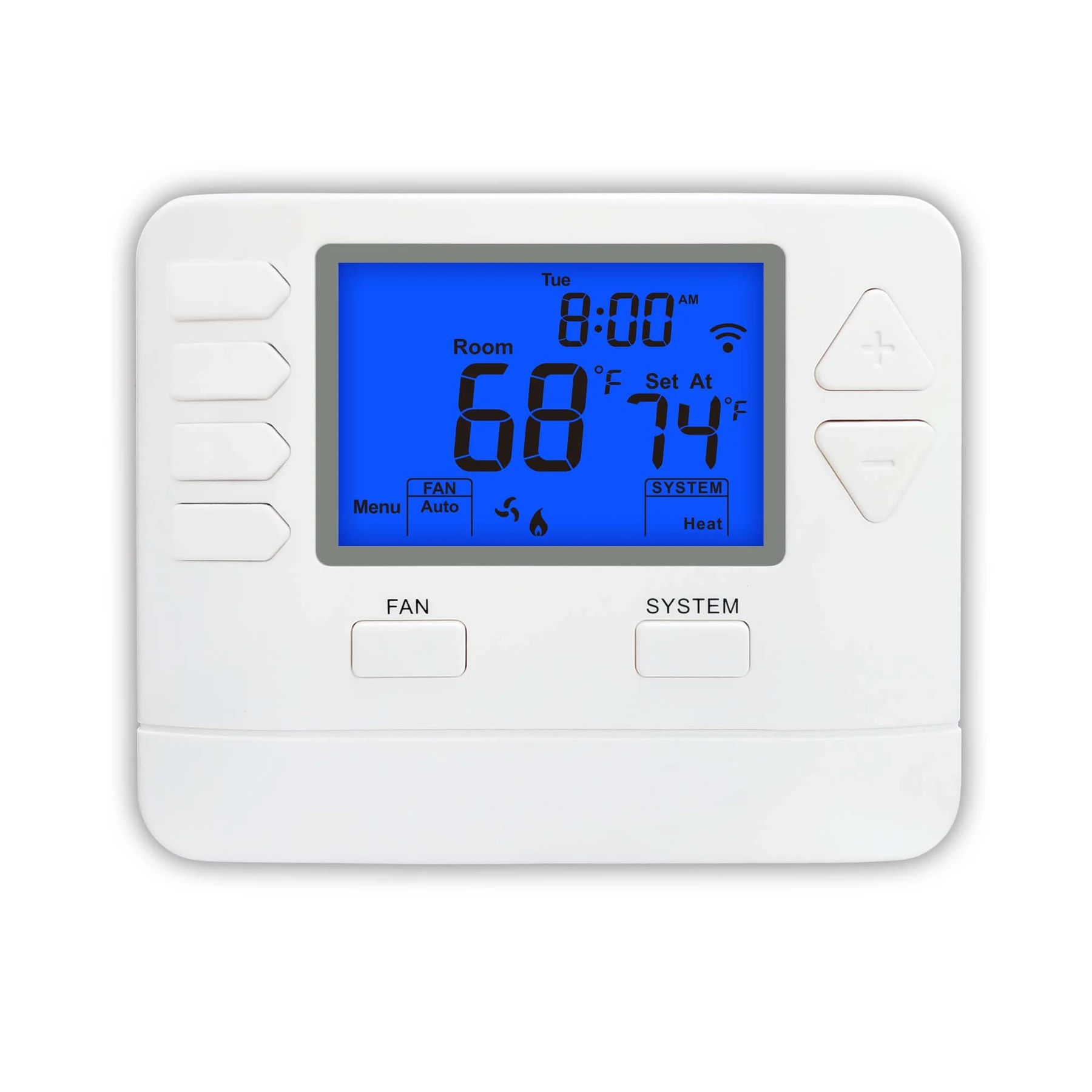

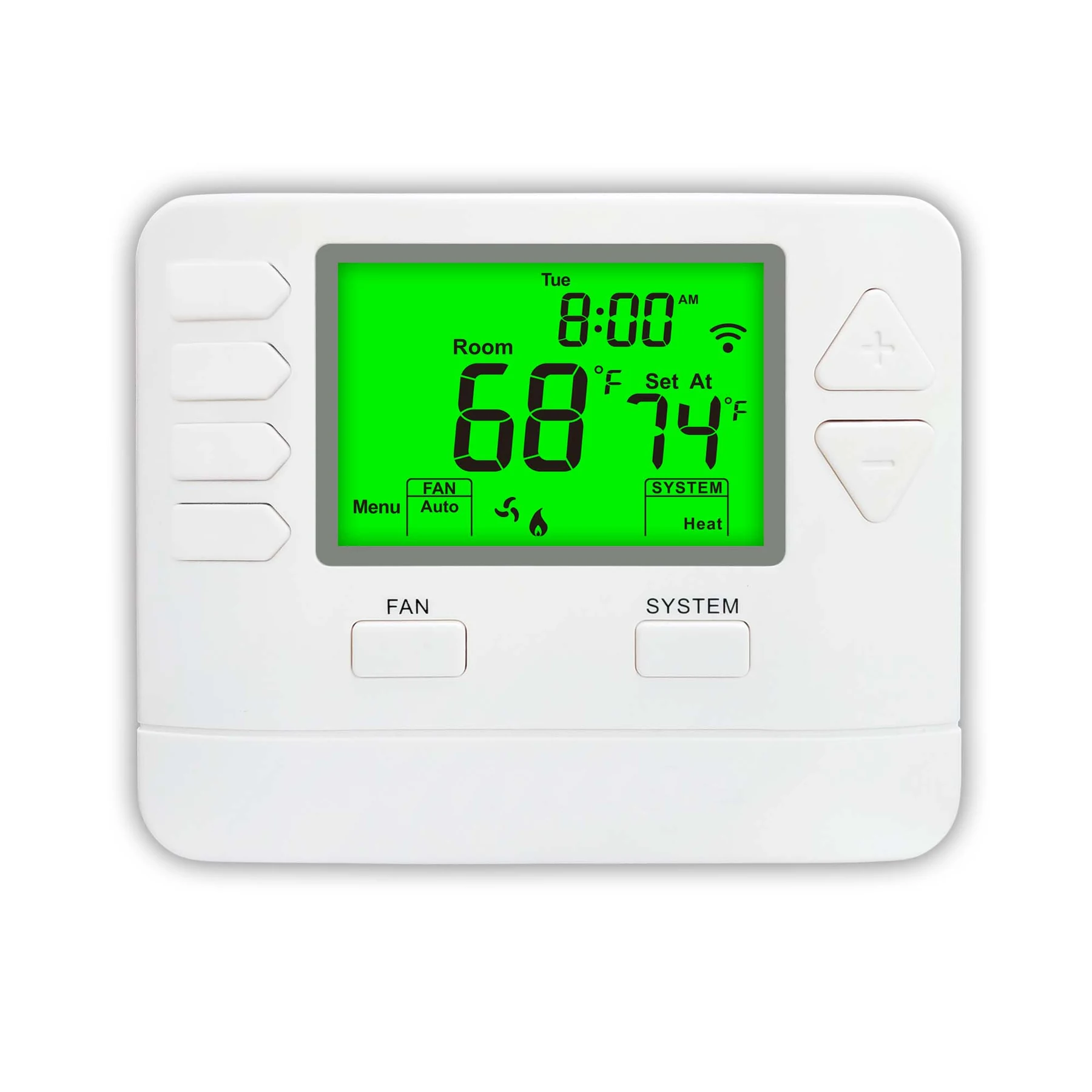

Electric or gas configurable, white, blue or green backlight
Power source 24VAC, dimensions 120 x 98 x 28 mm

Specifications

Programmability	Programmable
Power Source	24VAC
Temperature Range	32˚F-99˚F (1°C-40°C)
Control Temp.Range	44˚F-90˚F (7°C-32°C)
Temp.Meas.Accuracy	±1°C (at 20°C)
Dimension	120 x98 x28 mm

Specifications are taken from the manufacturer data for this model. Confirm the exact configuration with us before you order.

Application Scenarios

Two stage conventional plant in homes and small offices
Buildings monitored remotely where readings must be trusted
Sites with 5 GHz only wireless networks
Projects mixing scheduled and unscheduled rooms

Quality Control

Each unit joined to both a 2.4 GHz and a 5.0 GHz test network
All four staging outputs exercised on the line
Calibration range verified on batch samples

Customisation Options

App and voice skill branding on ODM projects
Default programme mode preset at the factory
Backlight white, blue or green
Housing marking, manual and carton

Comparison

How It Compares

STN705W

STN715W adds a second heating and second cooling stage for plant that sequences.

STN725W

STN715W is conventional only, which is the correct choice when there is no heat pump to control.

Use guide

Installing And Commissioning

Step 1

Confirm a 24VAC supply with a common wire is available

Step 2

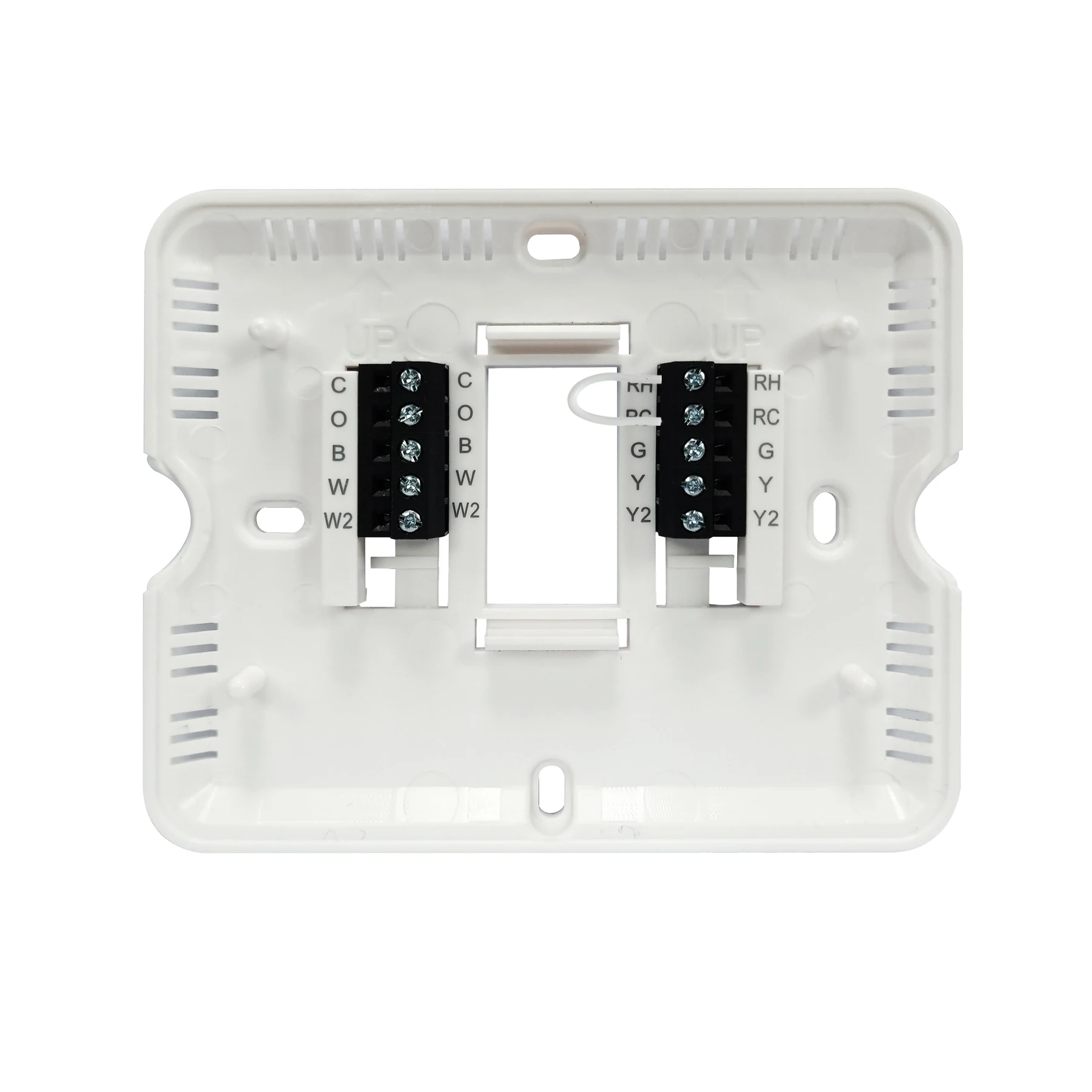

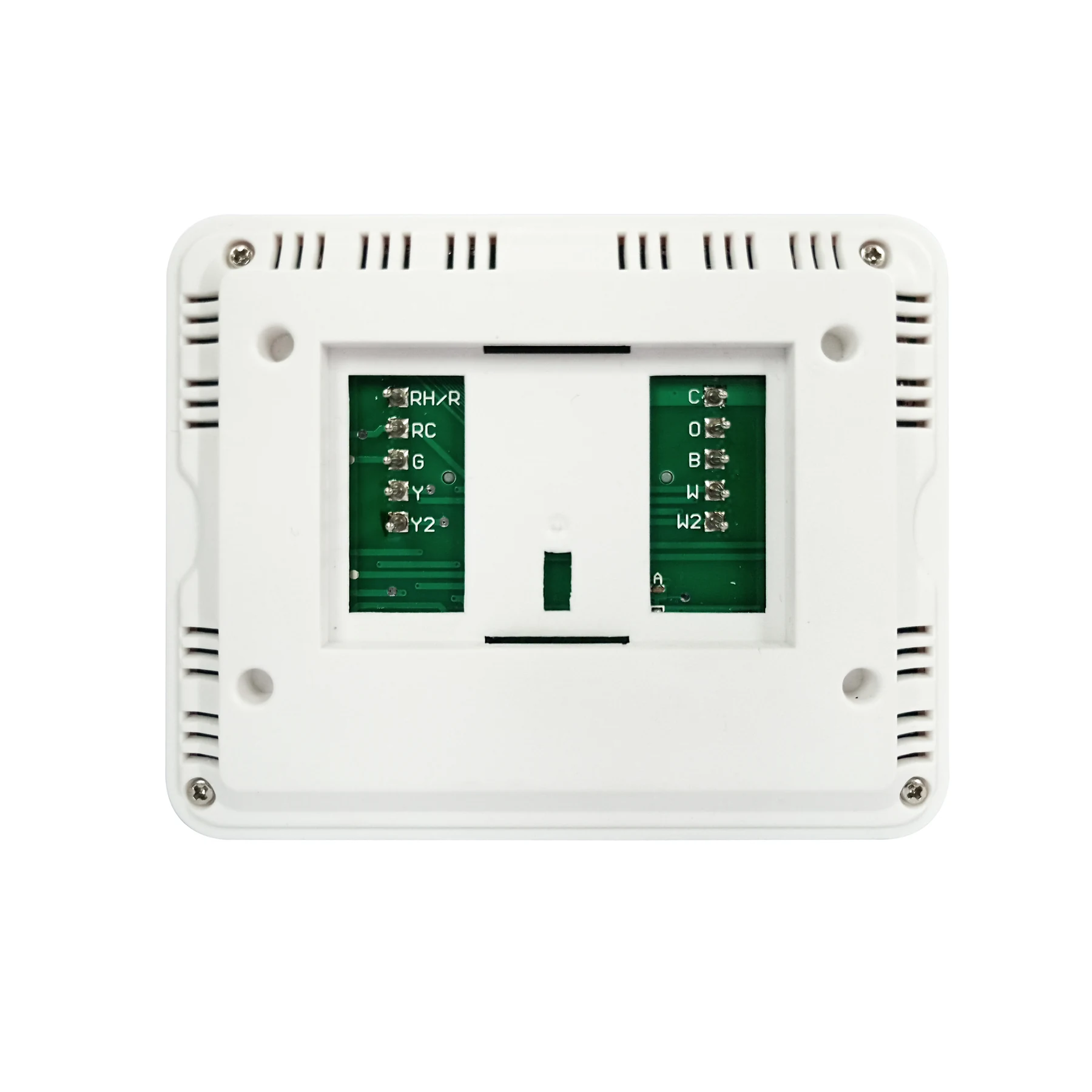

Land the staging conductors on the colour coded terminals

Step 3

Join the thermostat to the 2.4 GHz or 5.0 GHz network

Step 4

Select 7 day, 5/1/1 or non-programmable and enter the periods

Step 5

Apply a room temperature calibration offset before releasing remote access
