STN701W WiFi smart simple single stage thermostat

WiFi Smart Thermostat 24V WiFi Smart Thermostat Electric and Gas Thermostat Non-Programmable Thermostat

WIFI Smart Simple Thermostat

Name: WIFI Smart Simple Thermostat
Brand: Smart Therm

STN701W is the simplest connected thermostat in the range: single stage, 1 heat and 1 cool, non-programmable, on a 2.4 GHz WiFi link with Alexa voice control. It keeps the separate B and O terminals and the electric or gas configuration from the wired STN701, so the installer wiring is unchanged. Sensing runs 32 F to 99 F with a control range of 44 F to 90 F.

Request A Quote Email For A Datasheet

Key Benefits

Simplest connected option in the range, with nothing to schedule
Alexa voice control and app access on a 2.4 GHz network
Separate B and O terminals despite the single stage build
Room temperature calibration for accurate remote readings
Same 120 x 98 x 28 mm body as the rest of the STN700 platform

Problems It Solves

Connected thermostats that are more complex than the job needs
Schedules nobody maintains on a rental property
Reversing valve wiring unsupported on entry level smart stats
Remote readings that do not match the room

Who It Is For

Smart home installers on a budget
Landlords adjusting property remotely
Distributors adding an entry level connected model
OEM buyers needing a simple WiFi stat

Technical Features

Universal WiFi on 2.4 GHz, works with Alexa
Single stage, 1 heat and 1 cool, non-programmable
Temperature range 32 F to 99 F (1 C to 40 C), control range 44 F to 90 F (7 C to 32 C)
Measurement accuracy +/-1 C at 20 C

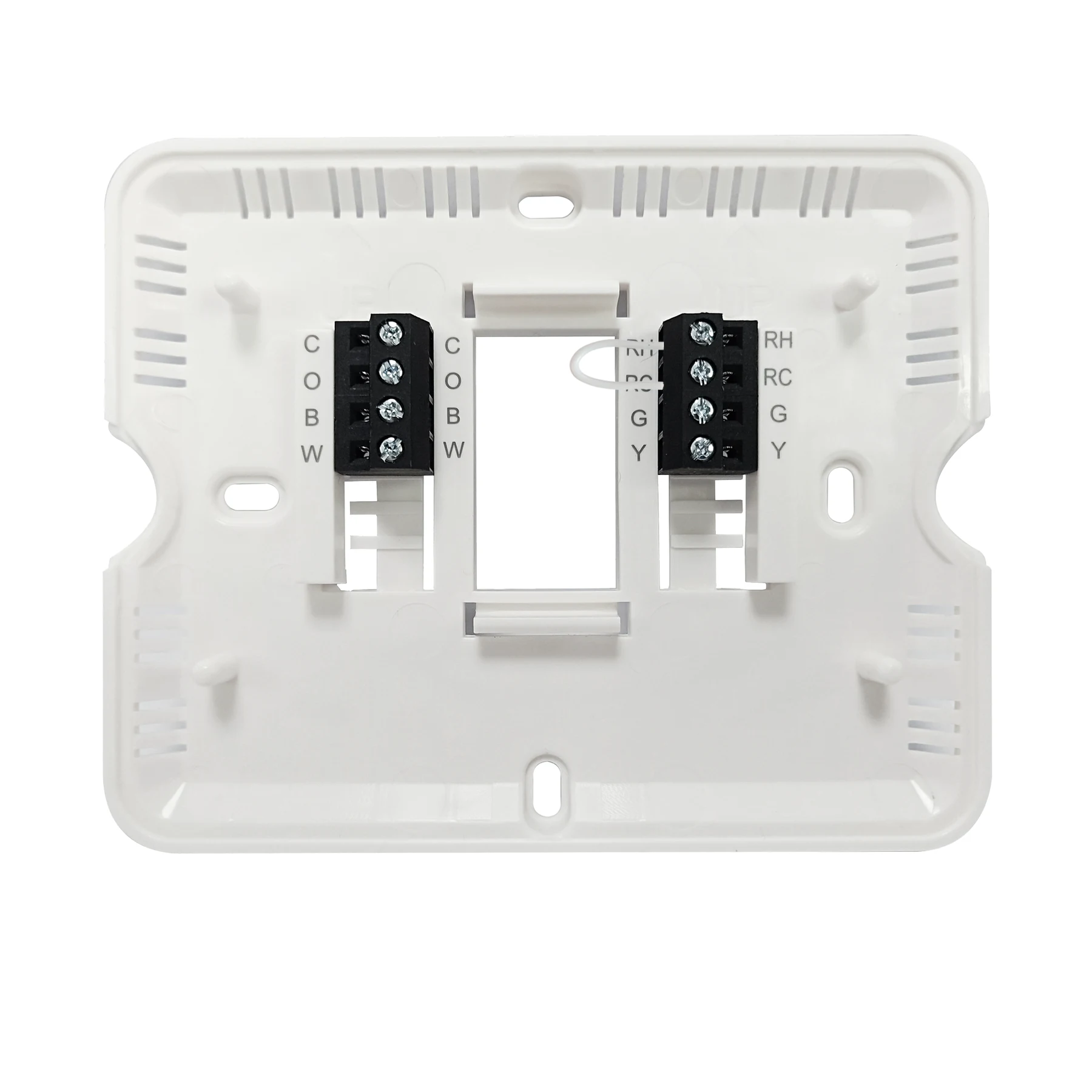

Separate B and O terminals, electric or gas configurable
Separate heating and cooling swing (cycle rate) adjustments

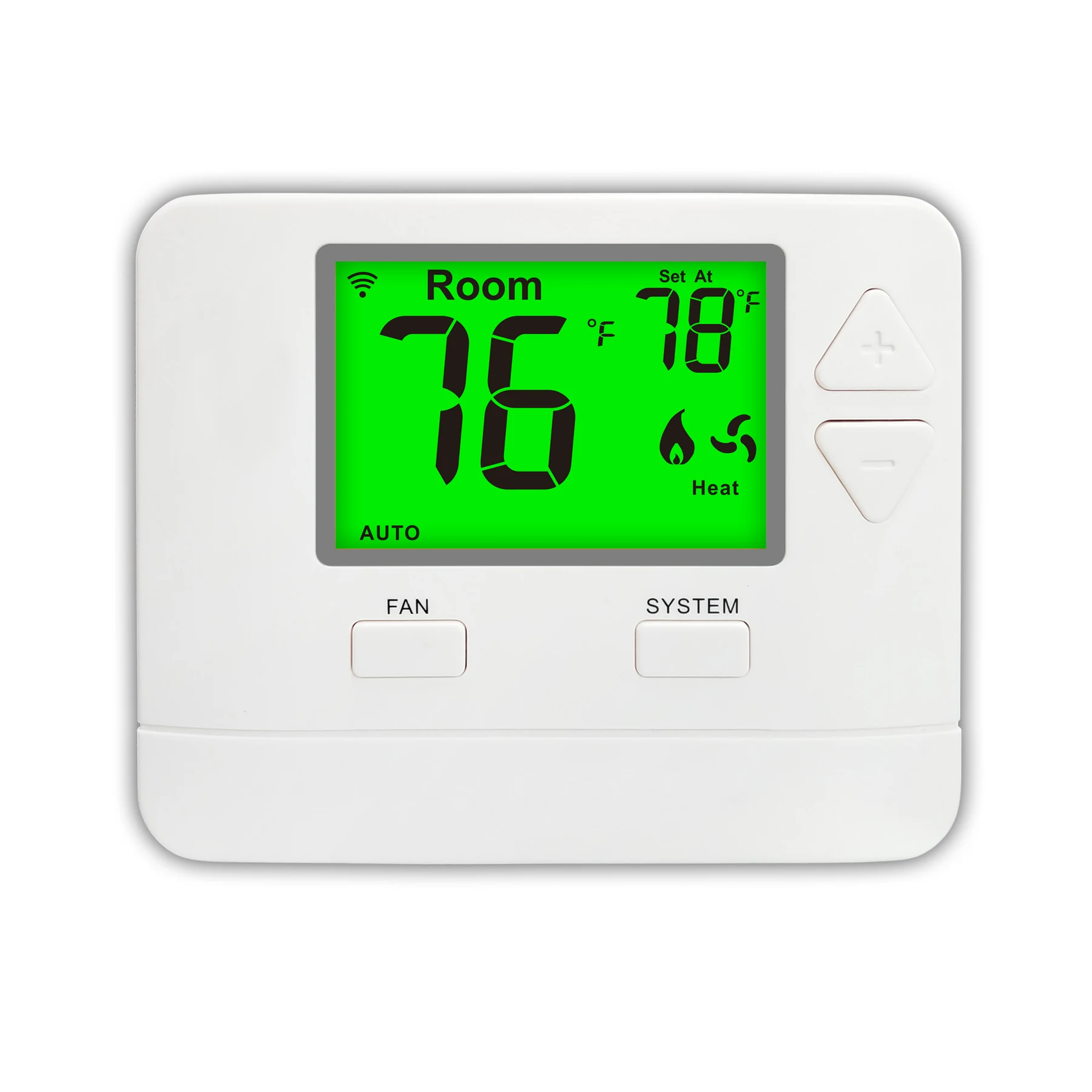

Room temperature calibration adjustment, white, blue or green backlight
Power source 24VAC, dimensions 120 x 98 x 28 mm

Specifications

Programmability	Non Programmable
Power Source	24VAC
Temperature Range	32˚F-99˚F (1°C-40°C)
Control Temp.Range	44˚F-90˚F (7°C-32°C)
Temp.Meas.Accuracy	±1°C (at 20°C)
Dimension	120 x98 x28 mm

Specifications are taken from the manufacturer data for this model. Confirm the exact configuration with us before you order.

Application Scenarios

Single stage air conditioning controlled from an app
Homes adding voice control to existing heating
Rental property where the landlord adjusts remotely
Buildings on 2.4 GHz networks only

Quality Control

Each unit joined to a 2.4 GHz test network
Voice service link verified before packing
Heat and cool outputs exercised on the line

Customisation Options

App and voice skill branding on ODM projects
Backlight white, blue or green
Swing defaults set for the buyer's plant
Housing marking, manual and carton

Comparison

How It Compares

STN705W

STN701W is non-programmable and joins 2.4 GHz only, which keeps it the simplest and lowest cost connected model.

STN701 wired version

STN701W adds WiFi and Alexa on the same terminals and body, so the install work is unchanged.

Use guide

Installing And Commissioning

Step 1

Confirm a 24VAC supply with a common wire is available

Step 2

Land the conductors, using B or O where a reversing valve is fitted

Step 3

Join the thermostat to the 2.4 GHz network through the app

Step 4

Apply a room temperature calibration offset before releasing remote access

Step 5

Link the Alexa account and confirm both local and remote control
