ST2602WIFIRF WiFi and RF programmable boiler thermostat with receiver

WiFi Smart Thermostat 230V WiFi Smart Thermostat Gas Boiler Thermostat Programmable Thermostat

WiFi Electronic Programmable Thermostat

Name: WiFi Electronic Programmable Thermostat
Brand: Smart Therm

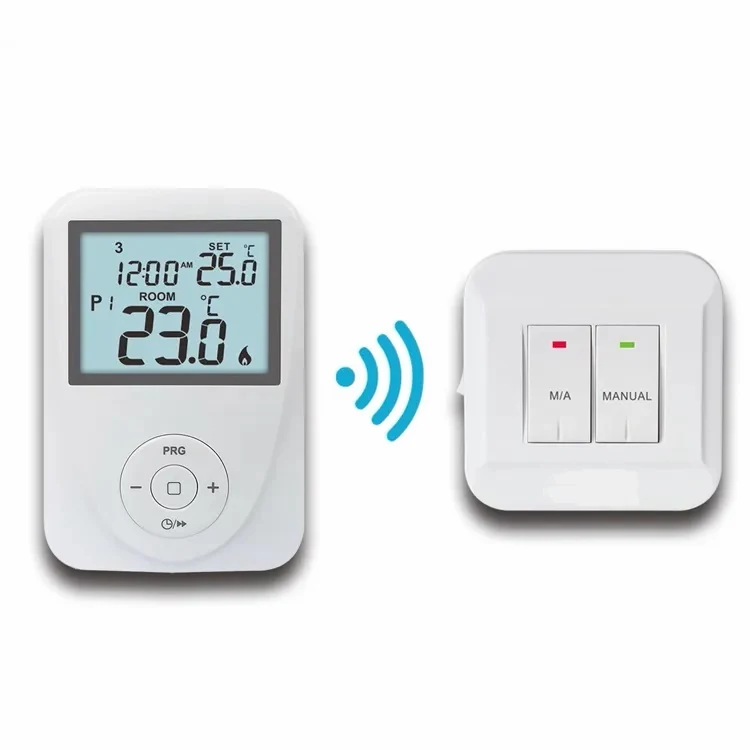

ST2602WIFIRF is the dual protocol model: the room unit talks to the receiver over an 868.35 MHz RF link with a range of about 200 m in open terrain, and the receiver has a WiFi module built in for app control. That means the heating keeps working on the local RF link even when the internet drops, while iOS and Android apps still give remote access when the network is up.

Request A Quote Email For A Datasheet

Key Benefits

RF link and WiFi in one system, so local control survives an internet outage
868.35 MHz link with about 200 m range in open terrain
iOS and Android apps for remote access
7 day, 5/2 day and 24 hour programmes with a factory pre-set schedule
Room unit battery powered, receiver on 230VAC with a 6(2)A contact

Problems It Solves

WiFi only thermostats losing all remote function and sometimes local control
Short range wireless links in large properties
Cable routes unavailable in finished buildings
Installers programming every unit from scratch

Who It Is For

Installers in areas with poor broadband reliability
Owners of second and holiday homes
Merchants stocking a dual protocol flagship
OEM buyers wanting RF and WiFi in one system

Technical Features

Room unit to receiver RF link on 868.35 MHz, approximately 200 m in open terrain
Receiver with WiFi module built in, iOS and Android app available
7 day, 5/2 day and 24 hour programmable with a factory pre-set programme
Temperature range 0 C to 40 C in 0.1 C, control range 5 C to 35 C in 0.5 C
Measurement accuracy +/-1 C at 20 C, calibration adjustment -3 to +3
Maximum load 6(2)A at 230V, switchable 6 A with 2 A inductive load, 24 V AC/DC to 250 V AC
Receiver power supply 230VAC 50 Hz, 6W consumption

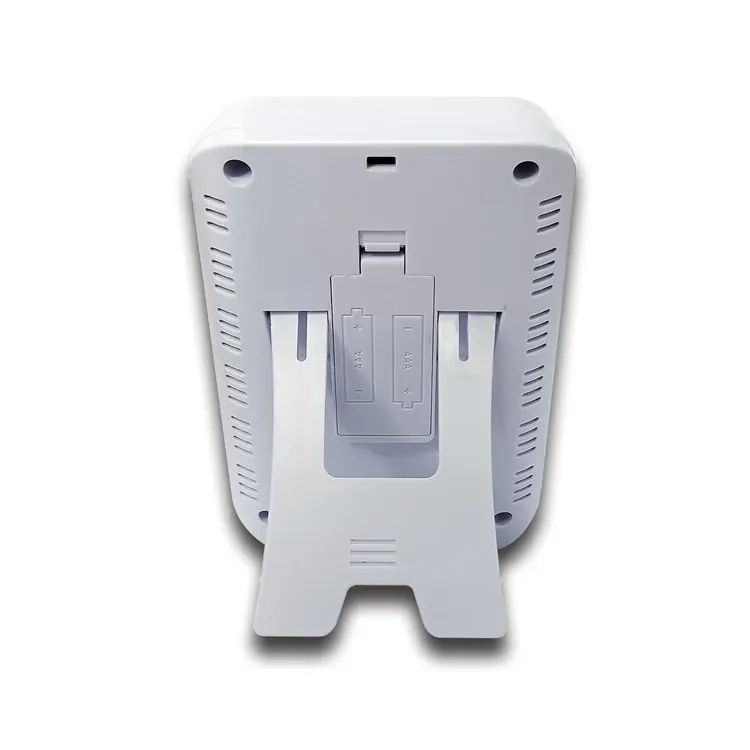

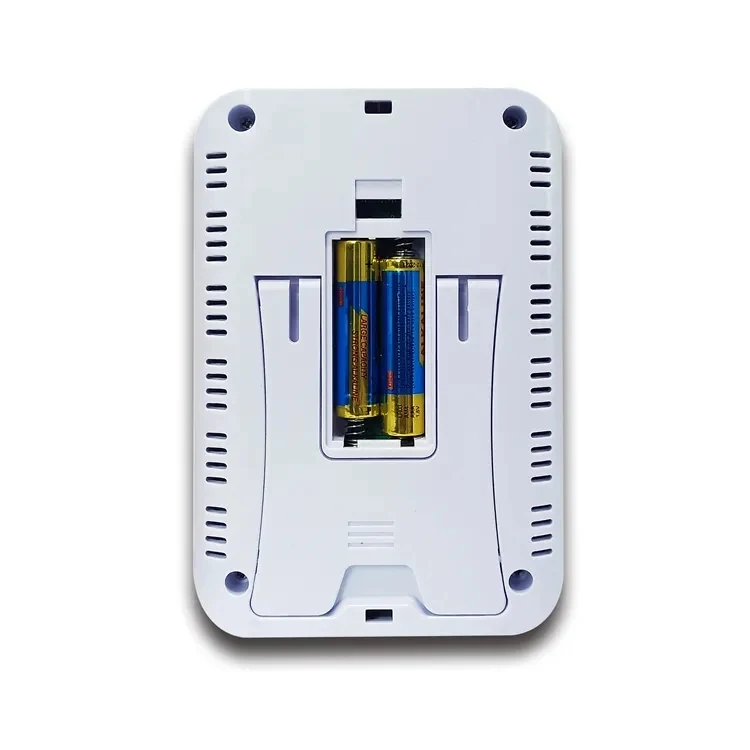

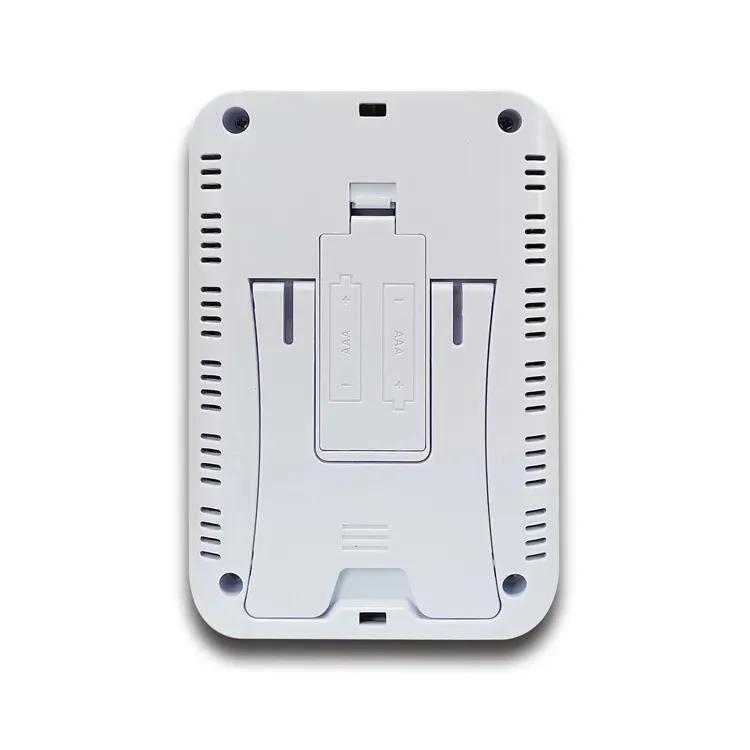

Room unit 2 x AAA 1.5V alkaline batteries, 130 x 86 x 30 mm; receiver 86 x 86 x 26 mm

Specifications

Programmability	7 Day, 5/2 Day and 24 hour Programmable
Power Supply	230VAC, 50HZ
Power Source	DC 2 x AAA 1.5V
Switchable Voltage	24 V AC / DC,…250 V AC; 50Hz
Switchable Current	6 A (2 A inductive load)
Maximum Load	6(2)A, 230V
Temperature Range	0°C-40°C in 0.1°C
Control Temp.Range	5°C-35°C in 0.5°
Temp.Meas.Accuracy	±1°C (at 20°C)
Dimension	86 x 86 x 26 mm
Operating Frequency	868.35MHZ
Transmission Distance	approx. 200m in open terrain
Consumption	6W
Receiver	WiFi module built-in

Specifications are taken from the manufacturer data for this model. Confirm the exact configuration with us before you order.

Application Scenarios

Properties with unreliable broadband where heating must not depend on it
Second homes controlled remotely between visits
Large houses where the receiver is far from the room unit
Boiler systems needing both local and app control

Quality Control

RF link and WiFi association both verified on every set
Receiver contact tested at 6(2)A 230V
Pre-set programme confirmed before packing

Customisation Options

Factory pre-set programme to the buyer's specification
App branding on ODM projects

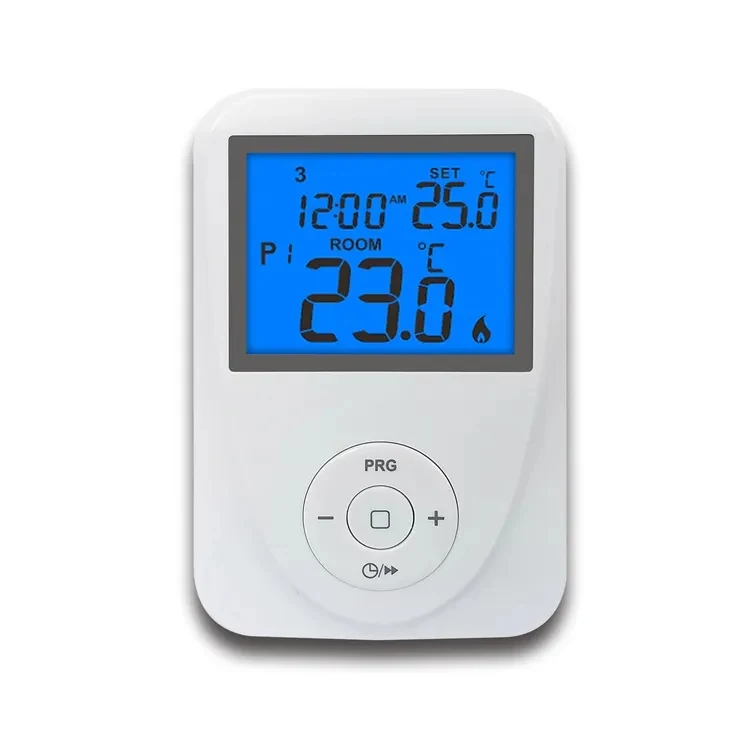

Backlight colour from the standard options
Housing marking, manual and carton

Comparison

How It Compares

ST2602RF

ST2602WIFIRF adds a built-in WiFi module at the receiver, so the same system gains app control without losing the RF link.

WiFi only thermostats

The 868.35 MHz link keeps the room unit talking to the receiver even when the building network is down.

Use guide

Installing And Commissioning

Step 1

Mount the 86 x 86 x 26 mm receiver at the boiler on 230VAC 50 Hz

Step 2

Land the switched conductor within the 6(2)A 230V rating

Step 3

Fit 2 x AAA batteries in the room unit and confirm the RF binding

Step 4

Join the receiver to the WiFi network through the iOS or Android app

Step 5

Check the pre-set programme and adjust the calibration by up to -3 to +3
