ST2601RF 868MHz wireless air conditioning room thermostat with dial

Wireless Thermostat 230V Wireless Thermostat Air Conditioner Thermostats Non-Programmable Thermostat

868 Mhz Wireless Non-Programmable Heating Smart RF Room Thermostat for Air Conditioning Temperature Control

Name: 868 Mhz Wireless Non-Programmable Heating Smart RF Room Thermostat for Air Conditioning Temperature Control
Brand: Smart Therm

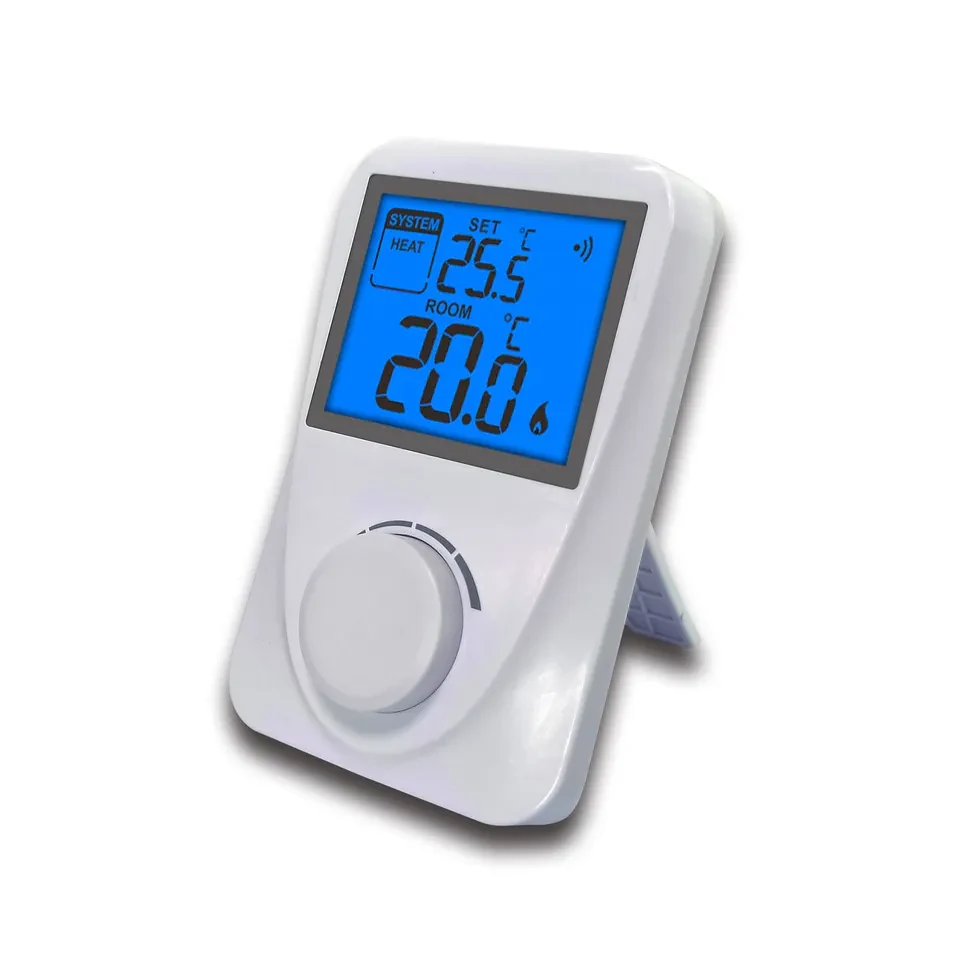

This configuration of ST2601RF is aimed at air conditioning temperature control, using an 868 MHz wireless link between the room unit and the receiver at the plant. It is non-programmable with a large dial, detects and displays room temperature, and covers heating, cooling and frost protection. The housing is flame resistant ABS with white, blue or green backlighting.

Request A Quote Email For A Datasheet

Key Benefits

868 MHz link chosen for communication stability in buildings
One dial for the occupant, with configuration hidden in the installer menu
Room temperature displayed as well as the setpoint
Frost protection for spaces left unoccupied
Flame resistant ABS housing for project material specifications

Problems It Solves

Wireless links failing in buildings with dense construction
Controls that occupants find hard to operate
Cable routes unavailable in finished spaces
Spaces freezing when the system is off

Who It Is For

Air conditioning installers on retrofit work
Hotel and office operators
Distributors stocking a wireless dial stat
OEM buyers wanting an 868 MHz air conditioning control

Technical Features

Wireless RF room thermostat on 868 MHz, non-programmable
Large dial adjustable button
Heating, cooling and frost protection modes

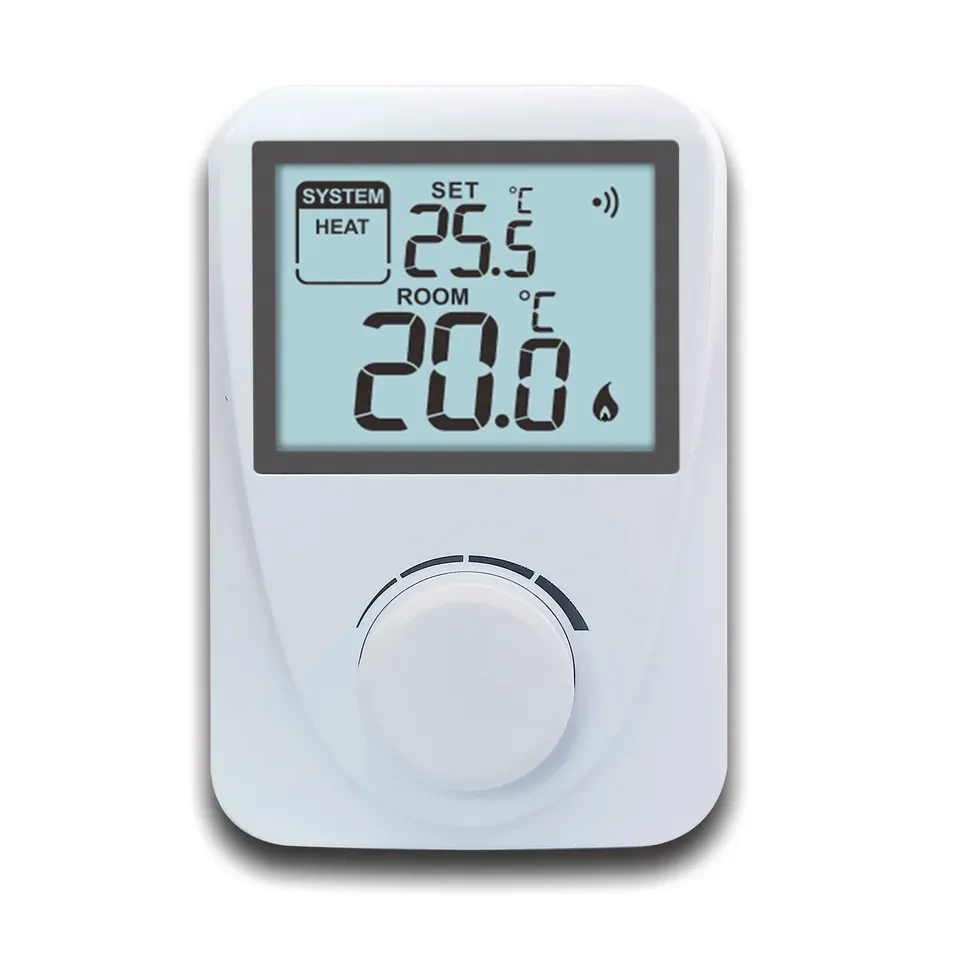

Detects and displays room temperature on a large clear LCD
Room temperature calibration adjustment
Switching sensitivity adjustable

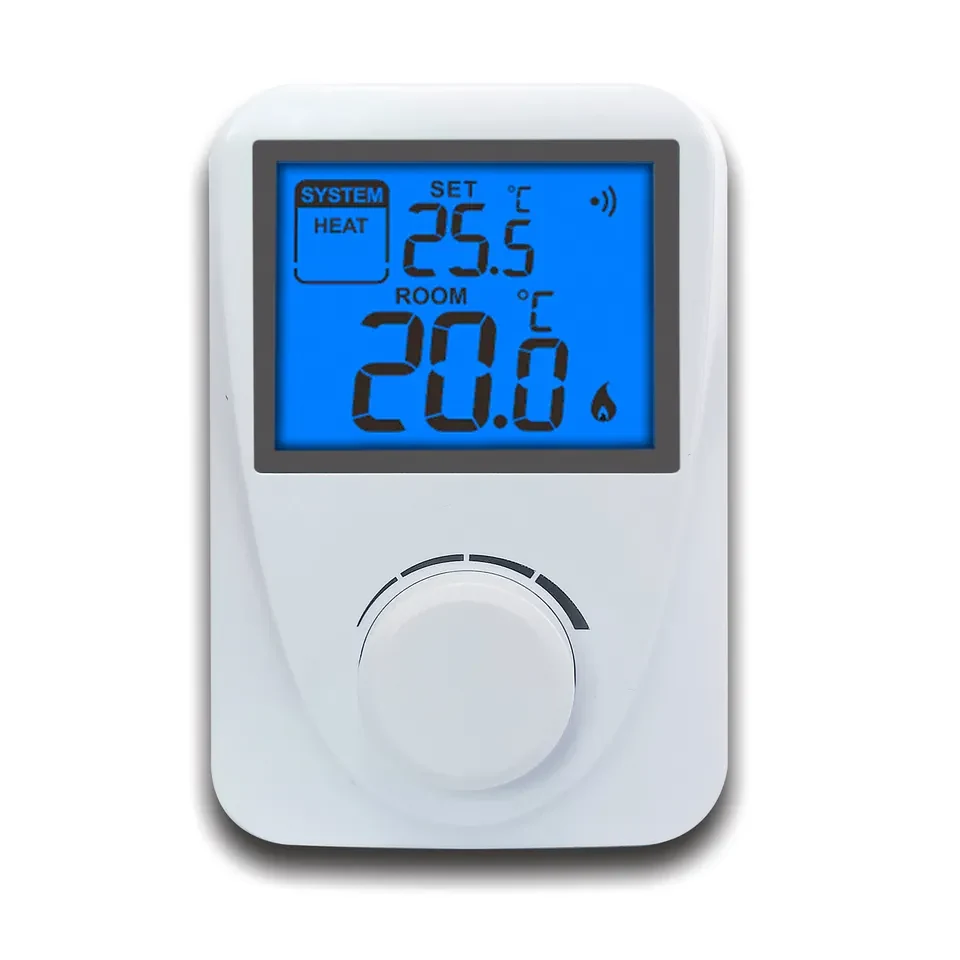

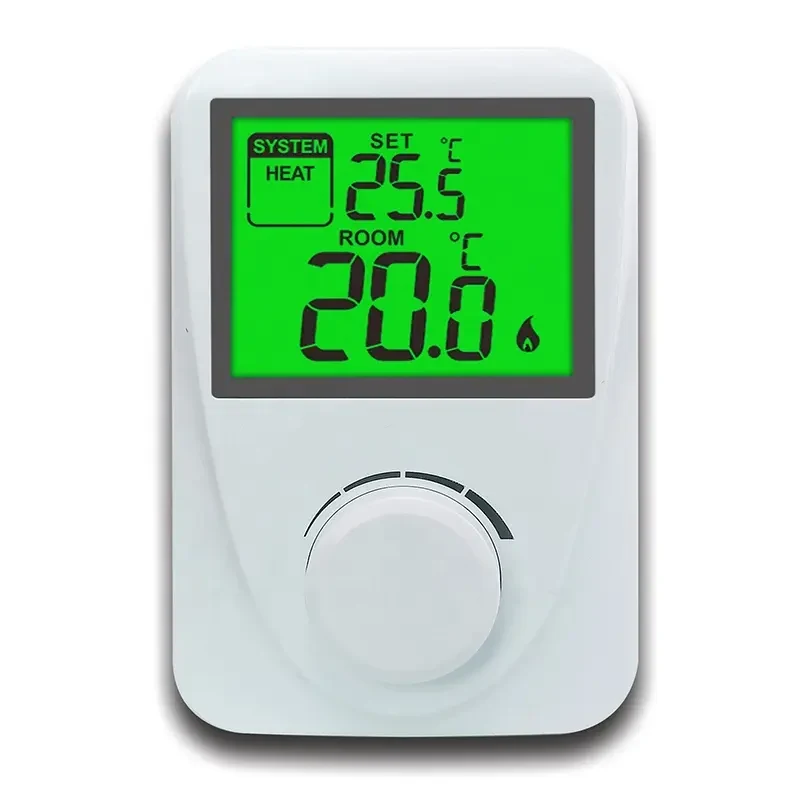

Backlight white, blue or green
Flame resistant ABS housing, 400 g, one instruction sheet per box

Specifications

Model	ST2601
Backlight	White/Blue/
Material	Flame-resistant ABS
Weight	400g
Package Included	1Wireless Thermostat 1Instruction

Specifications are taken from the manufacturer data for this model. Confirm the exact configuration with us before you order.

Application Scenarios

Air conditioning where the indoor unit is out of cable reach
Hotel and office rooms needing a simple guest control
Heating and cooling on the same system
Refurbishments that cannot take new cabling

Quality Control

Link stability checked over a fixed test distance on every pair
Dial action verified on the line
Backlight colour checked against the approved sample

Customisation Options

Backlight white, blue or green
Dial cap colour and front label
Setpoint range narrowed for hotel projects
Manual and carton in the buyer's language

Comparison

How It Compares

The ST2601RF configuration with a 6(2)A receiver

This version is described for air conditioning temperature control on the 868 MHz band, with a flame resistant ABS housing.

ST2601 wired version

ST2601RF removes the cable between the room and the plant while keeping the dial interface.

Use guide

Installing And Commissioning

Step 1

Wire and power the receiver at the indoor unit or plant

Step 2

Confirm the room unit has bound to the receiver

Step 3

Site the room unit away from the supply air stream and direct sun

Step 4

Set switching sensitivity to suit the system

Step 5

Walk test the link before final fixing
