Wireless Gas Boiler Thermostat For Electric Radiator
ST2401RF is the version of our RF pair built for electric radiators, where the switched load is much higher than a boiler relay. The receiver is offered at 6A or 16A on 230V AC, so a direct electric heater can be switched without an external contactor. The room unit runs from 2 x AAA 1.5V lithium batteries, carries a Heat / Off / Cool switch, a low battery indicator and a Fahrenheit or Celsius display option.
Key Benefits
- 16A receiver option switches electric radiators directly, with no contactor to house
- Battery powered room unit can be sited anywhere without a supply
- Low battery indicator warns before the room loses control
- F or C display makes the same product suitable for several export markets
- Room temperature calibration corrects a warm or draughty mounting position
Problems It Solves
- Thermostat contacts too small for direct electric heater loads
- Extra contactor enclosures adding cost and wall space
- Batteries dying without warning and leaving a room uncontrolled
- One product range having to serve both F and C markets
Who It Is For
- Electric heating suppliers who need a matching wireless control
- Hotel and apartment operators on all-electric sites
- Installers avoiding a separate contactor enclosure
- OEM buyers wanting a high current RF receiver in their range
Technical Features

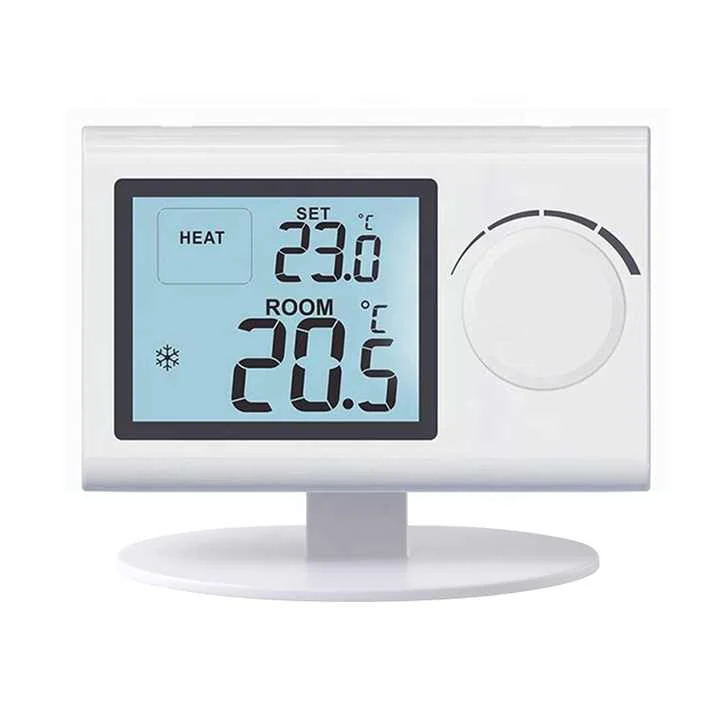

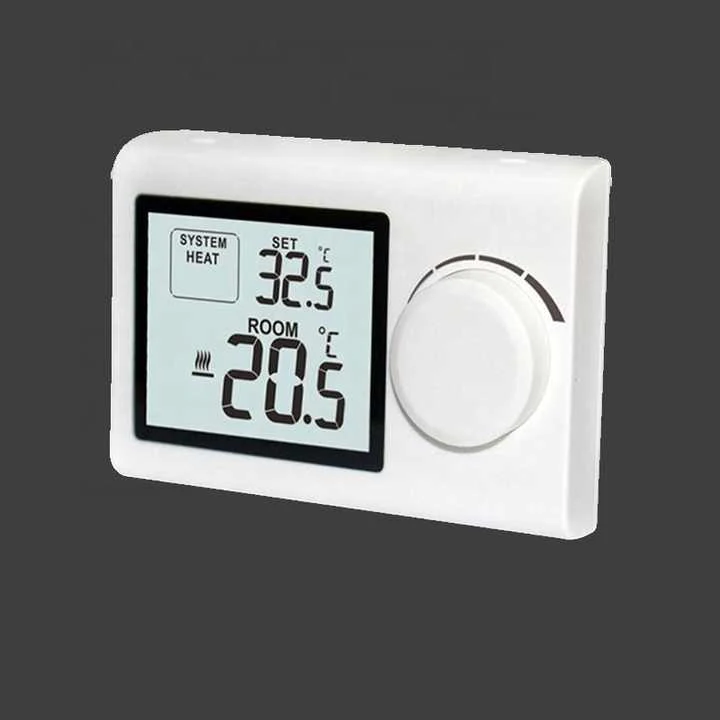

- RF room unit with wall mounted receiver, 868.35 MHz
- Receiver power supply 6A or 16A at 230V AC
- Non-programmable with a Heat / Off / Cool mode switch
- Measuring range 0 C to 40 C in 0.1 C, setpoint range 5 C to 35 C in 0.5 C
- Display accuracy +/-1 C at 20 C, F or C display format
- Switchable voltage 24 V AC/DC up to 250 V AC at 50 Hz
- Room unit powered by 2 x AAA 1.5V lithium batteries with low battery indicator
- ABS housing, backlight in orange, white, blue or customised, CE and RoHS
Specifications
| Model | ST2401RF |
| Programmability | Non-Programmable |
| System Switch | HEAT/OFF/COOL MODE Switch |
| Power Supply | 2 x AAA 1.5V Lithium batteries |
| Switchable Voltage | 24 V AC / DC,…250 V AC; 50 Hz |
| Switchable Current | 6 A (2 A inductive load)/16A |
| Temperature Range | 0°C-40°C in 0.1°C |
| Setpoint Range | 5°C-35°C in 0.5°C |
| Display accuracy | ±1°C (at 20°C) |
| Backlight | Orange/White/Blue/Customied |
| Material | ABS |
| Dimension | 120 x 77 x 28 mm (without holder) |
| Installation | Wall mounted Operating |
| Operating Frequency | 868.35MHZ |
| Application | Hotel |
| Type | Air Conditioning/Heating/HVAC Systems/Radiator/Ventilation/Cooling/Noise and Attenuation/Other/Cooling |
| Function | Heating and Cooling |
| Certification | CE/EVD/RoHs |
| Warranty | 2 years |
| After-sale Service | Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement, NONE |
Specifications are taken from the manufacturer data for this model. Confirm the exact configuration with us before you order.
Application Scenarios
- Electric radiator heating in apartments without a gas supply
- Hotel rooms on direct electric heating
- Extensions and loft conversions heated electrically
- Rooms where the heater position rules out a wired stat
Quality Control
- Receiver tested at the rated 16A load before packing
- Room unit and receiver bound and range tested as a pair
- Low battery threshold verified on batch samples
Customisation Options
- Receiver current rating supplied at 6A or 16A
- Backlight orange, white, blue or a custom colour
- Display default set to F or C for the destination market
- Logo, manual and carton to the buyer's artwork
How It Compares
Installing And Commissioning
Step 1
Confirm the radiator load against the 6A or 16A receiver rating before ordering
Step 2
Wire the receiver on 230V AC at the heater and land the switched conductor
Step 3
Fit 2 x AAA 1.5V lithium batteries in the room unit and confirm binding
Step 4
Set the Heat / Off / Cool switch and apply a calibration offset if needed
Step 5
Walk test the link and confirm the low battery indicator is clear
Wireless Gas Boiler Thermostat For Electric Radiator: Buyer Questions
Can the ST2401RF switch an electric radiator directly?
With the 16A receiver, yes, provided the radiator load is within 16A at 230V AC. Above that, switch through a contactor.
What batteries does the room unit take?
2 x AAA 1.5V lithium batteries, with a low battery indicator on the display.
Can the display show Fahrenheit?
Yes. The display can be set to F or C, and we preset it for your market.
What backlight colours are available?
Orange, white, blue or a customised colour on OEM orders.
Which certifications does it hold?
CE and RoHS. Send us the destination market and we will confirm the documentation.
Is the room temperature reading adjustable?
Yes, there is a room temperature calibration adjustment for positions that read warm or cold.
