RF Remotely Control Non-Programmable Wireless Heating Air Conditioner Room Thermostat 230V

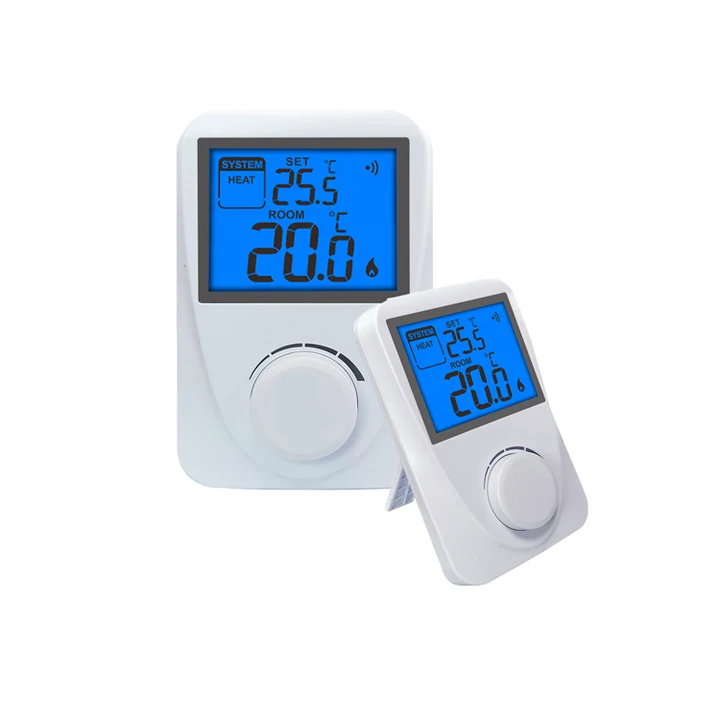

ST2601RF is a wireless dial thermostat for heating, air conditioning and underfloor heating where the appliance is out of reach of a cable. The link carries up to 200 m and the receiver switches 6(2)A at 230V. Like the wired ST2601 it uses a large dial adjustable button, with HEAT, COOL and OFF frost protection and an adjustable switching sensitivity for slow responding systems.
Key Benefits
- 200 m wireless range covers large properties without repeaters
- Large dial keeps operation to a single action
- Adjustable switching sensitivity suits underfloor heating
- Calibration of -3 to +3 C fixes a poor mounting position
- RoHS, CE and CCC documentation for both European and Chinese markets
Problems It Solves
- No cable route to the appliance
- Digital menus that occupants cannot navigate
- Underfloor systems cycling too quickly
- Products certified for only one of the CE or CCC markets
Who It Is For
- Installers retrofitting controls into finished buildings
- Underfloor heating suppliers
- Distributors serving CE and CCC markets
- OEM buyers wanting a dial fronted wireless model
Technical Features

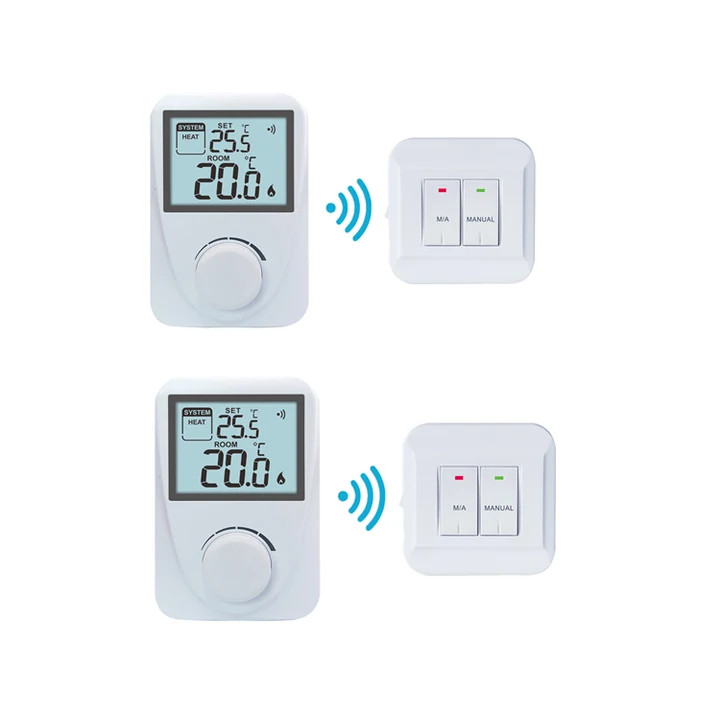

- Wireless RF link with a range of up to 200 m
- Non-programmable, large dial adjustable button
- HEAT / COOL / OFF with frost protection
- Measuring range 0 C to 40 C in 0.1 C, setpoint range 5 C to 35 C in 0.5 C
- Display accuracy +/-1 C at 20 C, calibration adjustment -3 to +3 C
- Maximum load 6(2)A at 230V, switchable 6 A with 2 A inductive load

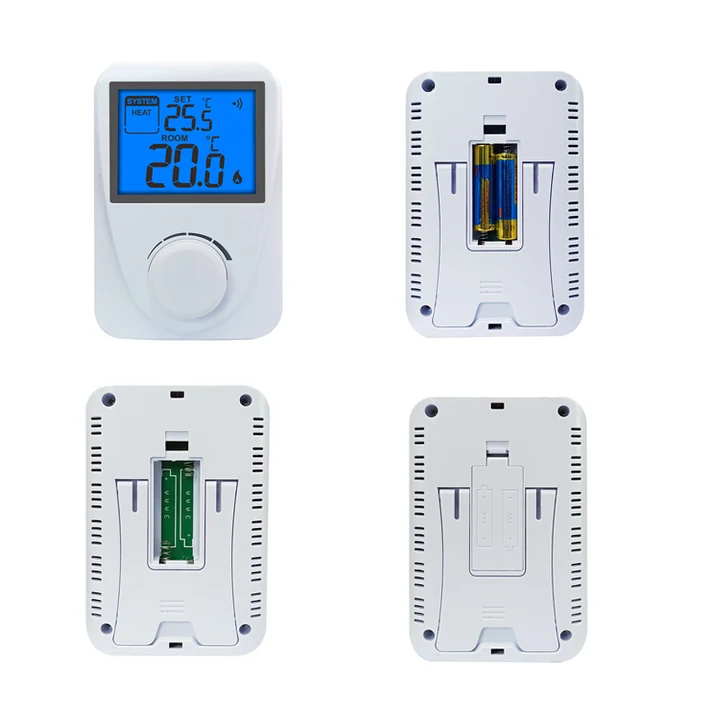

- Room unit powered by 2 x AAA 1.5V alkaline batteries, receiver 6W operating
- Anti-flammable PC and ABS housing, blue or white backlight, RoHS CE CCC
Specifications
| Model | ST2601RF |
| Programmability | Non-Programmable |
| Power Supply | DC 2 x AAA 1.5V Alkaline batteries |
| Switchable Voltage | 24 V AC / DC,…250 V AC; 50 Hz |
| Switchable Current | 6 A (2 A inductive load) |
| Maximum Load | 6(2)A, 230V |
| Temperature Range | 0°C-40°C in 0.1°C |
| Setpoint Range | 5°C-35°C in 0.5°C Power Consumption 6W Operating |
| Display accuracy | ±1°C (at 20°C) |
| Screen | Digital LCD |
| Backlight | Blue/White |
| Color | White |
| Material | Anti-flammable PC +ABS |
| Dimension | 130 x86 x30 mm |
| Operating Frequency | 868.35MHZ |
| Transmission Distance | approx. 200m in open terrain |
| Consumption | 6W |
| Application | Underfloor heating system |
| Type | Floor Heating Parts |
| Function | Temperature Control Communication RF 868MHZ 433MHZ |
| Certification | RoHS CE CCC |
Specifications are taken from the manufacturer data for this model. Confirm the exact configuration with us before you order.
Application Scenarios
- Underfloor heating with the manifold in a remote cupboard
- Air conditioning in rooms without a control cable
- Large houses where a single wireless link must reach the far end
- Refurbishments that cannot take new cabling
Quality Control
- Pair binding and range checked before packing
- Dial action and switching sensitivity range verified
- Receiver contact tested at 6(2)A 230V
Customisation Options
- Backlight blue or white
- Dial cap and housing colour
- Setpoint range restricted for managed buildings
- Logo, manual and carton to the buyer's artwork
How It Compares
Installing And Commissioning
Step 1
Wire the receiver at the appliance and land the switched conductor on the 6(2)A contact
Step 2
Fit 2 x AAA alkaline batteries in the room unit and confirm binding
Step 3
Position the room unit clear of radiators, draughts and direct sun
Step 4
Raise switching sensitivity for underfloor heating
Step 5
Walk test the link at the furthest intended position
RF Remotely Control Non-Programmable Wireless Heating Air Conditioner Room Thermostat 230V: Buyer Questions
What wireless range does the ST2601RF achieve?
Up to 200 m in open conditions. Always walk test inside the building before final fixing.
Can the temperature reading be corrected?
Yes, by -3 to +3 C in the calibration setting.
What is the receiver contact rating?
6(2)A at 230V maximum.
Is it suitable for underfloor heating?
Yes. Switching sensitivity is adjustable so the cycle rate can be matched to a heated slab.
Which approvals does it hold?
RoHS, CE and CCC.
What batteries does the room unit use?
2 x AAA 1.5V alkaline batteries.
