OCTK305AC 230 VAC non-programmable fan coil unit thermostat with digital LCD

Air Conditioner Thermostats Underfloor Heating Thermostat FCU Fan Coil Unit Thermostat Non-Programmable Thermostat

Non Programmable Thermostat / Air Conditioner With Thermostat In AC

Name: Non Programmable Thermostat / Air Conditioner With Thermostat In AC
Brand: Smart Therm

OCTK305AC is a 230 VAC non-programmable thermostat for fan coil units and room air conditioning, with a display accuracy of +/-0.5 C. That is tighter than the +/-1 C typical of this class, which matters where a specification sets a narrow comfort band. The switching side uses an Omron relay and the housing is flame retardant ABS, weighing 150 g.

Request A Quote Email For A Datasheet

Key Benefits

+/-0.5 C display accuracy, tighter than most FCU room controls
Omron relay on the switching side for a documented contact life
230 VAC supply removes the need for a control transformer
0.5 C setpoint steps between 5 C and 35 C
Flame retardant ABS housing at 150 g, easy to handle on a large fit-out

Problems It Solves

Comfort bands wider than the specification allows
Unnamed relays making contact life unpredictable
Extra transformers needed for low voltage controls
Programmable stats being reprogrammed by occupants

Who It Is For

FCU manufacturers needing a matched room control
Hotel and apartment developers
Specifiers working to a tight comfort tolerance
OEM buyers who require Omron relays

Technical Features

230 VAC non-programmable control with a HEAT and COOL mode switch
Temperature range 0 C to 40 C in 1 C, setpoint range 5 C to 35 C in 0.5 C
Display accuracy +/-0.5 C
NTC sensor with Omron relay

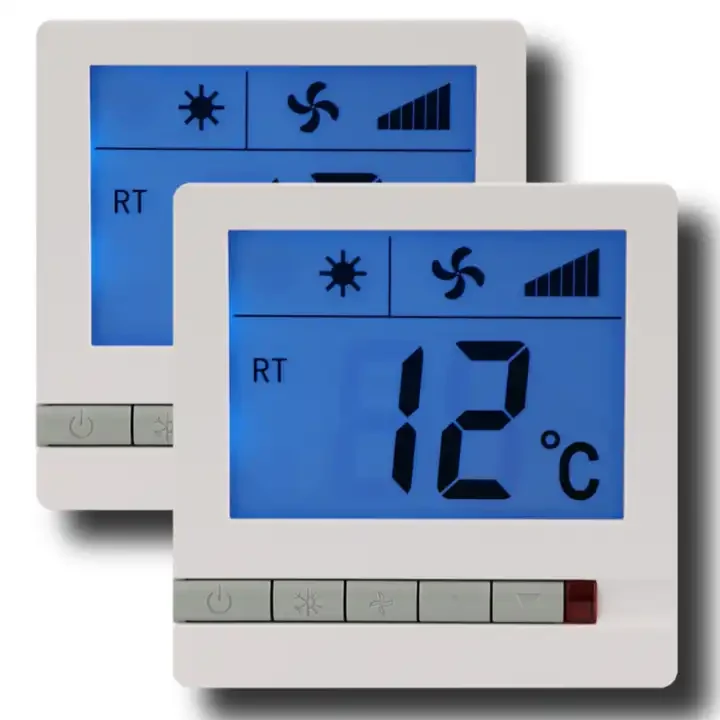

Digital LCD with blue or white backlight
Flame retardant ABS housing in white
Weight 150 g
RoHS documentation

Specifications

Model	OCTK305AC
Programmability	Non-programmable
System Switch	HEAT/COOL mode switch
Power Supply	230 VAC
Temperature Range	0ºC~40ºC in 1ºC
Setpoint Range	5ºC~35ºC in 0.5ºC
Display accuracy	±0.5℃
Sensor	NTC
Relay	Omron
Screen	Digital LCD
Backlight	Blue,white
Color	White
Material	Flame Retardance ABS
Dimension	86mm86mm32mm Product Description >> Non-programmable >> Easy to operate push buttons >> Blue / White
Weight	150g
Application	Apartment,Hotel,indoor,room
Type	Air Conditioning/Heating/HVAC Systems
Feature	Wide application
Certification	ROHS
Warranty	1 Year Specification
After-sale Service	Online technical support, Return and Replacement
MOQ	1piece

Specifications are taken from the manufacturer data for this model. Confirm the exact configuration with us before you order.

Application Scenarios

Fan coil units in apartments and hotels
Underfloor heating with a matching cooling stage
Indoor rooms with a narrow specified comfort band
Room air conditioning in managed buildings

Quality Control

Display accuracy audited against a reference probe at +/-0.5 C
Omron relay switching verified at rated load
High voltage insulation test on every 230 VAC unit

Customisation Options

Backlight blue or white
Front label and logo to the buyer's artwork
Setpoint range narrowed for hotel and apartment projects
Single piece or bulk packing as required

Comparison

How It Compares

OCTK301AC

OCTK305AC specifies a +/-0.5 C display accuracy and an Omron relay, which suits projects with a tighter comfort tolerance.

Battery powered room stats

The 230 VAC supply means no batteries to change across a building full of fan coil units.

Use guide

Installing And Commissioning

Step 1

Isolate the 230 VAC supply before opening the FCU terminal box

Step 2

Mount at about 1.5 m clear of the supply air stream

Step 3

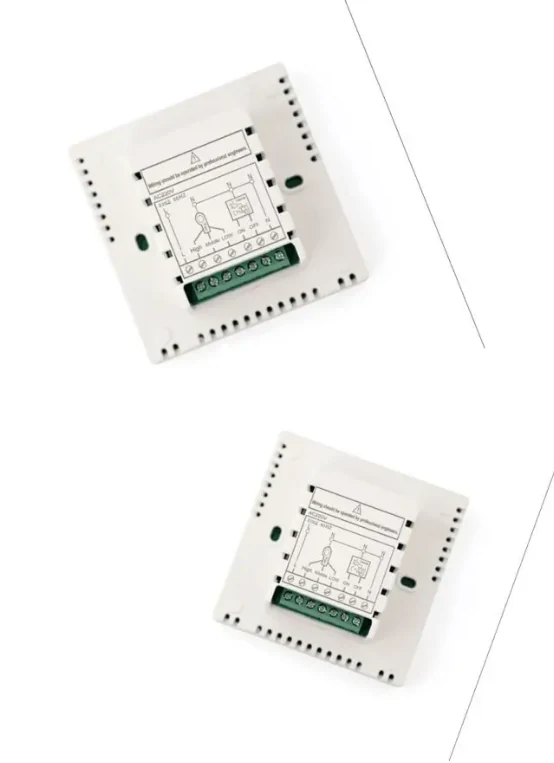

Land the conductors on the marked terminals

Step 4

Select HEAT or COOL and set the target temperature in 0.5 C steps

Step 5

Confirm the coil valve and fan respond within the comfort band
