2024 New 24V Battery 1 Heat 1 Cool 7 Day Programmable Electronic HVAC Home Thermostat for Air Conditioner
Model 3205 is a 24V single stage room thermostat for apartment air conditioning, wired for 1 heat and 1 cool. It runs a full 7 day schedule from 2 x AA batteries, reads the room through an NTC sensor and displays setpoint and room temperature on a digital LCD. The load rating is 1 amp per terminal with 1.5 amp maximum across all terminals combined, which covers the contactor and fan relay loads of a typical split or packaged unit.
Key Benefits
- Battery operation removes the common wire problem in apartment retrofits
- 7 day schedule lets each day of the week carry its own occupancy pattern
- Anti-flammable PC and ABS housing meets the material expectation of most import markets

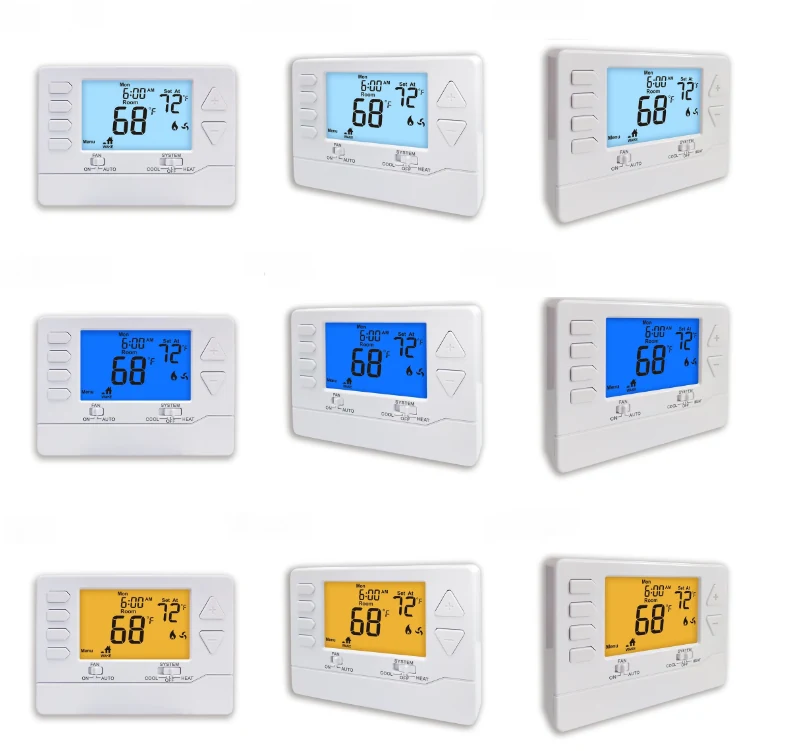

- Digital LCD shows setpoint and room temperature together, cutting user confusion
- Single stage wiring keeps the install simple for non-specialist electricians
Problems It Solves
- No common wire available at the existing thermostat position
- Flat energy profiles because the old control had no schedule
- Users guessing at setpoints because the display shows only one number
- Mixed brands of control across one building making maintenance slower
Who It Is For
- Air conditioning distributors supplying the apartment retrofit market
- Property developers fitting out multi-unit residential projects
- OEM buyers who need a private label programmable stat at volume
- Installers who want a stat that works without pulling a new C wire
Technical Features
- 24V single stage control, 1 heat and 1 cool
- 7 day programmable schedule
- Temperature range 41 F to 95 F (5 C to 35 C)
- Display accuracy +/-1 F
- NTC room sensor
- Load rating 1 amp per terminal, 1.5 amp maximum all terminals combined
- Power supply 2 x AA batteries, or 18 to 30 VAC NEC Class II 50/60 Hz hardwired
- Anti-flammable PC and ABS housing in white
Specifications
| Model | 3205 |
| Programmability | 7 Days Programmable |
| Power Supply | 2xAA Batteries |
| Load rating | 1 amp per terminal, 1 .5 amp maximum all terminals combined |
| Temperature Range | 41°F to 95°F (5°C to 35°C) |
| Display accuracy | ±1°F |
| Sensor | NTC |
| Relay | Customizd |
| Screen | Digital LCD |
| Color | White |
| Material | Anti-flammable PC +ABS |
| Operating Humidity | 90% non-condensing maximum |
| Application | Apartment |
| Type | HVAC System/Heating/Air Conditioning |
| Function | Control Temperature |
| Warranty | 1 Year |
| After-sale Service | Online technical support, Return and Replacement |
Specifications are taken from the manufacturer data for this model. Confirm the exact configuration with us before you order.
Application Scenarios
- Apartment blocks with individual split air conditioners
- Serviced apartments where occupancy changes by day of week
- Small retail units running a packaged air conditioner
- Replacement of manual rotary stats in older residential stock
Quality Control
- Schedule execution is checked against the clock on every unit
- Relay output tested at rated load before packing
- Housing checked for flash, colour and fit at the assembly station
Customisation Options
- Relay specification can be changed to the buyer's requirement
- Housing colour and logo marking to the buyer's artwork
- Default schedule and display units set to F or C before shipment
- Retail or bulk packaging with the buyer's barcode
How It Compares
Installing And Commissioning
Step 1
Isolate the 24V control circuit at the indoor unit before starting
Step 2

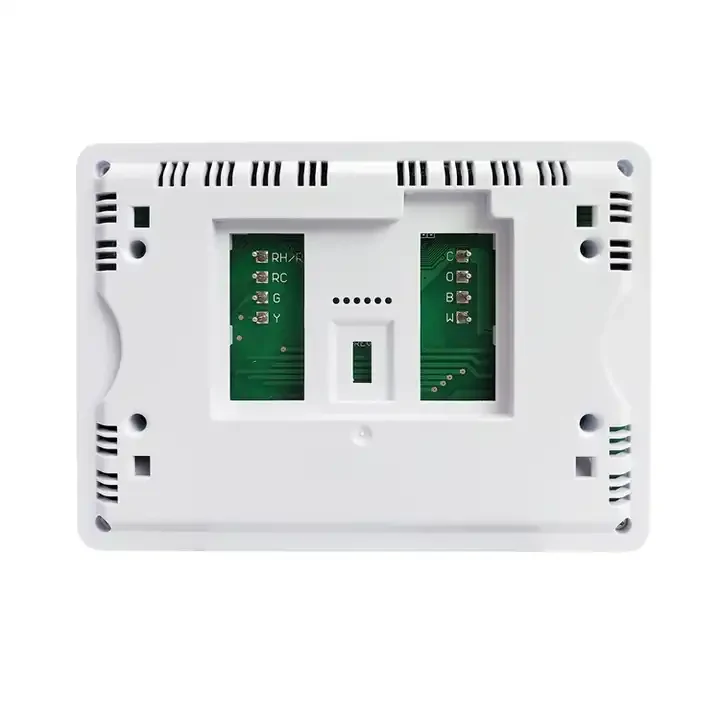

Wire R, W, Y and G to the matching terminals on the sub-base
Step 3
Fit 2 x AA batteries, or connect the common wire for 18 to 30 VAC operation
Step 4
Set the clock and day, then enter the weekday and weekend periods
Step 5
Run a heat call and a cool call and confirm the outdoor unit responds
2024 New 24V Battery 1 Heat 1 Cool 7 Day Programmable Electronic HVAC Home Thermostat for Air Conditioner: Buyer Questions
How long do the batteries last?
The unit is designed for 2 x AA alkaline batteries in normal room use. Where a common wire is available we recommend hardwiring at 18 to 30 VAC so batteries become a backup only.
Can it control two stages?
No. Model 3205 is single stage, 1 heat and 1 cool. For multi stage systems use one of our 2 heat 2 cool models.
What is the maximum load per terminal?
1 amp per terminal and 1.5 amp maximum across all terminals combined.
Is the display switchable between Fahrenheit and Celsius?
The range covers 41 F to 95 F (5 C to 35 C) and we set the display unit for your market before shipment.
What warranty do you give?
1 year warranty, with online technical support and a return and replacement process.
Can we get a sample before placing a bulk order?
Yes. We supply samples and small batch testing quantities. Samples ship within 30 days.
