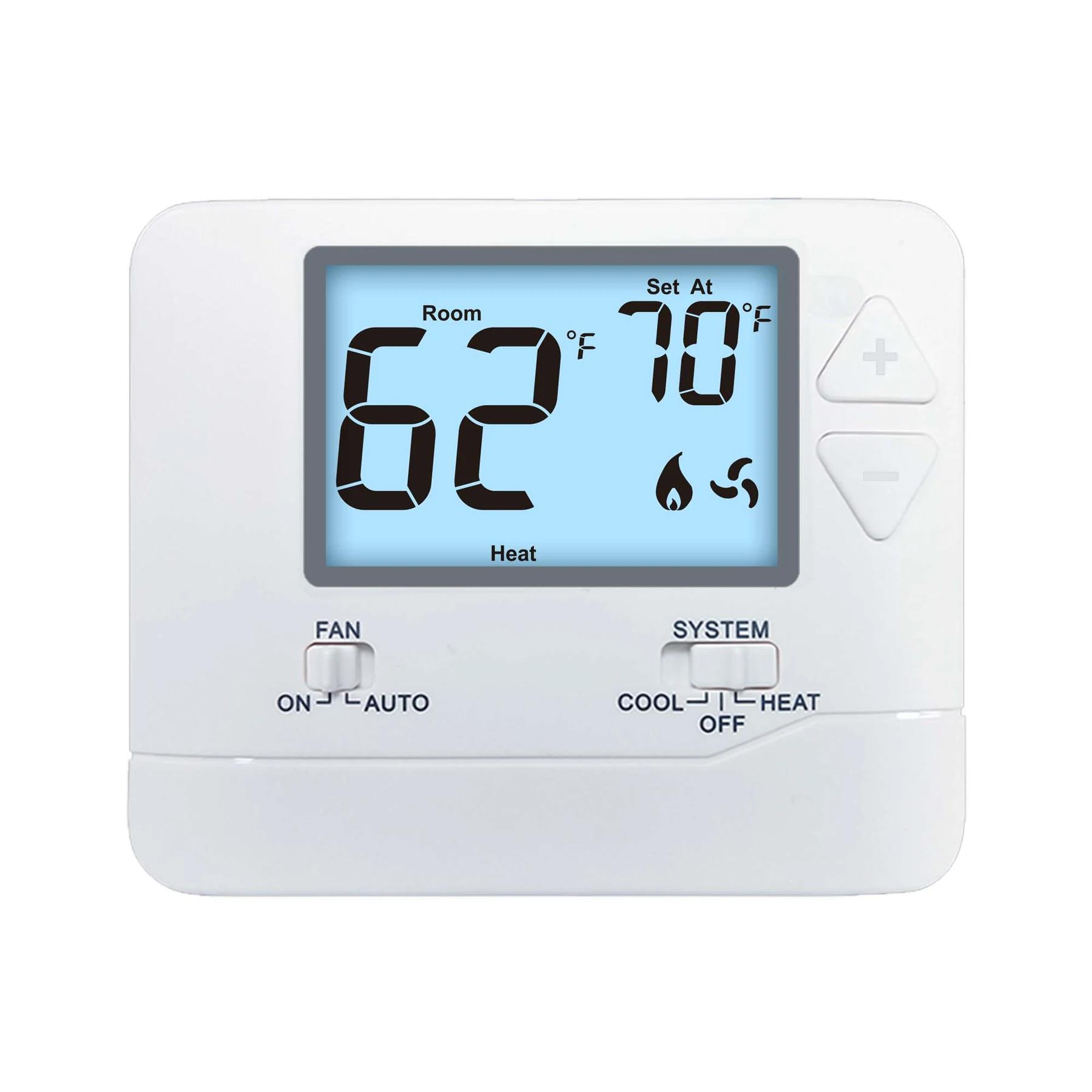

STN701 low voltage manual wall air conditioner thermostat with backlit LCD

Air Conditioner Thermostats HVAC Thermostat Electric and Gas Thermostat Non-Programmable Thermostat

Low Voltage Manual Wall AC Digital Air Conditioner LCD Thermostat

Name: Low Voltage Manual Wall AC Digital Air Conditioner LCD Thermostat
Brand: Smart Therm

STN701 is the manual member of the STN700 platform for hotels, apartments and office buildings. It is non-programmable with a HEAT / OFF / COOL switch, sensing from 32 F to 99 F with a setpoint range of 44 F to 90 F. The switching side uses an Omron relay, the housing is flame retardant ABS, and a low battery indicator appears below 2.7 V when no 24V supply is present.

Request A Quote Email For A Datasheet

Key Benefits

Shares the STN700 body and terminals with the programmable models, so a building can mix them
Omron relay for a documented contact specification
Flame retardant ABS housing meets common project material requirements

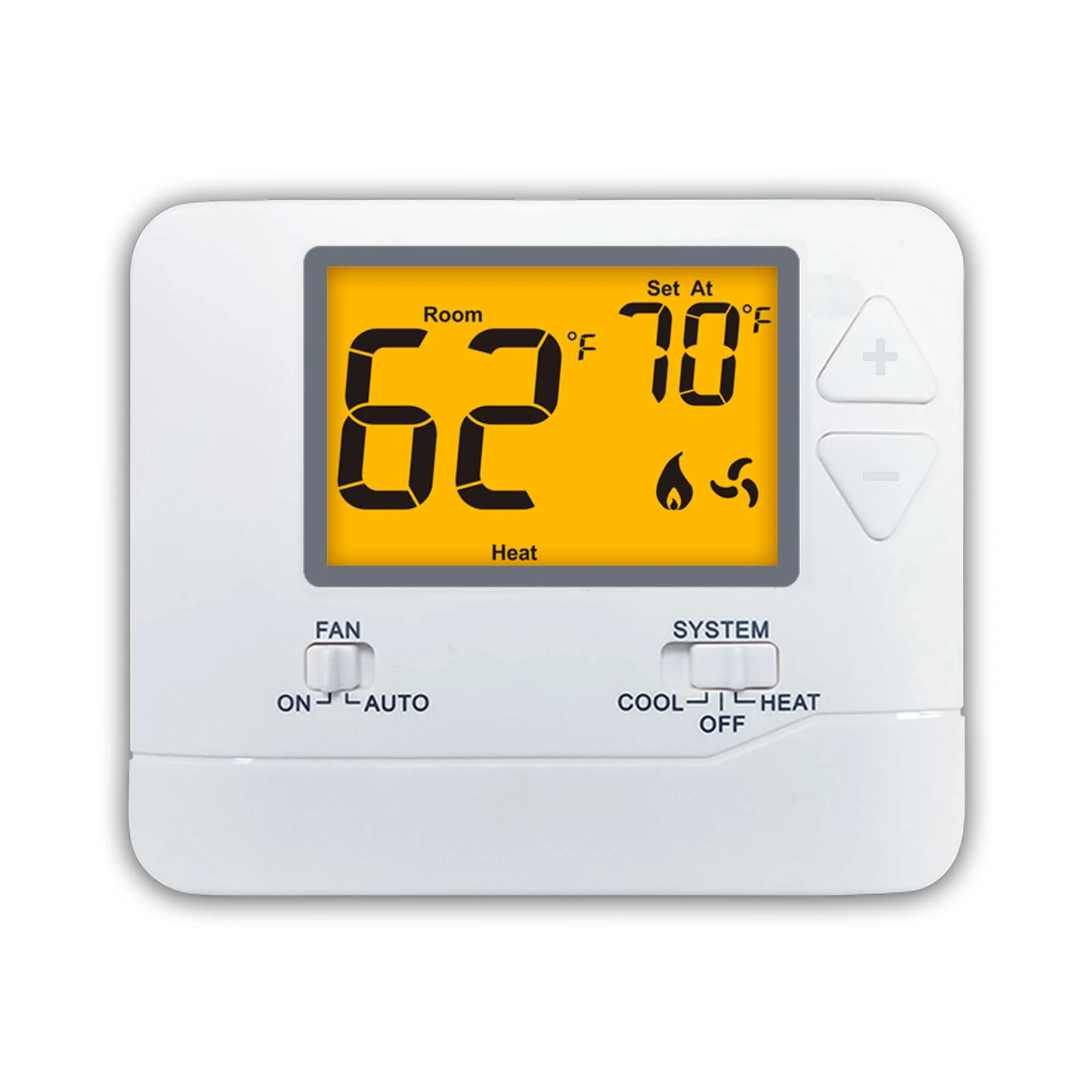

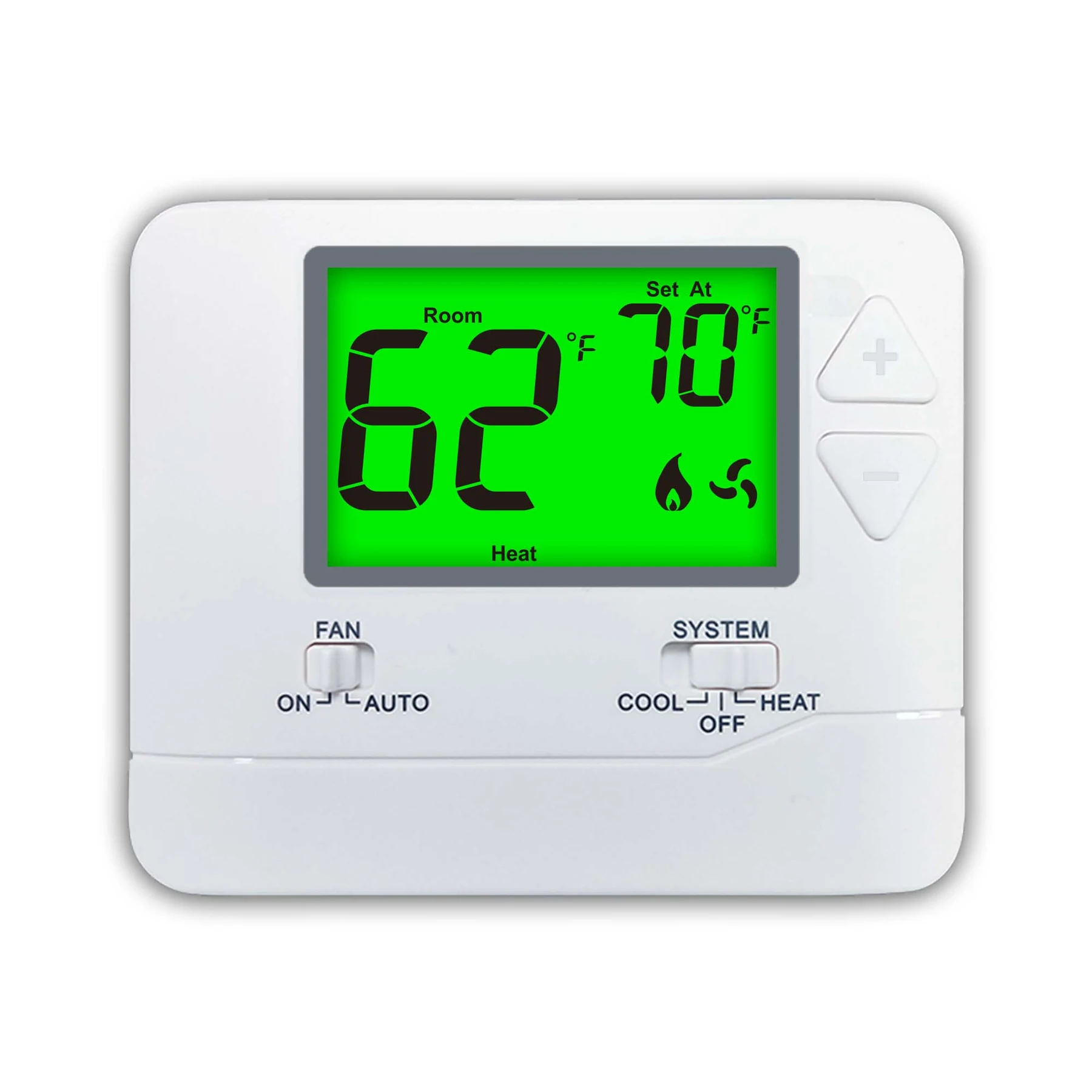

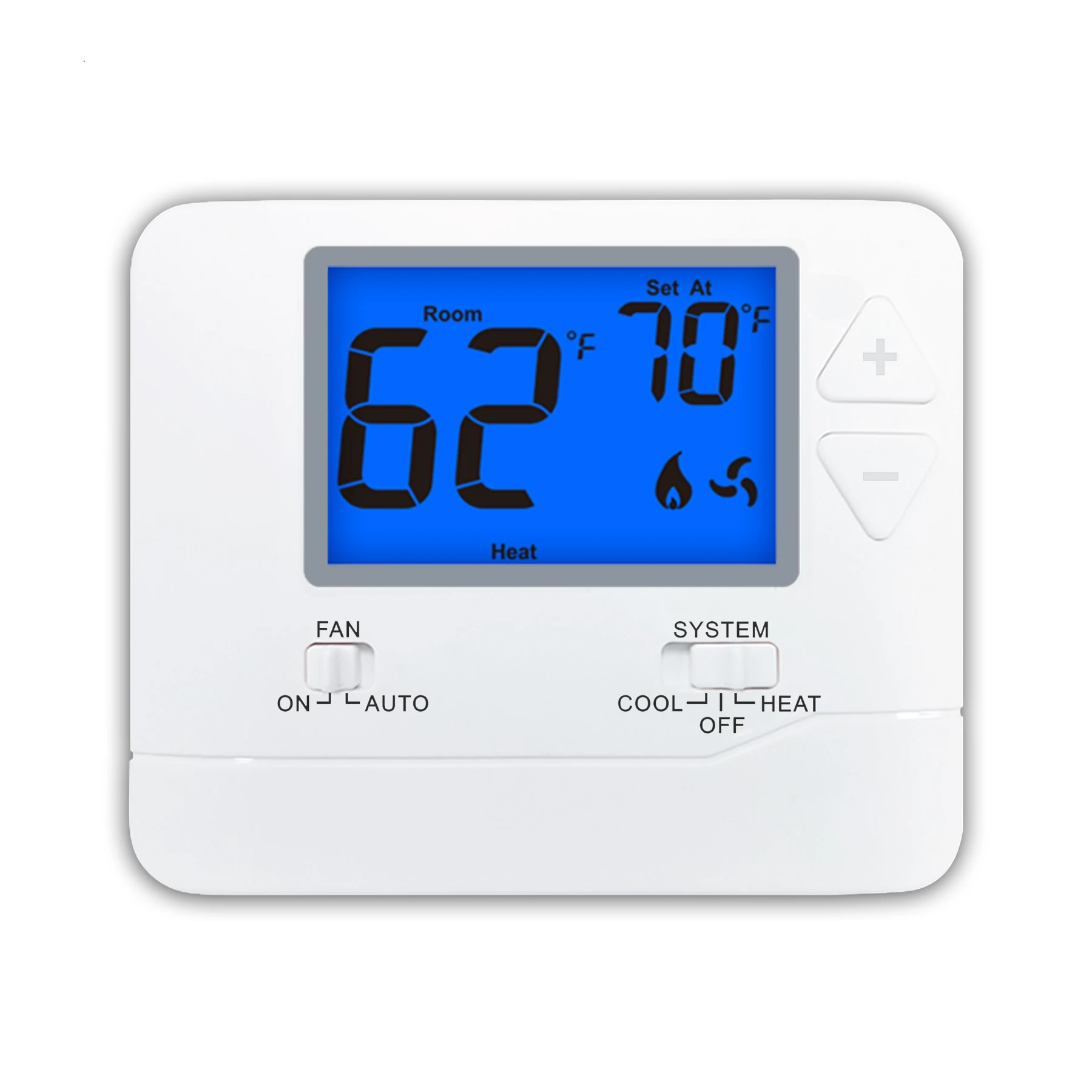

Four backlight colours: blue, green, white or orange
2 year warranty with optional onsite installation and training

Problems It Solves

Mixed thermostat bodies leaving inconsistent wall details
Occupants changing schedules in managed buildings
Material specifications that rule out standard ABS
Batteries failing without warning

Who It Is For

Hotel and office facility teams
Contractors standardising on one thermostat platform
Distributors serving the manual 24V replacement market
OEM buyers who specify Omron relays and flame retardant housings

Technical Features

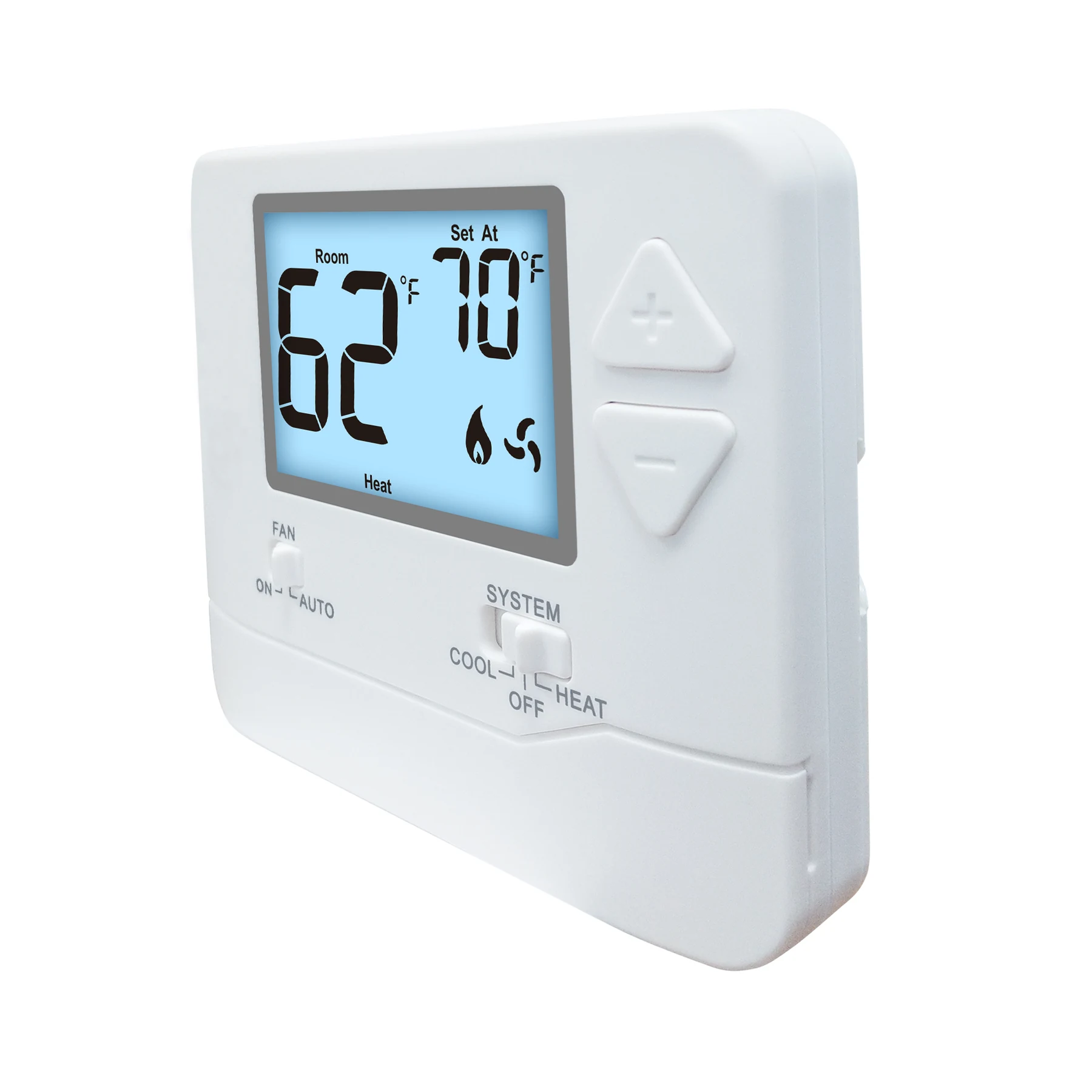

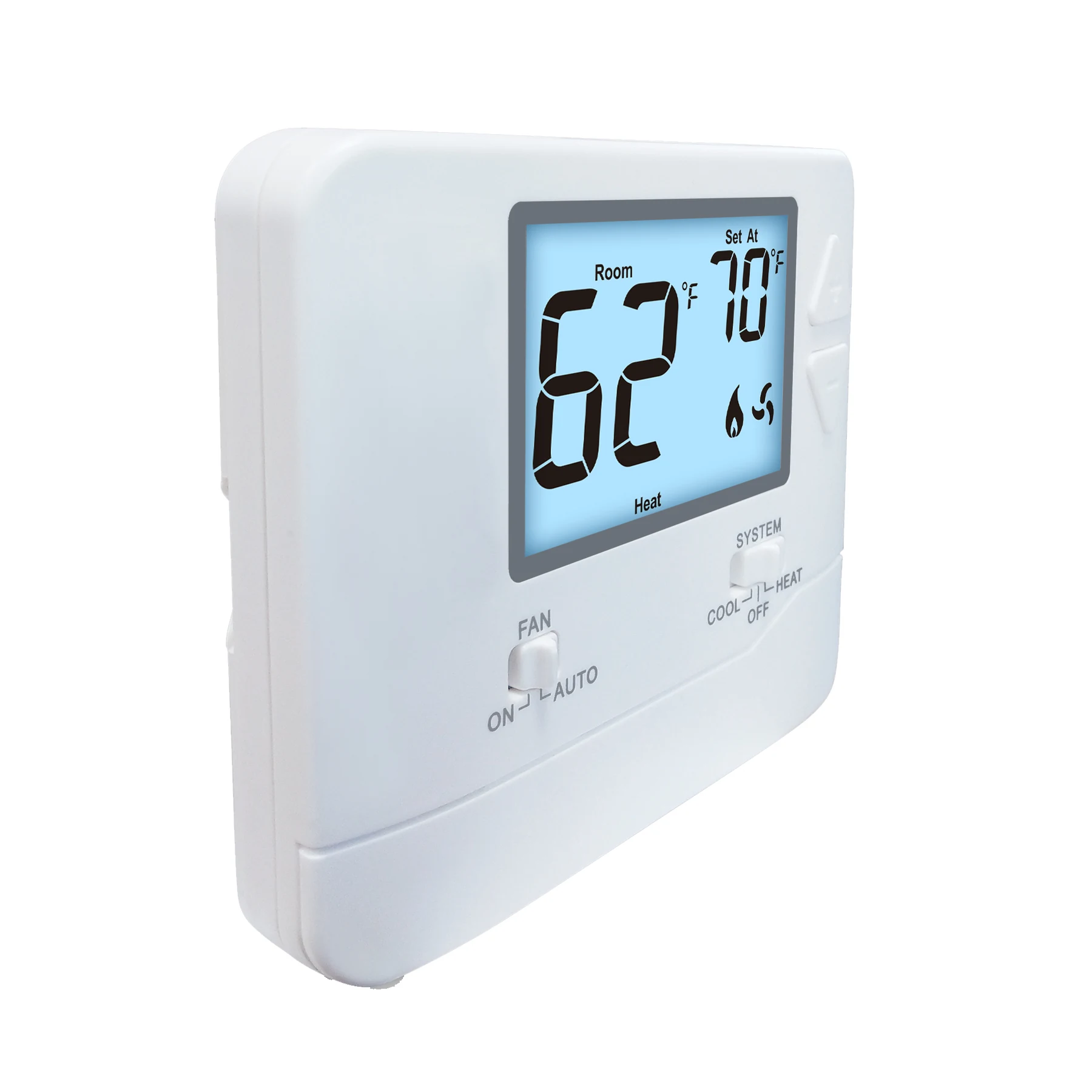

24V manual control, non-programmable, HEAT / OFF / COOL switch
Temperature range 32 F to 99 F (1 C to 40 C), setpoint range 44 F to 90 F (7 C to 32 C)
Display accuracy +/-1 F under 68 F
NTC sensor with Omron relay
Power supply 24 VAC (18 to 30 VAC), 50/60 Hz or 2 x AAA 1.5V alkaline batteries
Low battery indicator under 2.7 V without a 24V supply
Flame retardant ABS housing in white
Backlight blue, green, white or orange

Specifications

Model	STN701
Programmability	Non-programmable Low battery indicator Under 2.7 V (without 24V power supply)
Stages	1 HEAT & 1COOL
System Switch	HEAT/OFF/COOL
Power Supply	24V Power
Switchable Voltage	24 VAC(18 to 30 VAC), 50/60 Hz 2*AAA 1.5V Alkaline batteries power
Temperature Range	32℉ to 99℉ (1℃ to 40℃)
Setpoint Range	44℉ to 90℉ (7℃ to 32℃)
Display accuracy	±1℉(under 68℉)
Sensor	NTC
Relay	Omron
Backlight	Blue/Green/White/Orange
Color	White
Material	Flame Retardance ABS

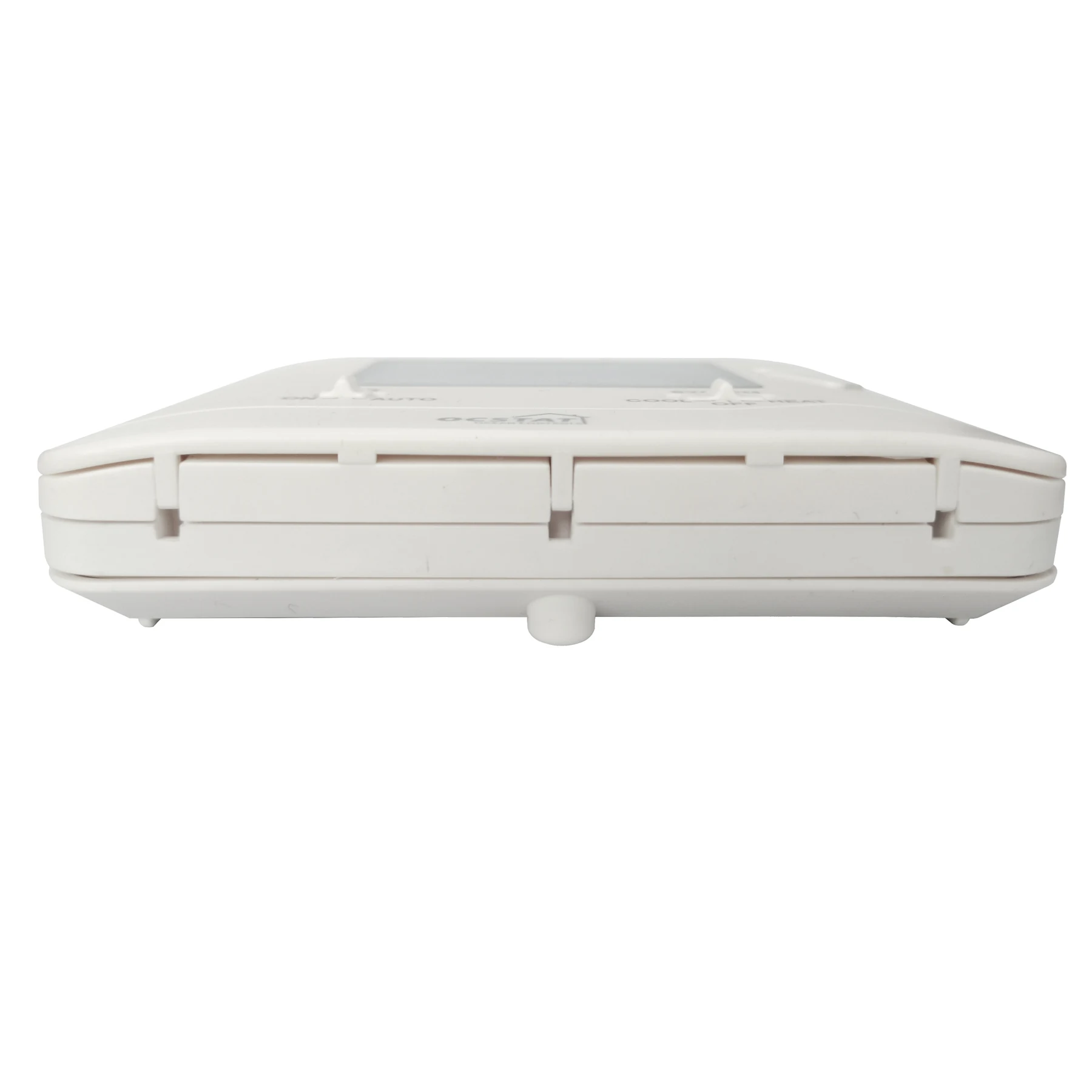

Dimension	120 x 98 x 28 MM
Application	Hotel, Apartment, Office Building
Feature	Eco-friendly
Warranty	2 years
After-sale Service	Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement, NONE

Specifications are taken from the manufacturer data for this model. Confirm the exact configuration with us before you order.

Application Scenarios

Hotel rooms where the operator controls the schedule centrally
Apartments and office buildings on low voltage air conditioning
Buildings mixing programmable and manual rooms on one platform
Replacement of failed manual stats without changing the wall detail

Quality Control

Omron relay switching verified at rated load on every unit
Low battery threshold checked at 2.7 V
Housing flammability grade recorded against the production batch

Customisation Options

Backlight blue, green, white or orange
Front label, logo and housing marking
Setpoint range restricted for managed property
Onsite installation, training and inspection on project orders

Comparison

How It Compares

STN705 programmable thermostat

STN701 removes the schedule while keeping the same body and terminals, so a building can mix scheduled and manual rooms on one platform.

Generic manual stats

STN701 specifies an Omron relay, an NTC sensor and a flame retardant ABS housing, which is what project specifications usually ask for.

Use guide

Installing And Commissioning

Step 1

Isolate the 24V control circuit before removing the old stat

Step 2

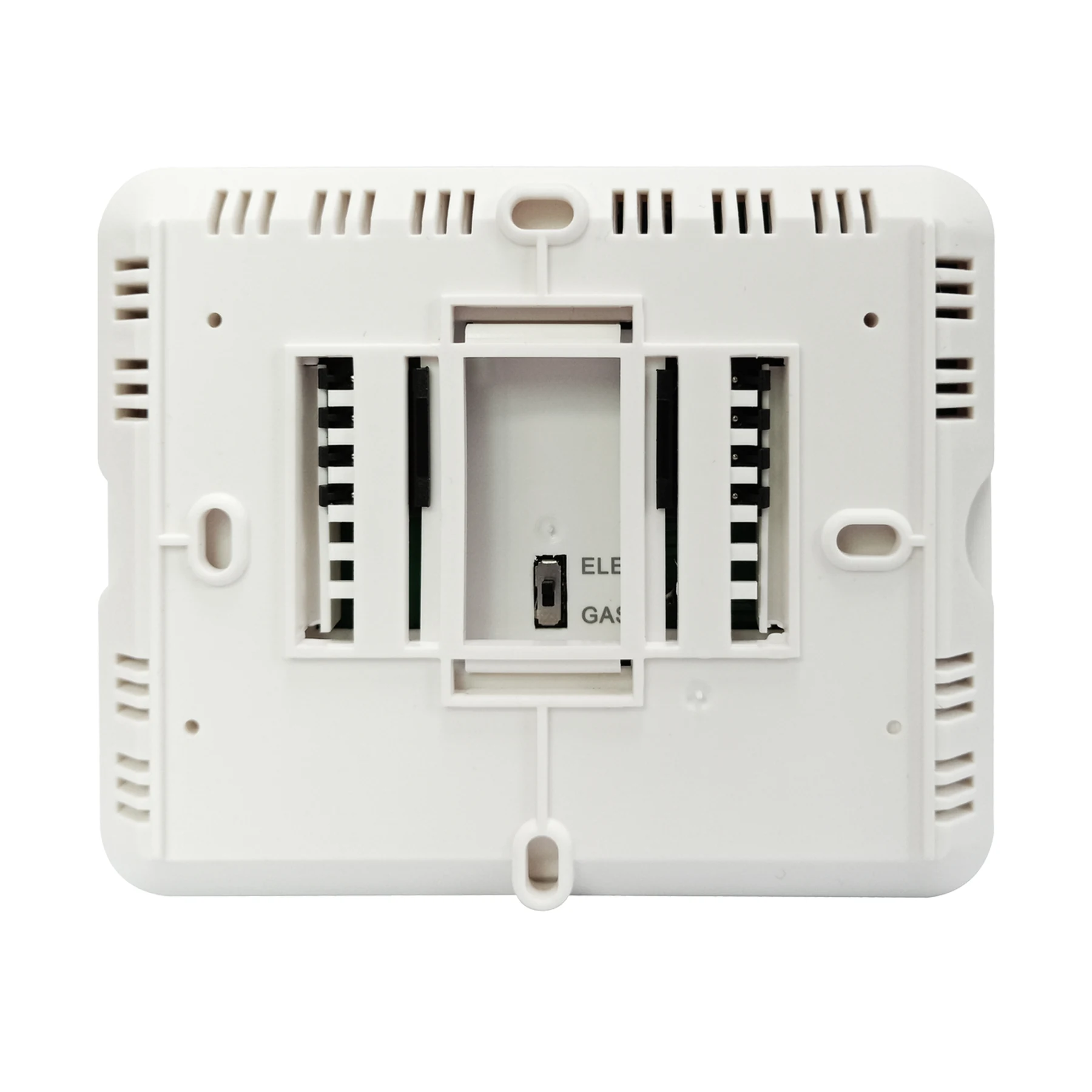

Land the conductors on the colour coded terminals

Step 3

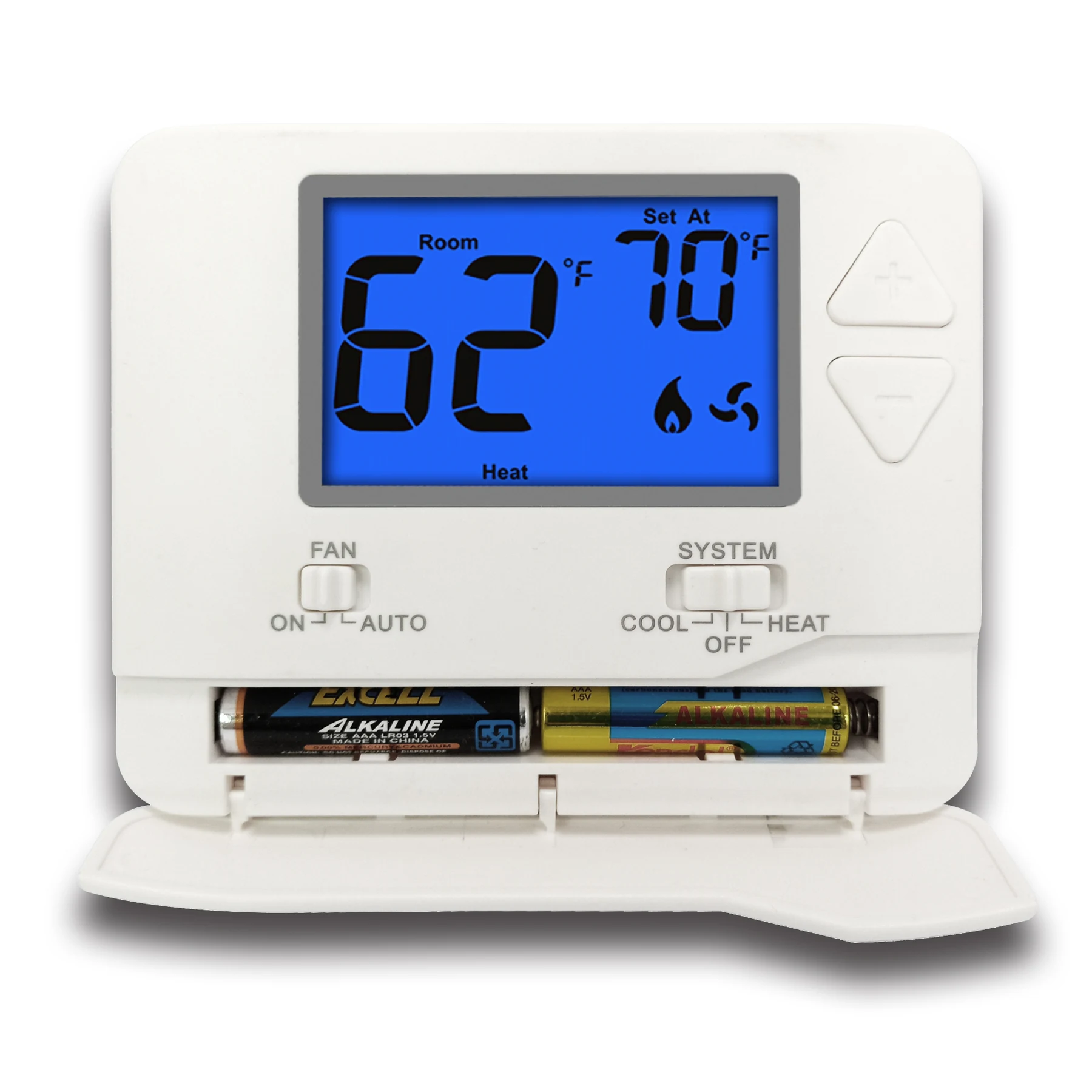

Fit 2 x AAA batteries where no common wire exists

Step 4

Set the switch to HEAT or COOL and enter the target temperature

Step 5

Confirm the low battery indicator is clear before handover
