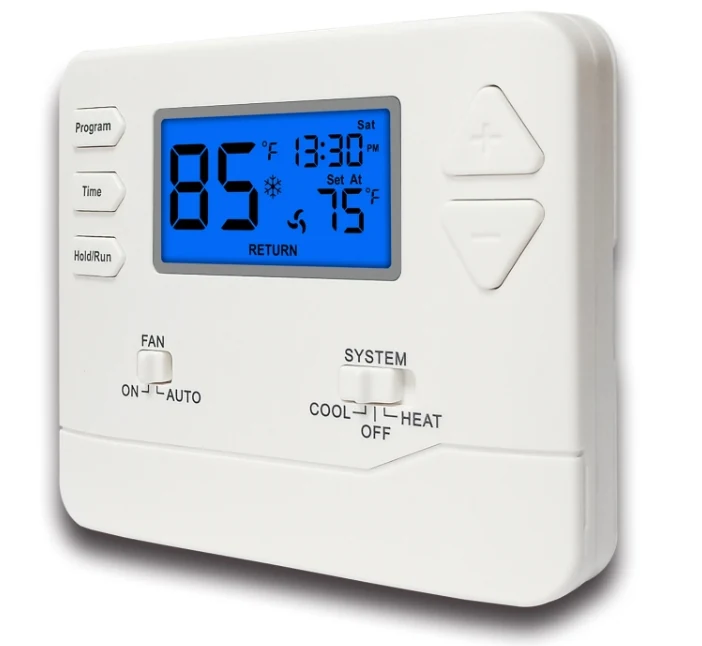

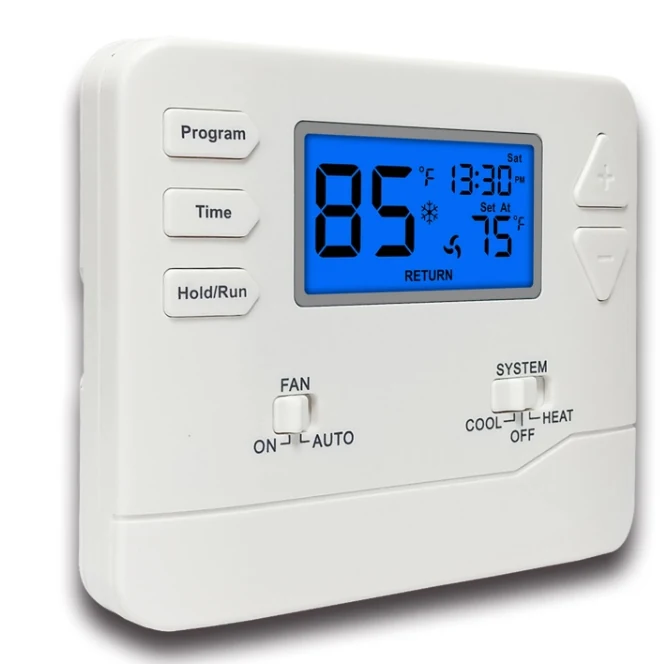

Digital Single Stage 1 Heat 1 Cool Weekly Programmable 24V HCAC System Air Conditioner Thermostat for Home
STN605 is the single stage member of the STN600 platform, controlling 1 heat and 1 cool on 24V systems. Like STN615 it can be set to 7 day, 5/1/1 or non-programmable, which lets one product cover hotel, office and institutional specifications. Sensing runs 32 F to 99 F (1 C to 40 C) with a setpoint range of 44 F to 90 F (7 C to 32 C) and accuracy of +/-1 C at 20 C.
Key Benefits
- Three programme modes from one part number reduce stock complexity
- 120 x 98 x 28 mm body matches the rest of the STN600 platform for consistent fit-out
- Battery or 24VAC operation covers retrofits without a common wire
- RoHS, CE and ISO documentation for institutional tenders
- Carton box packing with graphic design support for own-brand ranges
Problems It Solves
- Mixed thermostat sizes leaving different wall marks across a building
- Separate SKUs for programmable and non-programmable rooms
- Documentation gaps on institutional tenders
- Retrofits without a common wire at the stat position
Who It Is For
- Distributors serving hotel and office fit-outs
- Contractors tendering on institutional projects
- OEM buyers building a consistent thermostat platform
- Facility teams standardising one body size across a site
Technical Features
- 24V single stage control, 1 heat and 1 cool
- 7 day, 5/1/1 programmable or non-programmable
- Temperature range 32 F to 99 F (1 C to 40 C)
- Setpoint range 44 F to 90 F (7 C to 32 C)
- Display accuracy +/-1 C at 20 C
- Power supply 2 x AAA 1.5V alkaline batteries or 24VAC (18 to 30VAC), 50/60 Hz hardwired
- Dimensions 120 x 98 x 28 mm, ABS housing in white
- RoHS, CE and ISO documentation, 1 year warranty
Specifications
| Model | STN605 |
| Programmability | 7 Day, 5/1/1 Programmable or Non-programmable |
| Power Supply | 24V |
| Switchable Voltage | DC 2 x AAA 1.5V Alkaline batteries 24VAC (18~30VAC), 50/60 Hz for hardwire (common wire) |
| Temperature Range | 32°F-99°F (1°C-40°C) |
| Setpoint Range | 44°F-90°F (7°C-32°C) |
| Display accuracy | ±1°C (at 20°C) |
| Color | White |
| Material | ABS |
| Dimension | 120 x98 x28 mm |
| Installation | Wall Mounted |
| Application | Hotel, Apartment, Office Building, Hospital, School, Mall |
| Type | Air Conditioning/Heating/HVAC Systems/Radiator/Ventilation/Heat pump/Other |
| Function | Temperature Control Package Carton Box |
| Feature | Energy Saving |
| Certification | RoHS CE ISO |
| Warranty | 1 Year |
| After-sale Service | Online technical support, Return and Replacement |
Specifications are taken from the manufacturer data for this model. Confirm the exact configuration with us before you order.
Application Scenarios
- Hotels and apartments on single stage air conditioning
- Office buildings and schools with simple heating and cooling plant
- Hospitals and malls needing a documented CE and ISO product
- Radiator, ventilation and heat pump systems at single stage
Quality Control
- Programme mode switching checked across all three settings
- Heat and cool outputs exercised before packing
- Documentation file maintained for RoHS, CE and ISO
Customisation Options
- Default programme mode preset at the factory
- Housing marking, front label and logo
- Carton box packing in the buyer's format
- Graphic design support for manuals and packaging
How It Compares
Installing And Commissioning
Step 1
Isolate the 24V control circuit before removing the old stat
Step 2

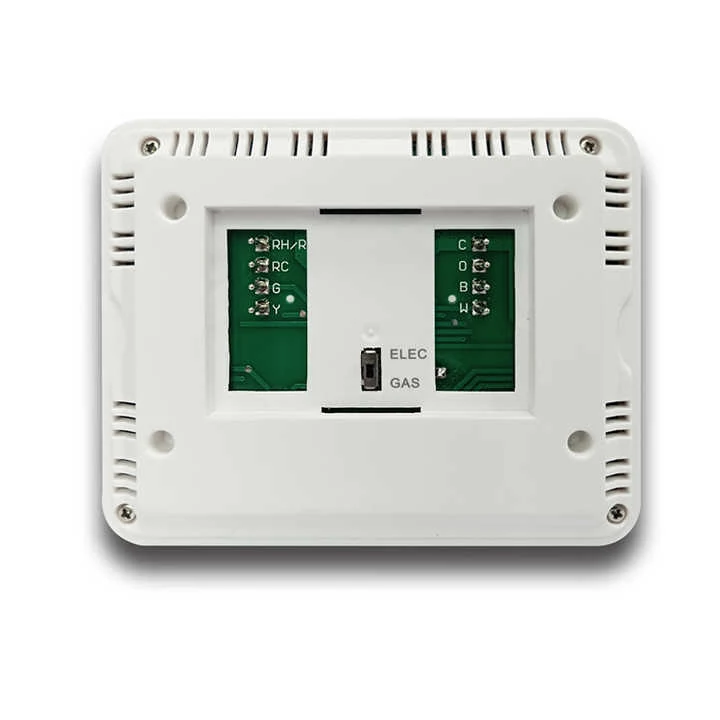

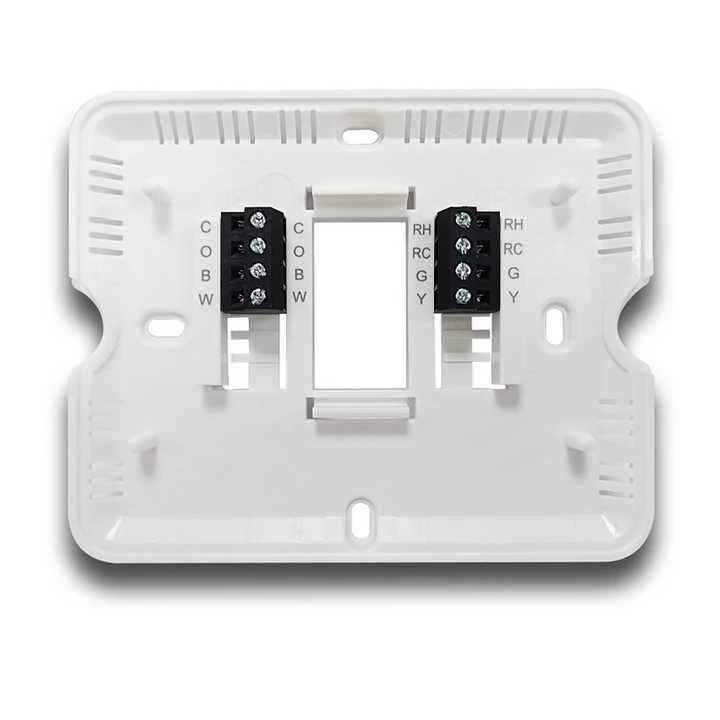

Land the conductors on the colour coded terminals
Step 3

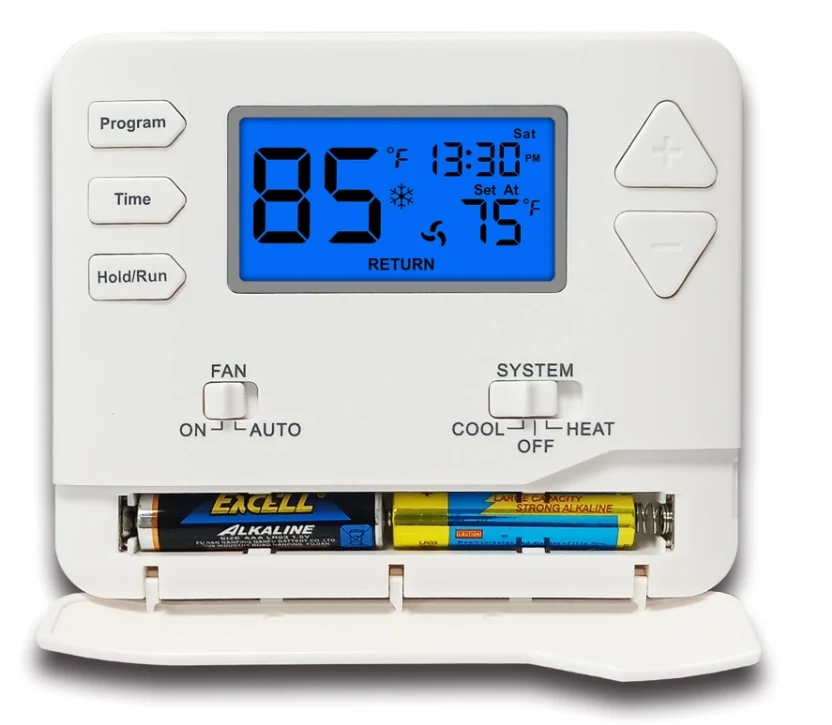

Fit 2 x AAA batteries, or hardwire at 24VAC where a common wire exists
Step 4
Select 7 day, 5/1/1 or non-programmable in setup
Step 5
Run a heat call and a cool call and confirm the plant responds
Digital Single Stage 1 Heat 1 Cool Weekly Programmable 24V HCAC System Air Conditioner Thermostat for Home: Buyer Questions
Can the STN605 be supplied non-programmable?
Yes. 7 day, 5/1/1 and non-programmable are all available on the same unit, and we can preset the default.
What are the dimensions?
120 x 98 x 28 mm, the same body as the rest of the STN600 platform.
What power supply does it take?
2 x AAA 1.5V alkaline batteries, or 24VAC (18 to 30VAC), 50/60 Hz hardwired.
What certifications does it carry?
RoHS, CE and ISO.
What is the setpoint range?
44 F to 90 F (7 C to 32 C), sensing from 32 F to 99 F.
How is it packed?
Carton box, and we can pack to your own specification.
