Digital Non Programmable Air Conditioner Room Thermostat

Name: Digital Non Programmable Air Conditioner Room Thermostat
Brand: Smart Therm

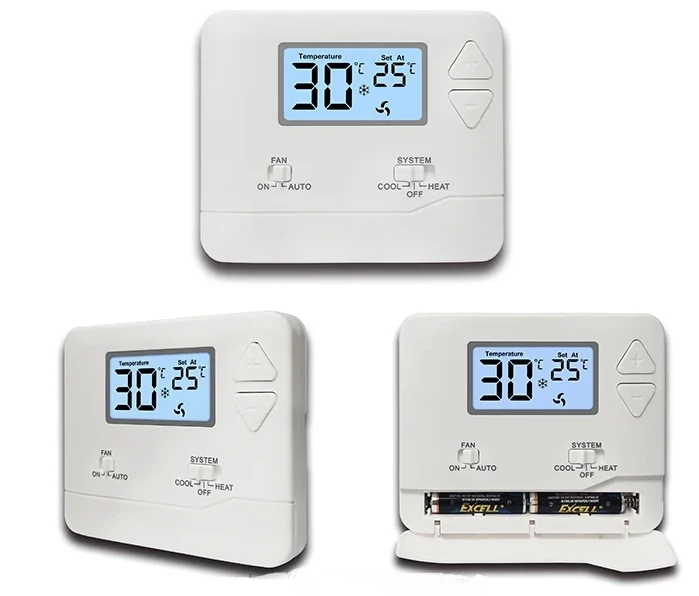

STN601 is the entry point of the STN600 platform: a non-programmable room thermostat for apartments, with a 2.5 square inch display and a HEAT / OFF / COOL mode switch. The switching side uses an Omron relay, the housing is anti-flammable ABS, and the unit runs from 2 x AAA lithium batteries or 24V hardwired power at 2W. Project support extends to 3D model design and cross category consolidation.

Request A Quote Email For A Datasheet

Key Benefits

2.5 square inch display in a compact 120 x 98 x 28 mm body
Omron relay on an entry level product, which is unusual in this price band
Battery or 24V hardwired power for both new build and retrofit
Backlight in orange, white, blue or a custom colour
Project support includes 3D model design and cross category consolidation

Problems It Solves

Entry level stats built with unnamed switching components
Displays too small in budget products
Retrofits blocked by the absence of a common wire
Sourcing several product categories from different suppliers

Who It Is For

Residential developers buying at volume
HVAC distributors needing an entry level manual stat
OEM buyers consolidating several categories into one shipment
Installers replacing older manual controls

Technical Features

Non-programmable control with a HEAT / OFF / COOL mode switch
Temperature range 32 F to 99 F (1 C to 40 C), setpoint range 44 F to 90 F (7 C to 32 C)
Display accuracy +/-1 C at 20 C, 2.5 square inch display
Power supply 2 x AAA 1.5V lithium batteries or 24V hardwired, 2W consumption
Omron relay
Anti-flammable ABS housing in white
Backlight orange, white, blue or customised
Dimensions 120 x 98 x 28 mm without holder, 1 year warranty

Specifications

Model	STN601
Programmability	Non-programmable
System Switch	HEAT/OFF/COOL MODE Switch
Power Supply	2 x AAA 1.5V Lithium batteries Or 24V
Temperature Range	32℉ to 99℉ (1℃ to 40℃)
Setpoint Range	44℉ to 90℉ (7℃ to 32℃) Power Consumption 2W Dispaly 2.5 Sq.Inch
Display accuracy	±1°C (at 20°C)
Relay	Omron
Backlight	Orange/White/Blue/Customied
Color	White
Material	Anti-flammable ABS
Dimension	120 x 98 x 28 mm (without holder)
Consumption	2W
Application	Apartment
Feature	Save Energy
Warranty	1 Year Specification
After-sale Service	Online technical support, Free spare parts, Return and Replacement

Specifications are taken from the manufacturer data for this model. Confirm the exact configuration with us before you order.

Application Scenarios

Apartment air conditioning with a fixed comfort setpoint
Ventilation and HVAC systems needing a simple manual control
Volume residential projects with a tight budget per room
Replacement of failed manual stats

Quality Control

Omron relay switching verified at rated load
Display checked for segment faults before packing
Free spare parts held against the production batch

Customisation Options

Backlight orange, white, blue or a custom colour
3D model design for housing changes on ODM projects
Front label, logo and carton artwork
Cross category consolidation with other products in one shipment

Comparison

How It Compares

STN605 programmable thermostat

STN601 shares the same 120 x 98 x 28 mm body but has no schedule, so buildings can mix both without changing the wall detail.

Budget manual stats

STN601 specifies an Omron relay and an anti-flammable ABS housing, which most entry level products do not.

Use guide

Installing And Commissioning

Step 1

Isolate the supply before removing the existing control

Step 2

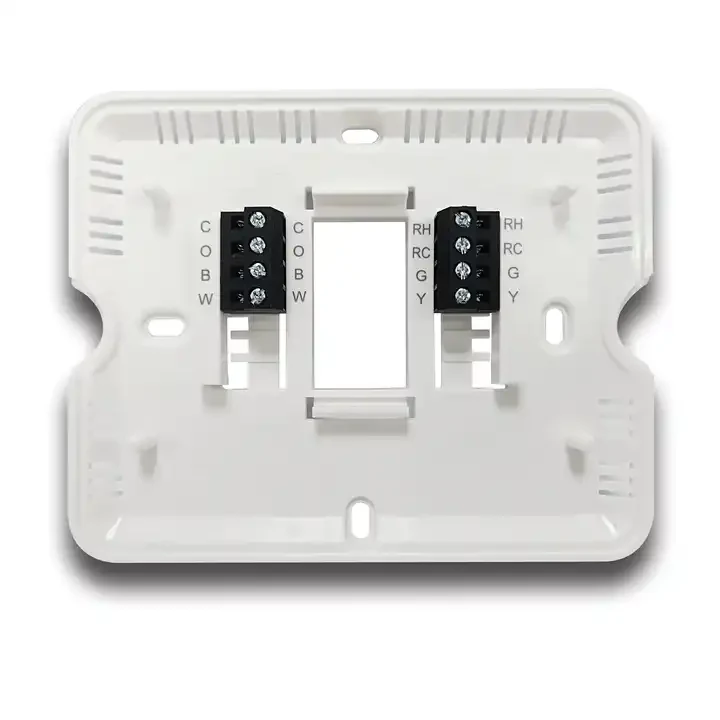

Land the conductors on the marked terminals

Step 3

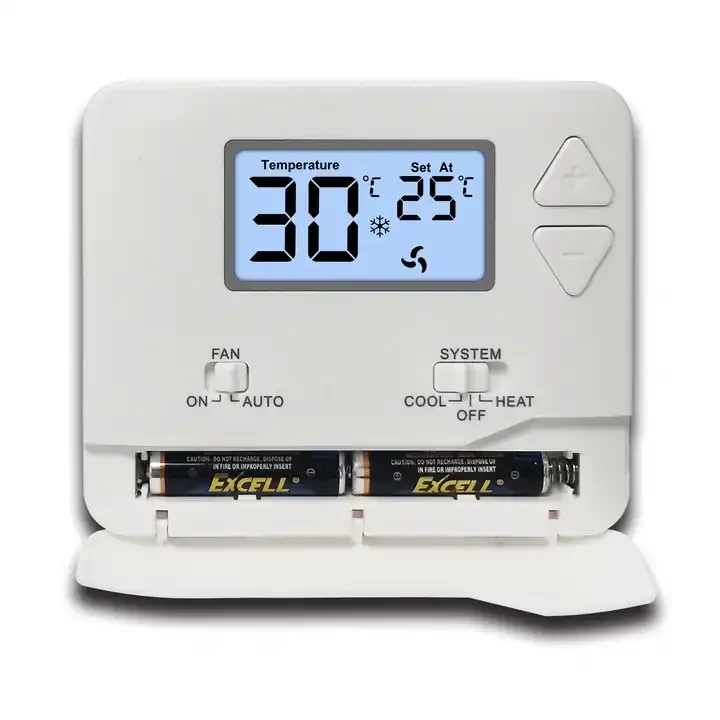

Fit 2 x AAA lithium batteries, or hardwire at 24V

Step 4

Set the mode switch to HEAT or COOL and enter the target temperature

Step 5

Confirm the plant responds within the switching differential
