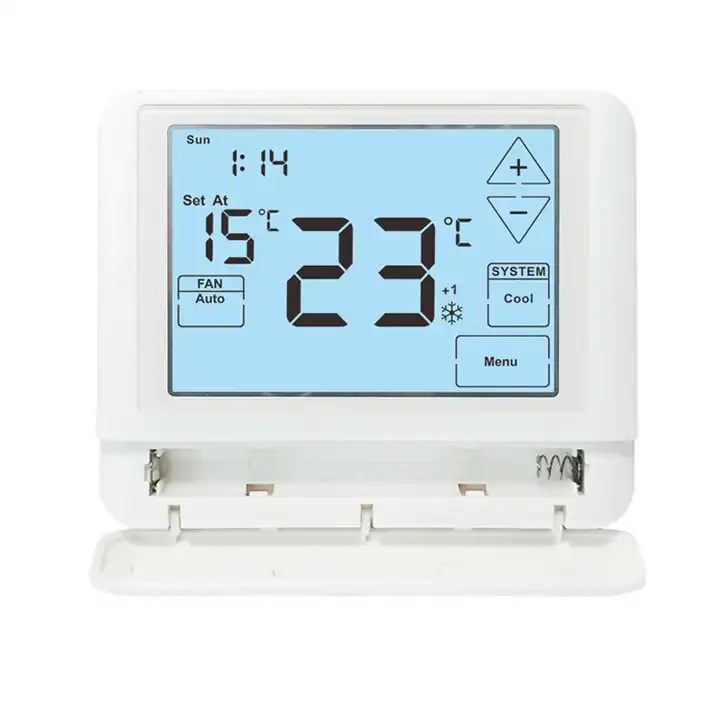

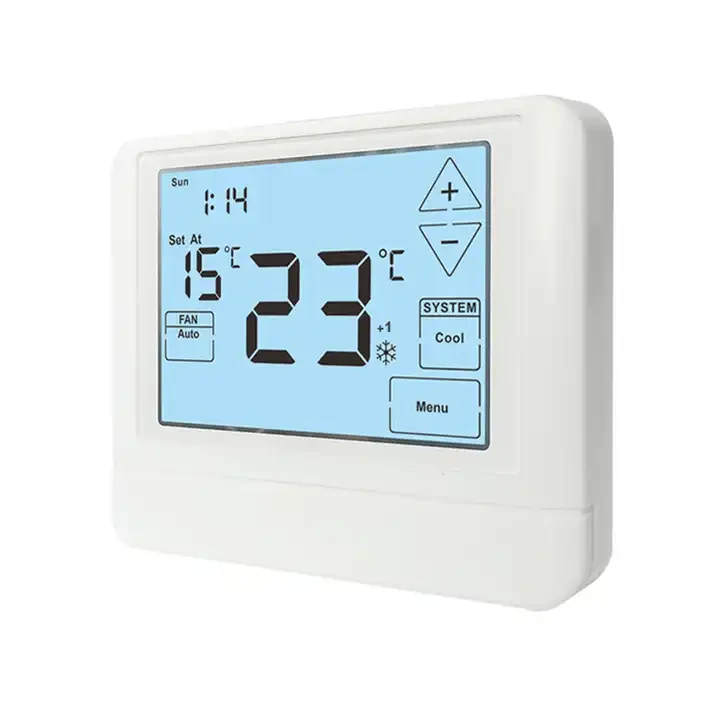

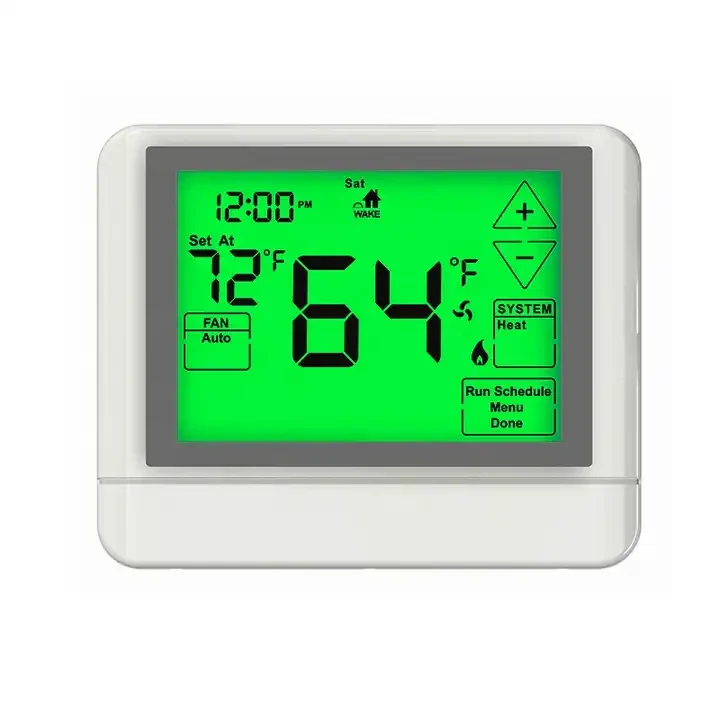

24V White Universal Touch LCD Screen Heat Pump Programmable Smart Air Conditioner Thermostat for AC (STN855) For Hotel
This is the STN855 supplied for hotel projects, where one control has to cover fan coil units, boilers, radiators, floor heating and ventilation in the same building. The touch LCD replaces a button keypad on the guest-facing surface, the schedule runs 5/1/1, and the Omron relay switches 6 A with 2 A inductive load. Housing colour can be customised alongside the white, blue and green backlight options.
Key Benefits
- One control specified across FCU, boiler, radiator, floor heating and ventilation duties
- Touch LCD with no mechanical keys to wear in guest rooms
- Omron relay rated 6 A with 2 A inductive load
- Customised housing colour available as well as three backlight colours
- Anti-flammable PC and ABS housing with CE and RoHS
Problems It Solves
- Different controls for FCU rooms, boiler zones and floor heating
- Keypads discolouring and wearing in guest rooms
- Standard white housings clashing with an interior scheme
- Unspecified relays making contact life unpredictable
Who It Is For
- Hotel groups and hospitality developers
- FCU and boiler equipment suppliers
- Contractors on mixed-plant buildings
- OEM buyers wanting a customised housing colour
Technical Features
- Universal touch LCD thermostat, 5/1/1 programmable
- Rated for floor heating, air conditioning, heating, HVAC, radiators, ventilation, cooling, fan coil units and boilers
- Temperature range 32 F to 99 F (1 C to 40 C)
- Display accuracy +/-1 C at 20 C, NTC sensor
- Switchable current 6 A with 2 A inductive load, Omron relay
- Power supply 24V power or battery
- Backlight white, blue or green, housing white or customised
- Anti-flammable PC and ABS, CE and RoHS
Specifications
| Model | STN855 |
| Programmability | 5/1/1 programmable |
| Power Supply | 24V power or battery |
| Switchable Current | 6 A (2 A inductive load) |
| Temperature Range | 32℉-99℉ (1℃-40℃) Shell |
| Display accuracy | ±1°C (at 20°C) |
| Sensor | NTC |
| Relay | Omron |
| Screen | LCD Touch |
| Backlight | White/Blue/Green |
| Color | White/Customixed |
| Material | Anti-flammable PC +ABS |
| Shell Material | PC+ABS (Fireproof) |
| Dimension | 120 x 98 x 28 mm |
| Installation | Mounts on wall or junction box |
| Consumption | 2W |
| Application | Hotel |
| Type | Floor Heating Parts/Air Conditioning/Heating/HVAC Systems/Radiator/Ventilation/Cooling/Fan coil units/Boilers |
| Feature | Save Energy |
| Certification | CE ROHS |
| Warranty | 1 Year Specification |
| After-sale Service | Online technical support, Return and Replacement |
Specifications are taken from the manufacturer data for this model. Confirm the exact configuration with us before you order.
Application Scenarios
- Hotels with fan coil units in guest rooms and boilers serving the building
- Mixed radiator and floor heating installations
- Ventilation systems controlled from the room
- Estates that want one spare part across every room type
Quality Control
- Touch panel response tested point by point on every unit
- Omron relay switching verified at inductive load
- Custom housing colours checked against the approved sample
Customisation Options
- Housing colour matched to the buyer's interior scheme
- Backlight white, blue or green
- Screen layout and icon set on ODM projects
- Manual and carton in the buyer's language
How It Compares
Installing And Commissioning
Step 1
Confirm the room's plant type before selecting the configuration
Step 2
Isolate the supply and land the conductors on the marked terminals
Step 3
Select the equipment type in the installer menu
Step 4
Enter the weekday, Saturday and Sunday periods
Step 5
Check the relay load stays within 6 A, or 2 A inductive
24V White Universal Touch LCD Screen Heat Pump Programmable Smart Air Conditioner Thermostat for AC: Buyer Questions
Can the STN855 control a fan coil unit and a boiler zone?
Yes. Its listed duties include fan coil units, boilers, radiators, floor heating, ventilation and cooling.
Can we get it in a colour other than white?
Yes. The housing colour is customisable on OEM orders.
What is the switching capacity?
6 A, or 2 A on inductive load, through an Omron relay.
What schedule does it run?
5/1/1 programmable.
Does it need a common wire?
No. It runs from 24V power or battery.
Which certifications does it carry?
CE and RoHS.
