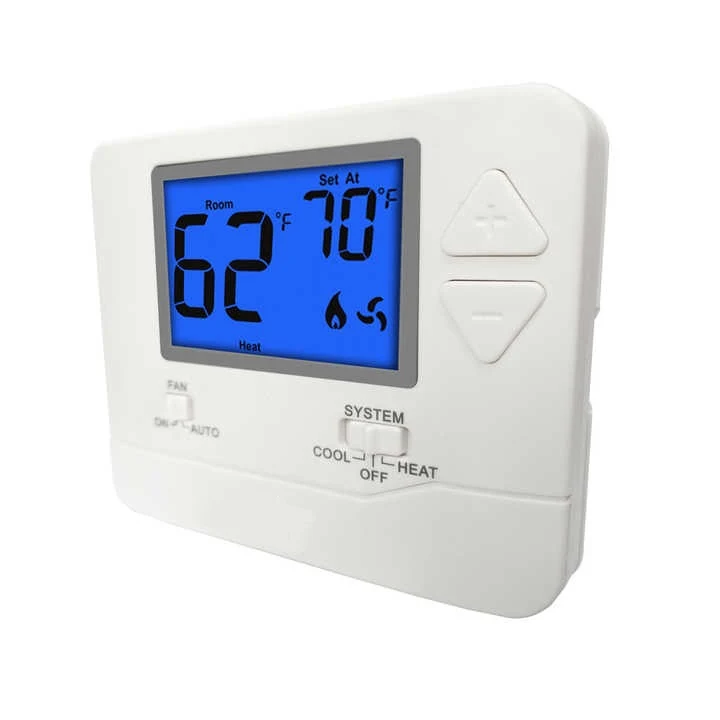

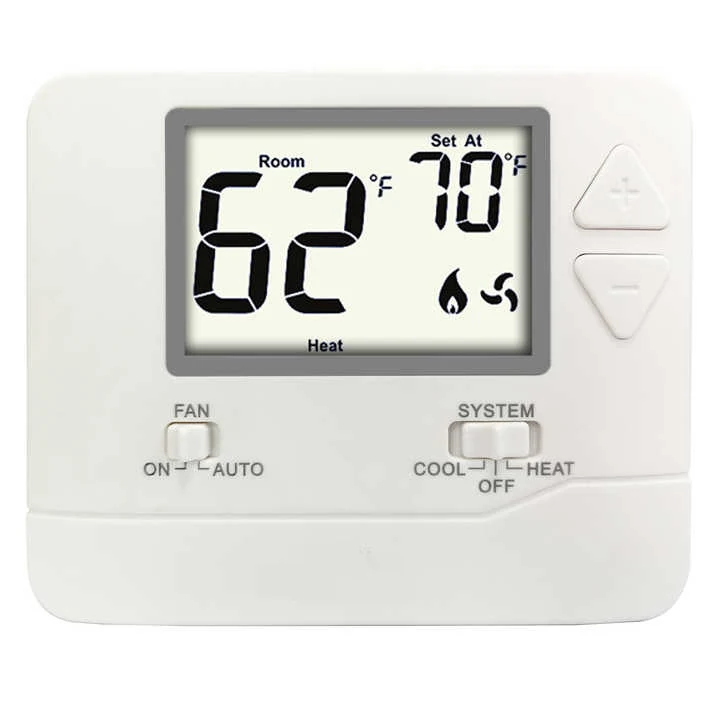

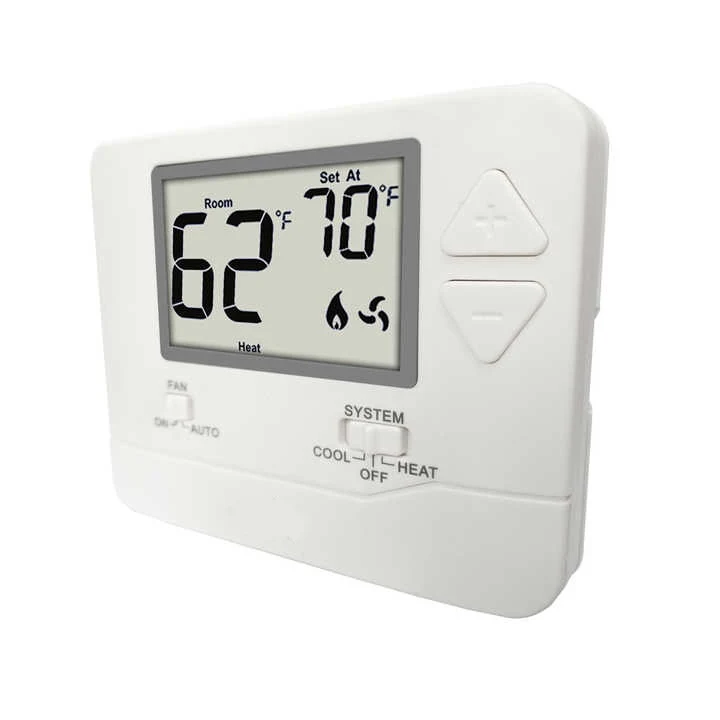

N701 24V non-programmable thermostat with large 4 square inch backlit LCD

Air Conditioner Thermostats Underfloor Heating Thermostat HVAC Thermostat Electric and Gas Thermostat Non-Programmable Thermostat

24V Non Programmable Thermostat parts air conditioner controller duct flow thermostat

Name: 24V Non Programmable Thermostat parts air conditioner controller duct flow thermostat
Brand: Smart Therm

N701 is a non-programmable 24V single stage thermostat built around a 4 square inch backlit LCD, which is noticeably larger than the display on most stats in this class. It controls 1 heat and 1 cool, keeps the separate B and O terminals for heat pump reversing valves, and offers separate heating and cooling swing adjustments plus a selectable 5 minute compressor delay.

Request A Quote Email For A Datasheet

Key Benefits

4 square inch display is readable from across a room, which matters in care and hospitality settings
Separate B and O terminals cover both reversing valve conventions
Separate heating and cooling swing adjustment tunes cycle rate per mode
5 minute compressor delay protection is selectable
Battery or 24V power removes the common wire dependency

Problems It Solves

Small thermostat displays that older occupants cannot read
Reversing valve wiring limited to one convention
Compressors restarting too soon after a supply interruption
Identical cycle rates in heating and cooling causing comfort complaints

Who It Is For

Care and hospitality operators
HVAC distributors serving the replacement market
Floor heating system suppliers
OEM buyers wanting a large display non-programmable model

Technical Features

24V non-programmable control, single stage, 1 heat and 1 cool
Large 4 square inch LCD display with backlighting
Electric or gas configurable with separate B and O terminals
Separate heating and cooling swing (cycle rate) adjustments
Room temperature calibration adjustable
5 minute compressor delay protection, selectable on or off

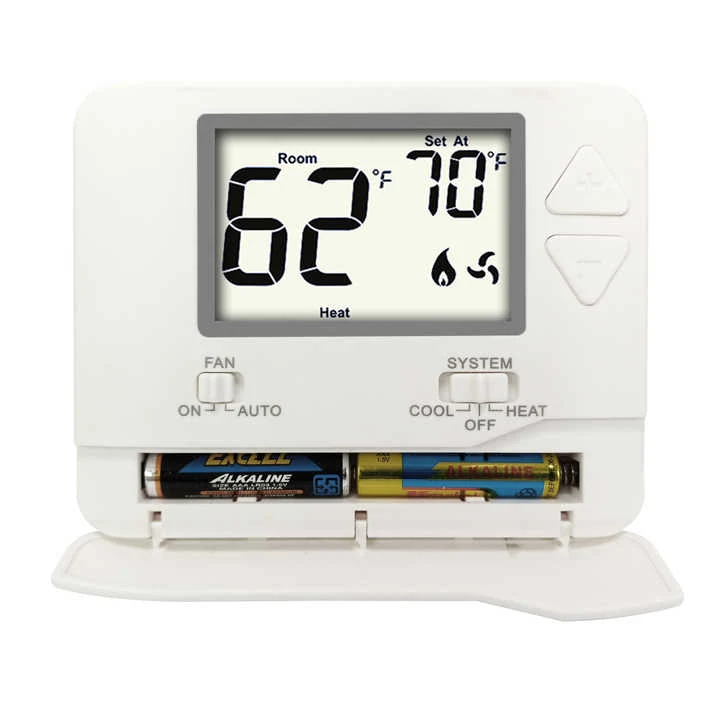

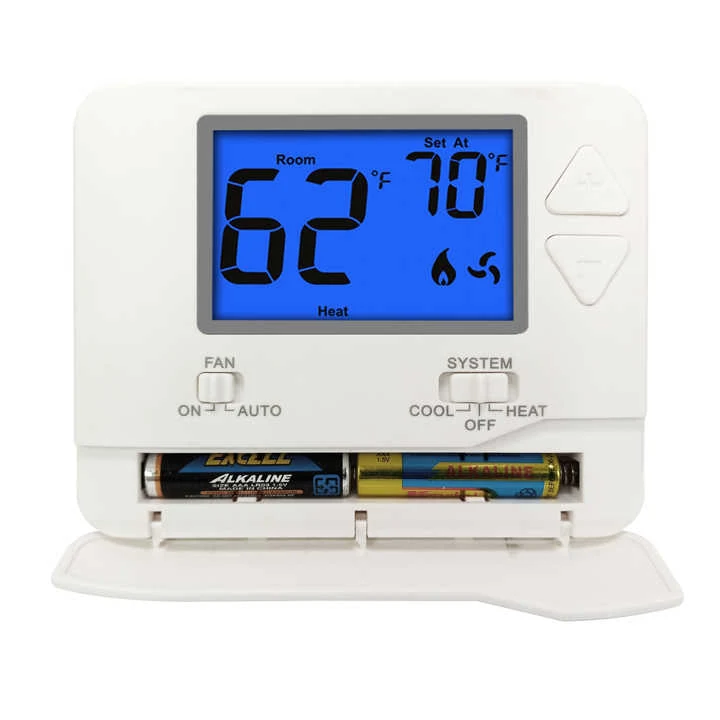

Power supply battery or 24V
Anti-flammable PC and ABS housing in white, 120 x 106 x 26 mm, CE and RoHS

Specifications

Model	N701
Programmability	Non-programmable
Stages	Single Stage (Heat/Cool)
Power Supply	Battery Or 24V
Color	White
Material	Anti-flammable PC +ABS
Dimension	12010626MM Dispaly 4 Sq. Inch Display
Application	Indoor
Type	Floor Heating Systems
Feature	Large LCD Display + Back Lighting
Certification	CE RoHS

Specifications are taken from the manufacturer data for this model. Confirm the exact configuration with us before you order.

Application Scenarios

Care homes and assisted living where display legibility matters
Duct and air handling systems needing a simple single stage control
Floor heating systems with a matching air conditioning stage
Replacement of small-display stats that generated complaints

Quality Control

Every display checked for segment faults and backlight evenness
Heat and cool outputs exercised before packing
Compressor delay timing verified on batch samples

Customisation Options

Backlight colour from the standard options
Housing marking and front label
Swing and delay defaults preset for the buyer's equipment
Manual and carton in the buyer's format

Comparison

How It Compares

Standard size non-programmable stats

N701 uses a 4 square inch display, which is the reason it is specified in care homes and public buildings.

Programmable models such as STN605

N701 has no schedule at all, so there is nothing for an occupant to misconfigure.

Use guide

Installing And Commissioning

Step 1

Isolate the 24V control circuit before removing the old stat

Step 2

Land the conductors on the colour coded terminals, using B or O as required

Step 3

Select electric or gas configuration in the setup menu

Step 4

Set separate heating and cooling swing values to suit the plant

Step 5

Enable the 5 minute compressor delay and confirm both modes run
