Paper Tag Threading Machine

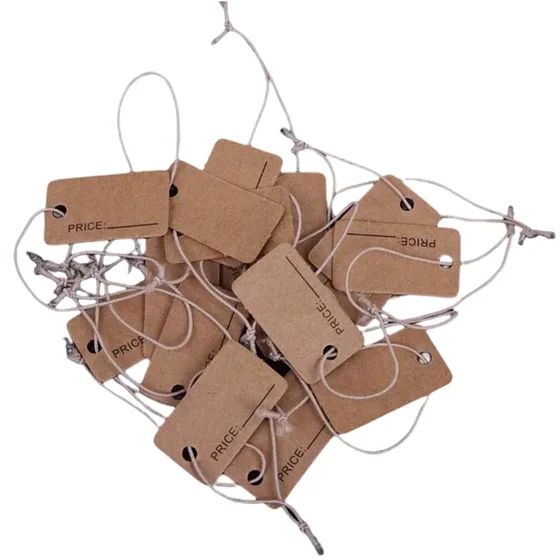

The SD-TT180 automatically threads rope or elastic through paper tags in a single continuous process. It performs automatic punching, knotting, counting, and detects paper-out conditions. Converters use it to produce tagged packaging materials without manual labor, running at 3500 to 6000 pieces per hour with rope diameters from 0.3 to 1.8 mm and tag sizes from 20x30 mm to 80x180 mm.
- Eliminates manual threading of tags, reducing labor cost and operator fatigue
- Automatically punches holes, knots the thread, and counts output in real time
- Detects paper-out conditions to prevent machine damage and material waste
- Handles rope types including cotton, wax, hemp, nylon, and elastic
- Runs at 3500 to 6000 pieces per hour, suitable for high-volume production
Key Benefits
- Eliminates manual threading of tags, reducing labor cost and operator fatigue
- Automatically punches holes, knots the thread, and counts output in real time
- Detects paper-out conditions to prevent machine damage and material waste
- Handles rope types including cotton, wax, hemp, nylon, and elastic
- Runs at 3500 to 6000 pieces per hour, suitable for high-volume production
- Adjustable tag size and thread length to match packaging design requirements
Application Scenarios
- Packaging converters producing branded tags for retail or e-commerce shipments

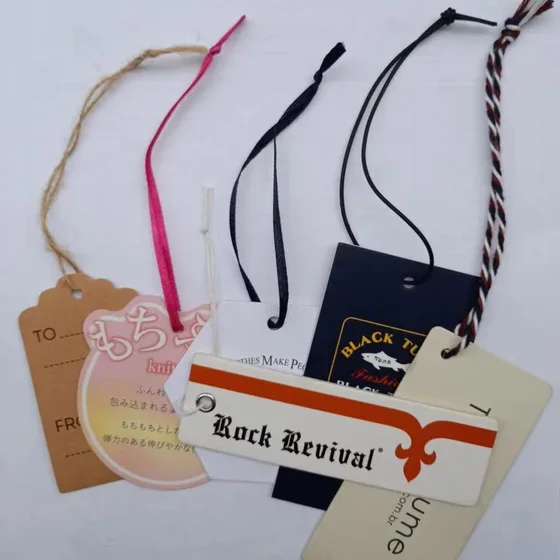

- Clothing and textile manufacturers tagging garments with durable paper labels
- Fruit and flower exporters attaching paper tags with rope handles to baskets
- Gift and specialty product makers adding custom tags to wrapped items
- Logistics providers labeling parcels with reusable paper tags for tracking
Who It Is For
- Packaging converters adding automated tag threading to their production line
- Textile and apparel brands that need consistent tag attachment at scale
- Fruit and flower packers using paper tags for traceability and branding
- E-commerce fulfillment centers producing pre-tagged boxes or bags
- Retailers producing in-house branded packaging with paper tags
Problems It Solves
- Manual threading of tags is slow and inconsistent, leading to production bottlenecks
- Inconsistent knotting and thread length reduce tag durability and customer perception
- Lack of paper-out detection causes machine jams and material waste
- Operators are tied to the machine during long runs, increasing labor cost
- No automated counting leads to inaccurate batch records and shipping errors
Technical Features
- Automatic punching of tag hole with adjustable die size for 3 to 5 mm diameter
- Automatic knotting function for secure thread attachment
- Automatic counting of finished tags with digital display
- Paper-out sensor stops the machine when no tag is present
- Adjustable thread length from 160 to 380 mm to match tag design
- Rope diameter range of 0.3 to 1.8 mm supports multiple material types
- Motor-driven threading mechanism ensures consistent tension and speed
- Compact frame with fixed base for stable operation on factory floor
Specifications
| Model | SD-TT180 |
|---|---|
| Tag size | 20x30 mm-80x180 mm |
| Diameter of thread | 0.3-1.8 mm |
| Length of thread | 160-380 mm |
| Tag hole diameter | 3-5 mm |
| Tag thickness | 150-1000 gsm |
| Speed | 3500-6000 pcs/h |
| Total power | 0.75 kW |
| Gross weight | 600 kg |
| Overall dimensions | 1100x1100x1200 mm |
Materials It Runs
- Paper tags from 150 to 1000 gsm
- Cotton rope
- Wax rope
- Hemp rope
- Nylon rope
- Elastic rope
Manufacturing and Process
- Place paper tag into feeding slot
- Automatic punch creates hole of 3 to 5 mm diameter
- Thread is fed through the hole and automatically knotted
- Counting system updates with each completed tag
- Machine stops if paper-out sensor detects no tag in feed
Quality Control
- Punch hole diameter verified at 3 to 5 mm during setup
- Knot strength tested on sample tags before production
- Counting system checked against actual output at end of run
- Paper-out sensor tested by removing tag and confirming stop
Certifications
- ISO 9001:2000 certificate obtained in 2005
- CE certificate obtained in 2006
Customization Options
- Tag size and hole diameter adjusted via die change
- Thread length and speed set on control panel for different runs
- OEM badging and manual language available on request
- Power supply configured to destination voltage and phase
Compared With the Alternatives
Manual threading
Automated threading is faster, consistent, and reduces operator fatigue
Basic tag punchers
This machine adds knotting and counting, which manual or simple machines lack
Plastic tag threading machines
Paper tags are recyclable and lower cost, though less durable in wet conditions
No paper-out sensor
This machine prevents jams and waste by stopping when no tag is present
Use Guide
- Load paper tags into the feeding tray with the hole aligned to the punch
- Set thread length and speed on the control panel based on tag size
- Confirm paper-out sensor stops the machine when the tray is empty
- Begin full production run and monitor output count and machine status
Questions About This Machine
What tag sizes can the machine handle?
20x30 mm to 80x180 mm. The hole diameter is adjustable from 3 to 5 mm.
What rope types can it use?
Cotton, wax, hemp, nylon, and elastic ropes are supported.
How fast does it run?
3500 to 6000 pieces per hour, depending on tag size and thread type.
Can it detect when tags run out?
Yes. A paper-out sensor stops the machine automatically to prevent damage.
What power supply does it need?
0.75 kW. The machine can be built to your local voltage and phase on request.
Is OEM support available?
Yes. OEM badging, manual language, and destination voltage are configured at order.
What are the shipping dimensions and weight?
The machine measures 1100 x 1100 x 1200 mm and weighs 600 kg.
