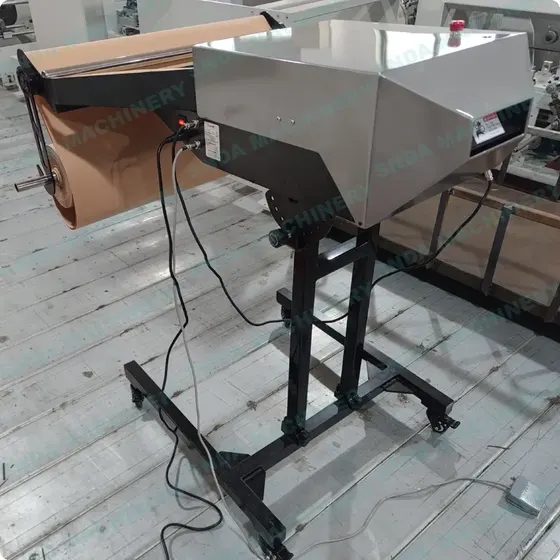

Kraft Paper Cushion Making Machine
The Kraft Paper Cushion Making Machine converts a single or double layer kraft paper roll into a cushioning material with a crinkled, padded structure in one continuous process. It feeds 760 mm wide paper at 25 m/min and produces a 1 or 2 ply cushion that provides impact protection without plastic. This machine allows converters to produce their own paper-based void fill on site, reducing dependency on external suppliers and avoiding plastic packaging regulations.
- Produces a paper cushioning material that replaces plastic inserts without requiring line modifications
- Single pass processing of unwinding, forming and rewinding eliminates intermediate handling
- Supports both 1 and 2 ply feeding, with the second layer added via a separate rewind machine for stronger cushioning
- Runs standard 70 to 80 gsm kraft paper, which is widely available from local paper mills
- Compact size and low weight allow installation in small production areas
Key Benefits
- Produces a paper cushioning material that replaces plastic inserts without requiring line modifications
- Single pass processing of unwinding, forming and rewinding eliminates intermediate handling
- Supports both 1 and 2 ply feeding, with the second layer added via a separate rewind machine for stronger cushioning
- Runs standard 70 to 80 gsm kraft paper, which is widely available from local paper mills
- Compact size and low weight allow installation in small production areas
- Fixed speed of 25 m/min ensures consistent output without speed adjustment complexity
Application Scenarios
- Packaging converters producing paper cushion pads for e-commerce orders in regions with plastic bans
- In-house packaging teams replacing foam inserts with a recyclable paper alternative
- Fruit and flower exporters needing scratch-free cushioning for delicate items
- Gift and electronics brands using paper pads for unboxing experience without plastic
- Small to mid-sized manufacturers producing custom cushioning for fragile shipments
Who It Is For
- Protective packaging producers adding a paper cushioning line to complement existing plastic products
- E-commerce fulfilment centers looking to reduce plastic use and packaging costs
- Paper mills that want to offer a value-added converted product instead of raw rolls
- Exporters in markets with plastic packaging restrictions who need a compliant alternative
Problems It Solves
- Plastic cushioning materials are being restricted or taxed in key export markets
- Buying pre-made paper pads from third parties removes control over cost and supply
- Foam and plastic inserts damage polished or painted surfaces during transit
- Manual padding with paper is slow, inconsistent and labor-intensive
Technical Features
- Processes 1 or 2 ply kraft paper with a single roll feeding system
- Single pass unwinding, forming and rewinding operation
- Fixed line speed of 25 m/min with no speed adjustment
- Supports feeding roll width of 760 mm
- Paper thickness range of 70 to 80 gsm
- Machine built with a compact frame for easy integration into small spaces
- Rewinding section designed to accept a second layer from a separate rewind machine
Specifications
| Machine model | Kraft Paper Cushion Making Machine |
|---|---|
| Feeding roll width | 760 mm |
| Machine working speed | 25 m/min |
| Paper thickness | 70 to 80 gsm |
| Ply capability | 1 or 2 ply (2nd layer fed via separate rewind machine) |
| Machine weight | 100 kg |
| Machine dimension | L: 1250 x W: 1000 x H: 850 mm |
Materials It Runs
- 70 to 80 gsm kraft paper
- Optional second layer of kraft paper fed from a separate rewind machine
- Paper cushioning material suitable for fragile goods protection
Manufacturing and Process
- Unwind the kraft paper roll from the feeding shaft
- Feed the paper through the forming section to create a crinkled padded structure
- For 2 ply: rewind the first layer and feed the second layer through the forming section

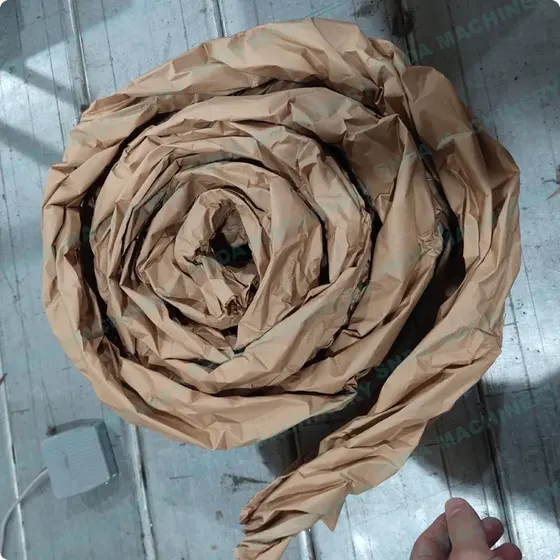

- Rewind the finished cushion pad onto a core
- Cut the roll to length manually or with optional sheeting equipment
Quality Control
- Final cushion pad tested for structural integrity and uniformity before shipment
- Forming die checked for consistent crinkle pattern across the width
- Machine run at 25 m/min with sample roll to verify output quality
- Roll length verified against the set dimension during test run
Certifications
- ISO 9001:2000 certificate obtained in 2005
- CE certificate obtained in 2006
Customization Options
- Feeding width can be adjusted to match the buyer's existing roll stock
- Rewinding core size can be specified to match existing cores
- Power supply can be built to customer's local voltage and phase
- OEM badging and manual language available on request
Compared With the Alternatives
Buying pre-made paper cushion pads
In-house production removes supplier margin but requires holding raw paper stock and operator time
Plastic foam inserts
Paper cushioning is fully recyclable and avoids plastic regulations, though it offers no moisture barrier
Manual padding with paper
The machine ensures consistent pad thickness and structure, reducing labor and waste
Honeycomb paper machines
This machine makes crinkled pads; honeycomb machines produce expandable grid structures with different performance characteristics
Use Guide
- Mount a 760 mm wide kraft paper roll onto the feeding shaft
- Set the machine to run at 25 m/min and start the process
- For 2 ply: feed the first layer through the forming section, rewind it, then feed the second layer through
- Collect the finished cushion pad on the rewinding shaft
- Cut the roll to desired length using a manual cutter or optional sheeting unit
Questions About This Machine
What paper weight can the machine handle?
70 to 80 gsm kraft paper. The same machine can also process other paper types in that range.
Can it make double-layer cushions?
Yes. The machine supports 1 or 2 ply feeding. The second layer is fed through a separate rewind machine.
What are the machine dimensions and weight?
L: 1250 mm, W: 1000 mm, H: 850 mm. The machine weighs 100 kg.
Can the feeding width be changed?
Yes. The feeding width can be adjusted to match the buyer's roll stock, commonly 760 mm.
Is OEM support available?
Yes. OEM badging, manual language, and destination power supply are configured at order. Contact via WhatsApp for details.
What is the power supply requirement?
Built to customer's local voltage and phase on request. Standard configuration not specified in source text.
