Gift Filling Crinkle Paper Shredding Machine

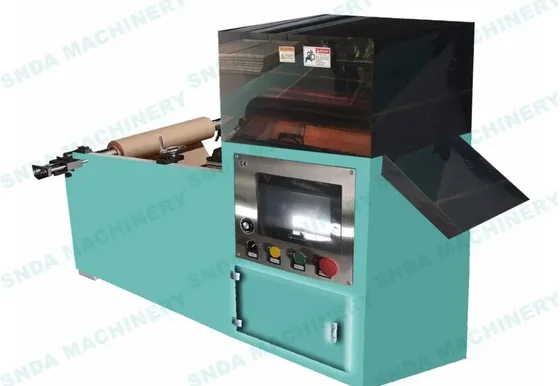

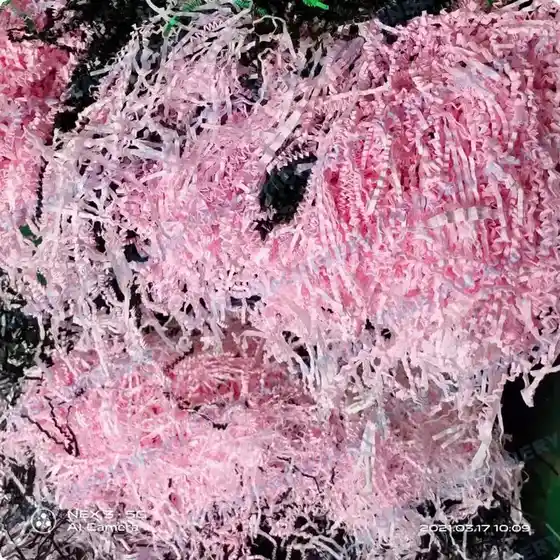

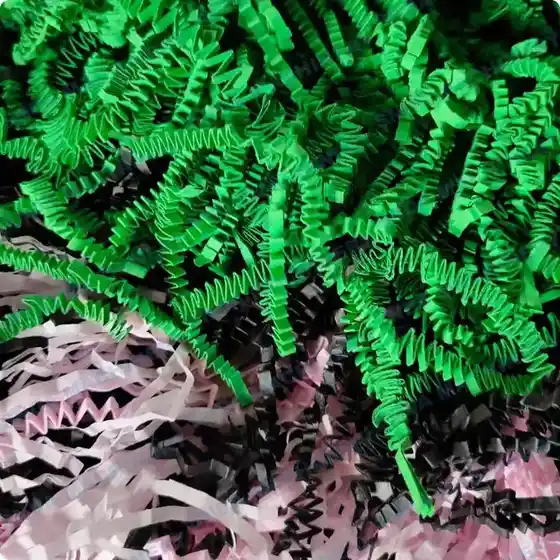

The SD-PS300 converts a kraft paper roll into fluffy, three-dimensional crinkle paper strips in a single pass. It feeds the web through rotary blades that cut and shred it into 3 mm wide, 120 to 380 mm long strips with a distinct root structure. The machine supports 1 to 5 layers of color and can produce either crinkle or straight-cut effects. It runs paper from 50 to 180 gsm at 0.6 to 0.7 m/s, making it ideal for in-house production of decorative and protective filler for gift boxes, electronics, glass, and ceramics.
- Produces crinkle paper filler on site without relying on third-party suppliers
- Single pass unwinding, cutting and shredding eliminates intermediate handling
- Adjustable cutting length from 120 to 380 mm allows custom fit for different packaging sizes
- Supports 1 to 5 color layers in one run, enabling multi-colored decorative filler
- Can switch between crinkle and straight-cut effects on the same machine
Key Benefits
- Produces crinkle paper filler on site without relying on third-party suppliers
- Single pass unwinding, cutting and shredding eliminates intermediate handling
- Adjustable cutting length from 120 to 380 mm allows custom fit for different packaging sizes
- Supports 1 to 5 color layers in one run, enabling multi-colored decorative filler
- Can switch between crinkle and straight-cut effects on the same machine
- Runs standard 50 to 180 gsm kraft paper so raw material is widely available
Application Scenarios
- Gift box manufacturers producing custom crinkle filler for seasonal packaging
- Electronics distributors needing eco-friendly void fill for small device shipments
- Wine and liquor brands using crinkle paper in premium gift packaging
- Ceramic and glassware exporters replacing foam inserts with paper filler
- Candy and confectionery packers using crinkle paper for visual appeal and protection
Who It Is For
- Packaging converters adding crinkle paper as a value-added product
- E-commerce fulfilment centres that want to reduce plastic use in gift packaging
- Food and beverage brands requiring recyclable, non-toxic filler for gift sets
- Print shops producing custom packaging with integrated crinkle paper inserts
- Small to mid-sized manufacturers producing their own filler instead of buying pre-cut rolls
Problems It Solves
- Buyers need a paper-based filler that replaces plastic or foam but cannot find consistent supply
- Pre-cut crinkle paper rolls are expensive and have limited color or size options
- Manual shredding of kraft paper is slow, inconsistent, and generates uneven strips
- Packaging lines require a filler that adds visual appeal without increasing weight or cost
- Regulations restrict plastic use in gift packaging, but no reliable paper alternative exists
Technical Features
- Uses roll-fed kraft paper as input with a 3 inch inflatable air shaft
- Rotary blade cutting system for clean, consistent shredding
- Adjustable cutting length from 120 to 380 mm to match packaging dimensions
- Supports 1 to 5 layers of paper feeding for multi-colored crinkle output
- Can produce both crinkle and straight-cut effects in the same machine
- Unwinding diameter up to Φ 600 mm allows use of standard industrial rolls
- Automatic cutting and shredding operation reduces manual labor
- Machine speed adjustable from 0.6 to 0.7 m/s for consistent output
Specifications
| Machine model | SD-PS300 |
|---|---|
| Max material width | Usually 3 mm (if 2 mm or 4 mm or 5 mm,need to change module) |
| Cutting length | 120-380 mm adjustable |
| Paper Thickness | 50-180 g For 5 roll feeding,20-30 g recommended For 3 roll feeding,50-60 g recommended For 1-2 roll feeding,70 g recommended |
| Machine working speed | 0.6-0.7m/s(Adjustable) |
| Capacity | About 100-120 kg/hour |
| Cutting type | Rotary blade |
| Unwinding diameter | Φ 600 mm |
| Unwinding shaft | 3 inch inflatable air shaft |
| Machine size | 1850×1150×1350 mm (LxWxH) |
| Machine weight | N.W 770 kg; GW 880 kg |
| Machine Power | 6 kW |
| Power supply | 380V 3 Phase,50hz or as customer requirement |
Materials It Runs
- Kraft paper from 50 to 180 gsm
- Multi-layer feeding possible: 1 to 5 layers for color variation
- Mixed color kraft paper available upon request
- Optional special illusion paper for enhanced visual effect
Manufacturing and Process
- Load a kraft paper roll up to Φ 600 mm diameter onto the 3 inch inflatable air shaft
- Set the desired cutting length between 120 and 380 mm on the control panel
- Select the number of layers (1 to 5) for multi-colored output
- Choose crinkle or straight-cut effect via machine setting
- Start the machine at low speed to verify web tension and blade alignment
- Shredded paper exits the machine as continuous strips ready for packaging
Quality Control
- Cut length verified on multiple strips to ensure consistency within 120-380 mm range
- Blade alignment checked before production to prevent uneven shredding
- Layer count confirmed during test run to match customer specification
- Machine tested at 0.6 to 0.7 m/s speed to verify stable operation
- Output strips inspected for root structure and fluffiness before shipment
Certifications
- ISO 9001:2000 certificate obtained in 2005
- CE certificate obtained in 2006
Customization Options
- Cut width adjusted to 2 mm, 4 mm, or 5 mm with module change
- Cut length range modified if required beyond 120-380 mm
- Power supply configured to local voltage and phase on request
- OEM badging and manual language available upon order
- Machine color and finish matched to buyer's branding on request
Compared With the Alternatives
Buying pre-cut crinkle paper rolls
In-house production removes supplier dependency and allows custom color and length, but requires holding kraft roll stock
Manual shredding with scissors or cutter
The machine produces consistent strips at high speed, but requires setup and power
Plastic foam or air pillows
Crinkle paper is fully recyclable and safe for food contact, though it offers less moisture resistance
Other paper shredding machines
This machine supports both crinkle and straight-cut output in one unit, while others may be limited to one effect
Use Guide
- Mount a kraft paper roll up to Φ 600 mm diameter on the 3 inch inflatable air shaft
- Set the cutting length to the desired value between 120 and 380 mm
- Select the number of layers (1 to 5) and the output effect (crinkle or straight)
- Start the machine at low speed and check for web tracking and blade alignment
- Run a test strip and inspect the cut length, root structure, and fluffiness
- Adjust tension and speed if needed, then begin full production
Questions About This Machine
What paper thickness can the machine handle?
50 to 180 gsm. For 5 roll feeding, 20-30g is recommended. For 3 roll feeding, 50-60g. For 1-2 roll feeding, 70g is recommended.
Can it produce multi-colored crinkle paper?
Yes. The machine supports 1 to 5 layers of paper feeding, allowing for multi-colored output in a single pass.
What is the cutting length range?
120 to 380 mm, adjustable to match packaging size.
What power supply does it need?
380 V 3 phase 50 Hz as standard. The machine can be built to your local voltage and phase on request.
Can it produce straight-cut paper as well?
Yes. The machine can switch between crinkle and straight-cut effects without changing tools.
How much does the machine weigh and what are the shipping dimensions?
Net weight 770 kg, gross weight 880 kg. Machine size is 1850 x 1150 x 1350 mm (L x W x H).
Do you support OEM orders?
Yes. OEM badging, manual language, and power supply configuration are available. Send your request via WhatsApp for a quote.
