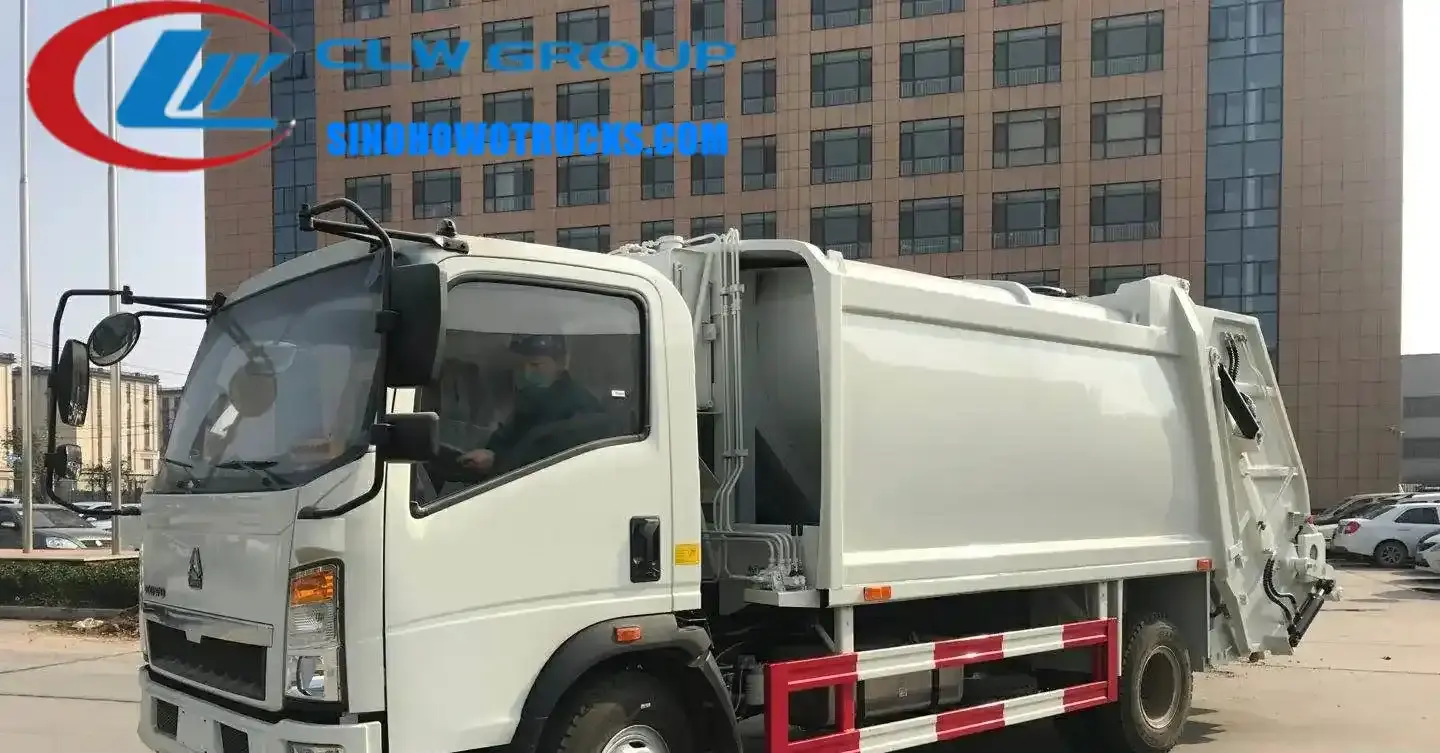

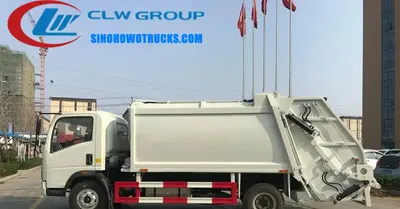

The Sinotruk HOWO small garbage truck is a 4x2 rear loading compactor designed for daily waste collection in urban residential areas, industrial zones, ports, airports, and military facilities. It operates with a 110HP diesel engine, 6-speed manual gearbox, and an 8 cubic meter compaction body made from high-strength T420 steel. The truck handles loading, compaction, and discharge with a single operator using an automated hydraulic system and features a sealed sewage water collection tank to prevent leakage and odour spread.
| Chassis | Sinotruk HOWO 4x2 |
|---|---|
| Engine | CY4102, 120 HP, 88 kW, 3760 ml displacement |
| Gearbox | 6 forwards, 1 reverse |
| Curb Weight | 5760 kg |
| Wheelbase | 3800 mm |
| Overall Dimensions | 6770 x 2180 x 2620 mm |
| Overhang Front/Rear | 1160 / 1810 mm |
| Axle Load | 2700 / 7200 kg |
| Max Driving Speed | 95 km/h |
| Tank Capacity | 8 cbm |
| Tank Material | Q235 carbon steel |
| Body Material | High-strength T420 special steel plate |
| Loading Type | Rear loading |
| Discharge System | Hydraulic, automatic, sealed |
| Sewage Water Tank | Integrated, sealed collection |
| Emission Standard | Euro 2 |
| Brakes | Air brake with dryer |
| Clutch | Dry single plate with diaphragm spring |
| Tires | 7.50R16, 6 pieces plus one spare |
| Cab Capacity | 3 people |
| Hydraulic Pump | Long source large flow 32-80, optional double pump and double valve |
| Control System | Siemens PLC |
| Cycling Time | 14 to 18 seconds |
| Lead Time | 30 days |
| Shipping Port | China main port |
| Payment | T/T |
| 3 cubic meter compactor truck | Smaller capacity requires more trips but better for narrow urban alleys |
|---|---|
| Side loading compactor | Better for high volume collection but needs wider turning space |
| Manual loading truck | Higher labour cost and slower cycle time but lower initial price |
Generally 30 days after the advance payment is received. The exact date depends on chassis availability and equipment configuration.
Yes. The standard tank is 8 cubic meters and can be adjusted from 3 to 20 cubic meters based on your waste volume and route requirements.
T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.
Yes. The chassis is ordered in left or right hand drive to match your local traffic regulations. Confirm this at order stage as it cannot be changed later.
By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.
The whole vehicle is guaranteed for one year and core parts on some products for two years. Our overseas engineers make regular return visits and provide technical training and manuals before delivery.
Yes. The standard tank is Q235 carbon steel. Stainless steel is available on request. Let us know your water quality and storage duration so we can confirm suitability.
Send us your destination port and we will quote price, lead time and freight.
