Home/ All Trucks/ HOWO Garbage Compactor Truck/RHD HOWO 5t waste management garbage truck Malawi

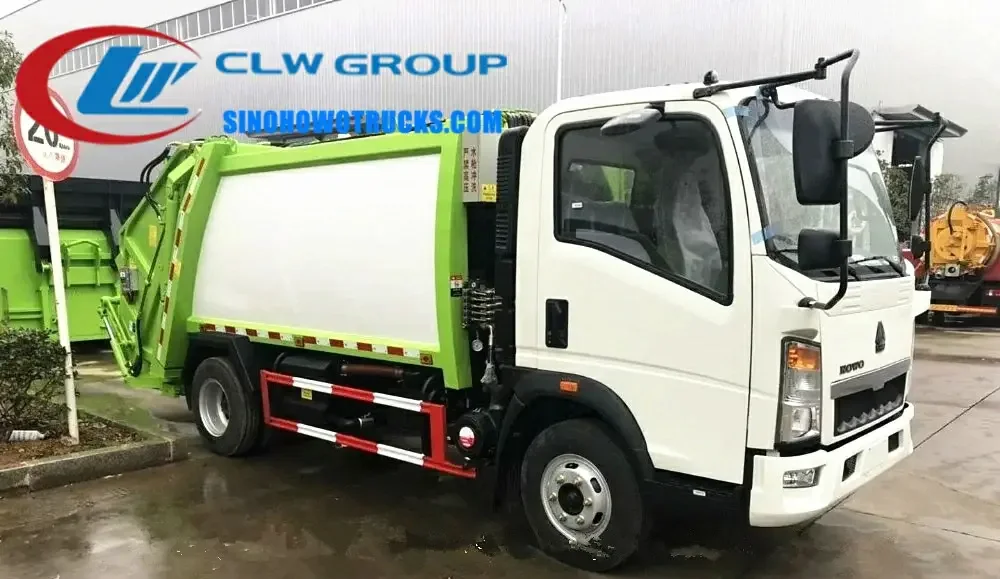

RHD HOWO 5t waste management garbage truck in urban setting with compaction body and tail gate open

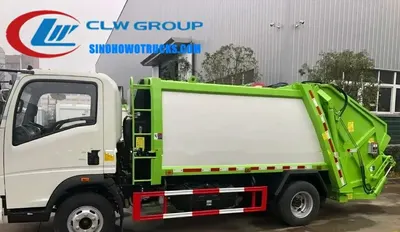

Side view of RHD HOWO 5t compactor truck showing high-strength steel body and dual sewage tanks

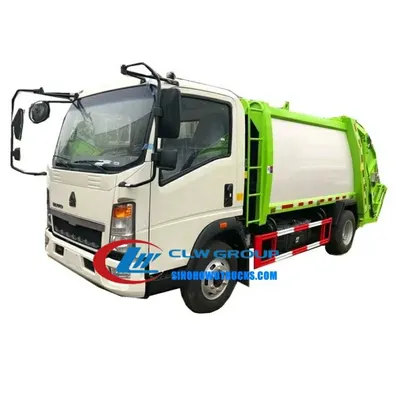

Front view of RHD HOWO 5t garbage truck with cab and loading hopper in use

RHD HOWO 5t waste management garbage truck Malawi

Name: RHD HOWO 5t waste management garbage truck Malawi
Brand: Sinotruk HOWO

The RHD HOWO 5t waste management garbage truck is a 4×2 compacting vehicle built on a Sinotruk HOWO light duty chassis with a 116 HP diesel engine and 6-speed manual gearbox. It is designed for daily refuse collection in urban and semi-urban areas including cities, ports, airports, industrial zones, and military installations. The truck handles mixed municipal waste with a 5 or 6 cubic metre compaction body and features a cycling loading time of under 30 seconds. It meets Euro 3 emission standards and includes a dual sewage tank system with tail diversion groove and rubber hydraulic lock to prevent leakage and odour spread.

Request A Quote Email Specification

Key Benefits

4×2 RHD HOWO chassis with 116 HP engine ensures reliable performance on local roads and unpaved access routes
5 or 6 cubic metre compaction body with 1:3 to 1:2 compression ratio reduces transport trips and fuel use
Cycling loading time under 30 seconds allows rapid waste intake at collection points
Dual sewage tanks with tail diversion groove and rubber hydraulic lock prevent leakage and odour during transport
High-strength T420 special steel body resists deformation and wear from repeated compaction
Siemens PLC electronic control system ensures consistent operation and fault monitoring
Lightweight design with 4mm bottom and 5mm sides reduces overall weight while maintaining durability

Buyer Profile

Who It Is for

Municipal sanitation departments in Malawi and similar developing markets
Airport and port authority maintenance teams managing daily waste streams
Industrial park operators responsible for waste handling across multiple facilities
Contractors bidding on public waste collection tenders with tight delivery schedules
Military logistics units managing waste in field or base operations
Private waste management companies expanding into low infrastructure regions

Operating Problems

Problems It Solves

Frequent trips to disposal sites due to low compaction ratio and small body capacity
Odour and liquid leakage from waste during transport caused by poor sealing
High maintenance costs from weak body materials failing under repeated compaction
Inconsistent performance from outdated or non-automated loading systems
Lack of compliance with environmental standards in waste transport operations
Difficulty operating left-hand drive trucks in right-hand traffic zones like Malawi

Where It Works

Application Scenarios

Municipal waste collection in Malawi’s urban and peri-urban districts with limited access roads
Airport and port sanitation operations requiring frequent waste removal with minimal downtime
Industrial zones and mining sites generating high volumes of mixed solid waste daily
Military bases and large residential compounds needing reliable, low-maintenance waste transport
Contractor fleets operating under public tenders for municipal sanitation services
Remote communities with no central waste processing and no access to large disposal sites

Engineering

Technical Features

4×2 RHD Sinotruk HOWO chassis with 110 HP light duty engine and 6-speed manual gearbox
YUNNEI YN4102QBZL diesel engine, 3.76L displacement, 116 HP, Euro 3 emission standard
Compaction body volume of 5 or 6 cubic metres with 1:3 to 1:2 compression ratio
Cycling loading time ≤30 seconds, uploading time <30 seconds
High-strength T420 special steel body with 4mm bottom and 5mm side panels
Hydraulic system with Long Source large flow pump (32–80 L/min), optional double pump and double valve
Multi-way valve from Jiangsu Zhongmei or Italy imports, ensuring precise control
Dual sewage tanks (one on side, one on rear) with tail diversion groove and rubber hydraulic lock
Photoelectric switch conversion mode replaces older pressure relay for accurate fill detection
Siemens PLC electronic control system for automatic operation and monitoring
Tail night light and three electric control boxes (one in cab, two in body) for safe operation
Standard configuration includes 7.00R16 tyres, 6+1 arrangement, 3360 mm wheelbase

Specifications

Technical Data


Chassis	Sinotruk HOWO 4x2 RHD
Engine	YUNNEI YN4102QBZL, 3.76L, 116 HP, diesel
Transmission	WLY6T46, 6-speed manual
GVW	10200 kg
Overall Size	6470 x 2050 x 2560 mm
Wheelbase	3360 mm
Body Capacity	5 or 6 m³
Compaction Ratio	1:3 to 1:2
Loading Time	≤30 seconds
Uploading Time	<30 seconds
Body Material	High-strength T420 special steel
Tank Material	Carbon steel, 4mm bottom, 5mm sides
Sewage Tanks	2 (side and rear)
Control System	Siemens PLC electronic control
Hydraulic Pump	Long Source large flow 32–80 L/min, optional double pump
Multi-way Valve	Jiangsu Zhongmei or Italy imports
Conversion Mode	Photoelectric switch
Sewage Seal	Tail diversion groove + rubber hydraulic lock
Cab Type	Single row
Tyres	7.00R16, 6+1
Lead Time	30 days
Shipping Port	China main port
Payment	T/T

Build Materials

Materials

High-strength T420 special steel for compaction body with 4mm thickness at bottom and 5mm on sides
Carbon steel for tank walls, 4mm or 5mm depending on specification
Aluminium alloy for control box housings and mounting brackets
Rubber hydraulic lock seal for sewage tank tail discharge
Steel frame and subframe from Sinotruk HOWO chassis with reinforced joints
Electrical wiring and connectors rated for outdoor and vibration conditions

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk HOWO with RHD configuration confirmed against customer order
Body shell is cut and formed from high-strength T420 special steel plates
Internal compaction mechanism and hydraulic cylinders are installed and aligned
Sewage tanks are welded in place with tail diversion grooves and rubber seals fitted
Hydraulic system including pump, multi-way valve, and control valves is assembled
Siemens PLC control system is programmed and tested with sensor inputs
Body is mounted onto the chassis frame and all electrical connections verified
Final inspection includes full hydraulic operation test, loading cycle check, and leak test on sewage tanks
Truck is cleaned, painted in customer colour (free), and prepared for shipment

Testing

Quality Control

Every truck undergoes 100 percent testing before delivery
Hydraulic system tested under full load with pressure and flow checks
Sewage tank seal tested with water and dye to confirm no leakage
PLC control system verified with full cycle operation including fill detection
Body structure inspected for weld integrity and alignment with chassis
Photos and videos of the finished truck sent to buyer before balance payment

Build to Order

Customization Options

Body capacity available in 5 or 6 cubic metres based on customer need
Tank material can be upgraded from carbon steel to stainless steel on request
RHD or LHD chassis to match local traffic regulations at order stage
Tank colour and logo applied free of charge
Refuse container lifter type selected from available options
Loading cycle time can be adjusted within design limits by hydraulic system tuning
Manufacture to customer supplied technical drawings and specifications

Comparison

How It Compares With the Alternatives

3×2 compacting truck with 3m³ body	Lower capacity requires more trips but is easier to navigate narrow streets
Used imported compactor	Lower upfront cost but higher long-term maintenance and parts availability risk
Non-automated manual loading truck	Slower and labour-intensive, increases worker exposure to waste and odour

Operating Notes

Use Guide

Confirm RHD chassis configuration at order stage to match Malawi’s right-hand traffic rules
Fill only through the designated loading hopper and avoid overloading beyond 5 or 6 m³
Use the photoelectric switch system to detect fill level and prevent overfilling
Drain sewage tanks after each shift in humid or hot conditions to prevent blockage
Inspect rubber hydraulic locks and tail diversion grooves weekly for wear or debris
Perform routine hydraulic fluid checks and replace filters every 500 hours of operation
Free operator training available at factory before shipment

Buyer Questions About This Truck

What is the lead time for this garbage truck?

Generally 30 days after receiving the advance payment. Exact timing depends on chassis availability and equipment configuration.

Can the truck be left-hand drive instead of right-hand drive?

No. The chassis is ordered as RHD to match Malawi’s right-hand traffic rules. LHD is not available for this model.

What are the payment terms?

T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before the balance is paid.

Is the body material stainless steel?

Standard body is high-strength T420 special steel. Stainless steel is available on request—please specify your requirement.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms are EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year. Core parts on some products are guaranteed for two years. Overseas engineers make regular return visits and provide technical training and manuals before delivery.

Can the compaction body size be changed?

Yes. The standard body is 5 or 6 cubic metres. We can adjust the size based on your daily waste volume and route constraints.
