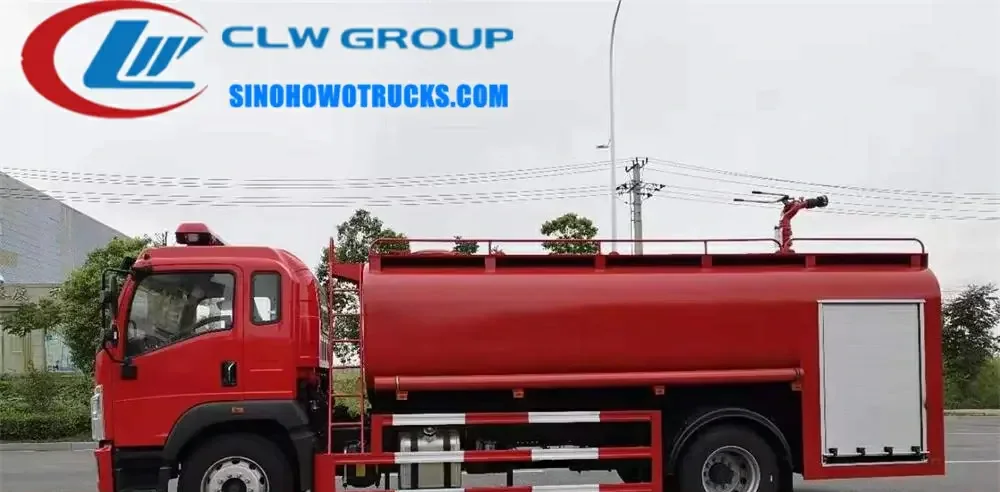

Sinotruk HOWO 8000 litre fire water tender truck in fire service red with roof-mounted PL24 monitor

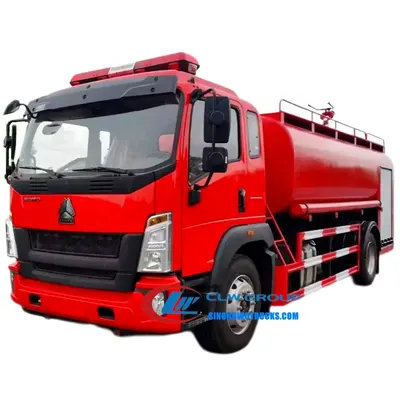

Rear view of the HOWO fire truck showing the CB10/30 pump and control panel

Side view of the HOWO fire tender with open aluminium roller shutter lockers

Sinotruk Howo 8000 liters firefighter truck Namibia

Name: Sinotruk Howo 8000 liters firefighter truck Namibia
Brand: Sinotruk HOWO

The Sinotruk HOWO 8000 litre firefighter truck is a 4x2 water tender built on a QL11009MARY chassis with a 190 HP I-SUZU diesel engine and 6-speed manual gearbox. It is designed for municipal fire brigades and industrial safety teams that need a mobile water supply to reach fires without hydrants and sustain a continuous attack stream. The CB10/30 normal pressure pump delivers 30 litres per second at 1.0 MPa, feeding a PL24 monitor that projects water over 60 metres, allowing crews to operate safely from a distance during structural, forest, or industrial fires.

Request A Quote Email Specification

Key Benefits

8000 litre Q304A stainless steel water tank resists corrosion and maintains water quality for extended storage
PL24 monitor rotates 360 degrees and projects water over 60 metres, enabling safe stand-off firefighting
CB10/30 pump primes in under 35 seconds at 7 metres suction lift, reducing response delay
190 HP I-SUZU engine delivers reliable performance with Euro 4 emission compliance
4x2 chassis with 4475 mm wheelbase offers good maneuverability in urban and rural access roads
Tank roof made of 3 mm riffled Q235A carbon steel resists deformation and improves structural integrity

Buyer Profile

Who It Is for

Municipal fire services procuring vehicles through public tenders
Industrial safety departments in chemical plants and manufacturing facilities
Mining and quarry operators managing on-site fire risks
Port and logistics operators with in-house emergency response teams
Government agencies equipping fire stations in developing regions
Contractors supplying fire protection services to remote or underserved areas

Operating Problems

Problems It Solves

Hydrant networks that are absent, weak, or too far from the fire incident
Small water tanks that run dry before a fire is under control
Fixed monitors that force crews too close to radiant heat and flashover zones
Long refill cycles when the nearest water source is many kilometres away
Imported trucks with delayed spare parts and service support in remote regions
Lack of immediate deployment capability due to incomplete equipment packages

Where It Works

Application Scenarios

Municipal fire departments in towns with limited hydrant coverage or unreliable water pressure
Industrial parks and refineries requiring rapid first response with a sustained water stream
Remote mining sites and construction camps where water sources are distant and unreliable
Forest and grassland fire units operating in unpaved or rough terrain
Port and warehouse facilities needing a mobile water supply to protect stacked cargo
Rural fire brigades with limited budget but requiring a fully equipped fire fighting vehicle

Engineering

Technical Features

CB10/30 normal pressure fire pump rated at 30 l/s at 1.0 MPa and 2800 r/min
Pump draws water in under 35 seconds at 7 metres suction depth
PL24 fire monitor provides 24 l/s flow at 1.0 MPa with 360-degree rotation
Monitor achieves a maximum throw distance of over 60 metres
Water tank dimensions: 2525 x 1415 x 1420 mm, capacity 8000 litres
Tank roof constructed from 3 mm riffled Q235A carbon steel for strength and durability
Stainless steel tank body (Q304A) with 3-4 mm thickness resists rust and contamination
Left-hand drive chassis with 4x2 configuration for local traffic compliance
6-speed manual transmission with 190 HP I-SUZU 4HK1-TCG40 diesel engine
Overall dimensions: 7690 x 2250 x 3000 mm, total weight 9,700 kg

Specifications

Technical Data


Chassis	Sinotruk HOWO QL11009MARY 4x2
Engine	I-SUZU 4HK1-TCG40, 190 HP, 141 kW, diesel
Transmission	6-speed manual
Overall Size	7690 x 2250 x 3000 mm
Water Tank Capacity	8000 L
Tank Material	Q304A stainless steel
Tank Roof Material	Q235A carbon steel, 3 mm riffled
Fire Pump	CB10/30 normal pressure
Pump Flow	30 l/s at 1.0 MPa
Pump Speed	2800 r/min
Suction Lift	7 m
Priming Time	≤35 seconds
Fire Monitor	PL24, 24 l/s, 360° rotation
Monitor Range	≥60 m
Monitor Pressure	1.0 MPa
Cab Colour	Red, tank colour and logo free of charge
Lead Time	30 days
Shipping Port	China main port
Payment	T/T

Build Materials

Materials

Q304A stainless steel tank body with 3-4 mm thickness for corrosion resistance
Q235A carbon steel 3 mm riffled plate for tank roof to prevent buckling
I-SUZU 4HK1-TCG40 diesel engine with Euro 4 emission standard
6-speed manual gearbox with durable transmission components
Aluminium alloy or steel roller shutter lockers for hose and equipment storage
Steel subframe and carriage structure welded to the HOWO chassis for load support

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and wheelbase is verified against the tank drawing
Tank shell is cut, formed, and welded with internal clapboards to reduce surge
Tank is pressure tested and leak tested before welding is complete
Pump and pipework are installed and aligned to the driveline and engine PTO
Monitor platform and roller shutter lockers are assembled onto the subframe
Body is shot blasted, primed, and finished in fire service red with customer logo
Final pump flow, priming time, and monitor throw are tested on the factory apron

Testing

Quality Control

Every truck is 100 percent tested before delivery
Photos and videos of the finished truck are sent to the buyer before balance payment
Tank and pressure vessel components undergo in-house pressure and non-destructive testing
Pump performance and monitor throw are verified under factory conditions
Vehicle complies with GB7965 for fire fighting vehicle performance and testing

Build to Order

Customization Options

Water tank capacity can be adjusted to meet specific water demand requirements
Tank material can be changed from stainless steel to carbon steel on request
Left or right hand drive chassis to match local traffic regulations
Tank colour and brigade logo applied free of charge
Fire fighting accessory package built to customer’s equipment list
Manufacture to customer supplied technical drawings and specifications

Comparison

How It Compares With the Alternatives

6x4 water tender with 10000 L tank	Carries more water but has higher turning radius and is harder to maneuver in narrow streets
Foam and dry powder tender	Better on flammable liquid fires but cannot sustain a long plain water attack on solid fuel fires
Water tanker with pump added later	Cheaper per litre but lacks integrated fire fighting layout and certified pump monitoring

Operating Notes

Use Guide

Confirm left or right hand drive chassis at order stage to match local traffic rules
Fill the tank only through the manhole or pump inlet; keep the air breather valve clear
Prime the pump at no more than 7 metres suction lift; expect full draft within 35 seconds
Engage the pump PTO before moving if pump and roll operation is required
Drain the tank and pump after use in freezing conditions to prevent damage
Free factory-based operator training is available before shipment

Buyer Questions About This Truck

How long is the lead time for this fire truck?

Generally 30 days after the advance payment is received. The exact date depends on chassis availability and the equipment list you specify.

Can the tank be carbon steel instead of stainless steel?

Yes. The standard tank is Q304A stainless steel. Carbon steel is available on request. Let us know your water quality and storage duration for confirmation.

What are your payment terms?

T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Do you supply right hand drive?

Yes. The chassis is ordered in left or right hand drive to match your traffic regulations. Confirm this at order stage as it cannot be changed later.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year and core parts on some products for two years. Our overseas engineers make regular return visits and provide technical training and manuals before delivery.

Can the fire fighting equipment package be changed?

Yes. Send us your inventory list of hoses, branches, nozzles, and breathing apparatus and the lockers will be laid out to suit it.
