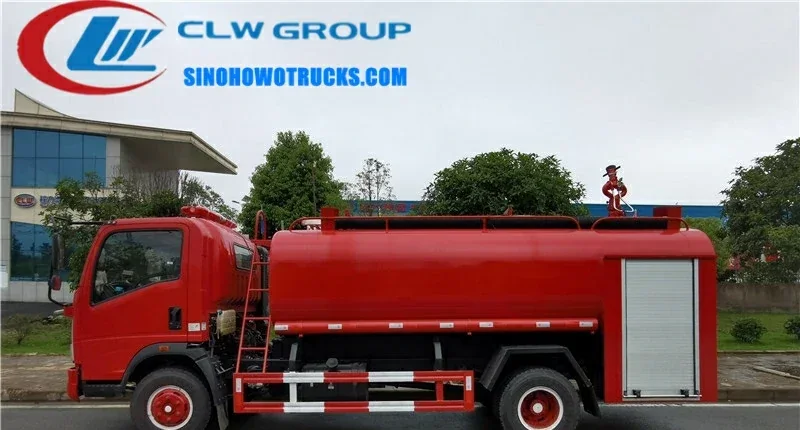

Sinotruk HOWO 4x2 water pumper fire truck in fire service red with PS30 monitor mounted above the cab

Rear pump room of the HOWO fire truck showing gauges and control switches for the CB10/30 pump

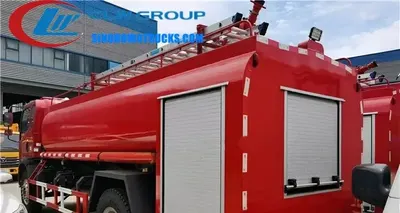

Aluminium alloy roller shutter lockers open on the side of the HOWO water tender

Sinotruk Howo 6000 liter water pumper fire truck Botswana

Name: Sinotruk Howo 6000 liter water pumper fire truck Botswana
Brand: Sinotruk HOWO

The Sinotruk HOWO 6000 litre water pumper fire truck is a 4x2 fire fighting vehicle built on a new Sinotruk HOWO chassis with a 160 HP diesel engine and 6 speed manual gearbox. It is designed for municipal fire brigades and industrial safety teams that need a reliable, low-cost water delivery system to suppress fires in remote or hydrant-limited areas. The CB10/30 pump delivers 1800 litres per minute at 1.0 MPa and feeds a PS30 dual-use foam and water monitor that projects water over 55 metres with a 360-degree horizontal sweep and a -18 to +75 degree elevation range, allowing safe stand-off operation from intense heat sources.

Request A Quote Email Specification

Key Benefits

6000 litre carbon steel tank holds enough water for a sustained attack on small to medium fires without immediate refill
PS30 monitor throws water over 55 metres so crews can operate outside the radiant heat zone
CB10/30 pump primes in under 45 seconds at 7 metres suction depth and delivers 1800 L/min at 1.0 MPa
Aluminium alloy roller shutter lockers keep hoses, nozzles and tools dry and accessible in all weather
4x2 HOWO chassis handles rural roads and unpaved access with a 12 ton gross weight and air brake system
One manhole with quick lock and internal anti-corrosive resin paint reduces maintenance and extends tank life

Buyer Profile

Who It Is for

City and regional fire services purchasing by public tender
Industrial safety departments in chemical plants and storage yards
Mining and quarry operators needing mobile water supply for site safety
Agricultural and livestock facility managers with fire risk from dry hay or grain
Government agencies equipping new fire stations in underserved areas
Private fire protection contractors supplying turnkey fire response units

Operating Problems

Problems It Solves

Hydrant networks that are absent or too weak to support a working fire stream
Small appliances that run dry before a fire is under control
Fixed monitors that force crews too close to radiant heat and flashover zones
Long refill cycles when the nearest water source is many kilometres away
Imported fire trucks with spare parts and service that arrive months after breakdown
Lack of immediate fire response capability in remote or low infrastructure zones

Where It Works

Application Scenarios

Municipal fire departments in towns with limited hydrant coverage and no fire water supply network
Industrial parks and factories that need a first response unit for small fires before a larger engine arrives
Remote mining or construction sites where water sources are far from the fire location
Agricultural zones and storage facilities with high fire risk but no permanent fire service
Rural fire units operating on low traffic roads with limited turning radius
Contractors supplying fire protection to temporary or mobile work sites

Engineering

Technical Features

Pump draws 55 kW with a 100 mm inlet and an 80 mm outlet
Priming completes in under 45 seconds at 7 metres suction depth
PS30 monitor swings 360 degrees horizontally and pitches from -18 to +75 degrees
Pump room mounted at rear with all gauges and switches on one panel
Water level indicator, overflow valve, air breather valve and drain outlet on the tank
Carriage built from steel and aluminium embossed sheet for corrosion resistance
Double cab with 3+4 seating and 8.25R20 radial tires for road stability

Specifications

Technical Data


Chassis	Sinotruk HOWO 4x2, left or right hand drive
Engine	Yuchai 160 HP diesel
Gearbox	6 front gears and 1 rear gear, manual
Overall Size	8350 x 2450 x 3350 mm
Water Tank Capacity	6000 L
Tank Material	Q235 carbon steel with anti-corrosive resin paint
Fire Pump	CB10/30 normal pressure
Pump Flow	1800 L/min at 1.0 MPa
Pump Power	55 kW
Water Monitor	PS30, foam and water dual use, 1800 L/min, range over 55 m
Monitor Range	Water >55 m
Monitor Rotation	360° horizontal
Monitor Elevation	-18° to +75°
Cab Configuration	Double cab, 3+4 seats
Curb Weight	6850 kg
Gross Weight	12000 kg
Load Capacity	5150 kg
Max Speed	90 km/h
Brake System	Air brake
Tires	6+1, 8.25R20 radial
Lead Time	30 days
Shipping Port	China main port
Payment	T/T

Build Materials

Materials

Q235 carbon steel water tank with internal anti-corrosive resin paint, stainless steel SUS304 available on request
Aluminium embossed sheet carriage panels
Aluminium alloy roller shutter doors with sealing strip and one lock set per door
HOWO 4x2 heavy-duty chassis frame with Sinotruk engine and gearbox

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and the wheelbase is confirmed against the tank drawing
Tank shell is cut and rolled then welded with internal clapboards to control surge
Tank is pressure and leak tested before leaving the welding shop
Pump pipework and mounting brackets are fitted and aligned to the driveline
Carriage lockers, monitor platform and tool compartments are assembled onto the subframe
Body is shot blasted, primed and finished in fire service red
Pump flow, priming time, monitor range and rotation are tested on the factory apron before shipment

Testing

Quality Control

Vehicle is built to GB7965 performance requirements and test methods for fire fighting vehicles
Tank complies with GB39.5 general specification for fire fighting vehicles
Every truck is 100 percent tested before delivery
Photos and videos of the finished truck are sent to the buyer before the balance payment
Pressure and non destructive testing available in house for pressure vessel projects

Compliance

Certifications

ISO 9001-2008 Quality Management Certification
ISO 14001 Environmental Management Certification
3C China Compulsory Certification

Build to Order

Customization Options

Water and foam tank capacities are specified to the buyer's requirement
Tank material can be changed from carbon steel to stainless steel SUS304
Left or right hand drive chassis to match local traffic regulations
Tank colour and logo applied free of charge
Fire fighting accessory and equipment package built to the buyer's inventory list
Manufacture to customer supplied technical drawings and specifications

Comparison

How It Compares With the Alternatives

8x4 water tender with a 12000 L tank	Carries more water but is harder to maneuver in tight urban areas and has higher fuel cost
Foam and dry powder tender	Better on flammable liquid fires but cannot sustain a plain water attack on solid fuel fires
Water tanker truck with a fire pump added	Cheaper per litre carried but lacks GB7965 compliant layout and integrated fire fighting equipment

Operating Notes

Use Guide

Confirm the chassis drive configuration and hand of drive against local registration rules before order
Fill only through the manhole or the pump inlet and keep the air breather valve clear
Prime the pump at no more than 7 metres suction lift and expect draft within 45 seconds
Engage the pump before moving if pump and roll operation is required
Drain the tank and pump after use in freezing conditions
Free operator training is available at the factory before shipment

Buyer Questions About This Truck

How long is the lead time for this fire truck?

Generally 30 days after the advance payment is received. The exact date depends on chassis availability and the equipment list you specify.

Can the tank be stainless steel instead of carbon steel?

Yes. The standard tank is Q235 carbon steel with anti-corrosive paint and stainless steel SUS304 is available. Tell us the water quality and storage time and we will confirm the material.

What are your payment terms?

T/T with 30 percent as deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Do you supply right hand drive?

Yes. The chassis is ordered in left or right hand drive to match your traffic regulations. Confirm this at order stage because it cannot be changed later.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year and core parts on some products for two years. Our overseas engineers make regular return visits and provide technical training and manuals before delivery.

Can the fire fighting equipment package be changed?

Yes. Send us your inventory list of hoses, nozzles, branches and breathing apparatus and the lockers will be laid out to suit it.
