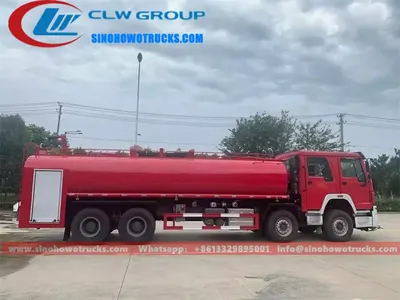

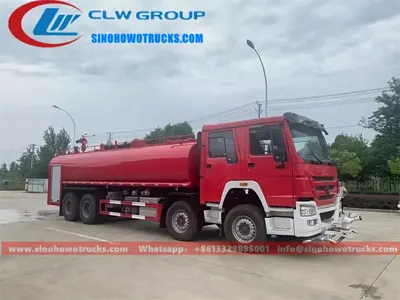

Side view of the 12 wheel Sinotruk HOWO fire service truck with 25000 L tank and 8x4 chassis

12 wheel Sinotruk Howo 6000 gallons fire service truck mauritania

Name: 12 wheel Sinotruk Howo 6000 gallons fire service truck mauritania
Brand: Sinotruk HOWO

The 12 wheel Sinotruk HOWO 6000 gallons fire service truck is a heavy-duty water tender built on an 8x4 HOWO chassis with a 375 HP diesel engine and 10 speed manual gearbox. It is designed for fire brigades and industrial safety teams operating in remote or rugged terrain where hydrant access is unavailable. The truck carries 25,000 litres of water in a stainless steel tank and is equipped with a CB10/80 low pressure pump delivering 80 litres per second at 1.0 MPa. It is used in desert, rural, and industrial zones where rapid response and sustained water delivery are critical.

Request A Quote Email Specification

Key Benefits

25,000 litre stainless steel tank holds enough water to sustain a 80 l/s stream for extended operations
CB10/80 pump delivers 80 l/s at 1.0 MPa with a 6000 KN·m maximum lifting moment for high-pressure delivery
8x4 HOWO chassis with 375 HP engine and 10 speed manual gearbox handles unpaved roads and steep gradients
Stainless steel tank resists corrosion in saline or high mineral content water environments
100 percent test before delivery with photos and videos sent before balance payment

Buyer Profile

Who It Is for

National and regional fire services in countries with limited urban fire hydrant networks
Mining and quarry operations requiring mobile water supply for dust suppression and fire control
Government agencies procuring fire tenders for rural or remote districts
Industrial safety departments in chemical plants and fuel storage facilities
Contractors supplying fire protection services to large construction or infrastructure projects
Logistics and transport operators managing fire risk on long-haul routes

Operating Problems

Problems It Solves

Lack of hydrant access in remote or arid regions forces reliance on water shuttles
Small water tanks that run dry before a large fire is under control
Corrosion in carbon steel tanks when exposed to saline or high mineral content water
Inadequate pump performance on long hose lines or high elevation sites
High maintenance costs and short service life of imported fire tenders
Delays in repair parts and technical support due to long supply chains

Where It Works

Application Scenarios

Remote fire brigades in desert regions like Mauritania with no hydrant infrastructure
Industrial parks and mining sites where fire risk is high and water supply is limited
Rural emergency services covering large geographic areas with long response times
Port and warehouse complexes needing rapid water delivery to prevent fire spread
Military or government installations requiring durable, low-maintenance fire response vehicles
Emergency response teams operating in areas with poor road conditions and high dust levels

Engineering

Technical Features

Pump power requirement of 147 kW with a 100 mm inlet and 80 mm outlet
Priming time under 50 seconds at 7 metres suction depth
Pump room mounted rear with all gauges and switches on a single control panel
Water level indicator, overflow valve, air breather valve, and drain outlet on the tank
Stainless steel tank with welded internal baffles to reduce surge during emergency maneuvers
8x4 HOWO chassis with 375 HP D10.38-50 diesel engine and Euro 5 emission standard

Specifications

Technical Data


Chassis	Sinotruk HOWO 8x4 left hand drive, model ZZ5437V4667E1
Engine	375 HP diesel, D10.38-50, 9726ml displacement
Gearbox	10 shift manual
Overall Size	11900 x 2500 x 3635 mm
Tank Material	Stainless steel
Fire Pump	CB10/80 low pressure
Pump Flow	80 l/s at 1.0 MPa
Pump Power	147 kW
Inlet / Outlet	100 mm / 80 mm
Cab Passengers	2
Max Speed	95 km/h
Wheelbase	1800+4600+1350 mm
Approach Angle	14°
Departure Angle	13°
Tyre Size	385/65R22.5
Number of Axles	4
Number of Tyres	12
Lead Time	30 days
Shipping Port	China main port
Payment	T/T

Build Materials

Materials

Stainless steel water tank with welded internal baffles for surge control
Aluminium alloy roller shutter lockers with sealing strip and one lock set
HOWO heavy-duty chassis frame with Sinotruk engine and gearbox
Aluminium embossed sheet carriage panels for corrosion resistance
Steel and aluminium composite subframe for pump and monitor mounting

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and wheelbase is confirmed against the tank drawing
Tank shell is cut, rolled, and internal baffles are welded to control surge
Tank is pressure and leak tested before leaving the welding shop
Pump pipework and sandwich PTO are fitted and aligned to the driveline
Carriage lockers, roller shutters, and monitor platform are assembled onto the subframe
Body is shot blasted, primed, and finished in fire service red or customer specified colour
Pump flow, monitor throw, and priming time are tested on the factory apron before shipment

Testing

Quality Control

Vehicle is built to GB7965 performance requirements and test methods for fire fighting vehicles
Tank complies with GB39.5 general specification for fire fighting vehicles
Every truck is 100 percent tested before delivery
Photos and videos of the finished truck are sent to the buyer before balance payment
Pressure and non destructive testing available in house for pressure vessel projects

Compliance

Certifications

ISO 9001-2008 Quality Management Certification
ISO 14001 Environmental Management Certification
3C China Compulsory Certification

Build to Order

Customization Options

Water and foam tank capacities are specified to the buyer's requirement
Tank material can be changed from stainless steel to carbon steel
Left or right hand drive chassis to match local traffic regulations
Tank colour and logo applied free of charge
Fire fighting accessory and equipment package built to the buyer's inventory list
Manufacture to customer supplied technical drawings and specifications

Comparison

How It Compares With the Alternatives

6x4 water tender with a 12000 L tank	Carries less water and refills sooner but is easier to turn in dense city streets
Foam and dry powder tender	Better on flammable liquid fires but cannot sustain a plain water attack on a large solid fuel fire
Water tanker truck with a fire pump added	Cheaper per litre carried but has no monitor lockers or GB7965 compliant fire fighting layout

Operating Notes

Use Guide

Confirm the chassis drive configuration and hand of drive against local registration rules before order
Fill only through the manhole or the pump inlet and keep the air breather valve clear
Prime the pump at no more than 7 metres suction lift and expect draft within 50 seconds
Engage the sandwich PTO before moving if pump and roll operation is required
Drain the tank and pump after use in freezing conditions
Free operator training is available at the factory before shipment

Buyer Questions About This Truck

How long is the lead time for this fire truck?

Generally 30 days after the advance payment is received. The exact date depends on chassis availability and the equipment list you specify.

Can the tank be carbon steel instead of stainless steel?

Yes. The standard tank is stainless steel and carbon steel is available. Tell us the water quality and storage time and we will confirm the material.

What are your payment terms?

T/T with 30 percent as deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Do you supply right hand drive?

Yes. The chassis is ordered in left or right hand drive to match your traffic regulations. Confirm this at order stage because it cannot be changed later.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW FOB CFR or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year and core parts on some products for two years. Our overseas engineers make regular return visits and provide technical training and manuals before delivery.

Can the fire fighting equipment package be changed?

Yes. Send us your inventory list of hoses branches nozzles and breathing apparatus and the lockers will be laid out to suit it.
