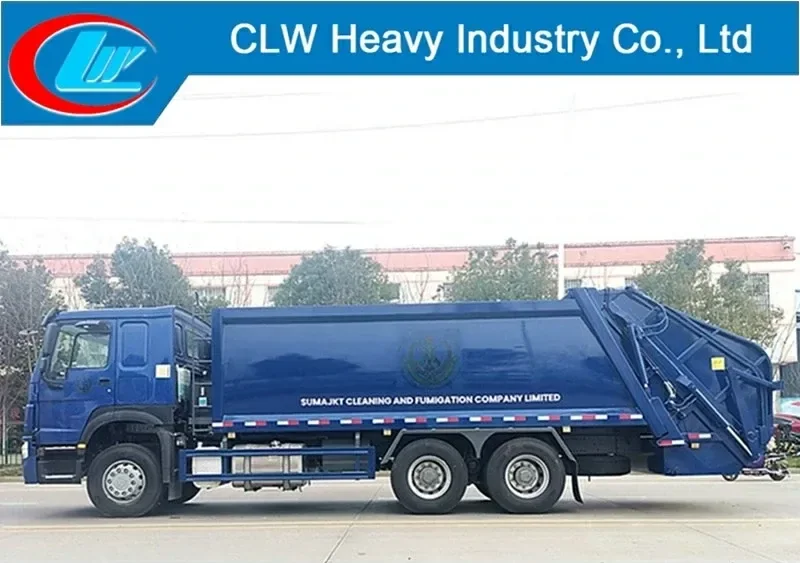

Sinotruk HOWO 6x4 compactor dustbin lorry in urban waste collection setting with open hopper and compacted refuse

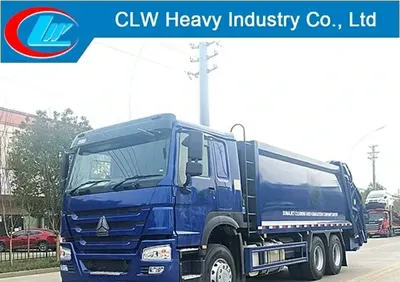

Side view of the HOWO compactor truck showing the high-strength T420 steel body and hydraulic compaction mechanism

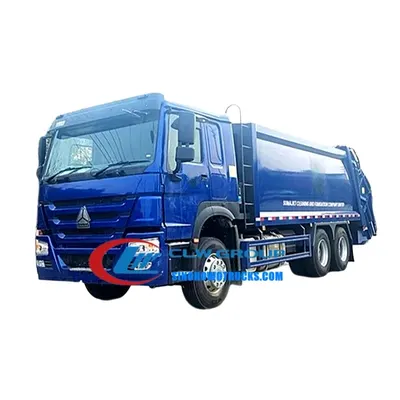

Rear view of the compactor truck with the push plate and hydraulic cylinder visible during compaction cycle

Sinotruk HOWO 6X4 compactor dustbin lorry Namibia

Name: Sinotruk HOWO 6X4 compactor dustbin lorry Namibia
Brand: Sinotruk HOWO

The Sinotruk HOWO 6x4 compactor dustbin lorry is a 20 cubic metre waste collection vehicle built on a 336 HP heavy-duty chassis for municipal sanitation departments and waste contractors operating in urban, industrial, and port environments. It is designed to reduce transport cycles by compacting refuse on board, preventing spillage and odour release during transit. The truck meets European V and VI emission standards for tail gas, ensuring compliance with environmental regulations in export markets. It operates in densely populated areas, construction sites, and industrial zones where frequent collection and high payload capacity are required.

Request A Quote Email Specification

Key Benefits

6x4 HOWO chassis with 336 HP diesel engine handles heavy loads on unpaved and uneven urban roads
20 cubic metre compactor body with two-way push-in compression increases payload and reduces trips
High-strength T420 steel body resists wear and deformation from repeated compaction cycles
Siemens PLC control system ensures reliable operation of hydraulic and electrical components
Euro V and VI compliant tail gas emissions meet international environmental standards
Dual hydraulic control (electric and manual) allows operation during power failure or maintenance
10-speed manual gearbox provides smooth gear shifting under full load and steep gradients

Buyer Profile

Who It Is for

Municipal sanitation departments procuring waste collection vehicles under public tender
Private waste management contractors operating in urban and industrial zones
Port and airport authorities managing daily waste from terminals and cargo areas
Construction and quarry companies needing on-site waste compaction and transport
Government agencies equipping remote or underserved communities with reliable waste systems
Logistics operators running fleet-based waste collection services across multiple regions

Operating Problems

Problems It Solves

Frequent trips to landfill due to low payload capacity and lack of on-board compaction
Spillage and odour from loose refuse during transport, especially in hot climates
High fuel consumption from multiple trips caused by low compaction efficiency
Non-compliant emissions from older or imported waste trucks in regulated markets
Lack of backup control systems leading to downtime during electrical failures
Inadequate chassis strength for heavy loads on rough or unpaved access roads

Where It Works

Application Scenarios

Municipal waste collection in large cities with high-density residential and commercial zones
Industrial parks and mining sites generating large volumes of daily refuse
Ports and wharves where waste must be collected from multiple berths and stored on board
Airports and railway stations with high footfall and strict hygiene requirements
Remote or rural areas with limited access to central landfill sites and long haul distances
Contractor fleets managing temporary construction site waste and debris

Engineering

Technical Features

6x4 Sinotruk HOWO chassis with left or right hand drive configuration
WD615.69 engine, 9726ml displacement, 247 kW output, 336 HP, Euro 3 (EGR) emission level
HW19710 10 forward gears and 2 reverse manual gearbox
Front axle HF-7T, rear axle ST-16T with dual circuit compressed air brakes
Drum brakes with power spring parking brake on rear wheels and WEVB auxiliary brake
Semi-elliptic leaf spring front suspension, trapezoidal leaf spring rear suspension
20 cbm compactor body with two-way push-in compression (front push, rear compactor)
Electrically controlled hydraulic system with manual override for emergency use
Siemens PLC control device for monitoring and operating compaction cycle
High-strength T420 steel body material for durability under repeated loading
12R22.5 tires, 10+1 units, suitable for long hauls and rough terrain
400L steel fuel tank for extended operational range
HW76 cabin with sleeper, flat roof, A/C, and ABS for driver comfort and safety

Specifications

Technical Data


Chassis	Sinotruk HOWO 6x4, left or right hand drive
Engine	WD615.69, 336 HP, 9726ml, Euro 3 (EGR)
Gearbox	HW19710, 10 forward gears, 2 reverse
Overall Size	10390 x 2500 x 3350 mm
GVW	25000 kg
Curb Weight	15310 kg
Wheelbase	4300 + 1350 mm
Tire Specification	12R22.5
Tire Quantity	10 + 1 units
Compactor Capacity	20 cbm
Body Material	High-strength T420 steel
Control System	Electrically Controlled Hydraulic + Hand Hydraulic
Compactor Type	Two-way, push in front, compressor in back
Hydraulic Pump	Long source large flow 32-80 pump, optional double pump and double valve
Cab	HW76, flat roof, sleeper, A/C, ABS
Fuel Tank	400L steel fuel tank
Lead Time	30 days
Shipping Port	China main port
Payment	T/T

Build Materials

Materials

High-strength T420 steel for compactor body and structural components
Steel fuel tank with anti-corrosion coating
Aluminium alloy for hydraulic cylinder covers and access panels
Rubber seals and gaskets on compactor doors and manholes for dust and water tightness
Steel frame and subframe for chassis integration and load distribution

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and wheelbase is verified against the compactor body drawing
Compactor body is fabricated from T420 steel plates, cut and formed to shape
Internal compaction mechanism and push plate are assembled and aligned with the chassis
Hydraulic system components including pumps, valves, and cylinders are installed and tested
PLC control system is wired and programmed for compaction cycle and safety interlocks
Body is mounted onto the chassis subframe and all connections are torqued to specification
Final inspection includes hydraulic pressure test, control system check, and compaction cycle simulation
Truck is driven on factory apron to verify brake, steering, and driveline performance before shipment

Testing

Quality Control

All trucks undergo 100 percent testing before delivery
Hydraulic system tested under full load and pressure for leaks and response time
PLC control system verified for correct sequence and emergency override function
Compaction cycle tested with full load to confirm capacity and consistency
Photos and videos of the finished truck sent to buyer before balance payment
Emission compliance verified against Euro 3 standard for tail gas output

Build to Order

Customization Options

Compactor body capacity can be adjusted from 3 to 20 cubic metres based on customer needs
Left or right hand drive chassis to match local traffic regulations
Body colour and logo applied free of charge
Optional lifters for different types of refuse containers (e.g. front, side, rear lift)
Additional safety or monitoring devices can be added upon request
Manufacture to customer supplied technical drawings and specifications

Comparison

How It Compares With the Alternatives

4x2 compactor with 12 cbm capacity	Lower cost and better turning radius but carries less waste and requires more trips
Used imported compactor	Lower initial cost but higher maintenance, parts availability, and emission compliance risk
Non-compacting waste truck	No on-board compaction so trips are more frequent and spillage is more likely

Operating Notes

Use Guide

Confirm left or right hand drive chassis at order stage to match local road rules
Fill the compactor only through the designated hopper to avoid overloading the system
Use the manual hydraulic override if the electrical system fails during operation
Perform daily checks on hydraulic fluid level, seals, and compaction cycle timing
Clean the compactor body and hydraulic components after each shift to prevent residue buildup
Free operator training is available at the factory before shipment

Buyer Questions About This Truck

What is the lead time for this compactor truck?

Generally 30 days after the advance payment is received. The exact date depends on chassis availability and the equipment list you specify.

Can the compactor capacity be changed from 20 cbm?

Yes. The standard capacity is 20 cbm, but we can adjust it to 3 to 20 cbm based on your waste volume and route requirements.

What are your payment terms?

T/T with 30 percent as deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Do you supply right hand drive?

Yes. The chassis is ordered in left or right hand drive to match your traffic regulations. Confirm this at order stage because it cannot be changed later.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year and core parts on some products for two years. Our overseas engineers make regular return visits and provide technical training and manuals before delivery.

Can the body material be changed to stainless steel?

Yes. The standard body is high-strength T420 steel. Stainless steel is available on request. Let us know your waste type and storage duration for material recommendation.
