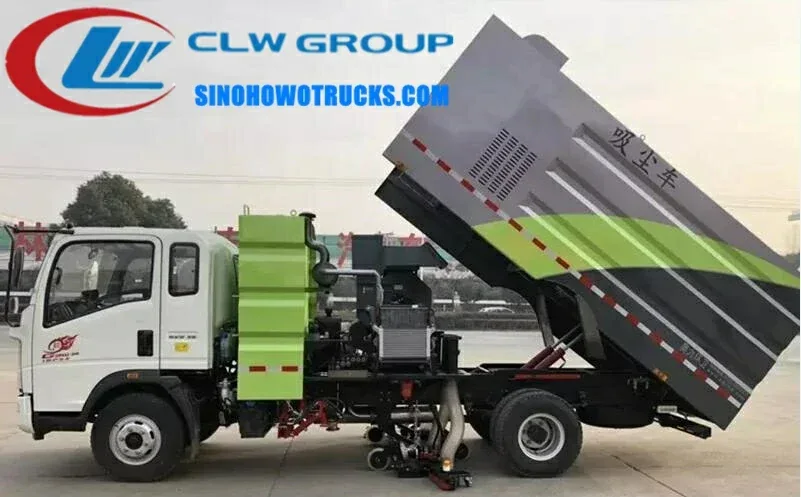

Sinotruk HOWO 5m3 road sweeper lorry in urban street cleaning operation with front brush and water spray

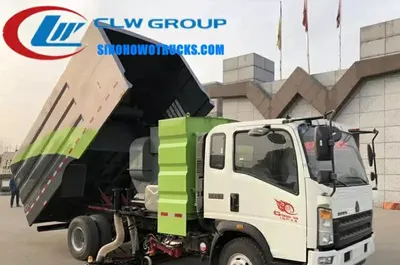

Side view of the HOWO road sweeper showing stainless steel garbage tank and side discharge chute

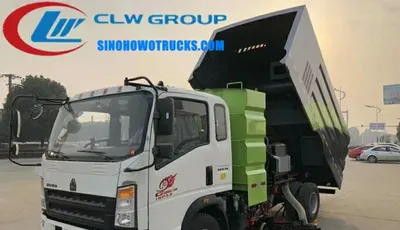

Front view of the HOWO vacuum sweeper with water spray nozzles and sweeping brush

Sinotruk Howo 5m3 road sweeper lorry Oman

Name: Sinotruk Howo 5m3 road sweeper lorry Oman
Brand: Sinotruk HOWO

The Sinotruk HOWO 5m3 road sweeper lorry is a 4x2 chassis vehicle built for municipal and industrial road cleaning in urban streets, narrow lanes, and dusty environments. It is designed for dry sweeping and water-assisted dust suppression, handling debris such as leaves, sand, gravel, and mud. The unit operates efficiently on city roads with a 3.0 metre sweep width and a maximum capacity of 60,000 m² per hour. It features a 5000 litre stainless steel garbage tank and a 2500 litre water tank, with a 120 HP diesel engine and ISUZU auxiliary engine for reliable operation. This model is supplied with left hand drive and is suitable for export to markets including Oman.

Request A Quote Email Specification

Key Benefits

5000 litre stainless steel garbage tank resists corrosion and avoids secondary pollution
2500 litre water tank enables dust suppression in dry and high particulate environments
Italy imported high-pressure pump ensures strong and consistent suction performance
ISUZU auxiliary engine powers the sweeping system without relying on the main engine
3.0 metre sweep width and 60,000 m²/h capacity allow efficient cleaning of urban roads
30 day lead time after deposit with 100% customization available
Left hand drive chassis matches local traffic regulations in Oman and other export markets

Buyer Profile

Who It Is for

Municipal public works departments managing urban road cleaning
Industrial site maintenance teams responsible for site hygiene and safety
Airport and port authorities with in-house cleaning fleets
Construction and quarry site operators managing dust and debris
Contractors supplying cleaning services to industrial estates and commercial zones
Government agencies procuring vehicles under public tender for city infrastructure

Operating Problems

Problems It Solves

Dust and debris accumulation in narrow streets where larger sweepers cannot turn
Inadequate cleaning capacity in high-traffic urban areas with frequent leaf and sand buildup
Secondary pollution from leaking or corroded garbage tanks in dusty environments
Lack of water spray capability for dust suppression in dry or windy conditions
High maintenance costs from unreliable auxiliary power systems on older sweepers
Long lead times and limited customization from overseas suppliers

Where It Works

Application Scenarios

Municipal sanitation departments cleaning city streets and alleyways with limited access
Industrial parks and construction sites managing dust from gravel and soil movement
Ports and logistics hubs sweeping debris from container yards and loading areas
Airport aprons and taxiways requiring frequent cleaning without damaging surfaces
Narrow urban lanes and pedestrian zones where larger sweepers cannot operate
Areas with high leaf fall or seasonal dust where water spray is needed for control

Engineering

Technical Features

4x2 HOWO chassis with 120 HP diesel engine and 6 speed manual gearbox
ISUZU auxiliary engine powers the sweeping system independently
Italy imported high-pressure pump for strong and consistent suction
3.0 metre maximum sweep width with adjustable sweep speed from 3 to 20 km/h
Max sweep capacity of 60,000 m² per hour at 8 km/h operating speed
5000 litre stainless steel garbage tank with single manhole and quick seal
2500 litre water tank for dust suppression with spray nozzles on the front and sides
Angle of unloading ≥45 degrees for efficient debris discharge
Min turning diameter ≤13.6 m for operation in tight urban spaces
Braking distance ≤10 m at 30 km/h for safe operation in city traffic
Approach angle 24 degrees and departure angle 13 degrees for rough terrain access

Specifications

Technical Data


Chassis	Sinotruk HOWO 4x2 left hand drive
Engine	120 HP diesel
Gearbox	6 shift manual
Overall Dimensions	6950 x 2500 x 3300 mm
Wheelbase	3300 mm
Garbage Tank Capacity	5000 L
Water Tank Capacity	2500 L
Max Sweep Width	3.0 m
Sweep Speed	3-20 km/h
Max Sweep Capacity	60000 m²/h
Max Ingestion Granularity	≥110 mm
Angle of Unloading	≥45°
Curb Weight	4950 kg
Rated Capacity	2270 kg
GVW	7350 kg
Max Speed	90 km/h
Max Gradeability	30%
Braking Distance	≤10 m
Min Turning Diameter	≤13.6 m
Fuel Consumption (Driving)	≤12 L/100km
Fuel Consumption (Sweeping at 8km/h)	6.5 L/h
Fuel Consumption (Per 10000m²)	2.7 L/10000m²
Minimum Ground Clearance	190 mm
Lead Time	30 days
Shipping Port	China main port
Payment	T/T

Build Materials

Materials

Stainless steel garbage tank with welded seams and smooth interior for easy cleaning
Stainless steel water tank with internal baffles to reduce surge
Aluminium alloy front and side panels for corrosion resistance and lightweight construction
HOWO 4x2 chassis with Sinotruk diesel engine and 6 speed manual gearbox
Italy imported high-pressure pump with durable seals and corrosion-resistant internals

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and wheelbase is confirmed against the body drawing
Stainless steel tank shells are cut, formed, and welded with internal baffles to control liquid surge
Tank is pressure tested and leak tested before assembly
High-pressure pump and ISUZU auxiliary engine are mounted and aligned to the driveline
Sweeping brush assembly, water spray nozzles, and discharge chute are fitted to the front and rear
Body panels and side lockers are attached to the subframe with sealing strips
Vehicle is shot blasted, primed, and painted in the customer’s chosen colour with logo applied free of charge
Final system test includes sweep speed, suction power, water spray, and braking performance on the factory apron

Testing

Quality Control

Every truck is 100 percent tested before delivery
Pressure and leak tests performed on the stainless steel tanks before final assembly
Pump and auxiliary engine performance verified under load at 8 km/h sweep speed
Photos and videos of the finished truck are sent to the buyer before balance payment
All components comply with GB7965 and GB39.5 standards for road cleaning vehicles
In-house testing for pump efficiency, water spray coverage, and dust suppression capability

Build to Order

Customization Options

Garbage tank capacity from 2 to 16 cubic meters to match site needs
Tank material can be changed from stainless steel to carbon steel on request
Left or right hand drive chassis to match local traffic regulations
Tank colour and logo applied free of charge with no extra cost
Optional refuse container lifters and side discharge systems available
Manufacture to customer supplied technical drawings and specifications

Comparison

How It Compares With the Alternatives

3m3 road sweeper with a 2000 L garbage tank	Lower capacity and shorter range but easier to maneuver in very narrow lanes
Water spray only truck with no vacuum system	No debris collection, only dust suppression, unsuitable for dry sweeping jobs
Used sweeper from Europe with no local parts support	Higher long-term maintenance cost and longer repair delays due to parts availability

Operating Notes

Use Guide

Confirm left or right hand drive chassis at order stage to match local road rules
Fill the water tank only through the designated inlet and keep the air breather valve clear
Use the ISUZU auxiliary engine to power the sweeping system when the main engine is off
Operate at speeds between 3 and 20 km/h for optimal sweep efficiency and safety
Drain both water and garbage tanks after use in freezing conditions to prevent damage
Free technical training is available at the factory before shipment

Buyer Questions About This Truck

What is the lead time for this road sweeper?

Generally 30 days after the advance payment is received. The exact date depends on chassis availability and the equipment list you specify.

Can the tank be carbon steel instead of stainless steel?

Yes. The standard tank is stainless steel and carbon steel is available. Tell us your usage environment and we will confirm the material.

What are your payment terms?

T/T with 30 percent as deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Do you supply right hand drive?

Yes. The chassis is ordered in left or right hand drive to match your traffic regulations. Confirm this at order stage because it cannot be changed later.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year and core parts on some products for two years. Free parts for 12 months and original parts are supplied. DHL delivers parts worldwide in 7 days.

Can the sweeping system be upgraded?

Yes. We can add larger pumps, additional spray nozzles, or side discharge systems based on your site requirements.
