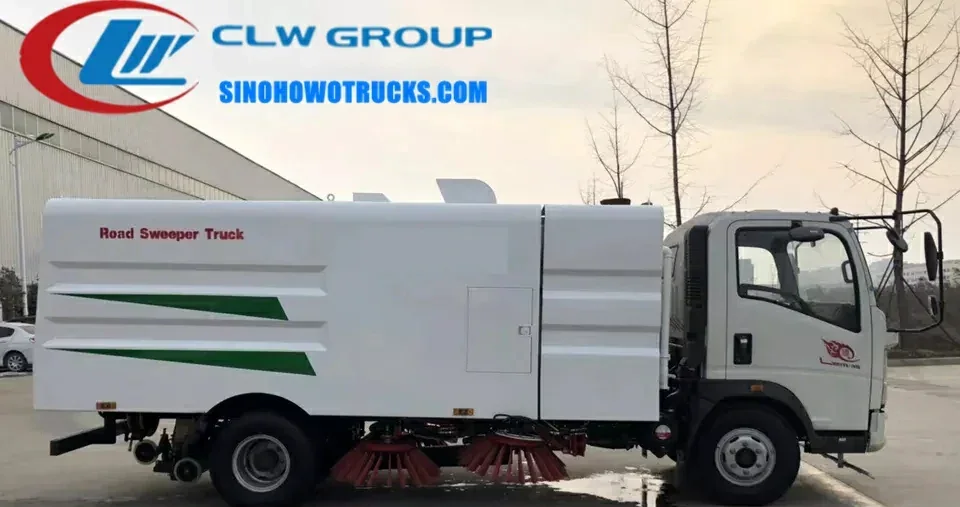

Sinotruk HOWO 4x2 road sweeper truck in urban environment with front brushes and suction nozzle in operation

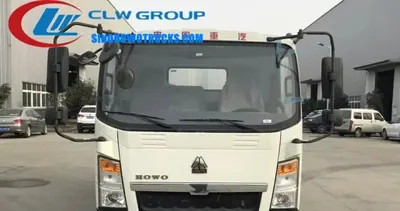

Side view of the 5m3 road sweeper showing stainless steel vacuum tank and water tank compartments

Rear view of the road sweeper with 45° unloading system and 970 mm discharge height

Sinotruk Howo 5m3 road sweeper truck for sale Thailand

Name: Sinotruk Howo 5m3 road sweeper truck for sale Thailand
Brand: Sinotruk HOWO

The Sinotruk HOWO 5m3 road sweeper truck is a 4x2 dust and debris collection vehicle built on a Sinotruk HOWO chassis with a 116 HP diesel engine and 6 speed manual gearbox. It is designed for municipal road maintenance teams and construction site operators that need to clean city streets, narrow lanes, and industrial yards without relying on manual labor or secondary water trucks. The unit collects dry and wet debris including dust, leaves, mud, sand, stone chips, and gravel using a 4500 litre stainless steel vacuum tank and a 1000 litre water tank for dust suppression. It operates at speeds from 3 to 20 km/h and cleans up to 60,000 m² per hour with 98% efficiency.

Request A Quote Email Specification

Key Benefits

4500 litre stainless steel vacuum tank resists corrosion and handles abrasive debris without lining degradation
1000 litre water tank enables dust suppression in dry conditions and reduces secondary pollution
Italy imported high-pressure pump delivers strong suction and consistent performance over long shifts
ISUZU auxiliary engine powers the vacuum system independently, reducing main engine load and fuel use
3000 mm sweep width covers a full lane in a single pass, reducing cleaning time on wide roads
45° unloading angle and 970 mm unloading height allow full tank discharge into standard waste bins
Left hand drive chassis matches Thailand and most Southeast Asian traffic regulations
Single row cab with flip capability allows access to engine and pump components for maintenance

Buyer Profile

Who It Is for

Municipal sanitation departments in Thailand and ASEAN countries buying through public procurement
Construction companies operating in urban or semi-urban areas with dust control requirements
Industrial estate managers responsible for internal road and yard cleanliness
Airport and logistics hub operators needing daily road cleaning with low emissions
Private contractors bidding on municipal cleaning contracts with tight delivery schedules
Port authorities managing paved access routes and container yard surfaces

Operating Problems

Problems It Solves

Manual sweeping that is slow, labor intensive, and inconsistent in coverage
Dust clouds from dry sweeping that violate local air quality regulations
Secondary pollution from debris being blown back into the air during collection
Inadequate suction power that leaves debris behind on uneven or gravel roads
Lack of dust suppression capability in dry climates or during dry seasons
High maintenance costs from using non-stainless tanks that corrode quickly

Where It Works

Application Scenarios

Municipal road maintenance crews cleaning city streets and alleyways in Thailand and Southeast Asia
Construction site operators managing dust and debris on active job sites with limited access
Industrial park facilities maintaining paved access roads and loading zones
Airport apron and terminal road cleaning teams operating in high-traffic environments
Port and warehouse yard operators managing gravel and dust from material handling
Urban districts with narrow lanes where larger sweepers cannot maneuver

Engineering

Technical Features

4500 L stainless steel vacuum tank with welded seams and internal baffles to reduce surge
1000 L water tank with spray nozzles for dust suppression during sweeping
Italy imported high-pressure fan rated at 5T for strong and sustained suction
ISUZU auxiliary engine powers the vacuum system without using the main engine
4 sweeping brushes with adjustable height and pressure for different surface types
Electromagnetic control valve manages suction and water flow with precise timing
Power assisted steering improves handling in tight urban spaces and narrow lanes
Suction nozzle with 200 mm minimum clearance avoids damage on uneven pavement
Unloading system with 45° angle and 970 mm height enables direct dumping into bins
Hydraulic and electrical systems integrated with a central control panel in the cab

Specifications

Technical Data


Chassis	Sinotruk HOWO 4x2 left hand drive
Engine	116 HP diesel, Dongfeng Chaochai CY4SK661
Transmission	6 speed manual forward, 1 reverse
Overall Size	6200 x 2240 x 2600 mm
Curb Weight	5705 kg
Dust Tank Capacity	4500 L
Water Tank Capacity	1000 L
Sweep Width	3000 mm
Cleaning Speed	3 to 20 km/h
Cleaning Efficiency	98%
Maximum Suction Particle Size	120 mm
Min Clearance of Suction Nozzle	200 mm
Unloading Angle	45°
Unloading Height	970 mm
Cab	Single row, 3 passenger capacity, flip cab
Tire	7.50R16 steel wire tire
Emission Standard	Euro 5
Lead Time	30 days
Shipping Port	China main port
Payment	T/T

Build Materials

Materials

Stainless steel vacuum tank with welded internal baffles for surge control
Aluminium alloy components on the body for lightweight and corrosion resistance
Steel wire tires with high load capacity for urban and rough road use
Rubber seals on the suction cup and door joints to prevent dust leakage
Electroplated steel frame and subframe for long-term structural integrity

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and inspected for frame alignment and wheelbase
Stainless steel vacuum tank is cut, formed, and welded with internal baffles to control surge
Tank is pressure tested and coated with anti-corrosion primer before final assembly
ISUZU auxiliary engine and Italy imported high-pressure fan are mounted and aligned
Sweeping brushes, suction cup, and water spray system are installed on the front frame
Hydraulic and electrical systems are wired and tested for control response
Cab is fitted with power steering and flip mechanism, and the entire body is painted
Final system test includes full vacuum cycle, water spray function, and unloading sequence

Testing

Quality Control

Every truck is 100 percent tested before delivery with photos and videos sent to the buyer
Stainless steel tank undergoes pressure and leak testing in-house before installation
Suction and water spray systems are tested under full load conditions
Electrical and hydraulic circuits are checked for continuity and response time
All components are verified against the customer’s technical drawings and specifications
Final inspection includes a full system run on the factory apron to simulate real-world operation

Build to Order

Customization Options

Tank material can be changed from stainless steel to carbon steel on request
Sweep width and brush configuration can be adjusted for different road types
Water tank volume can be increased or reduced based on local water availability
Cab can be modified for right hand drive if required by local regulations
Additional spray nozzles or dust suppression systems can be added for high dust zones
Tank colour and logo applied free of charge to match municipal or contractor branding

Comparison

How It Compares With the Alternatives

3m3 road sweeper with a carbon steel tank	Lower cost and lighter weight but less capacity and shorter lifespan due to corrosion
Water truck with a broom attachment	Cheaper to buy but lacks vacuum system and cannot collect fine dust or debris
Large 10m3 sweeper	Higher capacity but harder to maneuver in narrow streets and more expensive to maintain

Operating Notes

Use Guide

Confirm left or right hand drive chassis at order stage to match local traffic rules
Fill the water tank only through the designated inlet and keep the air vent clear
Start the ISUZU auxiliary engine before engaging the vacuum system to avoid strain
Adjust brush height based on surface type to prevent damage on asphalt or concrete
Clean the suction nozzle and filter after each shift to maintain suction power
Drain the water tank and flush the system after use in cold weather to prevent freezing

Buyer Questions About This Truck

What is the lead time for this road sweeper?

Generally 30 days after the advance payment is received. The exact date depends on chassis availability and configuration.

Can the tank be carbon steel instead of stainless steel?

Yes. The standard tank is stainless steel. Carbon steel is available on request. Let us know your expected service life and debris type.

What are your payment terms?

T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Do you supply right hand drive?

Yes. The chassis can be ordered in left or right hand drive. Confirm this at order stage as it cannot be changed later.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year and core parts for two years. Our overseas engineers make regular return visits and provide technical training before delivery.

Can the cleaning speed or sweep width be changed?

Yes. The standard sweep width is 3000 mm. We can adjust the brush layout and number for wider or narrower coverage based on your site conditions.
