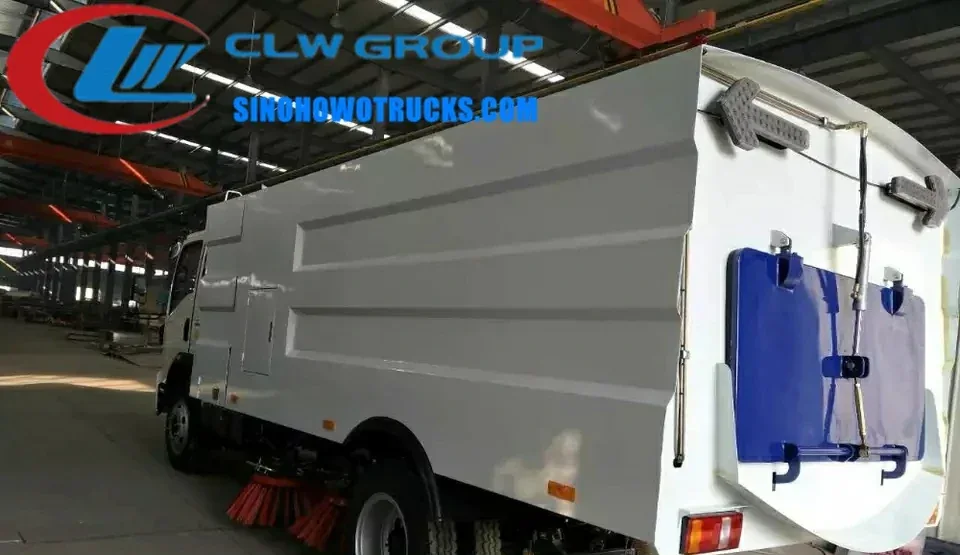

Sinotruk HOWO 8m3 street sweeper vacuum truck in urban setting with front brushes and rear vacuum inlet

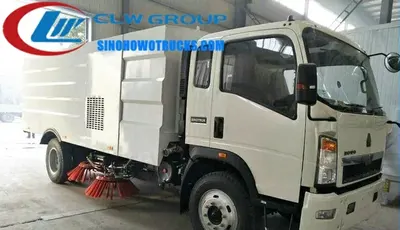

Rear view of the HOWO street sweeper showing the 6m3 stainless steel garbage tank and vacuum inlet

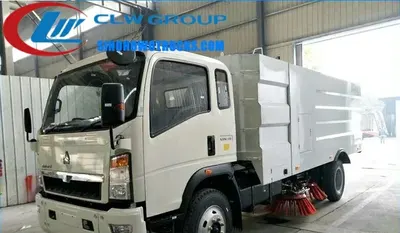

Side view of the HOWO sweeper with open brush housing and water spray bar visible

Sinotruk Howo 8m3 street sweeper vacuum truck Iraq

Name: Sinotruk Howo 8m3 street sweeper vacuum truck Iraq
Brand: Sinotruk HOWO

The Sinotruk HOWO 8m3 street sweeper vacuum truck is a 4x2 chassis vehicle built for urban and municipal road cleaning in environments with high dust, debris, and narrow access. It features a 6m3 stainless steel garbage tank and a 2m3 stainless steel water tank, designed for dry sweeping and water spray dust suppression on city streets, alleys, and industrial zones. The truck uses a Yuchai 120 HP diesel engine and an ISUZU auxiliary engine to power the vacuum system, enabling efficient collection of dust, leaves, sand, and small debris without secondary pollution. It is supplied to municipal sanitation departments and public works agencies in regions with limited waste infrastructure, including Iraq and other Middle Eastern and African markets.

Request A Quote Email Specification

Key Benefits

6m3 stainless steel garbage tank resists corrosion and handles abrasive debris over long service cycles
2m3 stainless steel water tank enables dust suppression during sweeping with a built-in spray bar
ISUZU auxiliary engine powers the vacuum system independently of the main engine, reducing fuel use and emissions
4x2 HOWO chassis with 120 HP engine allows reliable operation on unpaved and uneven urban roads
Four brushes with 2.7 to 3.2 metre working width cover a wide sweep path in one pass
Rear vacuum inlet collects debris directly into the tank without spillage or manual transfer
Water spray bar reduces airborne dust during sweeping, improving air quality in narrow lanes

Buyer Profile

Who It Is for

Municipal sanitation and public works departments in developing and emerging markets
City road maintenance contractors operating in high-dust or low-infrastructure areas
Port and industrial park facility managers requiring daily road cleaning
Contractors bidding on public tenders for street cleaning services
Municipalities upgrading from manual or outdated sweeping methods to mechanized systems

Operating Problems

Problems It Solves

Manual sweeping that is slow, labor-intensive, and ineffective in high-traffic or dusty areas
Inadequate dust suppression leading to air quality violations and health risks
Small or non-corrosion-resistant tanks that degrade quickly under abrasive debris
Lack of independent vacuum power, forcing the main engine to run continuously
Inability to clean narrow lanes and tight corners with large or rigid sweepers
High maintenance costs from poor component integration and non-durable materials

Where It Works

Application Scenarios

Municipal sanitation departments in cities with limited waste collection infrastructure
Public works teams maintaining narrow alleys and backstreets in older urban districts
Industrial zones and construction sites where dust and small debris accumulate daily
Ports and logistics hubs with high traffic and frequent road surface contamination
Road maintenance crews operating in arid or dusty environments like Iraq and the Middle East
Contractors managing temporary road cleaning during urban development or event setup

Engineering

Technical Features

Yuchai 120 HP diesel engine with 3856 ml displacement and Euro 3 emission standard
5 forward and 1 reverse manual gearbox with reinforced diaphragm clutch
ISUZU auxiliary engine with 57 kW power to drive the vacuum system
Italy imported high-pressure pump for strong and consistent vacuum performance
Four brushes with 2.7 to 3.2 metre working width for wide coverage in one pass
Rear vacuum inlet with direct debris transfer to the stainless steel tank
Water spray bar integrated into the front of the brush assembly for dust control
Cab with air conditioning and space for three operators, suitable for long shifts
Dual circuit compressed air service brakes with spring energy parking brake on rear wheels
Power steering with hydraulic assistance for easy maneuvering in tight spaces

Specifications

Technical Data


Chassis	Sinotruk HOWO 4x2 left hand drive
Engine	Yuchai 120 HP, 3856 ml, Euro 3
Gearbox	5 forward, 1 reverse manual
Curb Weight	5705 kg
Wheelbase	3800 mm
Overall Dimensions	6700 x 2290 x 2500 mm
Max Driving Speed	90 km/h
Approach Angle	22 degrees
Departure Angle	12 degrees
Axle Load	3460 kg front, 5940 kg rear
Tire Size	7.00R16, 6 pcs with spare
Garbage Tank Volume	6.0 cbm
Garbage Tank Material	Stainless steel 304
Water Tank Volume	2.0 cbm
Water Tank Material	Stainless steel 304
Auxiliary Engine	JiangLing, 57 kW
Brush Quantity	4 pcs
Brush Working Area	2.7 to 3.2 m
Vacuum System	Rear inlet with Italy imported high-pressure pump
Cab Capacity	3 people, air conditioning
Brakes	Dual circuit compressed air, spring energy parking on rear
Steering	Power assisted hydraulic
Lead Time	30 days
Shipping Port	China main port
Payment	T/T

Build Materials

Materials

Stainless steel 304 for both garbage and water tanks, resistant to corrosion and abrasion
Stainless steel 304 for tank internal components and piping
Aluminium alloy for brush housing and frame components
Reinforced diaphragm clutch and heavy-duty gearbox for long-term reliability
High-strength steel frame for the chassis and body substructure

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and wheelbase is verified against the body drawing
Stainless steel tank shells are cut, formed, and welded with internal baffles to reduce surge
Tank is pressure tested and inspected for leaks before assembly
Brush system and vacuum inlet are mounted on the front frame with alignment checks
Auxiliary engine and Italy imported high-pressure pump are installed and connected
Water spray bar is fitted and tested for even distribution
Body is assembled onto the chassis, including cab, lockers, and control panels
Final inspection includes vacuum flow, brush operation, and water spray test on the factory apron
Photos and videos of the finished truck are sent to the buyer before balance payment

Testing

Quality Control

Every truck undergoes 100 percent testing before delivery
Tank pressure and leak tests are performed in-house using standard procedures
Vacuum system performance is verified at full load and maximum suction depth
Brush rotation and water spray coverage are checked under simulated operating conditions
Photos and videos of the completed truck are sent to the buyer before balance payment
All components meet GB and ISO standards for vehicle safety and environmental protection

Build to Order

Customization Options

Tank volume can be adjusted between 2 and 16 cubic meters based on customer needs
Tank material can be changed from stainless steel 304 to carbon steel on request
Left or right hand drive chassis to match local traffic regulations
Tank colour and logo applied free of charge
Brush type and number can be modified for different road types
Refuse container lifters available in various configurations for different waste handling systems

Comparison

How It Compares With the Alternatives

4x2 sweeper with 4m3 tank	Lower capacity means more frequent emptying but better turning radius in narrow streets
Sweeper with only a water spray system	No vacuum means no debris collection, only dust suppression, not suitable for dry sweeping
Used sweeper with a standard steel tank	Higher risk of rust and tank failure, shorter lifespan, higher long-term maintenance cost

Operating Notes

Use Guide

Confirm left or right hand drive at order stage as it cannot be changed after production
Fill the water tank only through the designated inlet and keep the air vent clear
Start the auxiliary engine before engaging the vacuum system to avoid strain on the main engine
Use the water spray bar during dry sweeping to reduce airborne dust and improve air quality
Inspect the brushes and vacuum inlet after each shift for debris blockage
Drain the water tank and clean the spray bar after use in freezing conditions to prevent freezing damage

Buyer Questions About This Truck

What is the lead time for this street sweeper?

Generally 30 days after the advance payment is received. The exact date depends on chassis availability and equipment configuration.

Can the tank be carbon steel instead of stainless steel?

Yes. The standard tank is stainless steel 304. Carbon steel is available on request. Let us know your expected service life and water quality.

What are your payment terms?

T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Do you supply right hand drive?

Yes. The chassis is ordered in left or right hand drive to match your traffic rules. Confirm this at order stage as it cannot be changed later.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year and core parts on some products for two years. Our overseas engineers make regular return visits and provide technical training and manuals before delivery.

Can the brush system be changed?

Yes. Send us your preferred brush type and working width, and we will adjust the system to match your road conditions.
