Sinotruk HOWO 7m3 truck mounted sweeper in metallic grey with front-mounted brooms and side-mounted dustbin

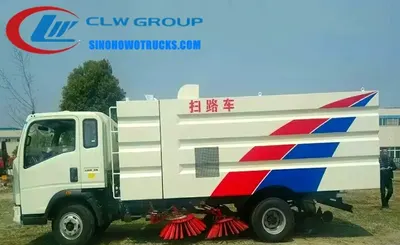

Side view of the HOWO road sweeper showing stainless steel dustbin and water tank

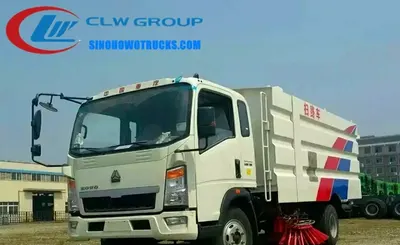

Rear view of the HOWO sweeper with ISUZU auxiliary engine and high pressure air blower

Sinotruk Howo 7m3 truck mounted sweeper Malaysia

Name: Sinotruk Howo 7m3 truck mounted sweeper Malaysia
Brand: Sinotruk HOWO

The Sinotruk HOWO 7m3 truck mounted sweeper is a 4x2 road cleaning vehicle built on a HOWO chassis with a 183 HP diesel engine and 6 speed manual gearbox. It is designed for municipal sanitation departments and public works teams that need to clean city streets, narrow lanes, and roadside areas with dry sweeping and water spray dust suppression. The unit features a 5000 litre stainless steel dustbin and a 2000 litre carbon steel water tank, with a 42,000 m³/h sweeping capacity and 2800 mm max sweeping width. It operates efficiently in urban environments with tight turning radii and uneven surfaces.

Request A Quote Email Specification

Key Benefits

5000 litre stainless steel dustbin resists corrosion and prevents secondary pollution from waste residue
2000 litre carbon steel water tank supports dust suppression during sweeping operations
42,000 m³/h sweeping capacity handles high volume debris on busy city roads
4 brooms (2 sets on each side) provide wide 2800 mm sweeping width for efficient coverage
ISUZU auxiliary engine powers the blower and pump without relying on the main engine
4x2 chassis with 3800 mm wheelbase allows tight turning in narrow urban streets
183 HP Sinotruk engine delivers reliable performance with no overhaul required within 500,000 km
Metallic paint finish resists weathering and maintains appearance in harsh outdoor conditions

Buyer Profile

Who It Is for

Municipal sanitation departments responsible for daily street cleaning in urban areas
Public works agencies managing road networks in cities and towns
Airport and port authorities requiring reliable cleaning for safety and hygiene
Industrial park operators maintaining access roads and compound entrances
Contractors hired to provide temporary or seasonal street cleaning services
Private fleet operators managing municipal contracts under government tender

Operating Problems

Problems It Solves

High dust levels in dry conditions that reduce visibility and increase respiratory risks
Small debris like sand, gravel and leaves that clog drains and cause slippery surfaces
Lack of water access on remote or narrow roads where hydrants are unavailable
Inefficient cleaning tools that require multiple passes and manual labour
Corrosion of dustbins from salt and moisture in coastal or winter climates
High maintenance costs from poor component durability and non-original parts

Where It Works

Application Scenarios

Municipal road cleaning teams operating in city centres with narrow alleys and high pedestrian traffic
Airport apron and terminal access road maintenance with frequent debris from aircraft operations
Industrial park and warehouse compound cleaning where dust and small particles accumulate
Port and dockside roadways exposed to sand, gravel, and salt spray from marine environments
Residential districts with uneven pavement and frequent leaf fall during seasonal changes
Public works departments managing multiple routes with limited access to water hydrants

Engineering

Technical Features

42,000 m³/h sweeping capacity with 4 brooms (2 sets on each side) for wide coverage
ISUZU auxiliary engine (77 HP) powers the air blower and vacuum system independently
High quality air blower ensures strong suction and consistent debris transport
2800 mm maximum sweeping width covers two lanes in a single pass
Sweeping speed range of 3 to 15 km/h allows operation at safe and effective rates
Carbon steel water tank holds 2000 litres for dust suppression and cleaning
Stainless steel dustbin holds 5000 litres with sealed construction to prevent leakage
6 speed manual gearbox with 4x2 drive configuration for urban manoeuvrability
Metallic paint finish resists corrosion and UV degradation in outdoor use
Cab includes 2 seats, air conditioner, warning lights, and music alarm as standard

Specifications

Technical Data


Chassis	Sinotruk HOWO 4x2 left hand drive or right hand drive
Engine	183 HP (132 kW), diesel, Sinotruk
Transmission	6 speed manual, 1 reverse
Wheelbase	3800 mm (optional 3300/4200/5000 mm)
Overall Size	7610 x 2250 x 2750 mm
GVW	8,275 kg
Curb Weight	7,000 kg
Dustbin Capacity	5000 L
Dustbin Material	Stainless steel
Water Tank Material	Carbon steel
Sweeping Capacity	42,000 m³/h
Sweeping Speed	3-15 km/h
Max Sweeping Width	2800 mm
Brooms	4 pcs (2 sets on each side)
Auxiliary Engine	77 HP (57 kW), ISUZU
Air Blower	High quality, imported
Cab Seats	2
Air Conditioner	Yes
Paint	Metallic paint
Fuel Type	Diesel
Emission Standard	Euro3 / Euro5
Tyre Specification	7.50-16
Tyre No.	6 tyres
Max Speed	95 km/h
Lead Time	30 days
Shipping Port	China main port
Payment	T/T

Build Materials

Materials

Stainless steel dustbin resists rust and chemical degradation from road salts and debris
Carbon steel water tank with internal coating to prevent corrosion
Aluminium alloy components used in blower and piping systems for light weight and durability
High strength steel frame for the superstructure and mounting brackets
Rubber sealing strips on dustbin doors to prevent dust leakage during transport

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and wheelbase is confirmed against the body drawing
Stainless steel dustbin is cut, formed, and welded with internal reinforcement ribs
Carbon steel water tank is fabricated and welded with internal baffles to reduce surge
Brooms and mounting brackets are assembled on both sides of the body frame
ISUZU auxiliary engine and high pressure air blower are installed and connected to the driveline
Piping and vacuum lines are routed from the blower to the dustbin and broom area
Body is shot blasted, primed, and finished in metallic paint with customer logo applied
All systems are tested on the factory apron: broom operation, blower suction, water spray, and vacuum flow

Testing

Quality Control

Every truck is 100 percent tested before delivery
Dustbin and water tank are pressure tested for leaks and structural integrity
Broom rotation and vacuum system performance are verified under load
Photos and videos of the finished truck are sent to the buyer before balance payment
All components meet GB standards for road cleaning vehicles and safety systems

Build to Order

Customization Options

Dustbin and water tank capacities can be adjusted to match local waste and water supply conditions
Left or right hand drive chassis to match local traffic regulations
Tank colour and logo applied free of charge to match municipal branding
Optional backup alarm and camera system can be added at order stage
Refuse container lifters available in various types to suit different waste collection methods
Manufacture to customer supplied technical drawings and specifications

Comparison

How It Compares With the Alternatives

6x4 sweeper with 8m3 dustbin	Higher capacity but less manoeuvrable in narrow city streets and higher fuel consumption
Used sweeper with non-original parts	Lower upfront cost but higher long-term maintenance and failure risk
Sweeper with no auxiliary engine	Cannot run vacuum system without main engine running, increasing fuel use and noise

Operating Notes

Use Guide

Confirm left or right hand drive chassis at order stage to match local road rules
Fill water tank only through the designated inlet and keep the air breather valve clear
Start auxiliary engine before engaging the blower to avoid strain on the system
Operate at 3 to 15 km/h to maintain sweeping efficiency and avoid damage to brooms
Clean brooms and blower after each shift to prevent clogging from wet debris
Drain water tank and flush lines after use in freezing conditions to prevent ice damage

Buyer Questions About This Truck

How long is the lead time for this sweeper?

Generally 30 days after the advance payment is received. The exact date depends on chassis availability and configuration.

Can the dustbin be carbon steel instead of stainless steel?

No. The standard dustbin is stainless steel. Carbon steel is not available as it would corrode quickly in outdoor use.

What are your payment terms?

T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Do you supply right hand drive?

Yes. The chassis is ordered in left or right hand drive to match your traffic regulations. Confirm this at order stage.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year and core parts for two years. Free parts are supplied for 12 months, and original parts are available. DHL delivers parts worldwide in 7 days.

Can the optional camera or backup alarm be added?

Yes. Both the backup alarm and camera system are available as optional equipment. Specify at order stage.
