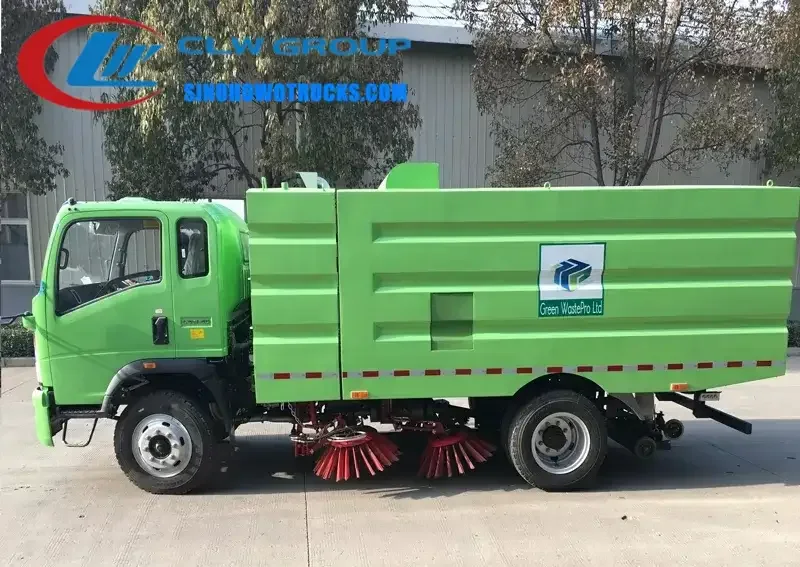

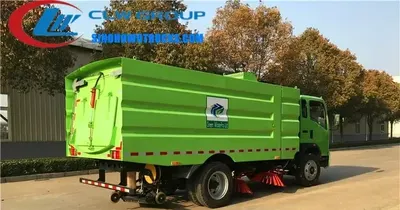

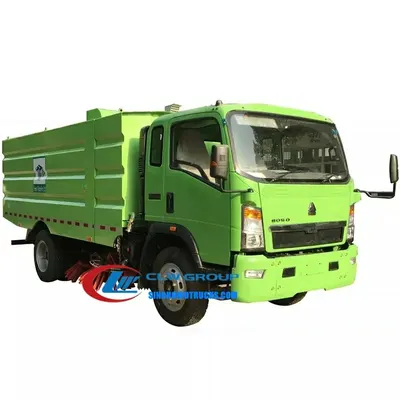

The Sinotruk HOWO 5 ton road sweeper truck is a 4x2 chassis vehicle designed for municipal and industrial cleaning operations on city streets, parking lots, and narrow lanes. It features a 3500 litre stainless steel dustbin and an 800 litre water tank for dry sweeping and dust suppression. The unit is built for continuous operation in urban environments where high cleaning efficiency and low secondary pollution are required. It is supplied with a CHAOCHAI CY4102BZQ 120 HP diesel engine, a 6-speed manual gearbox, and an ISUZU auxiliary engine to power the vacuum system. The extended cab includes air conditioning, a sleeper berth, and a hydraulically tiltable front section for operator comfort.
| Chassis | Sinotruk HOWO 4x2 LHD/RHD |
|---|---|
| Engine | CHAOCHAI CY4102BZQ, 120 HP, 3.856L, 4-stroke, turbocharged, inter-cooled |
| Gearbox | WLY6T100, 6 forward, 1 reverse manual |
| Overall Size | 6200 x 2240 x 2600 mm |
| Wheelbase | 3360 mm |
| Tare Weight | 4715 kg |
| Front Axle Capacity | 3000 kg |
| Rear Axle Capacity | 5000 kg |
| Dustbin Capacity | 3500 L, stainless steel |
| Water Tank Capacity | 800 L |
| Vacuum Pump | Italy imported high-pressure pump |
| Auxiliary Engine | ISUZU, powers vacuum system |
| Cab Type | Extended, 1880 mm, with sleeper, air conditioning, FM radio, USB |
| Cab Tilt | Hydraulically tiltable 70° forward |
| Tires | 7.00R16 radial, 7 pieces including spare |
| Emission Standard | Euro II |
| Cleaning Efficiency | >90% |
| Lead Time | 30 days |
| Shipping Port | China main port |
| Payment | T/T |
| 3 ton sweeper with a 2000 L dustbin | Lower capacity and less efficient cleaning but easier to maneuver in tight urban areas |
|---|---|
| Water truck with a broom attachment | Less effective on fine dust and debris, no vacuum system, higher secondary pollution |
| Used sweeper from a European supplier | Higher initial cost and longer lead time, spare parts may not be available locally |
Generally 30 days after the advance payment is received. The exact date depends on chassis availability and configuration.
The standard tank is stainless steel. Carbon steel is not offered as an option.
T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.
Yes. The chassis is ordered in left or right hand drive to match your traffic regulations. Confirm this at order stage.
By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.
The main parts—engine, gearbox, and axles—are guaranteed for one year or 60,000 km, whichever comes first. Spare parts are supplied at factory cost, and technical support is available throughout the truck's life cycle.
Yes. The Italy imported high-pressure pump is standard. Additional upgrades can be discussed based on your cleaning requirements.
Send us your destination port and we will quote price, lead time and freight.
