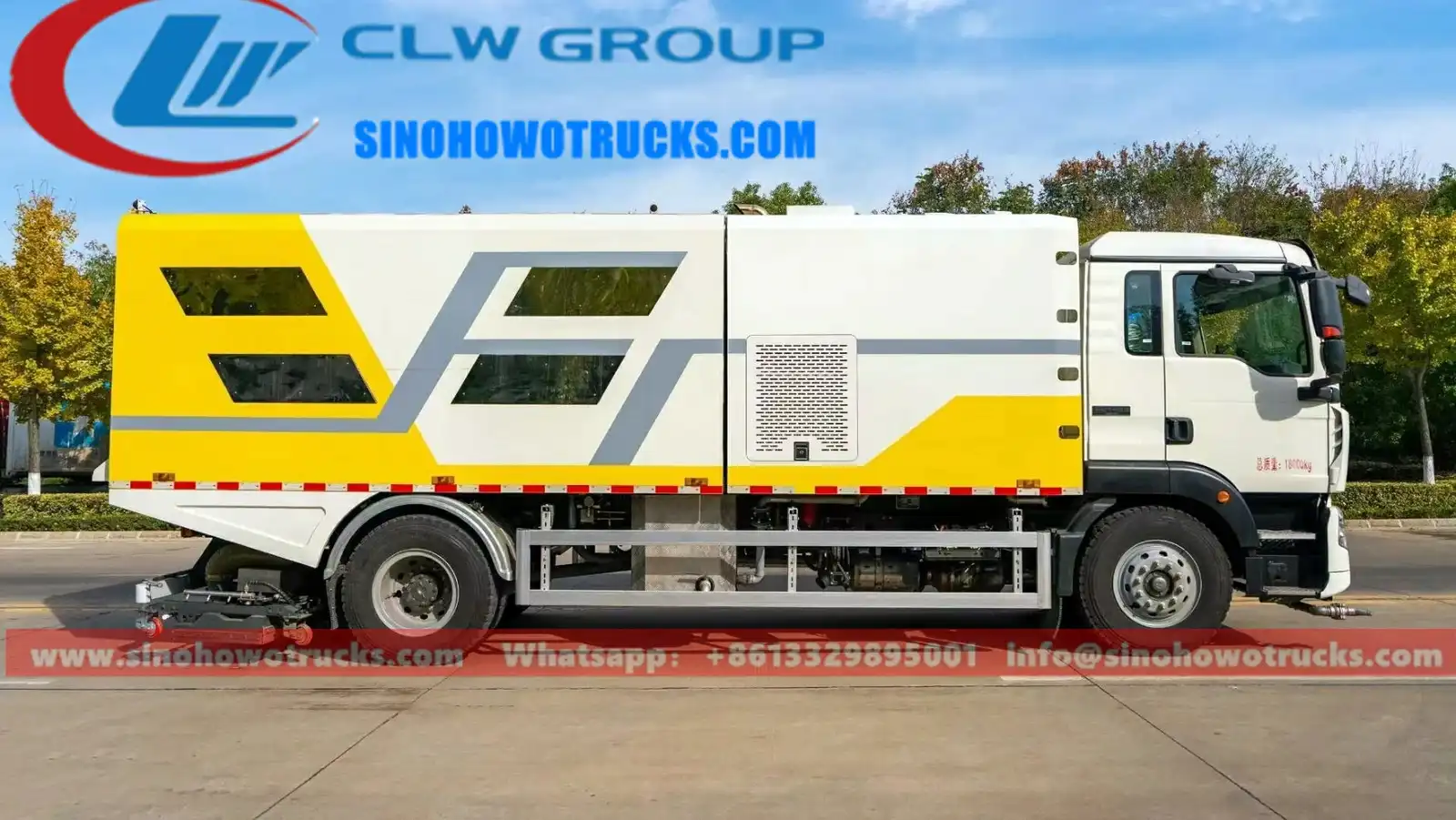

Sinotruk HOWO 10 ton deep cleaning road vacuum cleaner truck in urban street cleaning operation

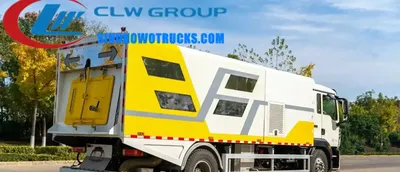

Side view of the HOWO road sweeper showing stainless steel garbage and water tanks

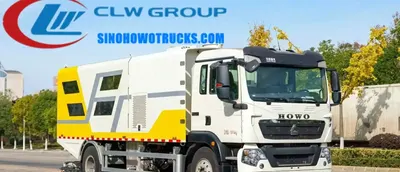

Rear view of the HOWO sweeper with high-pressure wash nozzles and discharge system

Sinotruk Howo 10 ton deep cleaning road vacuum cleaner truck UAE

Name: Sinotruk Howo 10 ton deep cleaning road vacuum cleaner truck UAE
Brand: Sinotruk HOWO

The Sinotruk HOWO 10 ton deep cleaning road vacuum cleaner truck is a 4x2 chassis vehicle designed for municipal and industrial road maintenance operations requiring high-efficiency dry and wet cleaning. It is built for city streets, narrow lanes, and high-traffic zones where dust, debris, and moisture control are critical. The unit combines a 7 CBM garbage tank and 4 CBM water tank with a high-pressure washing system and a 125 kW auxiliary engine to deliver continuous cleaning without secondary pollution. It is specified by urban authorities and contractors needing reliable, long-life operation in demanding environments.

Request A Quote Email Specification

Key Benefits

4x2 HOWO chassis with no overhaul required within 500,000 km for long-term operational uptime
125 kW Cummins B170 auxiliary engine powers the sweeping and washing system independently
7 CBM stainless steel garbage tank and 4 CBM water tank for efficient waste and water handling
Italy imported high-pressure pump ensures strong, consistent water flow for effective cleaning
Washing width of 22 metres and sweeping width of 3.2 metres cover large road areas in a single pass
Dual circuit air brake with spring brake and exhaust brake improves safety on uneven terrain
One and a half row all-metal enclosed cab with air conditioning and ABS for operator comfort and safety

Buyer Profile

Who It Is for

Municipal sanitation departments responsible for urban road cleaning and dust control
Airport and port authorities managing large paved surfaces and safety compliance
Industrial estate operators maintaining access roads and site cleanliness
Contractors bidding on public works tenders for road maintenance and cleaning
Private fleet operators managing cleaning services for commercial or residential zones

Operating Problems

Problems It Solves

Frequent breakdowns from low-quality auxiliary engines or weak pumps in existing sweepers
Inadequate cleaning width and speed leading to long operational cycles and high labour costs
Secondary pollution from poor dust containment and unsealed waste tanks
Short maintenance intervals due to chassis or engine wear in high-mileage operations
Inability to clean narrow lanes or tight turns with large or rigid sweepers
Lack of integrated water spray systems for dust suppression during dry weather

Where It Works

Application Scenarios

Municipal road maintenance teams cleaning city streets and highways after rain or dust storms
Industrial parks and port terminals managing debris from loading and unloading operations
Airport aprons and taxiways requiring frequent cleaning to prevent foreign object damage
Narrow alleyways and residential zones where large sweepers cannot access
Construction site perimeters and temporary access roads with loose soil and gravel
High-traffic commercial districts needing daily cleaning to maintain public hygiene

Engineering

Technical Features

4x2 HOWO chassis with 4700 mm wheelbase and 1950/2035 mm front/rear wheelbase
MC07.25-60 (Man) inline six-cylinder turbocharged EFI diesel engine, 255.68 PS, 188 kW
8-speed mechanical transmission with diaphragm clutch and pneumatic assist
Cummins B170 33 auxiliary engine, 125 kW, powers sweep and wash systems independently
High-pressure pump imported from Italy for durable and efficient water delivery
Washing speed range of 3 to 10 km/h with a minimum 22 m washing width and 3.2 m sweeping width
Stainless steel garbage tank (7 CBM) and water tank (4 CBM) with sealed access and drainage
One and a half row all-metal enclosed cab with ABS and air conditioning
Dual circuit air brake with spring brake and exhaust brake for safe operation
10.00R20 tires with 200L fuel tank for extended operational range

Specifications

Technical Data


Chassis	Sinotruk HOWO 4x2 left hand drive
Engine	MC07.25-60 (Man), 255.68 PS, 188 kW
Gearbox	8-speed mechanical transmission
Auxiliary Engine	Cummins B170 33, 125 kW
Overall Size	8870 x 2500 x 3400 mm
Total Mass	18000 kg
Curb Weight	12710 kg
Rated Load Mass	5290 kg
Garbage Tank Capacity	7 CBM
Water Tank Capacity	4 CBM
Washing Width	≥22 m
Sweeping Width	≥3200 mm
Washing Speed	3–10 km/h
Maximum Speed	101 km/h
Fuel Type	Diesel
Emission Standard	Euro 6
Approach/Departure Angle	19/10 degrees
Front/Rear Suspension	1430/2250 mm
Cab Type	One and a half rows, all metal enclosed
Tire Size	10.00R20
Fuel Tank Capacity	200 L
Lead Time	30 days
Shipping Port	China main port
Payment	T/T

Build Materials

Materials

Stainless steel garbage tank and water tank for corrosion resistance and long life
Aluminium alloy and steel components on the body for durability and light weight
All-metal enclosed cab with sealed windows and doors for operator protection
Italy imported high-pressure pump housing and internal components for high wear resistance
Pneumatic assist clutch and dual circuit air brake system for reliable stopping

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and wheelbase is verified against the body drawing
Stainless steel tank shells are cut, formed, and welded with internal baffles to reduce surge
Tank is pressure tested and leak tested before assembly
Auxiliary engine and high-pressure pump are mounted and aligned with the driveline
Sweeping brushes, water spray nozzles, and discharge systems are installed
Body panels, lockers, and access doors are assembled onto the subframe
Cab is fitted and connected to the chassis with full electrical and brake integration
Vehicle is shot blasted, primed, and painted in the customer’s specified colour
All systems are tested on the factory apron including sweep, wash, and vacuum functions

Testing

Quality Control

Every truck undergoes 100 percent testing before delivery
Photos and videos of the finished truck are sent to the buyer before balance payment
Pressure and leak tests performed on all tanks and piping systems
Auxiliary engine and pump performance verified under load conditions
Compliance with GB7965 for road cleaning vehicles and Euro 6 emission standards
In-house testing for non-destructive and physical properties of welded joints

Build to Order

Customization Options

Garbage and water tank capacities adjusted to customer requirements
Tank material can be changed from stainless steel to carbon steel on request
Left or right hand drive chassis to match local traffic regulations
Tank colour and logo applied free of charge
Sweeping and washing system layout modified to match site access constraints
Manufacture to customer supplied technical drawings and specifications

Comparison

How It Compares With the Alternatives

6x4 road sweeper with 5 CBM tank	Higher payload capacity but less maneuverable in narrow urban streets
Used sweeper with domestic auxiliary engine	Lower reliability and higher maintenance frequency due to poor component quality
Water-only cleaning truck with no vacuum system	Cannot collect dry debris or dust, requiring separate sweep and wash operations

Operating Notes

Use Guide

Confirm left or right hand drive chassis at order stage to match local traffic rules
Fill the water tank only through the designated inlet and keep the air vent clear
Start the auxiliary engine before engaging the sweep or wash system to avoid strain
Operate at speeds between 3 and 10 km/h for optimal cleaning performance
Drain both tanks after use in freezing conditions to prevent damage
Free operator training is available at the factory before shipment

Buyer Questions About This Truck

What is the lead time for this road sweeper?

Generally 30 days after the advance payment is received. The exact date depends on chassis availability and equipment list.

Can the tank material be changed from stainless steel?

Yes. The standard is stainless steel. Carbon steel is available on request. Specify your water quality and storage duration.

What are your payment terms?

T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Do you supply right hand drive?

Yes. The chassis is ordered in left or right hand drive to match your traffic regulations. Confirm this at order stage.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year and core parts for two years. Our overseas engineers make regular return visits and provide technical training and manuals before delivery.

Can the sweeping and washing system be modified?

Yes. Send us your site layout and cleaning requirements and we will adjust the system configuration accordingly.
