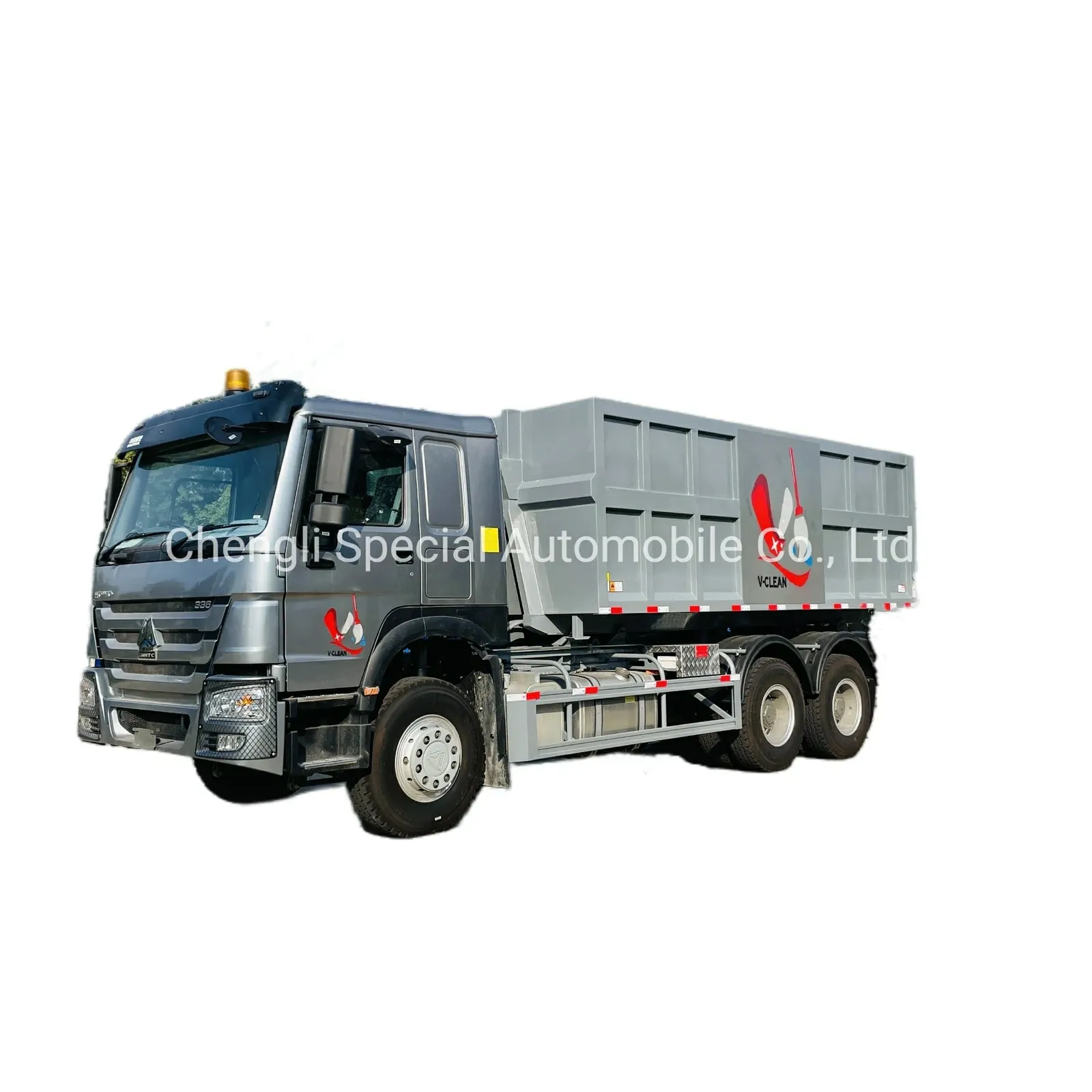

The Sinotruk HOWO 20cbm dumpster garbage truck is a 6x4 hook lift vehicle built on a ZZ1257M4341W chassis, designed for municipal solid waste collection in residential communities, hospitals, and waste transfer stations. It handles 20 cubic meter steel containers with a 1000 kg to 22 tonne payload capacity, using a hydraulic lifting system that discharges waste in 40 to 50 seconds. The truck operates reliably in urban and rural environments with a 290 HP diesel engine, 9-speed manual gearbox, and a 30 MPa hydraulic system. It is exported to Benin and other African markets for public works and sanitation departments.
| Chassis Model | ZZ1257M4341W |
|---|---|
| Chassis Brand | Sinotruk |
| Truck Name | Hook lift garbage truck |
| Gross Vehicle Weight | 25000 kg |
| Overall Dimensions | 9800 x 3048 x 3718 mm |
| Wheelbase | 4605+1300 mm |
| Front/Rear Wheel Track | 2022/1830 mm |
| Front/Rear Suspension | 1500/2600 mm |
| Approach/Departure Angle | 16/15° |
| Maximum Speed | 90 km/h |
| Cab Configuration | HW76, with air conditioner |
| Cab Color | Gray, other colors optional |
| Engine Model | WD615.87 |
| Engine Emission | Euro 2 |
| Engine Type | 6 cylinders, inline, 4-stroke, water-cooled, turbocharged inter-cooled, diesel |
| Rated Power | 290 HP |
| Displacement | 9726 ml |
| Max Torque | 1160 N.m |
| Tire Size | 295/80R22.5 |
| Tire Number | 10+1 nos |
| Front Axle Load | HF7 |
| Rear Axle Load | ST16 |
| Rated Voltage | 24V, DC |
| Transmission | HW13710, 9 forward gears, 1 reverse |
| Steering Wheel | Left-hand drive |
| Container Capacity | 20 m³ |
| Container Material | Carbon steel Q345 |
| Container Body Shape | Square |
| Hook Height | 1580 mm |
| Rail Width | 1060 mm |
| Sidewall Thickness | 3 mm |
| Bottom Thickness | 4 mm |
| Discharge Time | 40–50 seconds |
| Loading Time | ≤60 seconds |
| Discharge System | Lifting/dump type |
| Dump Angle | 50 degrees |
| Hydraulic System Pressure | 30 MPa |
| Lead Time | 30 days |
| Shipping Port | China main port |
| Payment | T/T |
| 4x2 hook lift truck with 10 m³ container | Lower payload and capacity but better turning radius in narrow urban streets |
|---|---|
| Side loader garbage truck | Better for narrow alleys but less flexible with multiple container types |
| Rear loader with fixed hopper | Faster loading but cannot handle multiple container sizes or remote drop points |
Generally 30 days after the advance payment is received. The exact date depends on chassis availability and customization options.
Yes. The standard container is Q345 carbon steel. Stainless steel is available upon request. Please specify the waste type and storage duration for material confirmation.
T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.
No. The chassis is left-hand drive only. Confirm your local traffic regulations at order stage as this cannot be changed later.
By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.
The whole vehicle is guaranteed for one year and core parts on some products for two years. Our overseas engineers make regular return visits and provide technical training and manuals before delivery.
Yes. Container capacity can be adjusted from 1 to 22 cubic meters. Provide your waste volume and frequency and we will recommend the best fit.
Send us your destination port and we will quote price, lead time and freight.
