Sinotruk HOWO 16cbm roll on roll off container truck in standard grey with hydraulic hook lift system

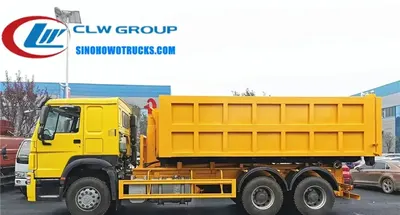

Side view of the HOWO roll off truck showing the 16m3 steel body and container lifting mechanism

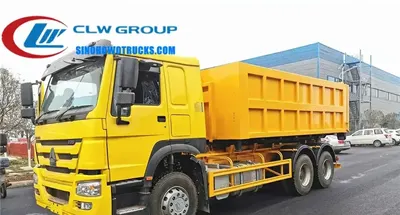

Rear view of the HOWO 16cbm container truck with the hook lift arm raised and container in position

Sinotruk HOWO 16cbm roll on roll off container truck South Africa

Name: Sinotruk HOWO 16cbm roll on roll off container truck South Africa
Brand: Sinotruk HOWO

The Sinotruk HOWO 16cbm roll on roll off container truck is a 6x4 heavy duty waste collection vehicle built on a 336HP diesel chassis for municipal and industrial waste transport. It is designed for repeated loading and unloading of standardized refuse containers at residential areas, hospitals, and waste transfer stations. The hook lift system operates in under 15 seconds with electronic and manual control options, and the 16 cubic meter steel body carries up to 18,000 kg of waste. It is exported to South Africa and other markets with local traffic regulations in mind.

Request A Quote Email Specification

Key Benefits

6x4 HOWO chassis with 336HP engine and 8-speed manual gearbox ensures reliable performance on rough urban and rural roads
16cbm steel body with 4mm side and 5mm bottom plate resists deformation under heavy waste loads
Hook lift system completes loading and unloading in under 15 seconds with hydraulic locking and safety valves
Dual hydraulic lock valves and loading balance valve prevent accidental container drop during operation
Rear support device stabilizes the truck during container lifting and lowering
Electronic control in cab allows easy operation and maintenance with manual override available
10.00-20 tires with spare tire provide long service life and reduced downtime in remote areas

Buyer Profile

Who It Is for

Municipal sanitation departments managing city-wide waste collection
Hospital and healthcare facility logistics teams handling regulated medical waste
Waste transfer and recycling station operators needing high throughput
Industrial park managers responsible for on-site waste consolidation
Contractors bidding on public sector waste transport tenders
Private waste management companies expanding fleets in emerging markets

Operating Problems

Problems It Solves

Inconsistent container handling due to unreliable or manual hook systems
Long cycle times between container loading and unloading affecting route efficiency
Container drop risks during lifting caused by weak or single-point locking mechanisms
Lack of safety controls leading to accidental release of full containers
Poor chassis performance on unpaved or uneven terrain reducing operational uptime
High maintenance costs from frequent engine or transmission failures

Where It Works

Application Scenarios

Municipal waste collection in urban neighborhoods with limited access to tipping facilities
Hospital and medical facility waste transport requiring secure container handling
Waste transfer stations receiving and redistributing containers from multiple collection routes
Industrial parks and construction sites generating large volumes of mixed solid waste
Remote communities with unpaved access roads and no permanent waste processing infrastructure
Contractors operating turnkey waste transport services under government or private contracts

Engineering

Technical Features

6x4 Sinotruk HOWO chassis with left-hand drive for South African and other right-hand traffic markets
B210 33 engine, 210HP, 5.9L straight-6 cylinder, water-cooled, inter-cooled diesel
8-speed manual transmission with 8 forward and 1 reverse gear
Power steering and air brake system for safe operation at high payloads
Hook lift system with cast iron or forged steel rollers and hydraulic locking
Container loading and unloading time under 15 seconds with electronic and manual control
Dump time under 10 seconds with dual hydraulic lock and safety control valves
Rear support device for stability during container handling
Cab with Dongfeng standard configuration and optional electrical control panel
Box volume 16m3, side 4mm, bottom 5mm steel construction for durability

Specifications

Technical Data


Chassis	Sinotruk HOWO 6x4 left hand drive
Engine	B210 33, 210 HP, 5.9L straight-6, water-cooled, inter-cooled
Transmission	8 speeds, 8 forward, 1 reverse, manual
Payload	18000 kg
Curb Weight	8795 kg
Wheelbase	4350 + 1300 mm
Overall Dimension	8250 x 2490 x 3050 mm
Box Volume	16 m³
Box Material	Side 4mm, bottom 5mm steel
Max Speed	90 km/h
Axle	Front 5 tons, Rear 10 tons
Tire Specification	10.00-20 standard, 10 tires + 1 spare
Hook Lift Time	Less than 15 seconds
Unboxing Time	Less than 15 seconds
Dump Time	Less than 10 seconds
Control Method	Electronic control + manual
Operating Position	Cab + car side
Lead Time	30 days
Shipping Port	China main port
Payment	T/T

Build Materials

Materials

Cast iron or forged steel rollers for hook lift system
Dongfeng standard cab with steel frame and sealed panels
Hydraulic hoses and valves with high pressure resistance for safety systems
Electrical wiring and control panel with dust and moisture protection

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and wheelbase is verified against the body drawing
Box shell is cut from steel plates and welded with internal stiffeners for rigidity
Hook lift system components are assembled and aligned with the subframe
Hydraulic lines and safety valves are installed and pressure tested
Electrical control panel is mounted and connected to the cab and actuators
Body is shot blasted, primed, and finished in standard grey or customer specified colour
All systems are tested: hook lift, dump, control, and safety valves before shipment
Photos and videos of the finished truck are sent to the buyer before balance payment

Testing

Quality Control

Vehicle built to GB7965 performance requirements for waste collection vehicles
All hydraulic and safety systems tested under full load conditions
100 percent test before delivery with documented results
Photos and videos of the finished truck sent before balance payment
Hydraulic components tested for leakage and pressure retention
Welds inspected using non-destructive testing methods for structural integrity

Build to Order

Customization Options

Container capacity from 1 to 22 cubic meters available on request
Box material can be changed from carbon steel to stainless steel
Left or right hand drive chassis to match local traffic regulations
Tank colour and logo applied free of charge
Optional electrical control system in cab for easier operation
Custom hook lift configuration based on container type and weight

Comparison

How It Compares With the Alternatives

4x2 roll off truck with 10cbm box	Lower payload and smaller capacity but better turning radius in tight urban areas
Self-loading garbage truck with front loader	Higher initial cost and more complex maintenance, but better for mixed waste with high density
Standard dump truck with container lift	Less stable during lifting and no safety valves, higher risk of container drop

Operating Notes

Use Guide

Confirm left or right hand drive chassis at order stage to match local traffic rules
Do not exceed 18,000 kg payload to avoid chassis and axle damage
Use only the designated manhole or pump inlet for filling to avoid overpressure
Engage hydraulic locks before moving the truck with a container on the hook
Inspect hydraulic hoses and valves weekly for leaks or wear
Drain any water from the system before freezing temperatures to prevent damage

Buyer Questions About This Truck

What is the lead time for this roll off truck?

Generally 30 days after the advance payment is received. The exact date depends on chassis availability and configuration.

What are your payment terms?

T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Do you supply right hand drive?

Yes. The chassis is ordered in left or right hand drive to match your traffic regulations. Confirm this at order stage as it cannot be changed later.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year and core parts for two years. Our overseas engineers make regular return visits and provide technical training and manuals before delivery.

Can the hook lift system be customized for different container types?

Yes. Send us the container dimensions and weight and we will adjust the hook lift configuration accordingly.
