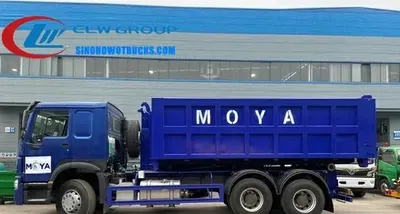

Side view of the HOWO 18cbm hook lift truck with a 20 cubic meter garbage container being lifted

Sinotruk HOWO 18cbm Rolling Arm dumpster hook truck Cameroon

Name: Sinotruk HOWO 18cbm Rolling Arm dumpster hook truck Cameroon
Brand: Sinotruk HOWO

The Sinotruk HOWO 18cbm Rolling Arm dumpster hook truck is a 6x4 heavy-duty waste collection vehicle built on a robust HOWO chassis, designed for municipal solid waste transport in urban and semi-urban environments. It handles 18 to 20 cubic meter garbage containers with a 20-ton loading capacity, using a hydraulic hook lift system that operates in under 15 seconds. The truck is specified by city sanitation departments, waste contractors, and public works agencies that require reliable, high-capacity collection on irregular routes and in areas with limited access to fixed waste transfer stations.

Request A Quote Email Specification

Key Benefits

6x4 HOWO chassis with 336 HP WD615.69 engine ensures strong performance on unpaved and uneven terrain
Hydraulic hook lift system completes container loading and unloading in less than 15 seconds
Double hydraulic cylinder and reinforced swept-body system provide stable lifting under full load
Three-way hydraulic control valve with electronic and manual override ensures safe operation
Reinforced swing arm with cast iron or forged steel rollers reduces wear during repeated cycles
Rear outrigger stabilizes the truck during container loading and unloading
10-speed manual gearbox (HW13710) supports consistent performance under heavy duty conditions
Carbon steel body (5mm thickness) with Q235B material resists deformation during repeated dumping

Buyer Profile

Who It Is for

Municipal sanitation and public works departments managing city-wide waste collection
Waste contractors bidding on municipal or private sector waste transport contracts
Hospital and institutional facilities requiring daily waste removal with minimal downtime
Public works agencies upgrading fleets for higher capacity and reliability
Contractors supplying waste collection services to industrial parks and commercial zones
Government procurement offices equipping new waste management fleets

Operating Problems

Problems It Solves

Inconsistent container handling due to unreliable or slow hook lift systems
Frequent breakdowns from weak chassis or underpowered engines in high-volume operations
Lack of stability during container loading on uneven or soft ground
Long cycle times between collection points reducing daily route efficiency
Inadequate payload capacity requiring more trips to clear the same volume
High maintenance costs from poor material selection or weak structural design

Where It Works

Application Scenarios

Municipal waste collection in residential communities with narrow streets and limited turning radius
Hospitals and large institutions generating high volumes of solid waste daily
Waste transfer stations receiving containers from multiple collection points
Remote or rural areas with poor road infrastructure and no centralized waste processing
Contractor fleets operating under public tenders for city-wide sanitation services
Emergency waste removal after natural disasters or public health incidents

Engineering

Technical Features

6x4 Sinotruk HOWO chassis with left or right hand drive configuration
WD615.69 diesel engine, 336 HP, EURO II emission standard
HW13710 10 forward and 2 reverse manual gearbox
ZF8118 hydraulic power steering with assistance for improved handling
Front axle HF7, 7-ton capacity; Rear axle HC16, 16-ton capacity
295/80R22.5 tires with 10+1 spare for long-distance operation
Hydraulic hook lift system with double cylinder and chain drive
Container lifting capacity up to 20 tons, with dump angle ≥45°
Three-way hydraulic control valve with electronic and manual control options
Rear hydraulic outrigger for stability during loading and unloading
5mm thick Q235B carbon steel body with welded structure for durability
Container volume: 18 or 20 cubic meters, ground type, standard configuration includes one bin
Loading and unloading cycle time under 15 seconds
Hydraulic system pressure ≤16 MPa, with safety devices including balance valve and double lock valve

Specifications

Technical Data


Chassis	Sinotruk HOWO 6x4 left or right hand drive
Engine	WD615.69, 336 HP, EURO II
Gearbox	HW13710, 10 forward and 2 reverse
Overall Size	8865 x 2500 x 3290 mm
Cargo Body Capacity	18 or 20 CBM
Loading Weight	20 tons
Front Axle	HF7, 7 tons capacity
Rear Axle	HC16, 16 tons capacity
Tires	295/80R22.5, 10+1 spare
Hydraulic System Pressure	≤16 MPa
Dump Angle	≥45°
Loading Cycle Time	Less than 15 seconds
Unloading Cycle Time	Less than 15 seconds
Control Method	Electronic control + manual
Body Material	Q235B carbon steel, 5mm thickness
Lead Time	30 days
Shipping Port	China main port
Payment	T/T

Build Materials

Materials

Q235B carbon steel for the body and container frame, 5mm thickness for structural strength
Q235A carbon steel for protective components and reinforcement plates
Cast iron or forged steel rollers for the swing arm, resistant to wear and impact
Hydraulic cylinders and valves made from high-strength steel with corrosion-resistant coating
Electrical components and control panels with weather-resistant casing

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and verified for wheelbase and drive configuration
Body shell is cut and welded from Q235B carbon steel, with internal reinforcement added
Hook lift system components are assembled and aligned with the chassis subframe
Hydraulic system is installed, including double cylinders, multi-way valve, and control lines
Three-way hydraulic control valve and electronic control unit are mounted in the cabin
Rear outrigger and safety devices (balance valve, double lock valve) are fitted
Final assembly includes tires, steering system, and body mounting to the chassis
All systems are tested under load with full cycle operation before delivery

Testing

Quality Control

Vehicle built to GB7965 performance requirements for waste collection vehicles
All hydraulic components tested under maximum pressure and load conditions
100 percent inspection of welds and structural joints using non-destructive testing
Final test includes full hook lift cycle, stability check with outrigger deployed, and safety valve function
Photos and videos of the completed truck sent to buyer before balance payment
Safety devices and control systems verified during final acceptance test

Build to Order

Customization Options

Container volume can be adjusted from 1 to 22 cubic meters based on customer needs
Number and type of garbage containers can be specified (standard, compacted, or specialized)
Left or right hand drive chassis to match local traffic regulations
Tank colour and logo applied free of charge upon request
Electronically controlled valve system available as an option
Additional safety or operational features can be added based on site conditions

Comparison

How It Compares With the Alternatives

4x2 hook loader with 10cbm capacity	Lower payload and fewer cycles per day but better fuel efficiency and easier to maneuver in tight urban areas
Standard dump truck with manual loading	Much slower cycle time and higher labor cost, but lower initial purchase price
Containerized waste collection vehicle with fixed body	No flexibility to swap containers, but simpler maintenance and lower operational complexity

Operating Notes

Use Guide

Confirm left or right hand drive chassis at order stage to match local traffic rules
Use only the designated container types and ensure they are within the 20-ton weight limit
Deploy rear outrigger before lifting or unloading to prevent chassis tipping
Check hydraulic fluid level and pressure before each shift to avoid system failure
Perform routine inspection of rollers, chains, and hydraulic hoses after every 100 hours of operation
Free operator training is available at the factory before shipment

Buyer Questions About This Truck

What is the lead time for this hook loader truck?

Generally 30 days after the advance payment is received. The exact date depends on chassis availability and the configuration specified.

Can the truck be right hand drive?

Yes. The chassis is available in left or right hand drive. Confirm your preference at order stage as it cannot be changed after production begins.

What is the maximum container weight this truck can lift?

The system is rated for up to 20 tons. Ensure the container and its contents do not exceed this limit.

Can I change the container size or type?

Yes. The standard is 18 or 20 cubic meters, but we can adjust the body to fit 1 to 22 cubic meter containers based on your needs.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms are EXW, FOB, CFR, or CIF depending on your preference.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year, and core parts for two years. Our overseas engineers conduct regular return visits and provide technical training and manuals before delivery.

Is electronic control available?

Yes. An electronically controlled valve system is available as an option for easier operation and maintenance.
