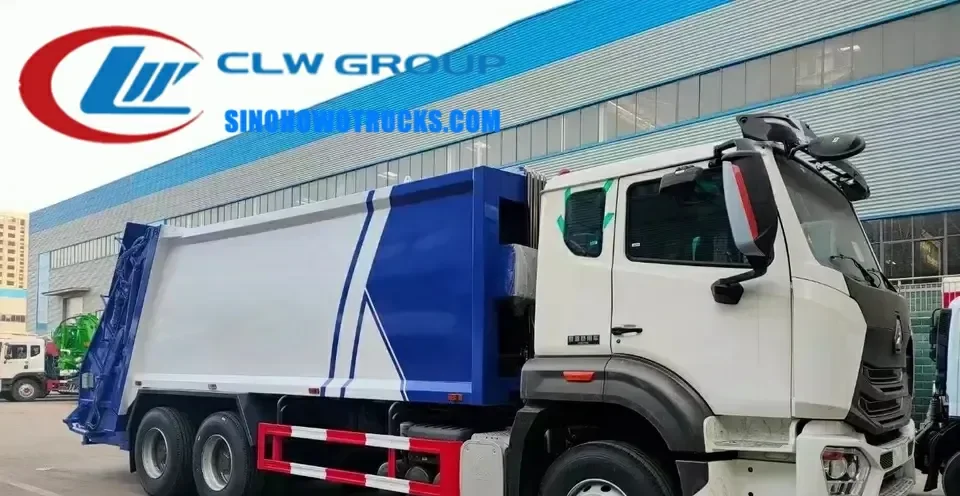

Sinotruk Hohan 20m3 rear-loading dumpster compactor truck in service colour with hydraulic container lifter

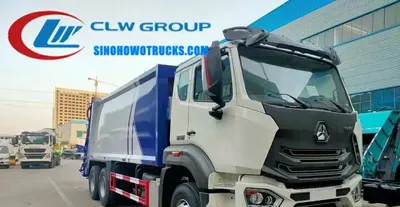

Rear view of the 20m3 compactor truck showing the hydraulic compaction door and sealed chamber

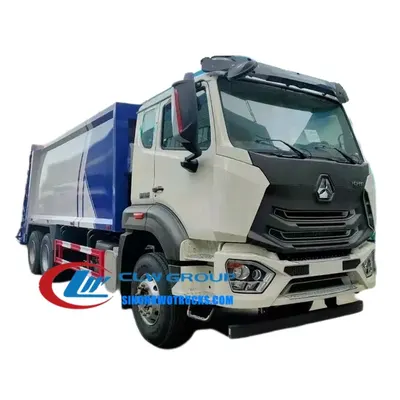

Side view of the compactor truck with hydraulic lifters and high-strength steel body

Sinotruk Hohan 20m3 dumpster compactor truck Pakistan

Name: Sinotruk Hohan 20m3 dumpster compactor truck Pakistan
Brand: Sinotruk HOWO

The Sinotruk Hohan 20m3 dumpster compactor truck is a 6x4 rear-loading waste compactor built on a 371 HP heavy-duty chassis for municipal sanitation departments and waste contractors operating in urban, industrial, and high-density areas. It handles daily refuse collection in cities, ports, airports, industrial zones, and military bases where frequent trips and tight schedules require efficient compaction and sealed transport. The truck compacts waste to reduce volume and eliminate spillage, odour, and secondary pollution during transit.

Request A Quote Email Specification

Key Benefits

20 cubic metre high-strength steel compactor body reduces transport trips by up to 40 percent
371 HP diesel engine and 10-speed manual gearbox deliver reliable performance on uneven urban and industrial roads
Siemens PLC control system ensures consistent compaction cycle and fault monitoring
Sealed compaction chamber prevents leakage, odour, and water runoff during transport
Euro 2 to Euro 5 emission standard compliance meets international environmental regulations
16-ton loading capacity supports high-volume waste routes without overloading
Rear-loading design with hydraulic lifters allows fast container exchange at collection points

Buyer Profile

Who It Is for

Municipal sanitation departments managing urban waste collection fleets
Private waste contractors operating under government or industrial contracts
Airports and seaports with in-house waste management teams
Industrial parks and mining companies with on-site waste handling needs
Large commercial complexes and shopping malls with daily waste output
Military installations and large residential communities with self-managed waste systems

Operating Problems

Problems It Solves

Frequent trips to landfills due to low compaction ratio and full bins
Odour and liquid leakage from unsealed waste during transport
Inconsistent compaction leading to uneven load distribution and safety risks
High fuel and labour costs from inefficient collection routes
Non-compliance with environmental standards due to outdated or unregulated trucks
Lack of remote monitoring and control in older compactor models

Where It Works

Application Scenarios

Municipal waste collection in densely populated city districts with limited access roads
Airport and port terminal waste management with high volume and tight schedules
Industrial parks and mining sites generating large daily waste volumes from workshops and canteens
Military bases and large residential compounds requiring daily refuse removal
Construction sites with continuous waste output from demolition and material handling
Remote or rural areas where long hauls to disposal sites make compaction essential

Engineering

Technical Features

6x4 rear-loading compactor with hydraulic container lifter and rear door
Siemens PLC control system for automated compaction cycle and fault alerts
High-strength carbon steel compaction chamber with reinforced frame
10-speed manual transmission with durable gearbox for heavy-duty use
371 HP diesel engine with 100,000 km overhaul interval
Compaction force of 120 kN to compress waste to 60 percent of original volume
Air and hydraulic systems integrated for smooth operation and reduced maintenance
Emission standards: Euro 2, 3, 4, 5 – compliant with international environmental rules
Rear-mounted compaction system with hydraulic ram and wear-resistant plates

Specifications

Technical Data


Chassis	Sinotruk Hohan 6x4, 371 HP diesel
Engine	371 HP diesel, 100,000 km overhaul interval
Transmission	10-speed manual
Overall Size	10500 x 2500 x 3600 mm
Gross Vehicle Weight	25000 kg
Loading Capacity	16 tons
Compactor Volume	20 m³
Tank Material	High-quality carbon steel
Emission Standard	Euro 2, 3, 4, 5
Fuel Type	Diesel
Drive Type	6x4
Control System	Siemens PLC
Lead Time	30 days
Shipping Port	China main port
Warranty	1 year on core components
Weight	9300 kg

Build Materials

Materials

High-strength carbon steel compaction chamber with welded frame for durability
Aluminium alloy panels on the cab and side doors for corrosion resistance
Wear-resistant steel plates on the compaction ram and hopper floor
Hydraulic cylinders with sealed joints to prevent fluid leakage
Siemens PLC control unit with IP65 rated enclosure for dust and moisture protection

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk Hohan and inspected for frame alignment and driveline integrity
Compaction chamber is cut, formed, and welded from high-strength carbon steel with internal reinforcement
PLC control system and hydraulic components are installed and tested for cycle accuracy
Hopper and rear door are assembled with hydraulic lifters and sealing strips
Body is shot blasted, primed, and painted in customer colour with logo applied free of charge
Full system test includes compaction cycle, hydraulic pressure, and PLC diagnostics
Final inspection includes photos and video of the completed truck before balance payment

Testing

Quality Control

All trucks undergo 100 percent testing before delivery
PLC and hydraulic systems are tested under full load and simulated operation
Compaction chamber is pressure tested for leaks and structural integrity
Emission levels are verified against Euro 2 to Euro 5 standards
Photos and videos of the finished truck are sent to the buyer before the balance payment
ISO 9001:2008 certified quality management system in place for production control

Build to Order

Customization Options

Compaction chamber volume can be adjusted between 3 and 20 cubic metres
Tank colour and logo applied free of charge to match client branding
Left or right hand drive chassis available based on local traffic rules
Hydraulic container lifters available in multiple configurations for different bin types
PLC control settings can be adjusted for compaction cycle duration and pressure
Custom equipment packages including additional hoses, nozzles, or cleaning systems

Comparison

How It Compares With the Alternatives

4x2 compactor with 12m3 capacity	Lower load capacity and fewer trips per day but better fuel efficiency and easier parking in narrow streets
Front-loading compactor	Better for automated collection but less effective on irregular or oversized bins and requires more space for turning
Standard dump truck with no compaction	Higher transport cost and more trips due to no volume reduction, but simpler maintenance and lower initial cost

Operating Notes

Use Guide

Confirm drive configuration (left or right hand) and emission standard before ordering
Use only approved hydraulic fluid and replace filters every 500 hours of operation
Inspect seals and door gaskets daily to prevent leakage and odour escape
Run compaction cycle only when the hopper is fully loaded to avoid overloading the system
Clean the compaction chamber and hydraulic lines after each shift to prevent residue buildup
Free operator training is available at the factory before shipment

Buyer Questions About This Truck

What is the lead time for this compactor truck?

Generally 30 days after the advance payment is received. The exact date depends on chassis availability and the equipment list you specify.

Can the compaction volume be changed from 20m3?

Yes. The standard is 20m3, but the chamber can be customised between 3m3 and 20m3 based on your waste volume needs.

What are your payment terms?

T/T with 30 percent as deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Do you supply right hand drive?

Yes. The chassis is ordered in left or right hand drive to match your traffic regulations. Confirm this at order stage because it cannot be changed later.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year and core components for one year. Our overseas engineers make regular return visits and provide technical training and manuals before delivery.

Can the tank colour and logo be changed?

Yes. The tank colour and logo are applied free of charge to match your branding or fleet identity.
