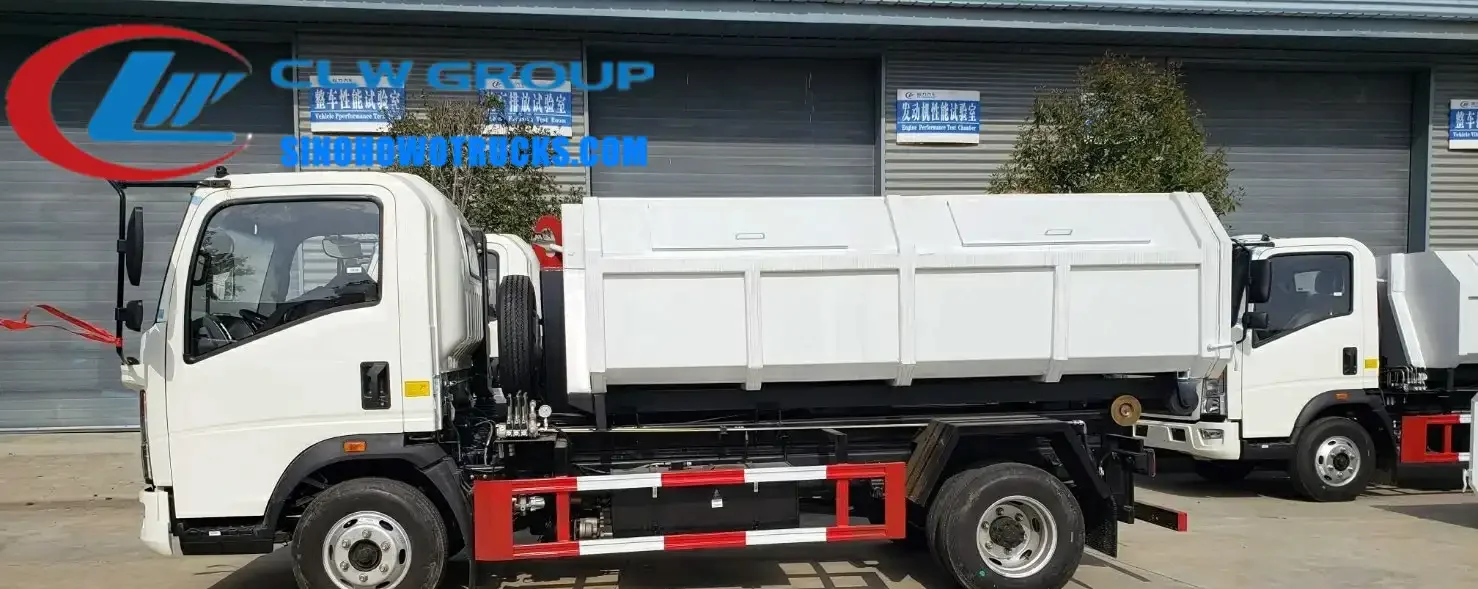

HOWO 5m3 mini hook loader garbage truck with detachable hopper in urban waste collection setting

Rear view of the HOWO mini hook loader showing the hydraulic hook boom and container locking mechanism

Side view of the HOWO 5m3 hook loader with open hopper and roller system in operation

HOWO 5m3 mini Hook loader Garbage Truck with Detachable Hopper

Name: HOWO 5m3 mini Hook loader Garbage Truck with Detachable Hopper
Brand: Sinotruk HOWO

The HOWO 5m3 mini Hook loader Garbage Truck with Detachable Hopper is a 4x2 light duty vehicle built on a Sinotruk HOWO chassis for municipal solid waste collection in residential communities, hospitals, and environmental stations. It handles detachable containers from 1 to 22 cubic meters and is designed for repeated roll-on and roll-off cycles in urban and semi-urban environments. The truck operates with a 156 HP diesel engine, 6-speed manual gearbox, and a high-strength hydraulic hook system that ensures reliable container handling under daily use conditions.

Request A Quote Email Specification

Key Benefits

4x2 Sinotruk HOWO chassis with 156 HP engine and Euro V emission standard for reliable urban operation
Detachable hopper design allows rapid container exchange without manual lifting
Hook boom and locking structure engineered for consistent performance over 500,000 km without overhaul
Hydraulic system with safety valves and double lock ensures secure container handling during lifting
Roll-on time under 60 seconds and roll-off time under 50 seconds for high throughput in tight schedules
Optional electronic control in cabin enables easy operation and maintenance from the driver’s seat
Cab and side operating positions allow flexibility in loading and unloading tasks
8 cubic meter carbon steel garbage box with 5mm thickness resists wear and deformation

Buyer Profile

Who It Is for

Municipal sanitation departments managing residential waste collection in cities and towns
Hospital and healthcare facility maintenance teams requiring sealed, efficient waste transport
Environmental protection agencies operating waste transfer stations and collection hubs
Private waste contractors bidding on municipal contracts with tight service windows
City planning departments upgrading fleets to meet emission and operational standards
Contractors supplying waste management services to commercial and industrial zones

Operating Problems

Problems It Solves

Manual container lifting that causes worker injury and slows collection cycles
Inconsistent container handling due to weak or poorly designed hook systems
Slow roll-on and roll-off times that delay route completion and increase fuel use
Lack of safety features during container lifting leading to accidents or damage
High maintenance frequency on older or poorly engineered hook loaders
Inflexible systems that cannot adapt to different container sizes or site layouts

Where It Works

Application Scenarios

Residential neighborhoods with limited access and narrow streets requiring compact waste collection vehicles
Hospitals and clinics generating regulated medical waste where container handling must be sealed and efficient
Municipal environmental departments managing waste collection routes with frequent container changes
Garbage transfer stations that require fast turnaround between container pickup and disposal
Urban areas with high pedestrian traffic where minimizing manual labor reduces safety risk
Remote or low-traffic zones where a small, agile truck with high reliability is needed for daily rounds

Engineering

Technical Features

4x2 Sinotruk HOWO light duty chassis with left hand drive and 3800 mm wheelbase
CY4SK251 156 HP diesel engine with Euro V emission standard and 6 forward speeds
Reinforced diaphragm clutch and power steering with hydraulic assistance
8 cubic meter carbon steel garbage box with 5mm thickness and welded internal structure
Hydraulic system with oil pump, cylinders, front and rear valves, pressure gauge, and filters
Roll-on time: 50–60 seconds, roll-off time: 40–50 seconds, unboxing time: under 15 seconds
Container dump time under 10 seconds with electronic and manual control options
Safety devices: loading balance valve, double hydraulic lock valve, safety controlling valve
Rear support device available for stability during container loading and unloading
Detachable hopper design allows use with multiple container types and sizes

Specifications

Technical Data


Chassis	4x2 Sinotruk HOWO light duty, left hand drive
Engine	CY4SK251, 156 HP, Euro V
Gearbox	6 forwards, 1 reverse
Overall Size	5880 x 2100 x 2390 mm
Wheelbase	3800 mm
Curb Weight	3895 kg
GVW	8275 kg
Max Speed	103 km/h
Garbage Box Volume	8 cbm
Box Material	Carbon steel Q235
Box Thickness	5 mm
Roll On Time	50–60 seconds
Roll Off Time	40–50 seconds
Unboxing Time	Less than 15 seconds
Dump Time	Less than 10 seconds
Control Method	Electronic control + manual
Operating Position	Cab + car side
Hydraulic System	Chinese brand, oil pump, cylinder, valves, gauge, filter, pipelines
Tire	7.50R16, 7 pcs including 1 spare
Approach Angle	20 degrees
Departure Angle	13 degrees
Axle Load	Front 3300 kg, Rear 4975 kg
Lead Time	30 days
Shipping Port	China main port
Payment	T/T

Build Materials

Materials

Carbon steel Q235 for the garbage box with 5mm thickness and welded internal structure
Cast iron or forged steel rollers for the hook system and container guide rails
Hydraulic components from a Chinese brand including oil pump, cylinders, valves, and filters
Aluminium alloy and steel used in the cab and frame for durability and corrosion resistance
Sealing strips and locking mechanisms made of rubber and steel for secure container retention

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and wheelbase is verified against the body drawing
Garbage box is cut from Q235 carbon steel and welded with internal supports to resist deformation
Box is tested for structural integrity and leak resistance before assembly
Hook boom and hydraulic system are installed and aligned with the chassis frame
Safety valves and locking mechanisms are tested under load to ensure reliable operation
Control panel and electronic system are installed and tested in the cab and side positions
Final assembly includes mounting of the rear support device and alignment of the roller system
Vehicle undergoes full functional test including roll-on, roll-off, and dump cycles before delivery

Testing

Quality Control

Every truck is 100 percent tested before delivery with full cycle operation
Hydraulic system pressure tested and leak checked under maximum load conditions
Safety valves and locking mechanisms verified during simulated container handling
Photos and videos of the finished truck sent to the buyer before balance payment
All components comply with GB and ISO standards for industrial vehicle safety and performance

Build to Order

Customization Options

Container capacity from 1 to 22 cubic meters available to match site needs
Detachable hopper design allows use with multiple container types and sizes
Garbage box material can be changed from carbon steel to stainless steel on request
Left or right hand drive chassis available to match local traffic regulations
Tank colour and logo applied free of charge to match municipal or contractor branding
Optional electronic control system in the cabin for easier operation and maintenance

Comparison

How It Compares With the Alternatives

Standard 3m3 compact garbage truck	Carries more waste per cycle but requires more space for turning and parking
Manual lift garbage truck	Eliminates worker injury risk and speeds up collection but requires higher initial investment
Fixed body waste truck	Better for consistent routes but cannot adapt to multiple container types or sizes

Operating Notes

Use Guide

Confirm left or right hand drive and chassis configuration before order to match local road rules
Use only the designated container types with the correct mounting points and locking mechanisms
Inspect hydraulic hoses and connections before each shift to prevent leaks or failure
Operate the hook system only at the recommended speed and load limits to avoid damage
Perform routine checks on safety valves and locking devices after every 100 cycles
Free operator training is available at the factory before shipment to ensure correct use

Buyer Questions About This Truck

What is the lead time for this garbage truck?

Generally 30 days after the advance payment is received. The exact date depends on chassis availability and the equipment list you specify.

Can the garbage box be made of stainless steel?

Yes. The standard box is Q235 carbon steel. Stainless steel is available on request. Let us know your waste type and storage duration for material confirmation.

What are your payment terms?

T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Do you supply right hand drive?

Yes. The chassis is ordered in left or right hand drive to match your traffic regulations. Confirm this at order stage because it cannot be changed later.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year and core parts on some products for two years. Our overseas engineers make regular return visits and provide technical training and manuals before delivery.

Can the container size be changed?

Yes. The standard box is 8 cubic meters, but containers from 1 to 22 cubic meters are available. Specify your required capacity at order stage.
