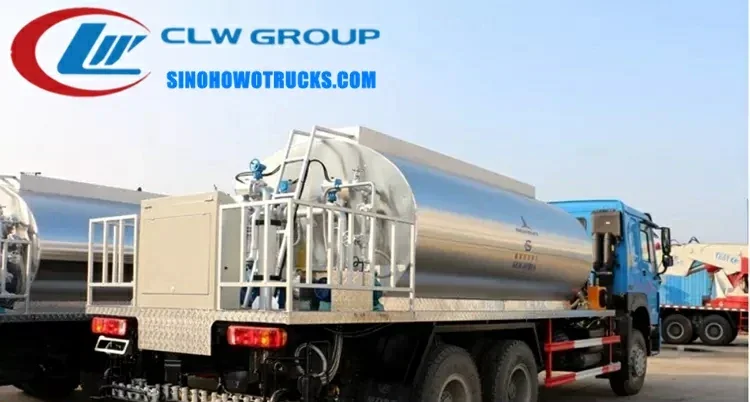

6x4 Sinotruk HOWO 16 ton emulsion distributor truck in road construction livery with rear spray system and control panel

Rear view of the asphalt distributor truck showing the 16000L tank and dual control platform

Cab interior of the HOWO emulsion distributor with computer control interface and speed sensor display

6×4 Sinotruk Howo 16 ton emulsion distributor truck for sale Laos

Name: 6×4 Sinotruk Howo 16 ton emulsion distributor truck for sale Laos
Brand: Sinotruk HOWO

The 6x4 Sinotruk HOWO 16 ton emulsion distributor truck is a heavy-duty road construction vehicle built on a robust HOWO chassis with a 310 HP D10.27-40 engine and 10 speed manual gearbox. It is designed for consistent, precise application of emulsified asphalt, fluxed asphalt, heated asphalt, and high viscosity modified asphalt during pavement maintenance and new road surfacing. The truck delivers controlled spray patterns across a 2 to 6 metre width, with automated flow adjustment based on vehicle speed and real-time monitoring from the cab. It is used by road agencies, contractors, and infrastructure departments in tropical and developing regions where durable, low-maintenance asphalt application is required.

Request A Quote Email Specification

Key Benefits

6x4 HOWO chassis provides high load capacity and stability on unpaved and rough road surfaces
310 HP engine ensures reliable performance under continuous operation in hot climates
Intelligent computer-controlled spray system adjusts flow rate automatically with vehicle speed
Spray width adjustable from 2 to 6 metres to match lane width and project requirements
Dual control system (cab and rear platform) ensures safe and accurate operation during spraying
Heat conduction oil system maintains asphalt temperature within ±2°C per hour for consistent viscosity
Automatic blowing device clears residual asphalt from pipes and nozzles after use
16000 litre tank capacity supports long continuous spraying runs without refill
Manual 10-speed gearbox offers better control in variable terrain and low-speed operations
Free tank colour and logo application to match client branding or fleet identity

Buyer Profile

Who It Is for

National and provincial road authorities in developing countries managing road networks
Contractors bidding on asphalt paving and maintenance tenders in Southeast Asia and Africa
Infrastructure development agencies working on rural road expansion and rehabilitation
Public works departments responsible for seasonal road sealing and surface protection
Private paving companies operating in high-temperature environments where asphalt viscosity is critical

Operating Problems

Problems It Solves

Inconsistent asphalt application due to manual spray control or fixed flow settings
Frequent refills required by small-capacity distributors on long road sections
Over-application or under-application caused by lack of real-time flow adjustment
Clogging of spray lines and nozzles from cooled or hardened asphalt after use
Poor performance on rough or unpaved access roads due to weak chassis or low ground clearance
Lack of dual control systems leading to operator error during spraying operations

Where It Works

Application Scenarios

National and provincial road maintenance departments conducting routine surface sealing on rural and secondary roads
Contractors building new asphalt layers on highways and urban streets in Laos and similar climates
Road rehabilitation projects in tropical regions where high temperatures affect asphalt consistency
Large-scale paving operations requiring continuous, uniform application over long stretches
Remote construction sites with limited access to asphalt supply depots and refilling infrastructure
Projects where precise control over spray volume and width is required to avoid over-application

Engineering

Technical Features

6x4 Sinotruk HOWO chassis with 310 HP D10.27-40 diesel engine and 10 speed manual gearbox
16000 litre asphalt tank with heat conduction oil heating system maintaining temperature within ±2°C per hour
QGB950 asphalt pump with 950 litres per minute capacity, manufactured in Belgium for imported configuration
Computer-controlled spray system with individual nozzle control and real-time flow adjustment
Spray width adjustable from 2 to 6 metres with no manual reconfiguration required
Dual control system: cab-mounted interface and rear platform control panel for redundancy
Automatic blowing device clears asphalt from pipes and nozzles after spraying
Modular design of control system reduces failure rate and simplifies maintenance
Tank volume: 14000L to 16000L depending on configuration, with 16000L standard
Overall dimensions: 10200 x 2500 x 3450 mm, suitable for standard road transport and port loading

Specifications

Technical Data


Model	CLW5251GLQZ4
Chassis	6x4 Sinotruk HOWO
Engine	D10.27-40, 310 HP
Displacement	9726 ml
Gearbox	Manual 10-speed
Total Weight	25000 kgs
Rated Load	8870 kgs
Curb Weight	16000 kgs
Overall Dimensions	10200 x 2500 x 3450 mm
Tank Volume	16000 Liters
Spray Width	2 to 6 metres
Max Speed	90 km/h
Approach Angle	16°
Departure Angle	13°
Front Axle Hanging	1500 mm
Rear Axle Hanging	2750 mm
Number of Axles	3
Wheelbase	4600 + 1350 mm
Tyre Size	9.00R20, 9.00-20
Number of Tyres	10
Asphalt Pump Model	QGB950 (950 l/min)
Pump Manufacturer	Belgium (imported), Zhejiang (domestic)
Control System	Computer-controlled with dual cab and rear platform interface
Heating System	Heat conduction oil system
Lead Time	20 days
Shipping Port	China main port
Payment	T/T

Build Materials

Materials

Belgium-made QGB950 asphalt pump with high-temperature resistant seals
Aluminium alloy control panel housing and rear platform structure
Heat-resistant rubber hoses and fittings in the spray system
Stainless steel nozzles and internal piping for corrosion resistance
High-strength steel frame and subframe for chassis integration

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and inspected for alignment and structural integrity
Tank is pressure tested and coated with anti-corrosion primer before installation
Heat conduction oil system and insulation layer are installed and tested for thermal efficiency
Asphalt pump, piping, and nozzle array are assembled and connected to the control system
Control system is calibrated with software to match spray rate to vehicle speed
Dual control interfaces (cab and rear platform) are tested for response and redundancy
Final assembly includes fitting of tyres, suspension, and rear platform access ladder
Full system test run conducted on factory apron: heating, pumping, spraying, and blowing
Photos and videos of the completed truck sent to buyer before balance payment

Testing

Quality Control

All trucks are 100 percent tested before delivery
Tank and piping systems undergo pressure and leak testing
Heating system tested for consistent temperature rise and stability
Spray system tested for uniformity, flow rate, and nozzle response
Control system verified for dual interface operation and fail-safe mode
Photos and videos of the finished truck provided before balance payment
Compliance with GB standards for road construction vehicles and asphalt application equipment

Build to Order

Customization Options

Tank volume can be adjusted between 14000L and 16000L based on project needs
Tank material can be upgraded to stainless steel upon request for corrosive or high-purity asphalt
Spray system can be configured as manual or computer-controlled based on operational preference
Cab and body colour can be changed to match client fleet livery
Logo and branding applied free of charge on tank and cab
Equipment package can be tailored to include additional hoses, nozzles, or cleaning tools

Comparison

How It Compares With the Alternatives

4x2 asphalt distributor with 8000L tank	Lower cost and better turning radius but requires more refills on long road sections
Manual spray system with fixed nozzles	Simpler to maintain but cannot adjust flow with speed and risks over-application
Used imported distributor	Higher initial cost but may have longer service life and better parts availability in some markets

Operating Notes

Use Guide

Confirm the chassis drive configuration and hand of drive before ordering to match local road rules
Fill the tank only through the designated inlet or manhole to prevent contamination
Start heating the asphalt at least 30 minutes before spraying to ensure proper viscosity
Use the computer control system to set spray width and flow rate based on vehicle speed
Engage the automatic blowing device after spraying to clear lines and prevent clogging
Drain the tank and flush the system after use in cold weather to avoid asphalt solidification

Buyer Questions About This Truck

What is the lead time for this emulsion distributor truck?

Generally 20 days after the advance payment is received. The exact date depends on chassis availability and equipment configuration.

What are your payment terms?

T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Do you supply left or right hand drive?

Yes. The chassis is ordered in left or right hand drive to match local traffic regulations. Confirm this at order stage as it cannot be changed later.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year and core parts on some products for two years. Our overseas engineers make regular return visits and provide technical training and manuals before delivery.

Can the spray system be manual instead of computer-controlled?

Yes. The system can be configured as manual or computer-controlled. Specify your preference at order stage.
