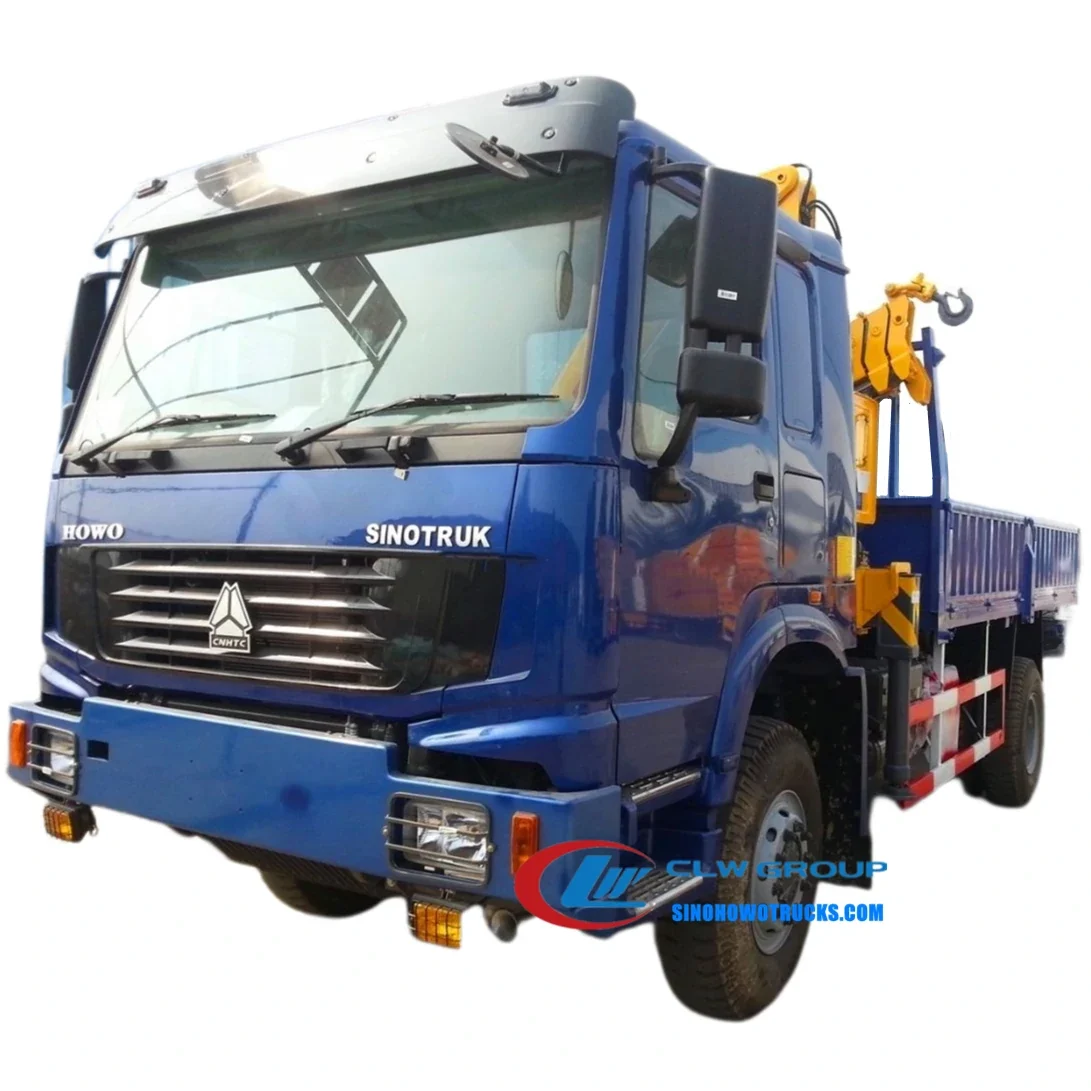

The 4WD Sinotruk HOWO offroad crane is a 12000 kg rated payload truck mounted crane built on a 4x4 chassis with a 266 HP diesel engine and 10 speed manual gearbox. It is designed for construction, quarry, and remote infrastructure projects where access roads are unpaved and lifting must be done without external crane support. The crane can rotate 360 degrees, extend and lift loads in challenging terrain, and is fitted with a high-strength steel boom and slewing system to maintain stability under load.
| Chassis | 4x4 Sinotruk HOWO, left or right hand drive |
|---|---|
| Engine | WD615.62, 266 HP, 6-cylinder diesel, inter-cooled, turbo-charged |
| Gearbox | 10 speed manual |
| Rated Payload | 12000 kg |
| Curb Weight | 10800 kg |
| Wheelbase | 5200 mm |
| Overall Size | 9000 x 2500 x 3600 mm |
| Box Dimension | 5600 x 2350 x 550 mm |
| Max Speed | 90 km/h |
| Crane Type | Telescopic or knuckle boom, optional |
| Crane Brand | Palfinger, XCMG, or Chengli (China’s top brand) |

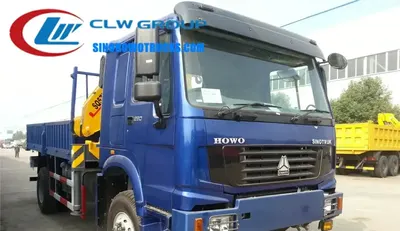

| Boom Design | Pentagon and hexagon, symmetrical center, high anti-bending capacity |
| Control Option | Radio remote control or top seat control, optional |
| Lead Time | 20 days |
| Shipping Port | China main port |
| Payment | T/T |
| Mobile crane with separate transport vehicle | Higher cost and longer setup time, but better lifting capacity and reach |
|---|---|
| 2WD truck mounted crane | Less stable on rough terrain and lower payload capacity, but lower purchase price |
| Truck with fixed crane attachment | Limited rotation and lifting range, less flexible for complex site layouts |
Generally 20 days after the advance payment is received. The exact date depends on crane configuration and chassis availability.
Yes. The chassis is available in left or right hand drive. Confirm your preference at order stage as it cannot be changed later.
Palfinger, XCMG, or Chengli (China’s top brand). You can select the brand based on your lifting needs and budget.
Yes. Radio remote control is an optional fitment and can be added during production.
By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.
The whole vehicle is guaranteed for one year and core parts for two years. Overseas engineers provide technical training and manuals before delivery.
Yes. You can choose between telescopic or knuckle boom crane during the order process.
Send us your destination port and we will quote price, lead time and freight.
