ST-SOM-001E OBDII Connector Brand SETOCONT

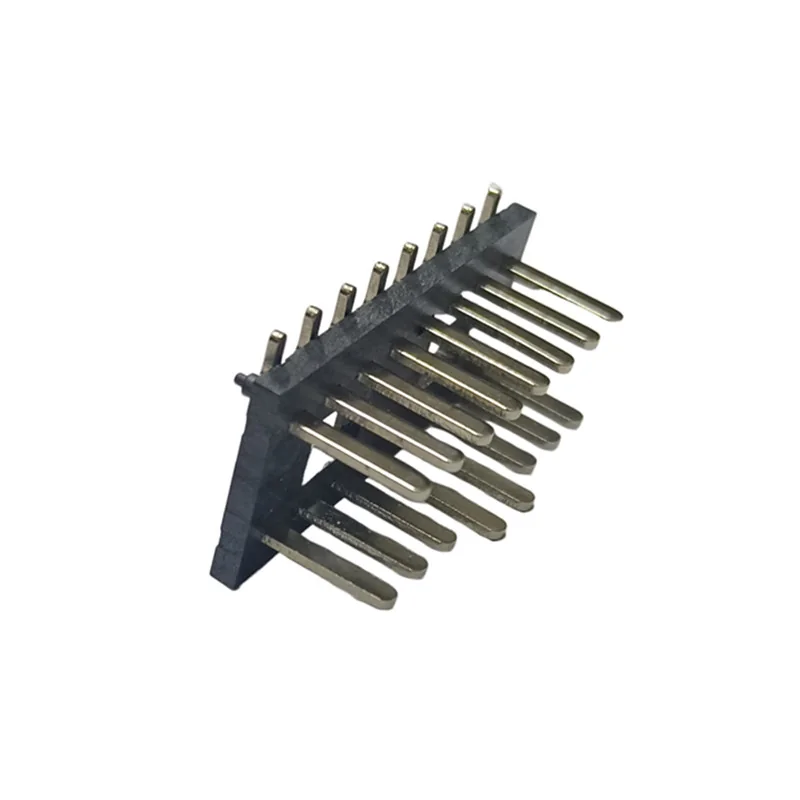

SMD Right Angle OBD Connector Male 16 Pin ST-SOM-001E

J1962 OBD Connector Male with 16 Pin Right Angle Nickel Plated Brass withstand High Temperature During SMD Process

Brand: SETOCONT
Name: OBD Connector Right Angle 16 Pin
Pin No.: 16
Pin Materials: Nickel Plated Brass
Pin Width: 1.8 mm
Plastic Materials: LCP
Packaging: 150 pieces Each Roll
Delivery Time: Based on Order Quantity

Housing moulded, terminal plated and cable crimped in our own factory — one accountable supplier. Inspected at incoming, in-process, final and outgoing stages before the carton is sealed. Pin configuration, plating, housing, cable and colour can all be changed on your drawing.

Description

What ST-SOM-001E is for

Right angle OBD connector 16 pin is a special designed J1962 male OBDII connector with 16 pins, the material can meet the requirements of fire resistance and high temperature resistance, so it is very suitable for reflow soldering process to solder PCB boards.

It belongs to our OBDII Connectors family, which means it shares tooling, terminal stock and inspection criteria with the other models in that range — so mixing parts across an assembly does not introduce a fit or plating mismatch.

Features

High quality J1962 OBD2 Connector male
Right angle 16 pins or less, nickel plated brass terminals
Plastic materials can be able to withstand high temperature
150 pcs each roll packing designed for SMD soldering
Compliant with CE, RoHS, FCC.

obd connectorobd connector male

Specification

Model	ST-SOM-001E
Color	Black
Pin No.	16
Pin Material	Nickel Plated Brass
Solder Resistance Temp	285℃
Heat Distortion Temp	280℃
Flammability	UL94 V-0

Need a value changed? Terminal plating, pin count, housing geometry and cable construction are tooling decisions we own in-house.

Gallery

ST-SOM-001E in detail

Production photographs of the actual part, not a render.

Questions buyers ask

Before you order ST-SOM-001E

How many pins does ST-SOM-001E have?

16 positions, to the J1962 layout. Populating fewer than the full count is a tooling option rather than a new part, so tell us the pin-out you actually need.

What are the terminals made of?

Nickel Plated Brass. Plating choice drives contact resistance and how many mating cycles the part survives, so it is stated on the drawing rather than left to the line.

Can this part be modified for my application?

Yes. Pin configuration, plating, housing and form factor, connector gender, cable and jacket, material and colour, and inline electronics such as resistors, LEDs or a small PCB are all things we change on request.

What is the delivery time?

Delivery is quoted against order quantity. Send the volume and the target date with your enquiry and we will confirm both before you place the order.

Do you supply samples before mass production?

Sampling runs through a dedicated channel — design review, material preparation and scheduling — using 3D printing, CNC machining or rapid prototyping, whichever proves your point fastest.
