ST-SOH-115 OBDII Case Brand SETOCONT

OBD Connector Female 16 Pin with Cover ST-SOH-115

J1962 OBD Connector Female with Cover

Brand: SETOCONT
Name: OBD Connector Female Assembled
Pin No.: 16 or less
Pin Materials: Nickel Plated Brass Pin
Plastic Materials: Nylon
Delivery Time: Based on Order Quantity

Housing moulded, terminal plated and cable crimped in our own factory — one accountable supplier. Inspected at incoming, in-process, final and outgoing stages before the carton is sealed. Pin configuration, plating, housing, cable and colour can all be changed on your drawing.

Description

What ST-SOH-115 is for

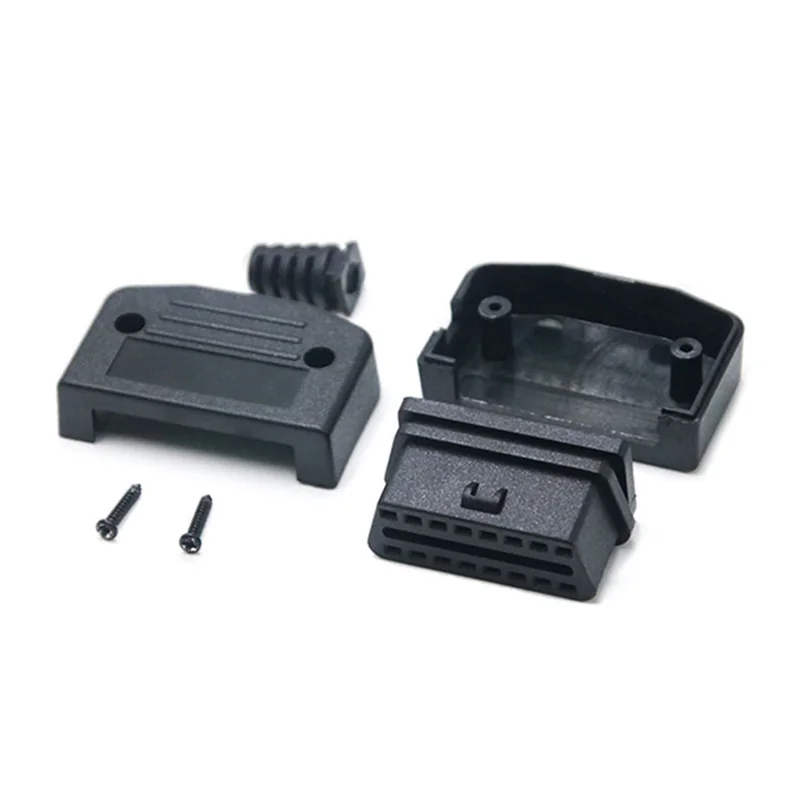

This is OBD connector female with cover + strain relief +screws + terminals, easy to be assembled and crimped to wires to extend OBD cables or integrated to OBD devices.

It belongs to our OBDII Case Connectors family, which means it shares tooling, terminal stock and inspection criteria with the other models in that range — so mixing parts across an assembly does not introduce a fit or plating mismatch.

Features

High quality J1962 OBD connector female with cover
16 pins or less terminals
Nickel plated brass terminals for crimp
Easy to be assembled with strain relief & screws
Compliant with CE, RoHS, FCC.

obd caseobd connectorobd connector femaleobd coverobd enclosureobd housing

Specification

Model	ST-SOH-115
Color	Black
Type	Female
Pin No.	16
Pin Material	Nickel Plated Brass
Plastic Material	Nylon
Flammability	UL94 V-2

Need a value changed? Terminal plating, pin count, housing geometry and cable construction are tooling decisions we own in-house.

Gallery

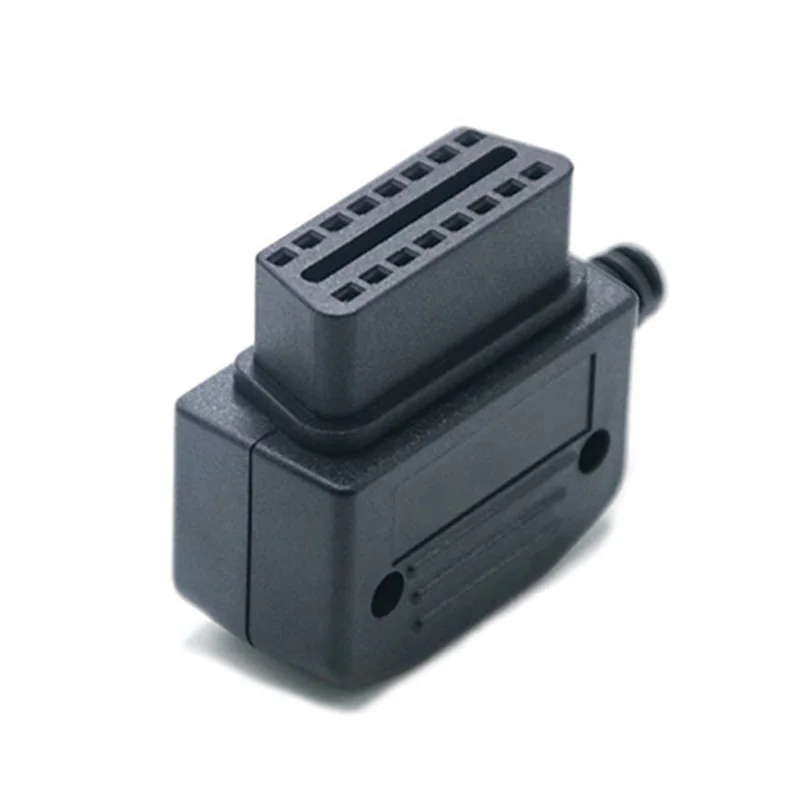

ST-SOH-115 in detail

Production photographs of the actual part, not a render.

Questions buyers ask

Before you order ST-SOH-115

How many pins does ST-SOH-115 have?

16 positions, to the J1962 layout. Populating fewer than the full count is a tooling option rather than a new part, so tell us the pin-out you actually need.

What are the terminals made of?

Nickel Plated Brass. Plating choice drives contact resistance and how many mating cycles the part survives, so it is stated on the drawing rather than left to the line.

Which plastic is the body moulded from?

Nylon. We mould the housing on our own tooling, which is why the material is fixed and traceable instead of varying between production lots.

Can this part be modified for my application?

Yes. Pin configuration, plating, housing and form factor, connector gender, cable and jacket, material and colour, and inline electronics such as resistors, LEDs or a small PCB are all things we change on request.

What is the delivery time?

Delivery is quoted against order quantity. Send the volume and the target date with your enquiry and we will confirm both before you place the order.

Do you supply samples before mass production?

Sampling runs through a dedicated channel — design review, material preparation and scheduling — using 3D printing, CNC machining or rapid prototyping, whichever proves your point fastest.
