ST-SOF-001-V2 OBDII Connector Brand SETOCONT

OBD Connector Female 16 Pin ST-SOF-001-V2

Name: OBD Connector Female

Name: OBD Connector Female
Pin No.: 16
Pin Materials: Nickel Plated Brass
Plastic Materials: Nylon
Packaging: 1 pieces Each Bag
Delivery Time: Based on Order Quantity

Housing moulded, terminal plated and cable crimped in our own factory — one accountable supplier. Inspected at incoming, in-process, final and outgoing stages before the carton is sealed. Pin configuration, plating, housing, cable and colour can all be changed on your drawing.

Description

What ST-SOF-001-V2 is for

This is a J1962 OBD connector female with 16 terminals, it’s used as OBD devices or obd cables or obd adapters.

It belongs to our OBDII Connectors family, which means it shares tooling, terminal stock and inspection criteria with the other models in that range — so mixing parts across an assembly does not introduce a fit or plating mismatch.

Features

High quality J1962 OBDII Connector female
Nickel plated 16 pin brass terminals
Compliant with CE, RoHS, FCC
OEM available for colors, pins, materials

obd connectorobd connector femaleobdii connector

Specification

Model	ST-SOF-001-V2
Color	Black
Pin No.	16
Pin Material	Nickel Plated Brass
Solder Resistance Temp	Customized
Heat Distortion Temp	Customized
Flammability	UL94 V-2

Need a value changed? Terminal plating, pin count, housing geometry and cable construction are tooling decisions we own in-house.

Gallery

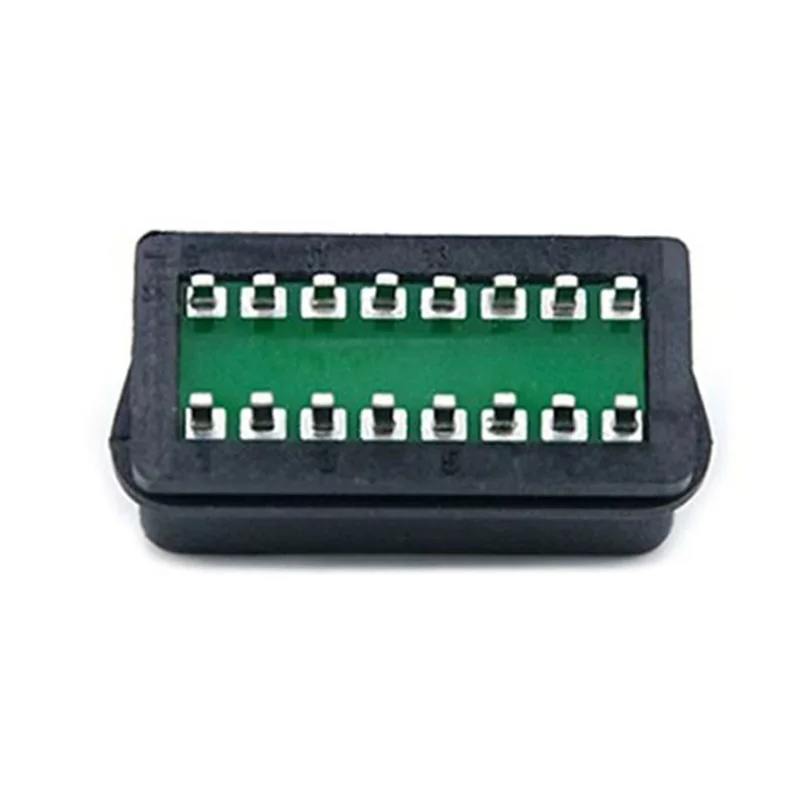

ST-SOF-001-V2 in detail

Production photographs of the actual part, not a render.

Questions buyers ask

Before you order ST-SOF-001-V2

How many pins does ST-SOF-001-V2 have?

16 positions, to the J1962 layout. Populating fewer than the full count is a tooling option rather than a new part, so tell us the pin-out you actually need.

What are the terminals made of?

Nickel Plated Brass. Plating choice drives contact resistance and how many mating cycles the part survives, so it is stated on the drawing rather than left to the line.

Can this part be modified for my application?

Yes. Pin configuration, plating, housing and form factor, connector gender, cable and jacket, material and colour, and inline electronics such as resistors, LEDs or a small PCB are all things we change on request.

What is the delivery time?

Delivery is quoted against order quantity. Send the volume and the target date with your enquiry and we will confirm both before you place the order.

Do you supply samples before mass production?

Sampling runs through a dedicated channel — design review, material preparation and scheduling — using 3D printing, CNC machining or rapid prototyping, whichever proves your point fastest.
