ST-SOM-102N OBDII Alloy Brand SETOCONT

Alloy Metal OBD Connector Male 16 Pin ST-SOM-102N

J1962 16 Pin Assembled OBD Connector Male with Megnetic Iron Plates

Brand: SETOCONT
Name: OBD Connector Male
Pin No.: 16
Pin Materials: Golden Plated Brass Terminals
Pin Width: 1.8 mm or 1.6 mm
Connector Materials: Nickel Plated Aluminum Alloy
Case Materials: Nickel Plated Aluminum Alloy
Delivery Time: Based on Order Quantity

Housing moulded, terminal plated and cable crimped in our own factory — one accountable supplier. Inspected at incoming, in-process, final and outgoing stages before the carton is sealed. Pin configuration, plating, housing, cable and colour can all be changed on your drawing.

Description

What ST-SOM-102N is for

The alloy metal OBD connector 16 pin is a special designed J1962 male OBDII connector with 16 pins, suitable to assembly it to auto diagnostic cables.

It belongs to our Alloy OBDII Range family, which means it shares tooling, terminal stock and inspection criteria with the other models in that range — so mixing parts across an assembly does not introduce a fit or plating mismatch.

Features

High quality J1962 OBD2 connector male
16 pins golden plated brass terminals
Aluminum alloy OBD connector & case
High resilient stainless steel strain relief
Easy to be soldered with wires and assembled
Compliant with CE, RoHS, FCC.

obd connectorobd connector male

Specification

Model	ST-SOM-102N
Pin No.	16
Pin Material	Golden Plated Brass
Connector	Nickel Plated Aluminum
Case	Nickel Plated Aluminum

Need a value changed? Terminal plating, pin count, housing geometry and cable construction are tooling decisions we own in-house.

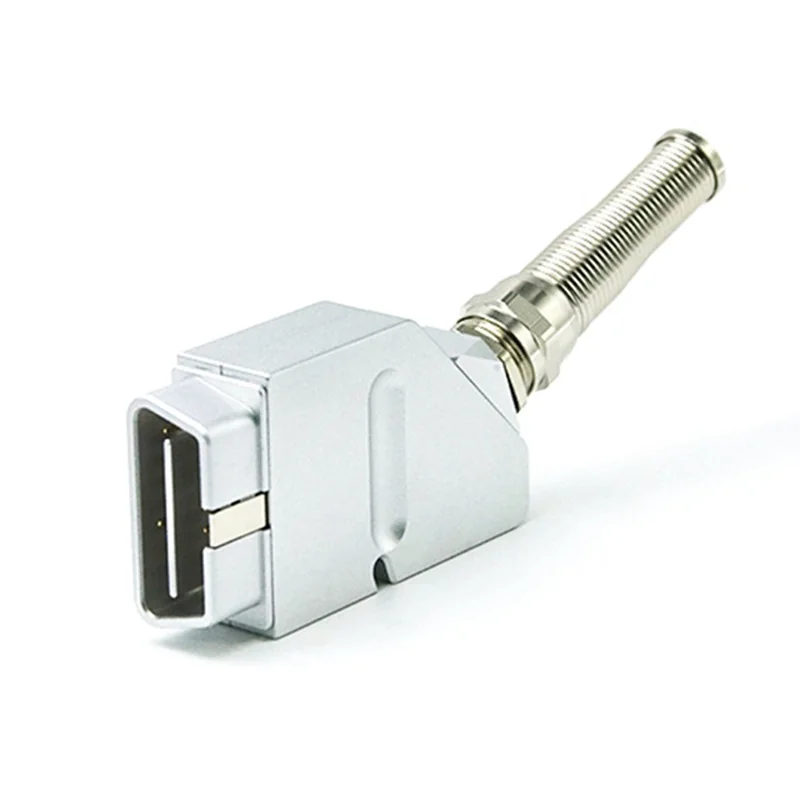

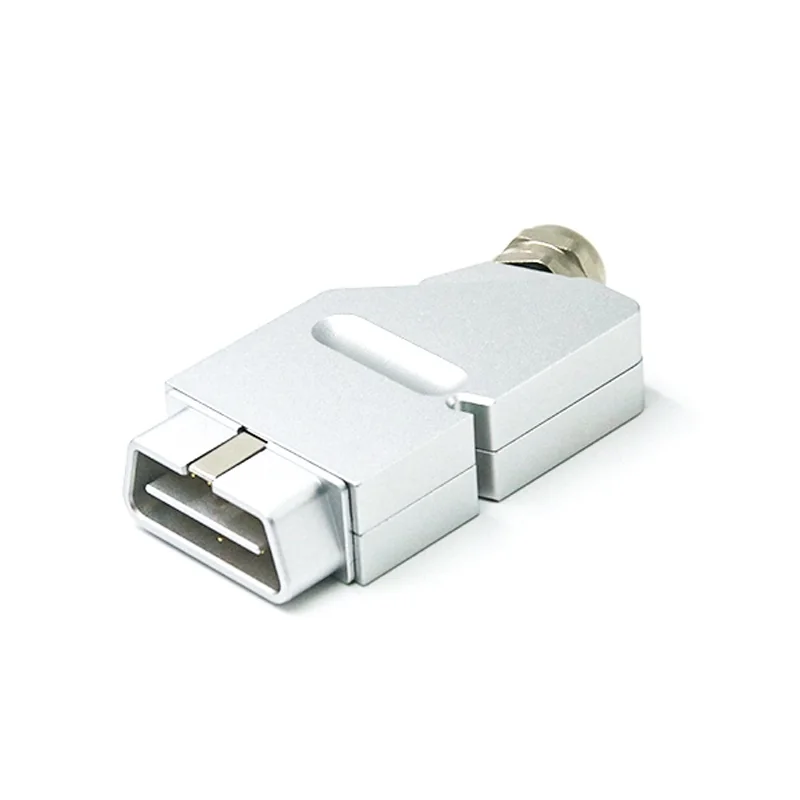

Gallery

ST-SOM-102N in detail

Production photographs of the actual part, not a render.

Questions buyers ask

Before you order ST-SOM-102N

How many pins does ST-SOM-102N have?

16 positions, to the J1962 layout. Populating fewer than the full count is a tooling option rather than a new part, so tell us the pin-out you actually need.

What are the terminals made of?

Golden Plated Brass. Plating choice drives contact resistance and how many mating cycles the part survives, so it is stated on the drawing rather than left to the line.

Which plastic is the body moulded from?

Nickel Plated Aluminum. We mould the housing on our own tooling, which is why the material is fixed and traceable instead of varying between production lots.

Can this part be modified for my application?

Yes. Pin configuration, plating, housing and form factor, connector gender, cable and jacket, material and colour, and inline electronics such as resistors, LEDs or a small PCB are all things we change on request.

What is the delivery time?

Delivery is quoted against order quantity. Send the volume and the target date with your enquiry and we will confirm both before you place the order.

Do you supply samples before mass production?

Sampling runs through a dedicated channel — design review, material preparation and scheduling — using 3D printing, CNC machining or rapid prototyping, whichever proves your point fastest.
