ST-101H-0210 OBDII Alloy Brand SETOCONT

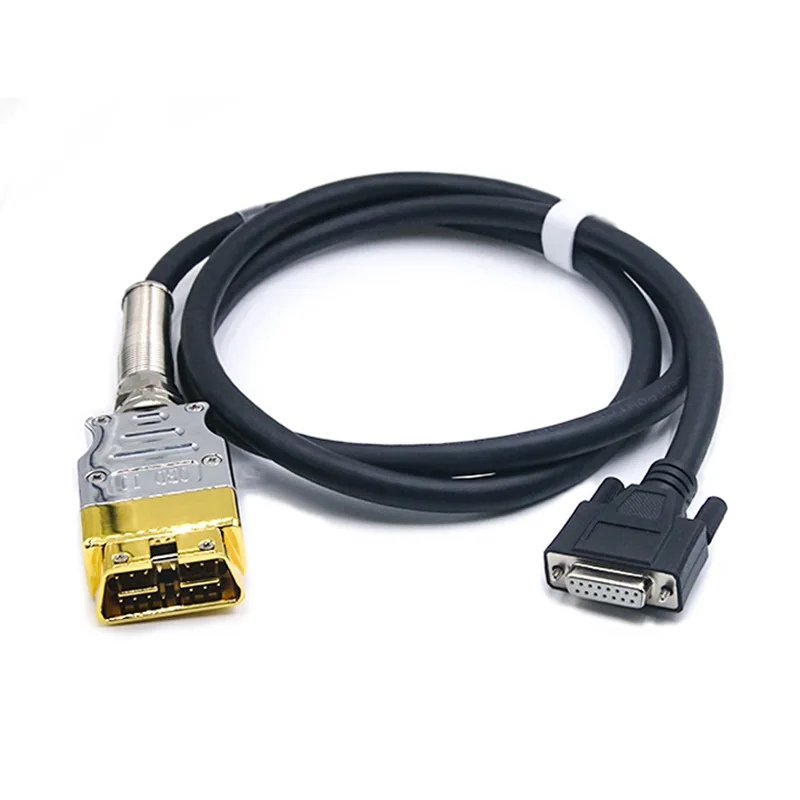

16 Pin OBD Cable to DB15 Pin ST-101H-0210

Name: OBD cable 16 pin male to DB 15 pin female

Name: OBD cable 16 pin male to DB 15 pin female
Pin No.: 16P
Connector: Alloy metal OBD connector
Cable Length: 100 cm
Packaging: 1 pieces Each Bag
Delivery Time: Based on Order Quantity

Housing moulded, terminal plated and cable crimped in our own factory — one accountable supplier. Inspected at incoming, in-process, final and outgoing stages before the carton is sealed. Pin configuration, plating, housing, cable and colour can all be changed on your drawing.

Description

What ST-101H-0210 is for

This is a 16 pin OBD extension cable, convert to DB15 pin connector, used for OBDII diagnostic tools.

It belongs to our Alloy OBDII Range family, which means it shares tooling, terminal stock and inspection criteria with the other models in that range — so mixing parts across an assembly does not introduce a fit or plating mismatch.

Features

High quality OBD extension cable
16 Pin male to DB15 Pin male connector
Easy to get Can signals from OBD device
Support customized wiring diagram for the definition
Compliant with CE, RoHS, FCC
OEM available for colors, pins, materials, length

obd cable

Specification

Model	ST-101H-0210
Color	Black
Pin No.	16 Pin
Connector	Male to Female
Pin Material	Golden Plated Brass
Length	30 cm, 60 cm, 150 cm or Customized
Heat Distortion Temp	Customized

Need a value changed? Terminal plating, pin count, housing geometry and cable construction are tooling decisions we own in-house.

Gallery

ST-101H-0210 in detail

Production photographs of the actual part, not a render.

Questions buyers ask

Before you order ST-101H-0210

How many pins does ST-101H-0210 have?

16 Pin positions, to the J1962 layout. Populating fewer than the full count is a tooling option rather than a new part, so tell us the pin-out you actually need.

What are the terminals made of?

Golden Plated Brass. Plating choice drives contact resistance and how many mating cycles the part survives, so it is stated on the drawing rather than left to the line.

Which plastic is the body moulded from?

Male to Female. We mould the housing on our own tooling, which is why the material is fixed and traceable instead of varying between production lots.

Can this part be modified for my application?

Yes. Pin configuration, plating, housing and form factor, connector gender, cable and jacket, material and colour, and inline electronics such as resistors, LEDs or a small PCB are all things we change on request.

What is the delivery time?

Delivery is quoted against order quantity. Send the volume and the target date with your enquiry and we will confirm both before you place the order.

Do you supply samples before mass production?

Sampling runs through a dedicated channel — design review, material preparation and scheduling — using 3D printing, CNC machining or rapid prototyping, whichever proves your point fastest.
