Disposable Infusion Set With 5 Micron Particulate Filter
A disposable infusion set that controls medication delivery through six core components: the infusion tubing that forms the fluid pathway and contacts the medication directly, the needle for vascular puncture, the...
Product overview
What This Product Is And Who It Is For

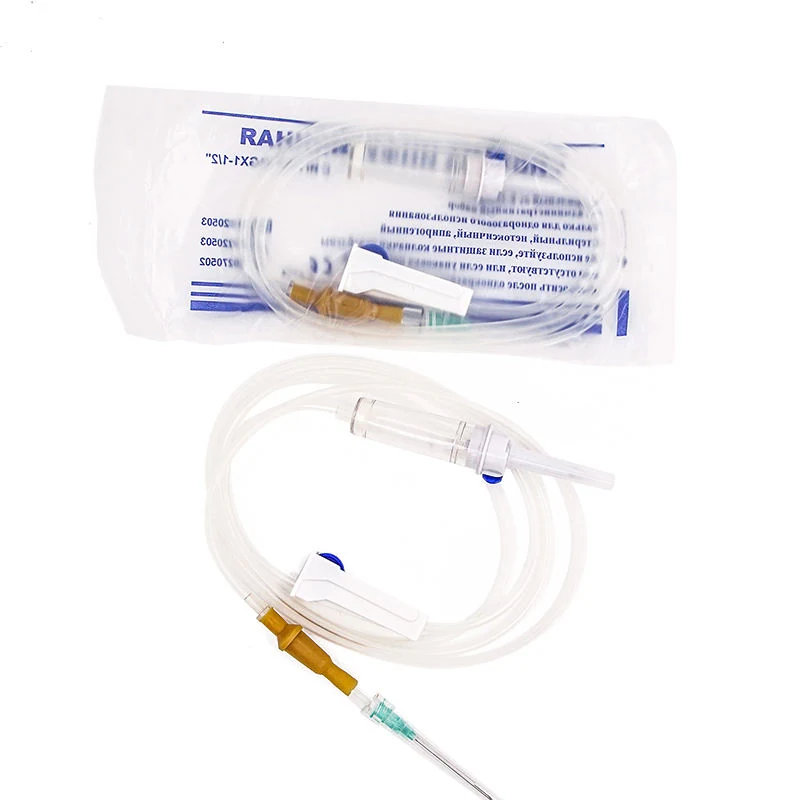

A disposable infusion set that controls medication delivery through six core components: the infusion tubing that forms the fluid pathway and contacts the medication directly, the needle for vascular puncture, the dropper for visual monitoring of the infusion, the particulate filter that intercepts foreign objects larger than 5 microns in diameter, the regulating clamp that sets flow rate by mechanically changing the tubing, and the air inlet. Where precise flow control is required, these traditional sets are used alongside infusion pumps.
Problems It Solves
- Particulate contamination reaching a vein is a patient safety issue, which the 5 micron filter addresses
- Flow rates drift without a visible check point, which the dropper chamber provides
- Electronic pumps fail during a power interruption, so mechanical clamp control remains available
- Reprocessed sets carry a cross-infection risk, so sets are single use
Who It Is For
- Hospital and clinic procurement departments
- Medical consumable importers and wholesalers
- Government and institutional tender buyers
- Private hospital groups
- Emergency medical service operators
Key benefits
Why Buyers Choose It
- The 5 micron particulate filter intercepts foreign objects before they reach the patient bloodstream
- Dropper chamber allows nursing staff to check the infusion rate at a glance without equipment
- Regulating clamp gives mechanical flow control that works during a power failure
- Single-use construction removes reprocessing and the cross-infection risk that comes with it
- Standard six-component construction is familiar to nursing staff, which reduces training need
- Compatible with pump-assisted infusion where precise flow control is required
Application scenarios
Where It Is Used
Scenarios
- Hospital ward and emergency department infusions
- Outpatient and day clinic treatment
- Operating theatre fluid administration
- Ambulance and patient transfer use
- Nursing home and long-term care facilities
- Distributor stock programmes and tender supply
Technical features
How It Is Built
- Infusion tubing forming the fluid pathway in direct contact with the medication
- Needle for vascular puncture
- Dropper chamber for visual monitoring of the infusion
- Particulate filter intercepting foreign objects larger than 5 microns
- Regulating clamp adjusting flow rate by mechanically changing the tubing
- Air inlet for vented administration
Specifications
Technical Data
| Product Type | Disposable infusion device |
|---|---|
| Core Components | Infusion tubing, needle, dropper, particulate filter, regulating clamp, air inlet |
| Filter Rating | Intercepts foreign objects larger than 5 microns |
| Flow Control | Mechanical regulating clamp |
| Use | Single use |
| Compatible With | Pump-assisted infusion where precise flow control is required |
Materials
- Medical grade PVC tubing
- Filter membrane
- Stainless steel needle
Manufacturing Process
- Extrusion
- Assembly
- Sterilisation
- Packing
Quality and compliance
Quality Control And Certification
Quality Control
- Filter performance is verified against the 5 micron interception specification
- Tubing and connection integrity are leak-tested
- Needle sharpness and finish are inspected on sampled units
- Sterile barrier packaging is checked before carton packing
- Batch and sterilisation records are held per lot
Customisation and comparison
Options And Alternatives
Customisation Options
- Tubing length and needle gauge selection
- Vented or non-vented configuration
- Pack and carton artwork under your brand
- Label and instruction language
- Export carton marks and palletising
Compared With Other Options
- Infusion pumps
- A gravity set is unaffected by power interruption and costs far less per infusion, while a pump gives precise flow control
- Sets without a particulate filter
- The 5 micron filter intercepts foreign objects before they reach the bloodstream
- Reusable administration sets
- Single use removes reprocessing cost and the associated cross-infection risk
Use guide
How To Use It Correctly
Step
Check the sterile packaging before opening and discard any damaged pack
Step
Close the regulating clamp before spiking the fluid container
Step
Prime the dropper chamber and tubing to remove air
Step
Set the flow rate using the regulating clamp and confirm it by counting drops
Step
Monitor the site and the dropper chamber during the infusion
Step
Dispose of the set and needle in clinical sharps waste after use
Related products
Other Products In Medical Consumables
Ostomy Bag With Activated Carbon Filter
A stoma bag used to collect urine or faecal output, built from three or more layers of co-extruded PE high-barrier film...
View product →
Clinical Thermometer Glass and Electronic Types
Clinical thermometers supplied in two types. The glass thermometer uses mercury in a bulb whose volume is much larger...
View product →
Medical Sealing Tape for Sterilisation Packaging
A medical sealing tape made from pure wood pulp natural materials that are non-toxic, non-irritating and highly...
View product →
Hemodialysis Catheters Temporary and Long Term
Hemodialysis catheters are the vascular access devices used to draw blood out of the body for purification and return...
View product →Related reading
Industries Solutions And Guides
Hospitals and Clinics
Hospital and clinic buyers work against tender deadlines, infection control rules and a budget split across...
Medical Distributors and Importers
A distributor is judged on whether the goods clear customs, whether the listing passes marketplace review,...
Hospital Department Outfitting
Equipping a ward, a theatre or an outpatient department means buying furniture, equipment and consumables...
Distributor and Private Label Sourcing
Building an own-brand medical or personal care range fails in two places: the compliance file for the...
How to Import Medical Devices From China
Importing medical goods follows the same steps as any import, with two differences that decide whether the...
How to Find a Reliable Medical Device Factory
A reliable factory delivers quality goods on time at a competitive price. Checking that before you order...
When a China Sourcing Agency Is Worth Using
A sourcing agency sits between a foreign buyer and Chinese manufacturers, bridging language and process gaps....
FAQ
Disposable Infusion Set With 5 Micron Particulate Filter FAQ
What does the particulate filter remove
It intercepts foreign objects larger than 5 microns in diameter before they can reach the patient bloodstream.
Can flow rate be set without a pump
Yes. The regulating clamp adjusts flow by mechanically changing the tubing, which continues to work during a power interruption.
Are vented and non-vented versions available
Yes. Configuration is selected with your order along with tubing length and needle gauge.
Are the sets supplied sterile
Sets are supplied in sterile barrier packaging with batch and sterilisation records held per lot.
Can packaging carry our brand
Yes. Pack and carton artwork, label content and instruction language can be produced under your brand.
What is the minimum order quantity
Minimum quantity depends on configuration and packaging. Send your requirement on WhatsApp for a confirmed figure.
