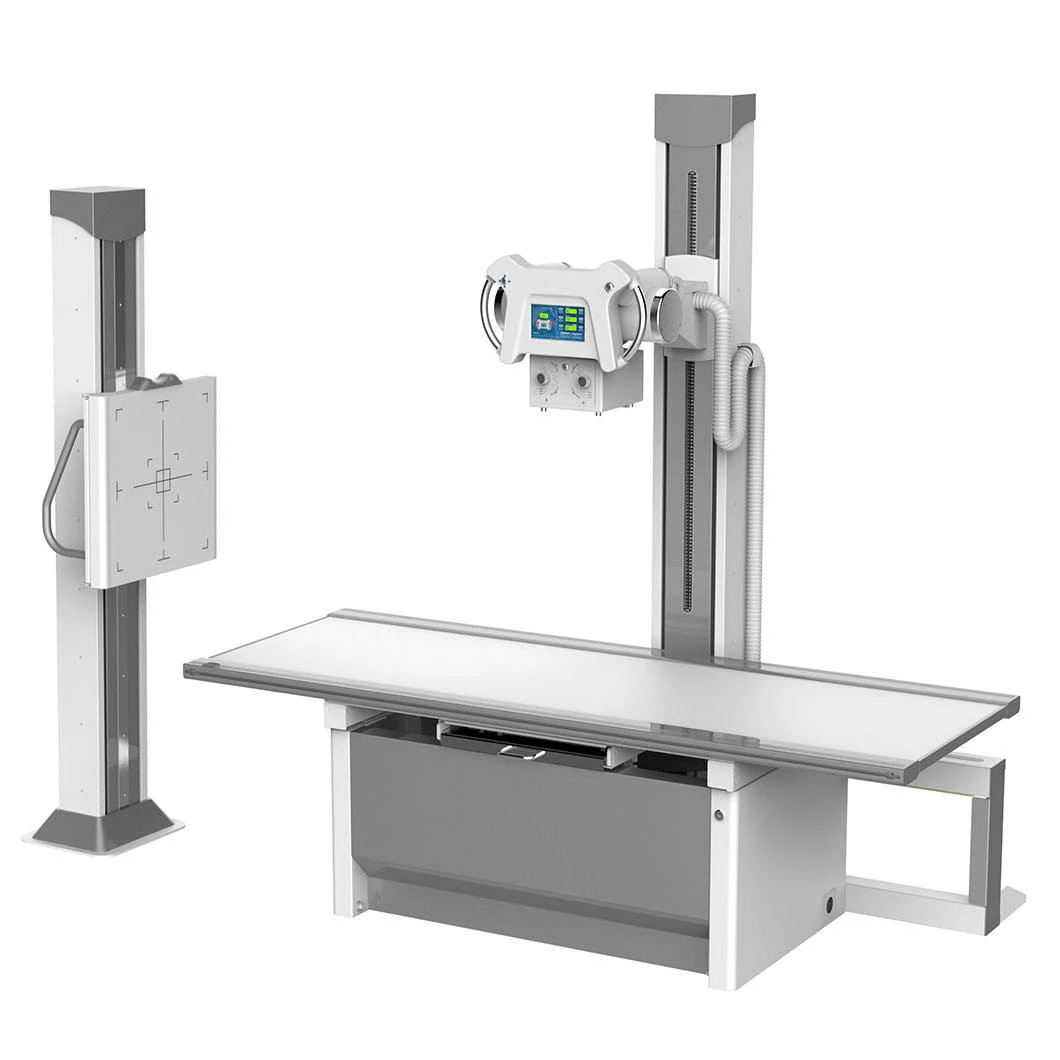

Bed Type X Ray Machine With AEC and DR Upgrade Interface
A bed type X-ray machine for orthopaedic departments, emergency rooms and operating theatres, used to image the head, limbs, chest, spine and lumbar spine. High kV, high current and high power give the penetration...
Product overview
What This Product Is And Who It Is For
A bed type X-ray machine for orthopaedic departments, emergency rooms and operating theatres, used to image the head, limbs, chest, spine and lumbar spine. High kV, high current and high power give the penetration needed for larger patients, and automatic exposure control with a choice of ionisation chamber keeps exposures consistent. Analogue to digital double loop control keeps operation simple, tube current calibrates automatically, the X-ray tube has a filament dormancy function to extend tube life, and a rich DR upgrade reserve interface protects the investment.
Problems It Solves
- Buying a film system today and a DR system later means replacing everything, which the DR upgrade interface avoids
- Underpowered generators cannot penetrate larger patients, so the system is specified high kV and high current
- Exposure varies between operators, which AEC standardises
- X-ray tube replacement is costly, so filament dormancy extends tube life
- Undiagnosed faults extend downtime, so self-diagnosis and protection are built in
Who It Is For
- Hospital radiology and orthopaedic departments
- Emergency departments and surgical centres
- Medical equipment distributors and tender agents
- Government and NGO hospital equipping programmes
- Private hospital groups
Key benefits
Why Buyers Choose It
- DR upgrade reserve interface means the system can move to digital radiography later without replacing the whole unit
- High kV, high current and high power give penetration for obese patients that lower-power units cannot achieve
- AEC with optional ionisation chambers keeps exposure consistent between operators and patient sizes
- Filament dormancy extends X-ray tube life, which is the most expensive consumable on the system
- Automatic tube current calibration removes a manual service adjustment
- Fault self-diagnosis and protection shorten the service call when something goes wrong
Application scenarios
Where It Is Used
Scenarios
- Orthopaedic department radiography
- Emergency room trauma imaging
- Operating theatre imaging
- Chest, spine and lumbar spine examinations
- Limb and head imaging
- Hospital equipping and tender supply
Technical features
How It Is Built
- Rich DR upgrade reserve interface
- Fault self-diagnosis and protection
- Automatic calibration of tube current
- X-ray tube filament dormancy function
- AEC function with different ionisation chambers as optional
- Analogue to digital double loop control
- High kV, high current and high power for strong penetration
Specifications
Technical Data
| Product Type | Bed type X-ray machine |
|---|---|
| Applications | Orthopaedics, emergency room, operating room |
| Anatomy Covered | Head, limbs, chest, spine, lumbar spine |
| Exposure Control | AEC with optional ionisation chambers |
| Control Method | Analogue to digital double loop control |
| Tube Features | Filament dormancy, automatic tube current calibration |
| Upgrade Path | DR upgrade reserve interface |
| Protection | Fault self-diagnosis and protection |
Quality and compliance
Quality Control And Certification
Quality Control
- Exposure output is verified at commissioning against the acceptance protocol
- AEC behaviour is tested with the supplied ionisation chamber configuration
- Tube current auto-calibration is checked during installation
- Self-diagnosis and protection functions are tested before shipment
Customisation and comparison
Options And Alternatives
Customisation Options
- Ionisation chamber configuration
- DR detector selection where the upgrade is taken at order
- Installation and commissioning support arrangement
- Manual and interface language
- Power supply, plug specification and crating plan
Compared With Other Options
- Systems without a DR upgrade interface
- This system can move to digital radiography later without replacing the whole installation
- Manual exposure systems
- AEC standardises exposure between operators and across patient sizes
- Lower power generators
- High kV, high current and high power penetrate larger patients that lower-power units cannot image well
Use guide
How To Use It Correctly
Step
Position the patient and select the anatomical programme before exposure
Step
Use AEC with the correct ionisation chamber for the anatomy being imaged
Step
Let the tube current auto-calibration complete during start-up
Step
Observe the department radiation protection protocol for staff and other patients
Step
Report any self-diagnosis code with the unit serial number when contacting service
Related products
Other Products In Radiation equipment and accessories
PET-CT Molecular and Anatomical Imaging System
A PET-CT system integrating positron emission tomography with spiral CT in one imaging session. PET supplies molecular...
View product →
Pulse Fourier Transform NMR Spectrometer
A pulse Fourier transform NMR spectrometer used to observe the chemical shift and hyperfine structure of the proton...
View product →
Open C Shaped Permanent Magnet MRI System MCI-050
A full open C-shaped MRI system, model MCI-050, built on a permanent magnet so no helium is required and operating cost...
View product →
C Arm X Ray Machine With Digital Radiography
A mobile C-arm X-ray system combining a high frequency high voltage generator with high precision digital pulse...
View product →Related reading
Industries Solutions And Guides
Diagnostic Imaging Centres
An imaging centre lives on throughput and on the patients it can actually scan. Systems that stall for tube...
Hospitals and Clinics
Hospital and clinic buyers work against tender deadlines, infection control rules and a budget split across...
Hospital Department Outfitting
Equipping a ward, a theatre or an outpatient department means buying furniture, equipment and consumables...
Export Logistics and After Sales
Qingdao sits next to the largest container port in North China, which is why import and export procedures and...
Questions to Ask a Medical Device Manufacturer Before Ordering
Ten questions that separate a supplier who has thought about your order from one who is quoting a price. Ask...
How Medical Ultrasound Equipment Works and How to Choose It
Ultrasound above 20,000 hertz is inaudible, highly directional and penetrates tissue. Diagnostic work uses 1...
FAQ
Bed Type X Ray Machine With AEC and DR Upgrade Interface FAQ
Can the system be upgraded to digital radiography
Yes. A rich DR upgrade reserve interface is provided so the move to DR does not require replacing the whole installation.
Does it have automatic exposure control
Yes, with different ionisation chambers available as an option depending on the anatomy your department images most.
How is X-ray tube life protected
The tube has a filament dormancy function, and tube current is calibrated automatically.
Can it image larger patients
The system is specified with high kV, high current and high power for strong penetration, which is what larger patients require.
Do you support installation
Installation and commissioning arrangements are confirmed with the order. Send your site details on WhatsApp.
What manual language is supplied
Manual and interface language are confirmed with your order.
Request A Quote For This Product
Send your quantity, destination market and any labelling requirement. We confirm stock, lead time and the documentation that travels with the goods.
